Outdoor LED lighting systems depend on more than selecting the correct LED strip and driver wattage.
Where the LED driver is installed matters too.
A driver may be designed for outdoor use, but that does not mean it should be installed anywhere simply because it has a weather-resistant enclosure.

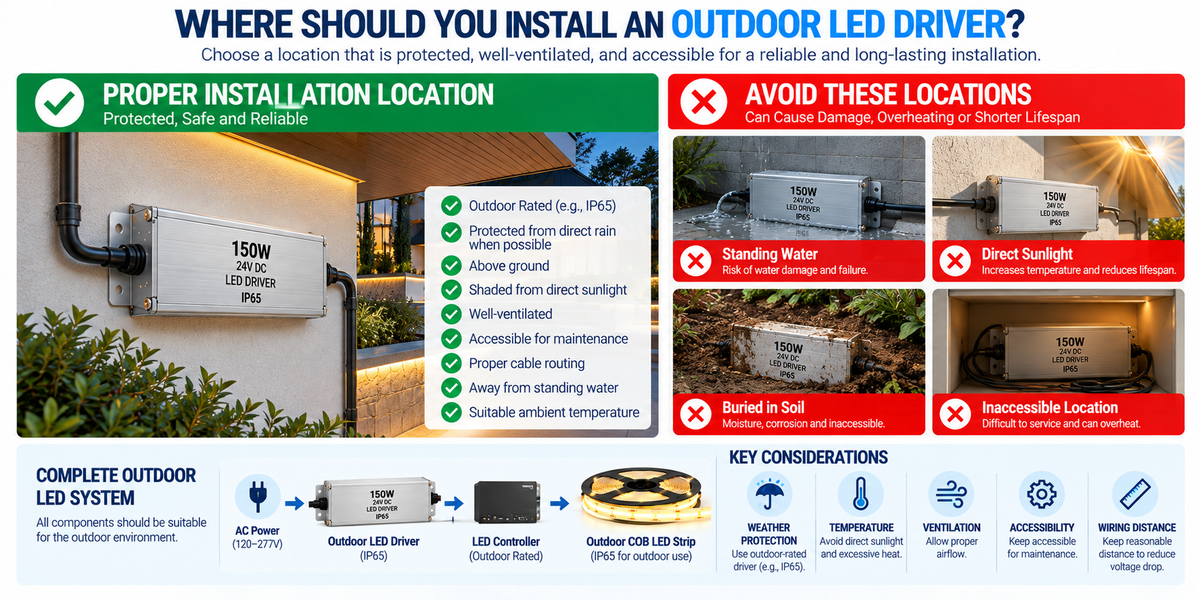

A good outdoor driver location should consider:
- Driver environmental rating
- Exposure to rain and water
- Heat and direct sunlight
- Ventilation
- Drainage
- Accessibility
- Distance from the LED load
- Voltage drop
- Wiring
- Connections
- Local electrical requirements
For contractors, electricians, landscape lighting installers, and commercial project designers, choosing the driver location before installation can prevent many reliability and maintenance problems later.
First: Is the LED Driver Rated for Outdoor Use?
Before choosing a location, check the driver's environmental rating.
A driver intended only for dry indoor locations should not simply be installed outdoors.
Look at the manufacturer's specifications for information such as:
- IP rating
- Wet- or damp-location suitability
- Operating temperature
- Enclosure requirements
- Mounting requirements
For outdoor projects, BrightNex commonly uses IP65-rated drivers where the application and product specifications call for that level of protection. These are available from 96W up to 300W, plus a 384W quad-channel model.
But understanding what IP65 means is important.
What Does IP65 Mean?
The IP rating describes protection against solid objects and water ingress.
For:
IP65
the first digit, 6, indicates a high level of protection against dust ingress.
The second digit, 5, indicates protection against water jets under specified test conditions.
However:
IP65 does not mean the driver can be submerged in water.
It also does not mean installation conditions can be ignored.
The complete installation still matters.
IP65 Is Not the Same as Waterproof Everywhere
This is a common misunderstanding.
An IP65 driver may be suitable for certain outdoor installations, but it should not automatically be installed:
- Underwater
- In locations that regularly flood
- Where water can continuously pool around it
- In applications outside its specified environmental conditions
Always use the product according to its listed ratings and manufacturer instructions.
A Protected Location Is Usually Better
Even when a driver is rated for outdoor use, reducing unnecessary environmental exposure can help create a better installation.
Whenever appropriate, consider locations such as:
- Under an architectural overhang
- Beneath a suitable canopy
- In a protected service area
- Inside an appropriate electrical enclosure
- Behind an accessible architectural feature
- In another location permitted by the product specifications
The goal is not simply to hide the driver.
The goal is to provide:
Protection + Ventilation + Accessibility + Appropriate Wiring Distance
Avoid Locations Where Water Can Pool
Do not treat an outdoor driver like a component that can simply sit in standing water.
Avoid low locations where:
- Irrigation water accumulates
- Rainwater collects
- Snowmelt pools
- Drainage is poor
- Landscaping creates water pockets
Even when an enclosure has a suitable environmental rating, avoiding unnecessary standing-water exposure is good installation practice.
Mount the Driver Securely
An outdoor LED driver should generally be securely mounted according to the manufacturer's instructions.
Do not leave the driver:
- Loose on the ground
- Hanging from wires
- Resting unsecured behind landscaping
- Moving inside an enclosure
A secure installation helps protect:
- Electrical connections
- Cables
- Driver enclosure
- Mounting points
It also makes future service easier. Drivers with an integrated junction box provide a defined mounting and wiring point.
Keep the Driver Off the Ground When Appropriate
In many outdoor installations, mounting the driver above ground level can reduce exposure to:
- Standing water
- Mud
- Landscape debris
- Irrigation runoff
- Snow accumulation
The exact mounting height and method depend on:
- Project conditions
- Product requirements
- Electrical codes
- Enclosure design
The important principle is to avoid unnecessary environmental exposure.
Direct Rain Exposure Should Be Considered
If the driver is rated for the intended exposure, outdoor installation may be permitted.
However, where practical, additional architectural protection can reduce direct exposure to:
- Rain
- Wind-driven water
- Snow
- Debris
Do not add covers or enclosures that violate manufacturer requirements or trap excessive heat.
Environmental protection and thermal management need to work together.
Direct Sunlight Can Increase Driver Temperature
Water is not the only outdoor concern.
Heat can be equally important.
A driver mounted on a wall in direct afternoon sunlight can become significantly hotter than the surrounding air.
The enclosure absorbs solar radiation while the driver's electronics also generate heat internally.
This can create:
Ambient Heat + Solar Heat + Driver Heat
For this reason, a shaded location may be preferable when practical and consistent with installation requirements. Our guide on how temperature affects LED driver lifespan covers this in detail.
Avoid Unnecessarily Hot Locations
Examples can include:
- Dark metal surfaces exposed to direct sun
- Unventilated rooftop spaces
- Small sealed boxes in direct sunlight
- Locations near HVAC exhaust
- Areas near heat-producing equipment
Check the driver's specified operating temperature range, which is listed on each driver product page.
Outdoor rating does not mean unlimited temperature tolerance.
Ventilation Still Matters Outdoors
It may seem that outdoor equipment automatically has good airflow.
That is not always true.
A driver may be installed inside:
- A small enclosure
- A cabinet
- A wall cavity
- A sign
- Architectural millwork
Heat can accumulate in these spaces.
Always consider how the driver will dissipate heat. Spreading the load across several smaller transformers also spreads out the heat.
Be Careful With Additional Enclosures
Sometimes a driver is installed inside a secondary weather-resistant electrical enclosure.
This can provide additional protection, but it can also change the thermal environment.
For example:
Outdoor Driver → Sealed Box → Direct Sun
may create a very hot internal environment.
The enclosure must be appropriate for:
- Electrical installation
- Environment
- Heat dissipation
- Wiring
- Service access
Do not assume that adding another sealed box automatically improves the installation. A driver with a factory-integrated junction box can meet the wiring-enclosure requirement without adding a second sealed box around the unit.
Keep the Driver Accessible
One of the biggest installation mistakes is hiding a driver where it cannot be serviced.
LED drivers may eventually need:
- Inspection
- Testing
- Wiring checks
- Replacement
- Troubleshooting
Avoid permanently burying or enclosing serviceable equipment behind finished construction unless the installation method and applicable requirements specifically permit it.
A good location is:
Hidden from normal view but accessible for service.
Do Not Bury an LED Driver in Soil
Unless a specific product is expressly designed and approved for such an installation, a typical outdoor LED driver should not simply be buried in the ground.
Soil introduces:
- Moisture
- Drainage problems
- Corrosion conditions
- Difficult service access
- Heat-transfer considerations
For landscape projects, use an installation method specifically designed for the environment.
Think About Snow Too
In colder climates, outdoor installations must consider more than rain.
A low-mounted driver may become surrounded by:
- Snow
- Ice
- Meltwater
A location that looks dry during summer may behave very differently during winter.
Consider year-round environmental conditions when choosing the mounting location.
Irrigation Systems Are Easy to Forget
Landscape lighting drivers are sometimes installed near:
- Sprinklers
- Drip irrigation
- Garden beds
A location may be protected from rain by an overhang but still receive water every morning from a sprinkler.
Before mounting the driver, check:
Where does irrigation water actually travel?
This simple inspection can prevent unnecessary exposure.
Driver Orientation Can Matter
Some drivers have manufacturer-specified mounting orientations.
Orientation may affect:
- Water shedding
- Drainage
- Cable entry
- Heat dissipation
Follow the mounting instructions for the specific product.
Do not assume every sealed driver can be installed in any orientation.
Cable Entry Should Not Encourage Water Intrusion
Outdoor wiring should be arranged carefully around the driver and enclosure.
Poor cable routing can allow water to travel along the wire toward an electrical connection.
Depending on the installation, appropriate cable routing and approved fittings can help manage water exposure.
Always follow the driver's installation instructions and applicable electrical requirements.
Use Proper Outdoor Connections
An IP-rated driver does not make every connection around it weather-resistant.
The complete system includes:
AC Supply → Driver → Low-Voltage Wiring → Controller if Used → LED Load
Connections and components must be suitable for their location and intended environment.
A weather-resistant driver combined with an inappropriate exposed connection still creates a poor outdoor system. Connection quality also affects the appearance of the finished line of light.
The Controller Needs Protection Too
Outdoor LED systems may use:
- Single-color controllers
- CCT controllers
- RGB controllers
- RGBW controllers
- RGB+CCT controllers
- Amplifiers
Each component has its own environmental rating.
Do not assume the controller can be installed next to an outdoor-rated driver unless the controller is also suitable for that location or appropriately protected. Most low-voltage RF controllers are rated for dry indoor locations only.
Keep the Driver Reasonably Close to the LED Load
There is another important factor:
Suppose the driver is installed far away from the LED strip.
The low-voltage cable between:
Driver → LED Strip
has resistance.
Long cable runs can cause voltage loss, especially when:
- Current is high
- Wire gauge is too small
- Distance is long
Therefore, the driver location should balance:
Environmental Protection
with:
Low-Voltage Wiring Distance
Example: Driver 100 Feet Away
Suppose a 24V LED strip is installed outdoors, but the driver is located 100 feet away.
Even if the driver is perfectly protected indoors, the long low-voltage cable run may create significant voltage drop depending on:
- Load current
- Wire gauge
- Cable length
The system may require:
- Larger wire
- Different driver placement
- Multiple drivers
- Different power-feed architecture
Do not choose the driver location based only on convenience.
Why 24V Helps With Longer Runs
For the same power, a 24V system requires less current than a 12V system.
For example:
120W at 12V = 10A
120W at 24V = 5A
Lower current can help reduce conductor voltage drop.
This is one reason 24V LED strip systems are commonly useful in larger architectural projects, and why every strip in our COB range is 24V.
But even 24V systems still require proper wire sizing and distance calculations.
Driver Location vs. Strip Run Length
There are actually two different distances to consider:
Distance 1
Driver → LED Strip
This affects feeder-wire voltage drop.
Distance 2
Beginning of LED Strip → End of LED Strip
This affects voltage drop along the LED strip itself.
Both need to be considered.
Moving the driver closer solves only the first issue.
Multiple Drivers May Be Better for Large Outdoor Projects
Imagine a commercial outdoor project with LED lighting around:
- Walkways
- Architectural walls
- Outdoor seating
- Landscape features
Instead of using:
One Large Driver → Very Long Low-Voltage Cables
it may be better to distribute multiple appropriately protected drivers closer to different lighting zones.
For example:
Driver A → Zone A
Driver B → Zone B
Driver C → Zone C
Potential benefits include:
- Shorter low-voltage wiring
- Reduced voltage drop
- Easier zoning
- Easier troubleshooting
The exact design depends on the project. Our IP65 driver range runs from 96W to 384W, so each zone can be matched to its own load.
Keep Drivers Away From Physical Damage
Outdoor equipment can also be damaged mechanically.
Avoid locations where the driver could be:
- Stepped on
- Hit by landscaping equipment
- Damaged by carts or vehicles
- Struck during maintenance
- Crushed by stored materials
A protected mounting location can reduce these risks.
Consider Landscaping Maintenance
A driver hidden behind shrubs may seem like a good idea.
But ask what happens when:
- The landscaping crew trims the bushes
- Irrigation is repaired
- Mulch is replaced
- Snow is cleared
Wires and drivers should not be placed where routine maintenance is likely to damage them.
Example: Outdoor Patio Lighting
Suppose COB LED strips are installed around an outdoor patio.
A suitable driver location might be:
- Protected from direct rain where practical
- Above areas where water can collect
- Shaded from intense sunlight
- Accessible for service
- Reasonably close to the LED load
The installer should also verify:
- Driver IP rating
- LED strip rating
- Connection protection
- Controller rating
- Wire size
The entire system—not just the driver—must suit the outdoor environment. A waterproof IP65 aluminum channel provides additional protection for the strip itself.
Example: Commercial Building Facade
A building facade may use long runs of architectural LED strip lighting.
Installing one central driver very far from every lighting section can create long low-voltage wire runs.
A better project design may distribute drivers in accessible service locations closer to their respective lighting zones.
This can help simplify:
- Wiring
- Voltage-drop management
- Maintenance
- Troubleshooting
A 384W quad-channel IP65 driver can also feed four separate facade sections from one weather-rated unit.
Example: Landscape Lighting
Consider LED strips integrated into landscape walls or steps.
The driver should not simply be placed on the soil behind the wall.
A better installation would use an appropriate protected and accessible location based on:
- Product rating
- Drainage
- Irrigation
- Heat
- Electrical requirements
Landscape environments can expose equipment to more moisture than expected. For step and wall details, a recessed floor profile is designed to take foot traffic.
Example: Outdoor Signage
Outdoor signage may contain drivers inside the sign structure.
In this case, consider:
- Internal temperature
- Ventilation
- Water entry
- Driver access
- Wire routing
A sealed sign exposed to direct sunlight can become very hot.
The fact that the driver is protected from rain does not eliminate the thermal issue.
Example: Rooftop Installation
Rooftops can create demanding environmental conditions.
Potential issues include:
- Direct sunlight
- High surface temperatures
- Rain
- Snow
- Wind
- Limited shade
If a driver is required in this environment, verify that the product and installation method are specifically suitable for those conditions.
Should You Put an Outdoor Driver Inside a Box?
Sometimes, yes—but not automatically.
An appropriate enclosure may help protect electrical equipment.
However, it must be selected and installed correctly.
Consider:
- Enclosure environmental rating
- Driver temperature
- Ventilation requirements
- Cable entry
- Drainage
- Service access
- Electrical code requirements
Putting a driver in a random sealed plastic box is not a professional outdoor installation strategy.
Should the Driver Be Indoors Instead?
If the project allows it, locating the driver in an appropriate indoor service area can provide excellent environmental protection.
However, the low-voltage cable distance to the LEDs must then be evaluated.
Indoor placement can be useful when:
- Driver access is easy
- Wire distance is reasonable
- Voltage drop can be controlled
- The lighting layout supports centralized power
For large outdoor projects, distributed outdoor-rated drivers may sometimes be more practical.
Do Not Install the Driver Only Based on Appearance
It is natural to want the driver completely hidden.
But hiding it should come after:
- Environmental suitability
- Thermal management
- Electrical safety
- Wiring distance
- Accessibility
A perfectly hidden driver that overheats or cannot be serviced is not a good installation.
Outdoor Driver Placement Priorities
A useful order of priorities is:
1. Correct environmental rating
↓
2. Appropriate electrical installation
↓
3. Protection from unnecessary water exposure
↓
4. Suitable operating temperature
↓
5. Accessible location
↓
6. Reasonable distance to LED load
↓
7. Hidden or visually unobtrusive placement
Appearance comes after system reliability.
Common Outdoor Driver Installation Mistakes
Avoid:
- Using an indoor-only driver outdoors
- Assuming IP65 means submersible
- Leaving the driver on the ground
- Installing where water pools
- Ignoring sprinkler exposure
- Mounting in direct intense sun when a better location is available
- Putting the driver in an enclosure that traps excessive heat
- Burying a standard driver in soil
- Hiding the driver where it cannot be serviced
- Using excessively long low-voltage cable without checking voltage drop
- Forgetting controller environmental ratings
- Using unsuitable outdoor connections
- Ignoring snow and ice
- Ignoring manufacturer mounting instructions
Outdoor Driver Installation Checklist
Before choosing the final location, confirm:
Driver
- Correct output voltage
- Sufficient wattage
- Appropriate environmental rating
- Suitable operating temperature
- Correct dimming method
- Manufacturer mounting instructions reviewed
Location
- Protected from unnecessary water exposure
- No standing water
- Drainage considered
- Irrigation considered
- Direct sunlight considered
- Snow and ice considered
- Physical damage unlikely
Thermal Conditions
- Heat can dissipate appropriately
- Enclosure does not create excessive temperature
- Nearby heat sources considered
Electrical
- AC connection suitable for location
- Low-voltage connections suitable for environment
- Correct wire gauge
- Voltage drop checked
- Controller appropriately rated
Maintenance
- Driver remains accessible
- Wiring can be inspected
- Driver can be replaced if necessary
A Good Outdoor Installation Protects the Entire System
Remember that an outdoor LED installation is not just:
LED Strip + Driver
It may include:
AC Power
↓
↓
↓
↓
Connections
↓
↓
Every component and connection must be appropriate for its environment.
The outdoor rating of one component does not protect everything else.
Conclusion
The best place for an outdoor LED driver is not simply the closest hidden location.
A properly selected location should balance:
Weather Protection + Temperature + Drainage + Accessibility + Wiring Distance + Voltage Drop + Physical Protection
Even when using an IP65-rated driver, avoid unnecessary exposure to standing water, extreme heat, irrigation, and locations where the unit cannot be serviced.
For large outdoor commercial installations, distributing multiple drivers closer to different lighting zones may also be more practical than using one central driver with very long low-voltage cable runs.
Most importantly:
Follow the environmental rating and installation requirements of the specific driver.
A well-designed outdoor LED system considers the driver, controller, wiring, connections, LED strips, and mounting environment together.
That approach can create a cleaner, safer, more serviceable, and more reliable installation. If you are specifying an outdoor project, contact our team for IP-rated product selection and wholesale pricing.
Frequently Asked Questions
Can an IP65 LED driver be installed outdoors?
An IP65 rating provides specified protection against dust and water jets, but outdoor suitability must still be confirmed from the manufacturer's specifications and installation instructions.
Can I leave an IP65 LED driver in the rain?
Do not assume the IP rating alone permits every type of outdoor exposure. Follow the manufacturer's installation requirements and reduce unnecessary direct exposure where practical.
Can an outdoor LED driver sit on the ground?
It is generally better to avoid locations where water, mud, snow, irrigation, or debris can accumulate around the driver. Follow the manufacturer's mounting instructions and applicable electrical requirements.
Can I bury an outdoor LED driver?
Do not bury a typical driver unless the specific product and installation system are expressly designed and approved for that application.
Should an outdoor LED driver be installed in direct sunlight?
Direct sunlight can increase enclosure temperature. A shaded location may be preferable when practical, provided it meets all other installation requirements.
Can I put an outdoor LED driver inside a weatherproof box?
An appropriate enclosure may be useful, but thermal conditions, environmental ratings, wiring, drainage, and service access must all be considered.
How far can an LED driver be from the LED strip?
There is no universal distance. It depends on voltage, load current, wire gauge, cable length, and allowable voltage drop.
Is it better to install the LED driver indoors?
Indoor placement can provide better environmental protection when the layout allows it, but long low-voltage cable runs must be checked for voltage drop.
