The 384W LED Driver is engineered for large-scale lighting installations requiring multiple independent outputs and stable dimming performance.

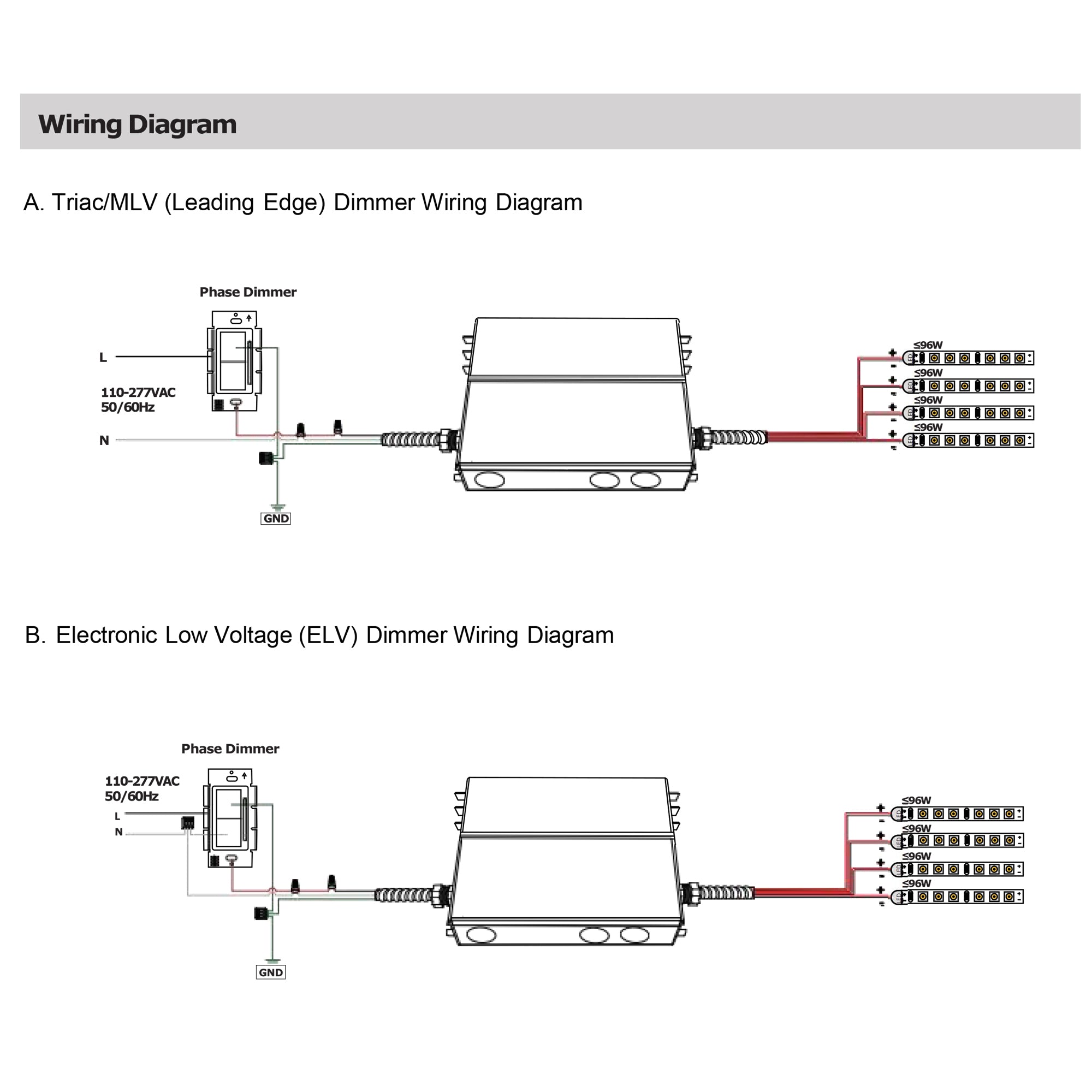

This unit provides four separate constant voltage channels, each rated at 96W, delivering a total power capacity of 384 watts. It supports universal phase dimming technologies including:

• Forward Phase (TRIAC)

• Reverse Phase

• ELV

• MLV

With a high-frequency PWM output at 4000Hz, the driver ensures steady, flicker-free illumination across a wide dimming range from 0.1% up to full brightness.

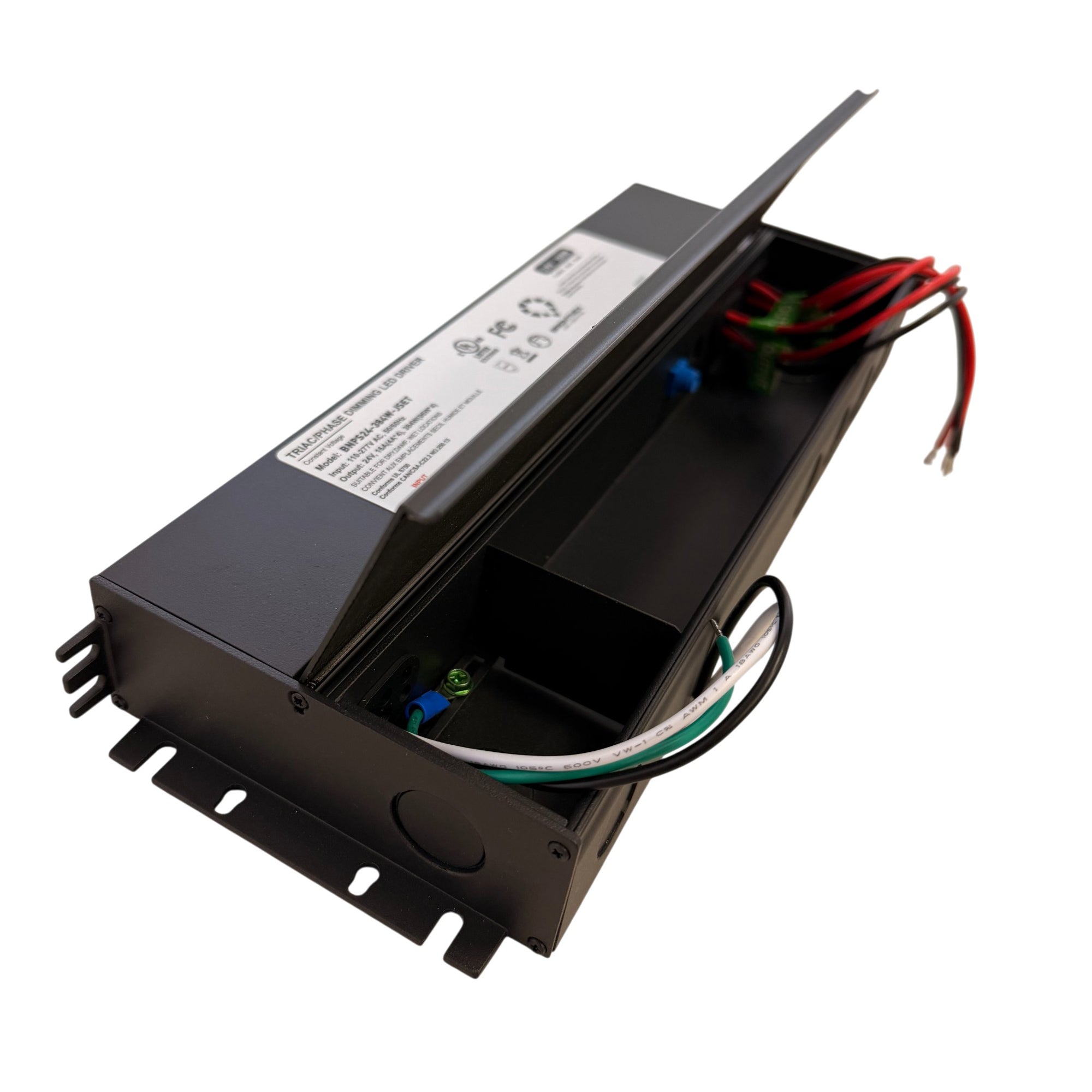

Built for durability, the aluminum enclosure enhances heat dissipation while the IP65/NEMA 4X rating allows installation in dry, damp, or wet locations.

---

PERFORMANCE HIGHLIGHTS

• Total Output: 384W (4 Independent Channels)

• Output Options: 24V DC

• Universal Input: 110–277VAC

• 0.1%–100% Smooth Dimming

• Constant Voltage Design

• 4000Hz Stable PWM Output

• Power Factor up to 0.99

• Efficiency up to 93%

• Adjustable Output Voltage Fine-Tuning

• Short Circuit & Thermal Protection

• Class 2 & Class P Compliant

• UL8750 Certified

• JA8 / Title 24 Compliant


---

TECHNICAL DATA

Electrical Specifications

• Input Voltage: 110–277VAC

• Frequency: 47–63Hz

• Max Efficiency: 93%

• THD: <15%

• PF: >0.95

Output Specifications

• Total Rated Power: 384W

• Channel Rating: 96W per channel

• Voltage Tolerance: ±0.5V

• Load Regulation: ±1%

Environmental Ratings

• Operating Temperature: -40°C to +60°C

• IP65 Protection Level

• NEMA 4X Enclosure

• Suitable for Outdoor Installations

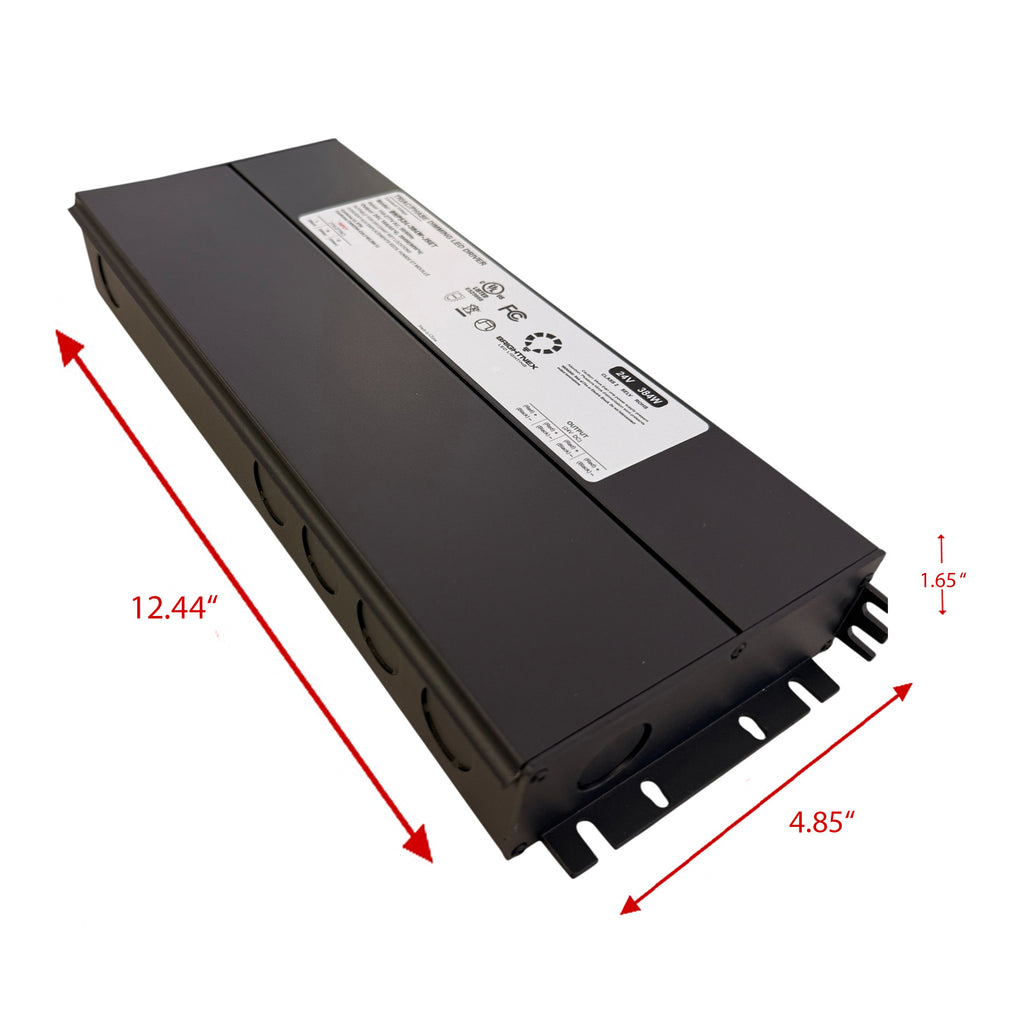

Dimensions

12.44” (L) × 4.85” (W) × 1.65” (H)

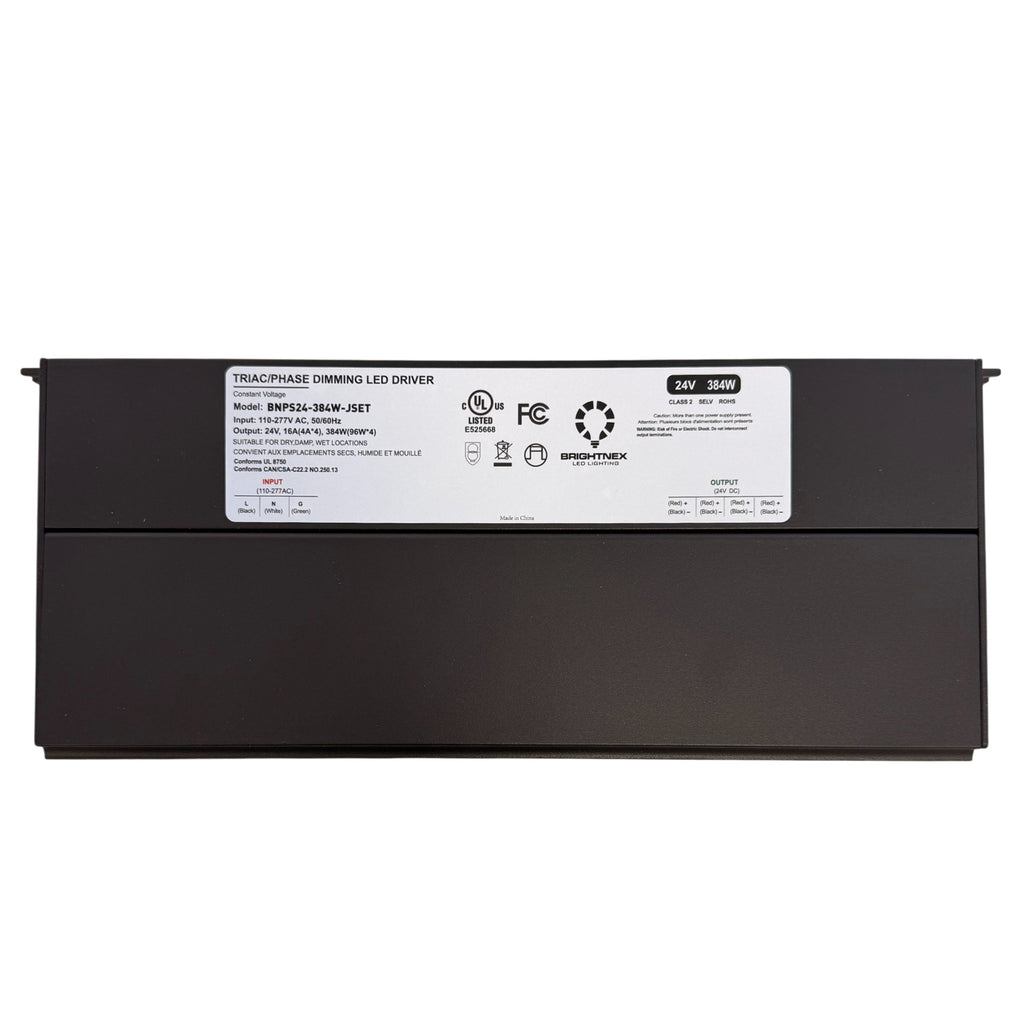

Part Number:
BNPS24-384W-JSET
