A well-designed lighting system rarely depends on only one type of fixture.

LED downlights are excellent for providing broad, functional illumination from the ceiling, while LED strips can add indirect, linear, task, and architectural lighting.

Used together, they can create a more flexible and visually balanced space.

The key is understanding that these two lighting types should usually perform different jobs.

A successful design might use:

LED Downlights → General Illumination

and:

COB LED Strips → Indirect / Accent / Task Lighting

Instead of making every fixture compete to produce maximum brightness, layered lighting allows each component to contribute to the overall environment.

For contractors, electricians, designers, and commercial project buyers, combining downlights and LED strips properly can improve both the appearance and functionality of a lighting project.

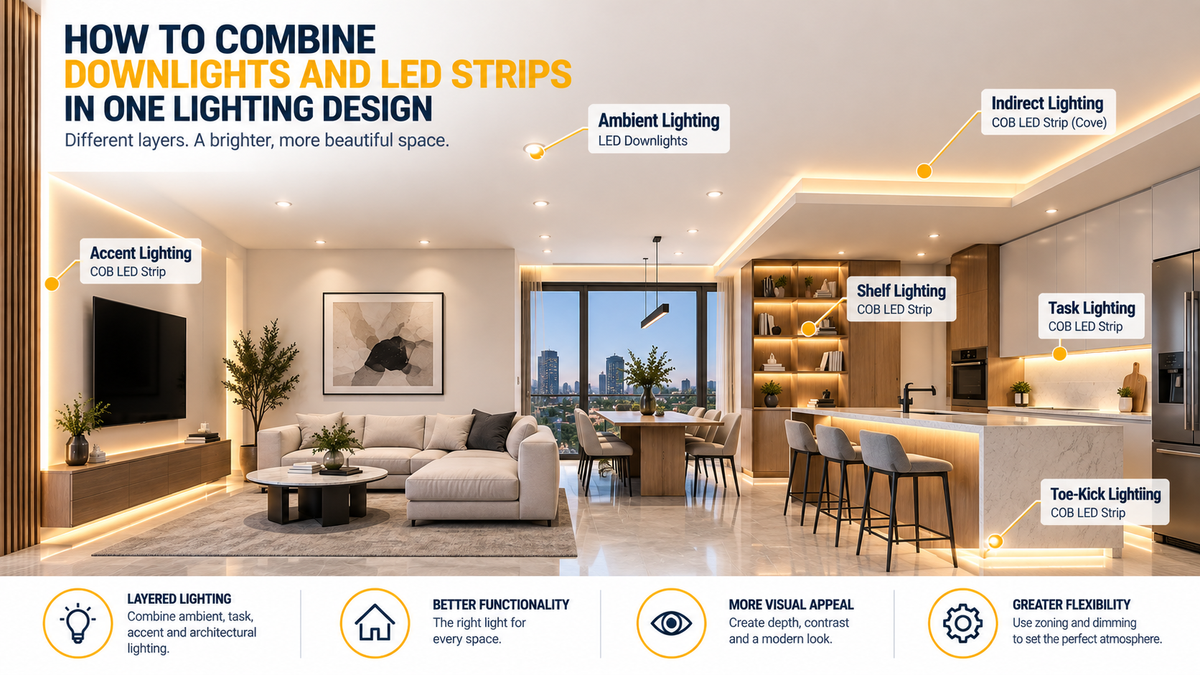

What Is Layered Lighting?

Layered lighting means using several types of light together rather than asking one fixture type to do everything.

The main layers commonly include:

• Ambient lighting
• Task lighting
• Accent lighting
• Architectural or decorative lighting

Downlights and LED strips can cover several of these layers when properly positioned.

For example:

Downlights = Ambient Light

Under-Cabinet COB Strip = Task Light

Cove COB Strip = Indirect Architectural Light

Shelf COB Strip = Accent Light

The result is a lighting system with more depth and flexibility than a ceiling filled with identical fixtures.

What Should LED Downlights Do?

Downlights are generally well suited for providing illumination from the ceiling into the occupied space.

They may be used for:

• General room illumination
• Circulation areas
• Work areas
• Retail floors
• Offices
• Kitchens
• Hospitality spaces
• Commercial interiors

Depending on the fixture, beam angle, output, ceiling height, and spacing, downlights can provide broad or more focused illumination. A slim flat panel downlight gives broad general illumination, while a gimbal downlight with 90° tilt can be aimed at a wall or display.

Their main role in a combined design is often to establish the functional lighting foundation.

What Should LED Strips Do?

LED strips provide a different type of light.

Because they are linear and flexible, they can be integrated into architectural details where conventional fixtures may not fit.

Common applications include:

• Cove lighting
• Under-cabinet lighting
• Shelf lighting
• Display lighting
• Toe-kick lighting
• Ceiling details
• Wall niches
• Reception desks
• Architectural channels

COB LED strips are particularly useful where a smooth, continuous-looking line of light is desired.

Do Not Use Both Products for the Same Job

One common design mistake is making every lighting layer extremely bright.

For example:

Very bright downlights + very bright cove lighting + very bright shelf lighting

can create an overlit environment with little visual hierarchy.

Instead, decide what each layer is supposed to accomplish.

Ask:

Which light provides the main illumination?

Which light highlights architecture?

Which light supports a task?

Which light creates atmosphere?

Once these roles are clear, selecting output and controls becomes easier.

1. Downlights + Cove Lighting

This is one of the most common combinations.

The downlights provide direct illumination into the room.

The COB LED strips are concealed inside a ceiling cove and illuminate the ceiling or upper wall indirectly.

The result combines:

Direct Light + Indirect Light

This can create more visual depth than using downlights alone.

Why Cove Lighting Works Well With Downlights

Downlights naturally create areas of direct illumination.

Cove lighting can soften the overall environment by adding reflected light.

This combination can be useful in:

• Hotel lobbies
• Restaurants
• Offices
• Residential interiors
• Retail stores
• Reception areas
• Conference rooms

The cove should not necessarily compete with the downlights for brightness.

Its purpose may simply be to add another visual layer.

2. Downlights + Under-Cabinet LED Strips

In kitchens, offices, retail displays, and work areas, downlights may provide general illumination while under-cabinet strips provide focused task lighting.

For example:

Downlights → Overall Room

COB Strip → Countertop

This can be more effective than trying to illuminate the work surface entirely from the ceiling. A 90-degree corner channel can aim the strip forward toward the countertop rather than straight down.

Why Ceiling Light Alone May Not Be Enough for Work Surfaces

When a person stands beneath a ceiling light, their body can create shadows on the work surface.

Under-cabinet lighting places the light closer to the task.

This can improve illumination for:

• Countertops
• Workbenches
• Desks
• Product displays
• Preparation areas

The two lighting layers therefore complement each other.

3. Downlights + Retail Shelf Lighting

Retail stores often need both general illumination and product-focused lighting.

Downlights can illuminate:

• Walking areas
• General merchandise
• Circulation paths

COB strips installed in shelving or display fixtures can highlight individual products.

This creates visual hierarchy.

Instead of the entire store receiving identical illumination, important merchandise can receive additional attention.

4. Downlights + Wall-Washing LED Strips

LED strips can be concealed in architectural details and directed toward a wall. An adjustable-angle aluminum channel makes it easier to aim the light where it is needed.

This can highlight:

• Stone
• Wood panels
• Textured surfaces
• Branding walls
• Decorative finishes

Meanwhile, downlights provide the functional illumination needed throughout the space.

This combination works particularly well when architecture is part of the visual experience.

5. Downlights + Display Lighting

In showrooms and retail environments, LED strips can be integrated into:

• Cabinets
• Shelves
• Niches
• Product displays

while adjustable downlights provide general room illumination or highlight specific areas.

This helps separate:

Space Lighting

from:

Product Lighting

The customer sees a well-lit room, but selected products receive additional emphasis.

6. Downlights + Toe-Kick Lighting

Low-level LED strips installed beneath cabinets, counters, or architectural elements can create a floating visual effect. A shallow low-profile channel or a recessed baseboard profile suits this application.

Downlights provide the functional ceiling illumination.

The toe-kick strip provides:

• Decorative light
• Low-level guidance
• Architectural emphasis

This combination is common in modern hospitality, residential, and retail interiors.

7. Downlights + Reception Desk Lighting

A reception area may use:

Downlights → General illumination

COB strip → Reception desk detail

COB strip → Logo wall or architectural feature

This immediately creates visual hierarchy.

The desk becomes a focal point without requiring the entire room to be brighter.

Match the Color Temperature

When downlights and LED strips are visible in the same space, color-temperature coordination becomes important.

For example:

Downlights = 3000K

LED Strips = 3000K

can create a consistent warm appearance. Our 5CCT downlights are field-selectable, which makes it easier to match whichever strip color temperature the project uses.

But:

Downlights = 3000K

LED Strips = 6000K

may create an obvious visual mismatch unless the contrast is intentional.

Should Downlights and LED Strips Always Have the Same CCT?

Not necessarily.

Different color temperatures can sometimes be used intentionally.

However, if the objective is a unified lighting design, matching or closely coordinating the CCT is generally easier.

The choice should be based on:

• Interior finishes
• Project atmosphere
• Lighting function
• Brand requirements
• Time of day
• Desired contrast

Consider CCT-Adjustable Systems

CCT-adjustable LED strips can provide additional flexibility.

Depending on the project, adjustable downlights and strips may allow the environment to change between warmer and cooler white light.

For example:

Daytime → Neutral/Cooler

Evening → Warmer

If both systems are adjustable, their control ranges and visual appearance should be coordinated. A CCT strip needs either a CCT controller or a CCT driver with built-in tuning.

CRI Matters Too

Color temperature is not the only specification affecting visual consistency.

CRI can influence how colors and materials appear under the light.

This can be especially important in:

• Retail stores
• Showrooms
• Hospitality
• Clothing displays
• Interior-design projects

If one lighting layer renders colors significantly differently from another, the overall design may feel inconsistent.

Consider both:

CCT + CRI

when selecting products. Both figures are listed on each COB strip and downlight product page.

Downlight Spacing Is Still Important

Adding LED strips does not eliminate the need for proper downlight spacing.

Downlights should still be planned according to factors such as:

• Ceiling height
• Beam angle
• Fixture output
• Room dimensions
• Desired illuminance
• Wall distance
• Furniture layout

LED strips should be considered an additional layer rather than a way to correct poorly planned downlights.

Avoid Too Many Downlights

Another common mistake is filling the ceiling with downlights simply to guarantee enough brightness.

This can produce:

• Visual clutter
• Excessive brightness
• Unnecessary energy use
• Flat lighting
• Too many ceiling penetrations

A layered design may allow fewer, better-positioned downlights to work together with other lighting sources.

Actual fixture quantity should still be based on lighting calculations and project requirements.

Use LED Strips to Highlight Architecture

LED strips are especially effective when integrated into architectural elements.

Instead of adding another visible fixture, the strip can disappear into:

• Cove details
• Recesses
• Shelving
• Millwork
• Aluminum channels

The architecture appears to produce the light.

This creates a different effect from visible ceiling downlights. A plaster-in profile gives a fully trimless line with no visible housing.

Direct vs. Indirect Light

Understanding this distinction helps when combining the two products.

Direct Lighting

Light travels primarily from the fixture toward the illuminated surface.

Downlights are commonly used this way.

Indirect Lighting

Light is directed toward another surface—such as a ceiling or wall—and reflected into the room.

Cove LED strips are often used this way.

Combining direct and indirect illumination can create a more comfortable and visually interesting environment.

Use Separate Lighting Zones

Downlights and LED strips should often be placed on separate control zones.

For example:

Zone 1 → Downlights

Zone 2 → Cove COB Strips

Zone 3 → Shelf COB Strips

Zone 4 → Accent Lighting

This allows the lighting to adapt to different situations. A 4-zone remote can control each strip zone independently or all of them together.

Why Separate Zones Matter

Imagine a restaurant.

During cleaning:

Downlights = 100%

Cove = 100%

Accent = 100%

During dinner:

Downlights = 30%

Cove = 50%

Accent = 70%

After closing:

All Zones = OFF

The same lighting system can create very different environments simply through zoning and dimming. Our guide on synchronizing multiple LED strip zones covers how to set this up.

Use Dimming to Balance the Layers

Dimming is one of the most useful tools when combining downlights and LED strips.

Without dimming, the designer must predict the exact visual balance before installation.

With compatible dimming, each layer can be adjusted after installation.

This allows the project team to fine-tune:

• General brightness
• Cove intensity
• Accent level
• Task-light output

The dimming method must be compatible with the selected drivers, fixtures, and controls.

Coordinate the Control Systems

The downlights and LED strips may use different electrical architectures.

For example:

Downlights may use:

• TRIAC
• ELV
• 0–10V
• Other compatible controls

LED strips may use:

AC → LED Driver → Controller → COB Strip

If both lighting systems should respond together, the control architecture must be planned early. Where the strip layer has to follow the same wall dimmer as the downlights, a 5-in-1 dimmable driver covers TRIAC, ELV, MLV, and 0-10V in one unit.

Do not wait until installation is complete to decide how all lighting layers should be controlled.

Separate Drivers for LED Strips

Low-voltage LED strips typically require appropriate LED drivers.

The driver must match:

• Strip voltage
• Total wattage
• Dimming/control system
• Installation environment

For example:

24V COB Strip → Compatible 24V Constant-Voltage Driver

Calculate:

Total Load = W/ft × Total Strip Length

Then select the driver according to the manufacturer's specifications and project requirements. Our guide on building a complete LED lighting system works through this calculation in detail.

Do Not Forget Controller Capacity

If the LED strips use low-voltage controllers, verify controller capacity separately from driver capacity.

For example:

Driver = 200W

LED Load = 150W

Controller = 100W Maximum

The controller becomes the limiting component.

Every component must support the connected load.

Aluminum Channels Can Improve Strip Installation

COB LED strips can be installed inside aluminum profiles for many applications.

Channels can provide:

• Straight mounting
• Physical protection
• Diffuser support
• Cleaner appearance
• Additional heat-spreading surface

Channel type depends on the application.

Choose the Right Channel Type

Surface-Mount Channel

Useful for:

• Cabinets
• Shelving
• Millwork

The BN253 surface-mount profile and the shallower BN252 cover most of these.

Recessed Channel

Useful for:

• Ceilings
• Walls
• Custom architectural details

See the BN5615 plaster-in profile for trimless drywall details.

Corner Channel

Useful when light should be directed outward from a corner, such as:

• Under cabinets
• Shelves
• Display cases

The channel should support the intended lighting effect. Our guide on where and when to use corner LED channels explains the difference in beam direction.

Example: Modern Office

Imagine an office with a combination of ceiling downlights and COB strips.

Downlights

Provide general illumination for:

• Desks
• Circulation
• Meeting areas

A slim flat panel downlight suits low-plenum commercial ceilings.

COB Strips

Installed in ceiling coves to provide soft indirect lighting.

Control

Zone 1 – Downlights

Zone 2 – Cove Lighting

During normal work:

Downlights provide the majority of functional illumination.

During presentations:

Downlights can be reduced while the indirect lighting remains active.

The space becomes more flexible without changing fixtures.

Example: Retail Store

A retail store may use:

Downlights

General floor and circulation lighting.

COB Strips

Inside shelving and display fixtures.

Accent Lighting

Additional strips around branding or architectural features.

The design creates three levels:

General Space → Merchandise → Brand Features

This guides customer attention more effectively than uniform illumination.

Example: Restaurant

A restaurant may combine:

• Downlights above tables
• COB cove lighting
• Bar shelf lighting
• Reception accent lighting

Each layer can be dimmed independently.

During lunch, the room can be brighter.

During dinner, the downlights can be reduced while the cove and accent lighting create a warmer atmosphere. Where the bar also uses color, an RGBW COB strip can cover both white and accent color on that zone.

Example: Hotel Lobby

A hotel lobby may use downlights for circulation and COB strips to highlight:

• Reception desk
• Ceiling details
• Wall panels
• Decorative niches

The downlights provide functional visibility.

The linear lighting creates the visual identity.

This is a good example of why the two lighting types should complement rather than duplicate each other.

Example: Kitchen or Work Area

A kitchen may use:

Downlights → General Lighting

Under-Cabinet COB Strips → Task Lighting

Toe-Kick Strips → Decorative Lighting

Three different layers perform three different functions.

This can produce better results than increasing downlight output alone.

Plan the Lighting Before the Ceiling Is Finished

Downlights and LED strips often require very different installation preparation.

Downlights may require:

• Ceiling cutouts
• Electrical wiring
• Driver/junction-box locations

LED strips may require:

• Aluminum channels
• Cove details
• Low-voltage wiring
• Driver locations
• Controller locations
• Power-feed points

These details should be coordinated before construction is completed.

Plan Driver Locations Early

LED strip drivers should be:

• Appropriately ventilated
• Accessible for service
• Properly rated for the environment
• Located with voltage drop in mind

Do not hide drivers permanently behind inaccessible architectural finishes. See our guides on how temperature affects driver lifespan and managing voltage drop over long runs.

Watch for Reflections

LED strips can create unwanted reflections when installed near:

• Glass
• Polished stone
• Glossy cabinetry
• Mirrors
• Metal surfaces

Downlights can create reflections too.

Before final installation, evaluate important viewing angles.

COB strips can reduce visible LED-dot patterns, but the light source itself may still appear in reflective surfaces.

Avoid Direct View of the LED Strip

Whenever possible in architectural lighting, position the LED strip so the viewer sees:

The Light

rather than:

The LED Strip

This is especially important for:

• Cove lighting
• Shelves
• Hospitality interiors
• Luxury retail
• Decorative ceilings

Proper channel placement and architectural concealment can significantly improve the finished appearance.

Use Mock-Ups for Important Projects

For commercial and architectural projects, a small mock-up can answer many questions before full installation.

Test:

• Downlight spacing
• Strip brightness
• CCT match
• CRI appearance
• Cove reflection
• Diffuser
• Channel placement
• Dimming
• Glare
• Shadows

A short test section can prevent expensive changes later.

Common Mistake: Mismatched Color Temperatures

If downlights are warm white and the LED strips are noticeably cool white, the difference can become distracting.

Confirm the CCT of both systems before ordering large quantities. Selectable 5CCT downlights reduce this risk because the color temperature can be set on site.

Common Mistake: Too Much Light

More light does not automatically mean better lighting.

If every layer operates at maximum output, the design may lose contrast and atmosphere.

Use appropriate output and dimming to create hierarchy.

Common Mistake: No Separate Controls

Putting every fixture on one switch limits flexibility.

Where practical, separate:

• Downlights
• Cove lighting
• Task lighting
• Accent lighting

This allows the final lighting balance to be adjusted.

Common Mistake: Poor Strip Placement

Even a high-quality COB strip can produce a poor result if positioned incorrectly.

Possible problems include:

• Visible light source
• Uneven wall wash
• Glare
• Reflections
• Poor task-light coverage

Test the location before permanent installation.

Common Mistake: Ignoring Driver and Controller Access

A beautiful concealed lighting installation becomes difficult to maintain if the power components cannot be reached.

Drivers and controllers should remain serviceable. Drivers with an integrated junction box can simplify this.

Common Mistake: Choosing Fixtures Independently

Do not choose downlights first and strips months later without considering how they will look together.

Coordinate:

• CCT
• CRI
• Output
• Dimming
• Controls
• Beam direction
• Architectural placement

Treat the project as one lighting system.

Lighting Design Checklist

Before combining LED downlights and LED strips, confirm:

Downlights

• Appropriate output
• Correct beam angle
• Suitable spacing
• Correct CCT
• Appropriate CRI
• Compatible dimming

LED Strips

• Correct voltage
• Appropriate wattage
• Correct CCT
• Appropriate CRI
• Suitable strip width
• Maximum run length confirmed

Drivers and Controllers

• Correct voltage
• Sufficient capacity
• Dimming compatibility
• Controller load checked
• Accessible locations

Aluminum Channels

• Correct internal width
• Appropriate profile
• Suitable diffuser
• Proper placement

Lighting Design

• Ambient layer defined
• Task layer defined
• Accent layer defined
• Separate zones planned
• Brightness balance considered
• Glare and reflections checked

A Simple Design Formula

For many projects, the concept can be simplified to:

Downlights = Functional Foundation

•


COB LED Strips = Architectural Layer

•


Dimming & Zoning = Flexibility

The exact balance depends on the space.

But this approach gives each product a clear purpose.

Think About the Space, Not Individual Fixtures

A successful lighting project should not look like a collection of unrelated products.

The customer should experience one complete environment.

Downlights, COB strips, drivers, controllers, channels, and controls should all support the same design objective.

The best question is therefore not:

“How many downlights and how many feet of LED strip do I need?”

Start with:

“What should the lighting accomplish in each part of the space?”

Then choose the products required to create that result.

Conclusion

LED downlights and COB LED strips can work extremely well together because they provide different types of illumination.

Downlights are often ideal for:

• General illumination
• Functional lighting
• Ceiling-based direct light

COB LED strips are well suited for:

• Cove lighting
• Task lighting
• Shelf lighting
• Accent lighting
• Architectural details

When combined properly, they create a layered lighting system with more depth, flexibility, and visual interest.

The most important considerations are:

Lighting Function + CCT + CRI + Brightness + Placement + Dimming + Zoning + Driver/Controller Compatibility

Rather than making every lighting source equally bright, give each layer a specific purpose.

Then use controls to balance those layers for different times and activities.

For commercial, hospitality, retail, office, and architectural projects, this approach can create a lighting design that is both functional and visually refined.

If you are specifying downlights and strips for the same project, contact our team for CCT and CRI matching and wholesale pricing.

Frequently Asked Questions

Can LED downlights and LED strips be used in the same room?

Yes. They often complement each other well when downlights provide general illumination and LED strips provide task, accent, or indirect lighting.

Should LED strips and downlights have the same color temperature?

They do not always have to match, but coordinating the CCT usually creates a more consistent appearance unless a deliberate contrast is part of the design. Selectable 5CCT downlights make matching easier.

Should downlights and LED strips be on separate switches?

Separate zones are often useful because they allow the brightness of each lighting layer to be adjusted independently.

Can COB LED strips be used for cove lighting?

Yes. COB strips are well suited to many cove applications because they can provide a smooth, continuous-looking line of illumination.

Can LED strips replace downlights completely?

In some specialized designs they may provide much of the illumination, but the decision should be based on the required light levels, architecture, task needs, and lighting calculations.

Do LED strips need separate drivers from downlights?

Low-voltage strips generally require compatible constant-voltage LED drivers. Downlights may use a different driver or electrical architecture depending on the fixture.

Should both downlights and LED strips be dimmable?

Dimming can provide significant design flexibility, particularly when balancing ambient and architectural lighting. All components must be compatible with the selected dimming system.

What is the best way to combine downlights and LED strips?

Give them different roles: use downlights as the functional lighting foundation and COB strips for architectural, accent, indirect, or task lighting, then use zoning and dimming to balance the layers.
