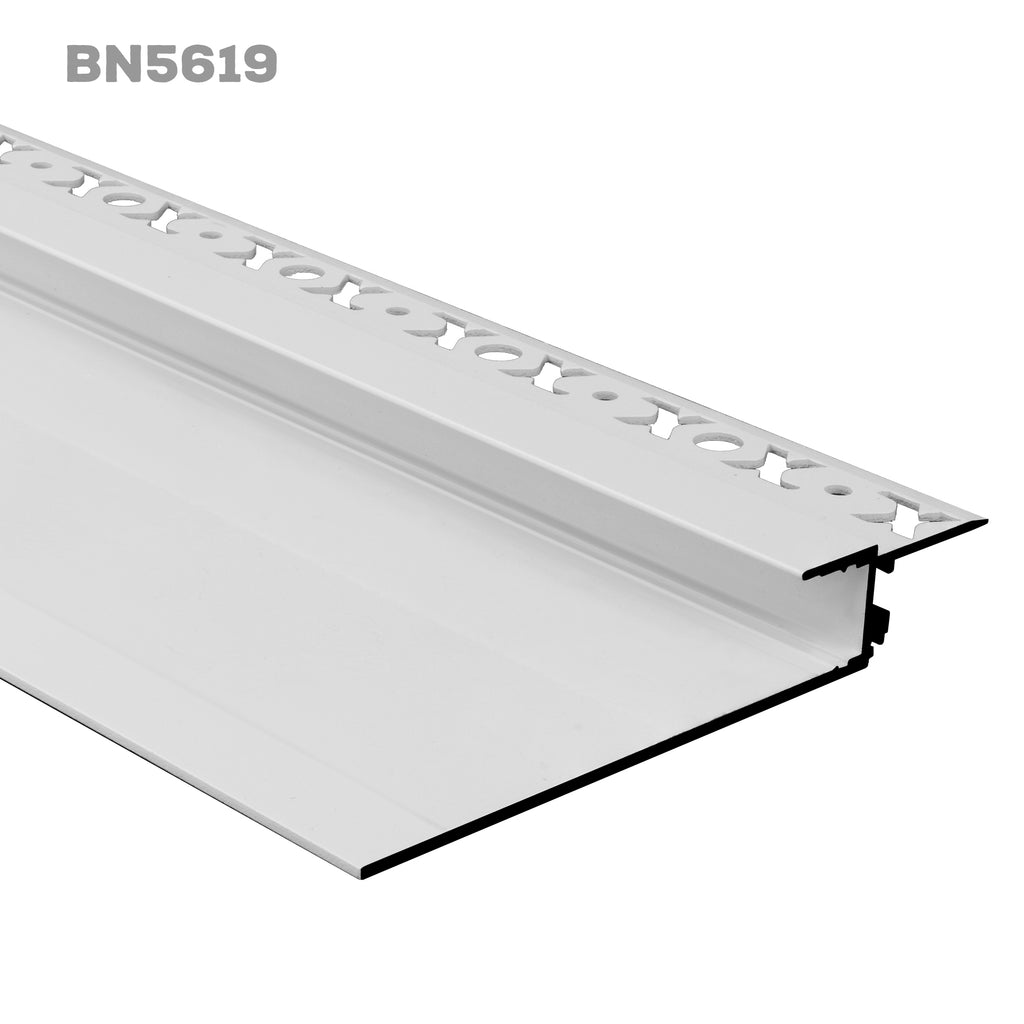

8FT Plaster-In LED Baseboard Channel – BN5619
Create clean, integrated floor-level lighting with the BN5619 Plaster-In LED Baseboard Channel. Designed specifically for architectural wall and baseboard lighting, this recessed aluminum profile installs flush into drywall or plasterboard to create a continuous line of indirect LED illumination along the bottom of a wall.
Once installed and finished, the aluminum edges are concealed within the wall surface, creating a clean, trimless appearance ideal for modern residential and commercial interiors.
Key Features
-
Length: 8 ft
-
Material: Anodized Aluminum
-
Installation: Plaster-In / Mud-In
-
Design: Recessed Architectural Baseboard Profile
-

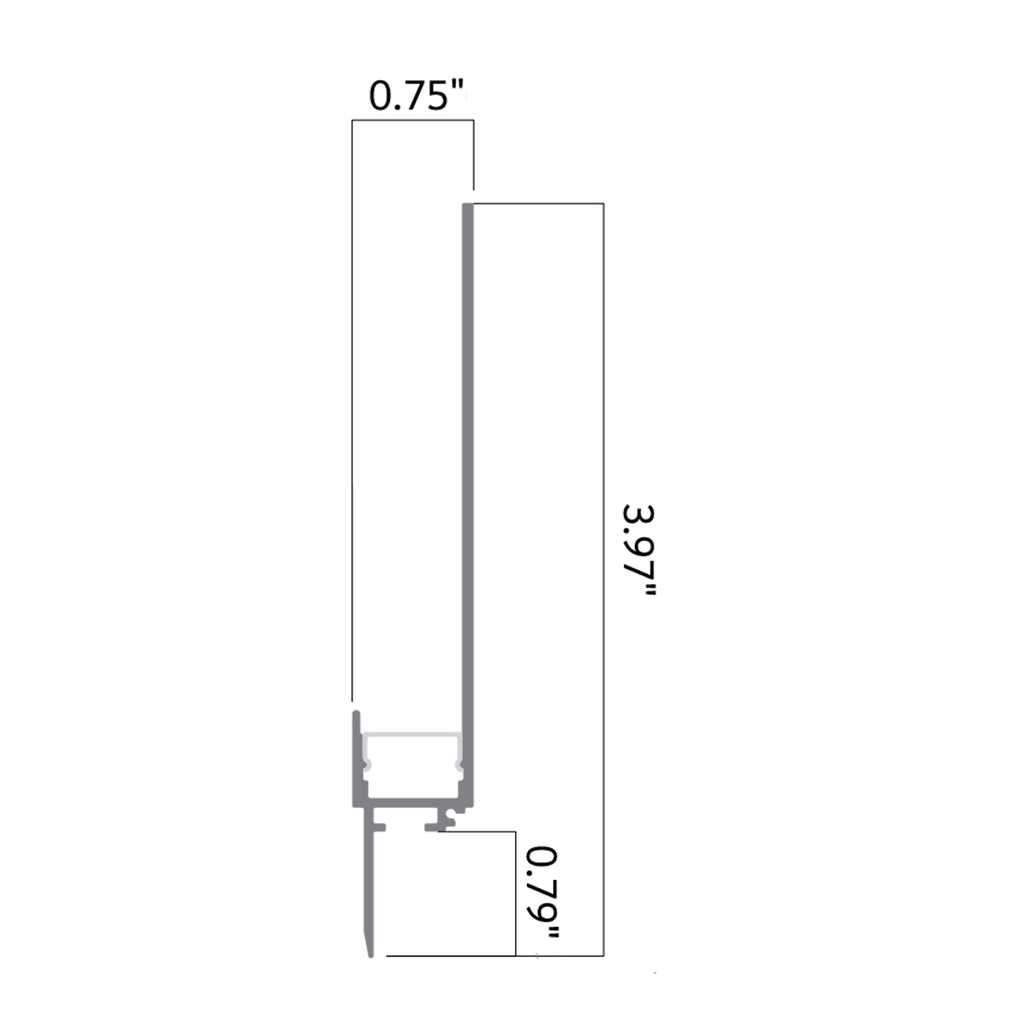

Inner Width: 0.75"
-
Outer Width: 3.97"
-
Depth: 0.79"
-
Diffuser: Smooth Diffuser Lens Included
-

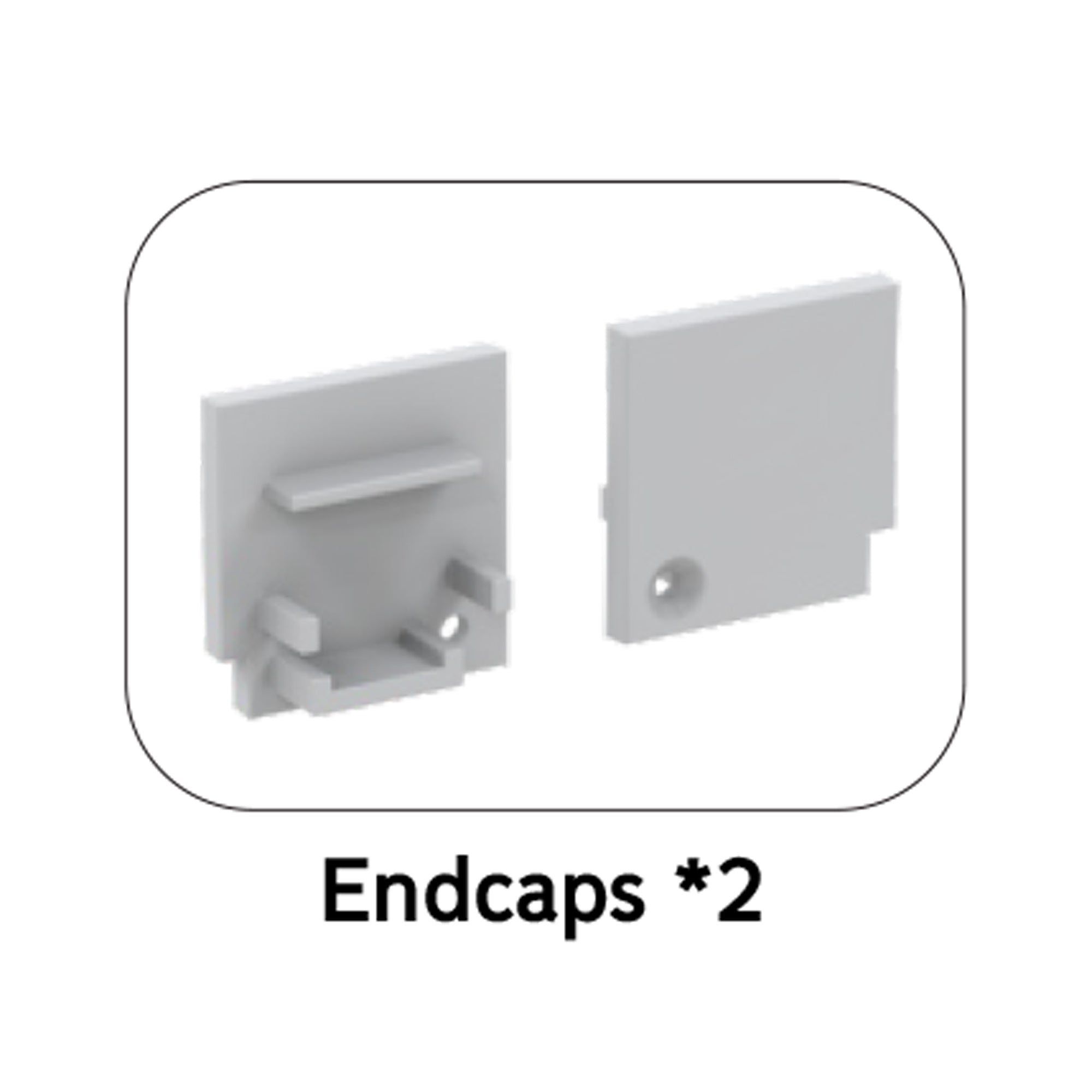

Accessories: 2 End Caps Included
-
Part Number: BN5619
Designed for Baseboard and Floor-Line Lighting
The BN5619 is specifically designed to integrate LED strip lighting at the baseboard level, creating a subtle line of illumination close to the floor.
It is ideal for:
-
Hallways and corridors
-
Stairways
-
Residential interiors
-
Hotels and hospitality spaces
-
Restaurants and lounges
-
Offices and commercial interiors
-
Architectural wall lighting
-
Baseboard accent lighting
-
Floor-level pathway lighting
-
Modern interior lighting projects

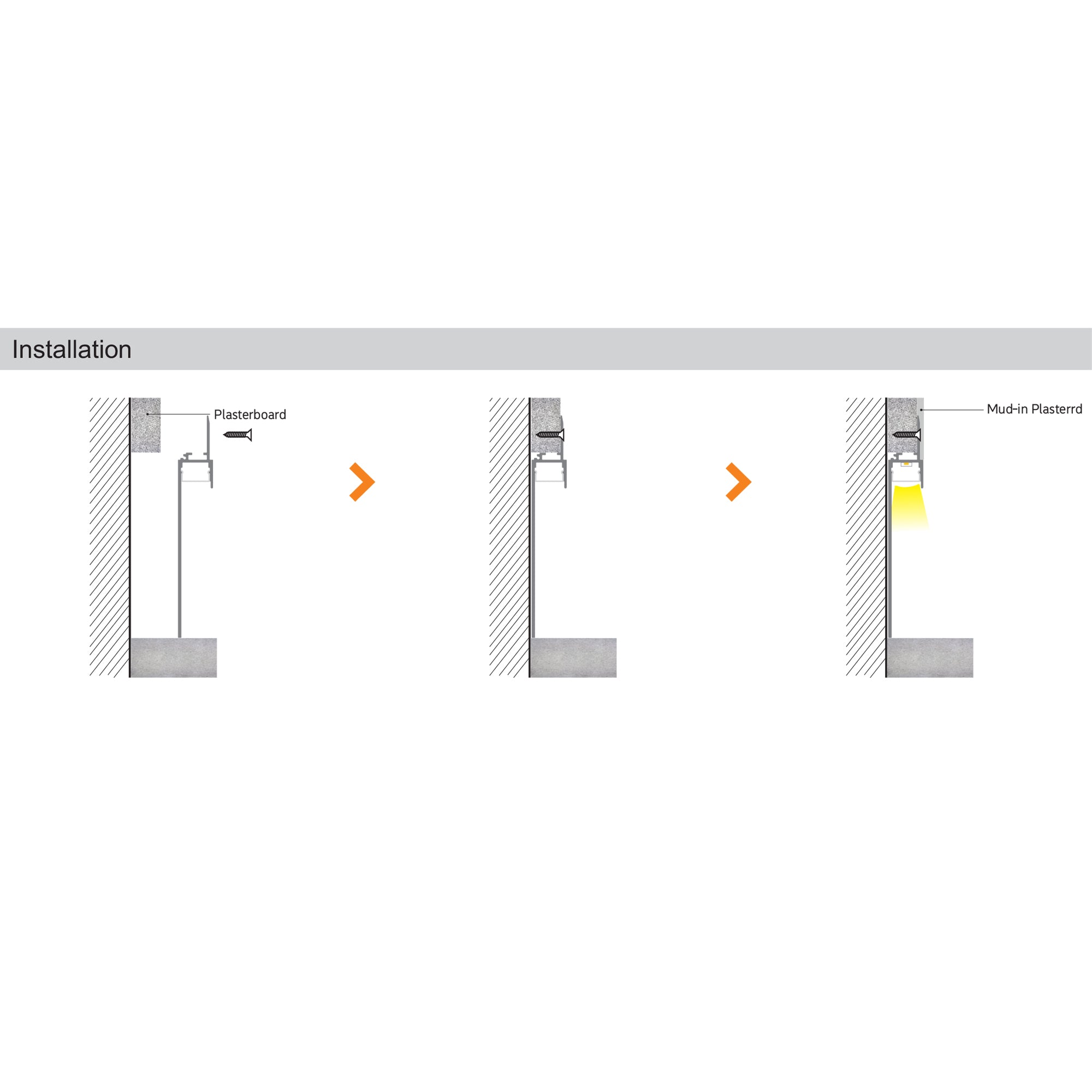

Seamless Plaster-In Installation
The extended profile is installed directly into drywall or plasterboard and finished with drywall compound or plaster.
Once the surrounding wall is finished, the profile becomes integrated into the architecture, leaving a clean recessed lighting opening rather than a conventional surface-mounted aluminum channel.
This makes the BN5619 particularly suitable for modern projects where a minimal, trimless lighting appearance is desired.
Deep Recessed Profile for Smooth Illumination
The deep channel design helps position the LED strip farther behind the diffuser, helping reduce visible LED points and creating a smoother, more continuous lighting effect.
The included diffuser further softens the light output for a clean architectural finish.
For the best lighting performance, pair the BN5619 with a compatible BrightNex LED strip selected according to the required brightness and color temperature.
Built for Professional Architectural Projects
The BN5619 provides electricians, contractors, lighting designers, architects, builders, and installers with a professional solution for incorporating linear LED lighting directly into wall and baseboard details.
Its 8-foot length is also well suited for larger residential and commercial installations where long, continuous lighting lines are required.
Planning a commercial or multi-room installation? Contact BrightNex for wholesale pricing and project inquiries.
