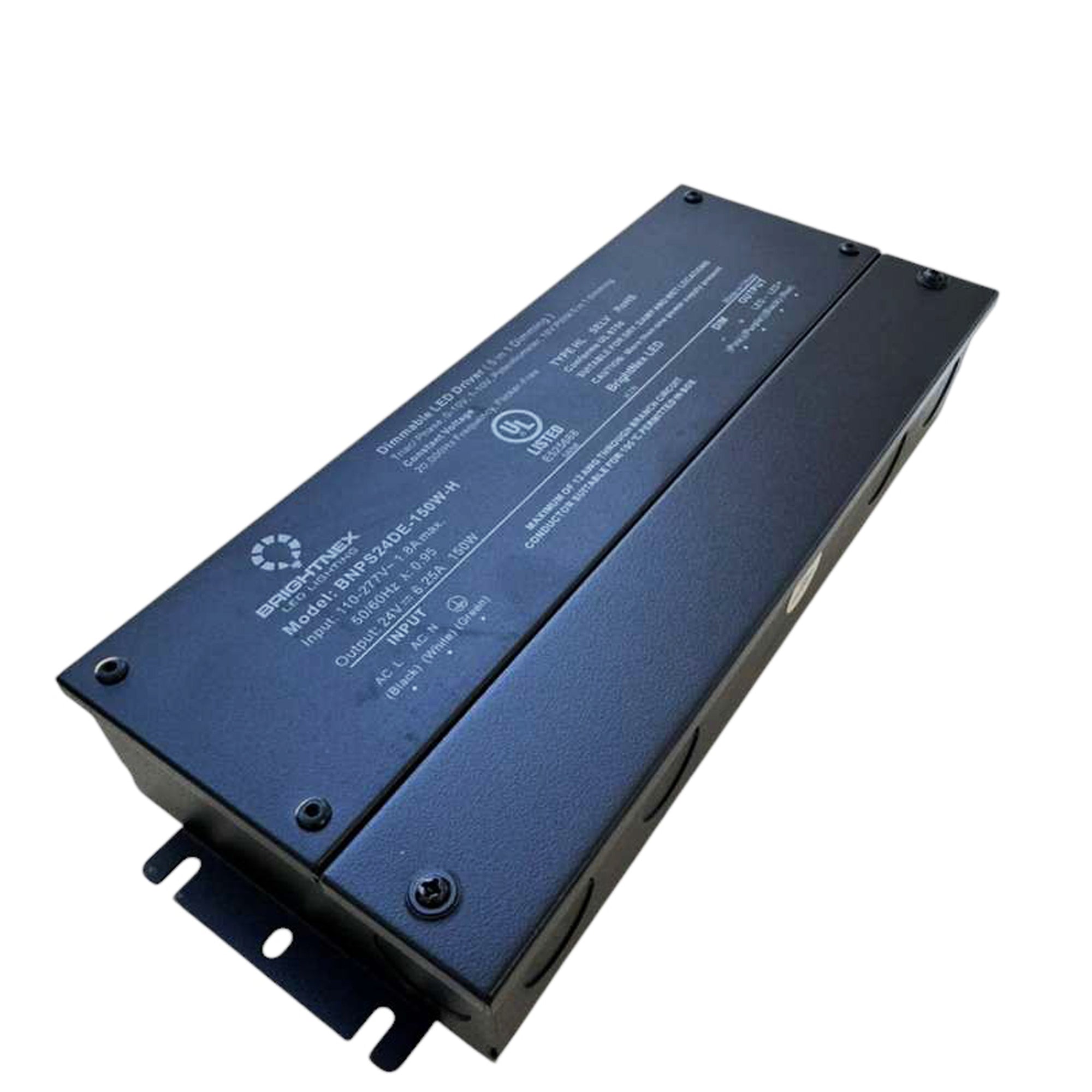

150W TRIAC / ELV / MLV & 0-10V Dimmable LED Driver – 12V / 24V – Flicker-Free – Junction Box – UL Certified

The 150W LED Driver provides a powerful and efficient dimming solution for LED systems requiring high output and flexible control. Designed with support for both TRIAC (ELV/MLV) and 0-10V dimming protocols, this driver ensures smooth flicker-free performance using PWM output across a 0.1–100% dimming range.

It is housed in a durable enclosure with an integrated junction box, making installation straightforward and compliant. Fully UL Certified, and Type HL, this driver supports applications in dry, damp, and wet environments.

🔹 Key Features:

• Output Power: 150W

• Output Voltages:

  • 12V DC @ 12.5A

  • 24V DC @ 6.25A


• Input Voltage: 110–277V AC, 50/60Hz

• Efficiency (Typical):

  • 12V: 85% @ 120V, 86% @ 277V

  • 24V: 86% @ 120V, 87% @ 277V


• Power Factor: > 0.9

• THD: < 20% @ full load

• Dimming Options:

  • TRIAC / ELV / MLV (Forward / Reverse Phase)

  • 0-10V / 1-10V / 10V PWM / Potentiometer

• Dimming Range: 0.1–100%, flicker-free PWM output

• Certifications: UL / cUL, FCC, SELV, RoHS, Type HL, UL8750

• Protections:

  • Short Circuit (auto-recovery)

  • Overload ≥110% (auto-recovery)

  • Thermal shutdown @ 100 °C ±10 °C

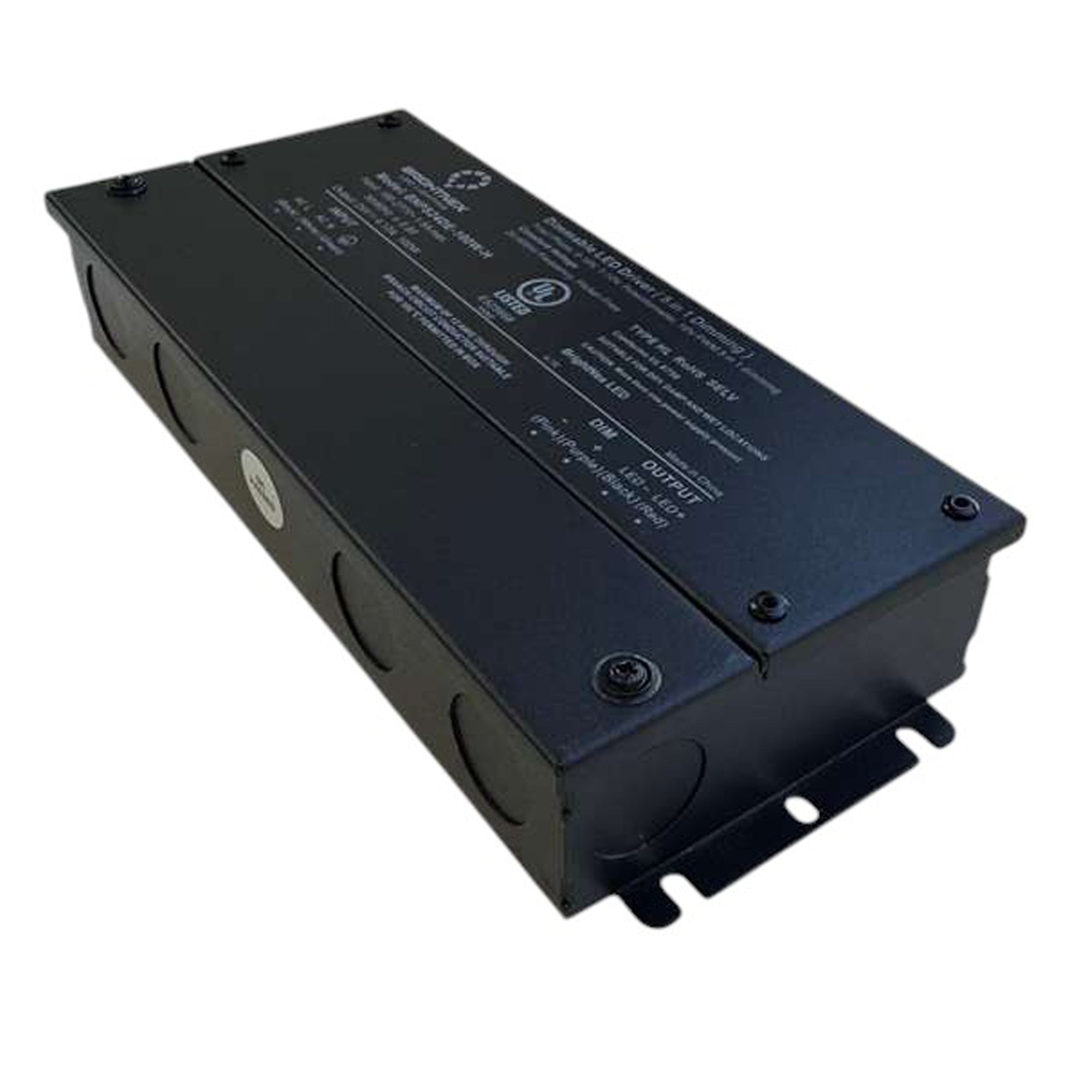

• Junction Box: Built-in, suitable for direct wiring

• Environment: Rated for dry, damp, and wet locations (Not for Submersion)

• Cooling: Passive convection

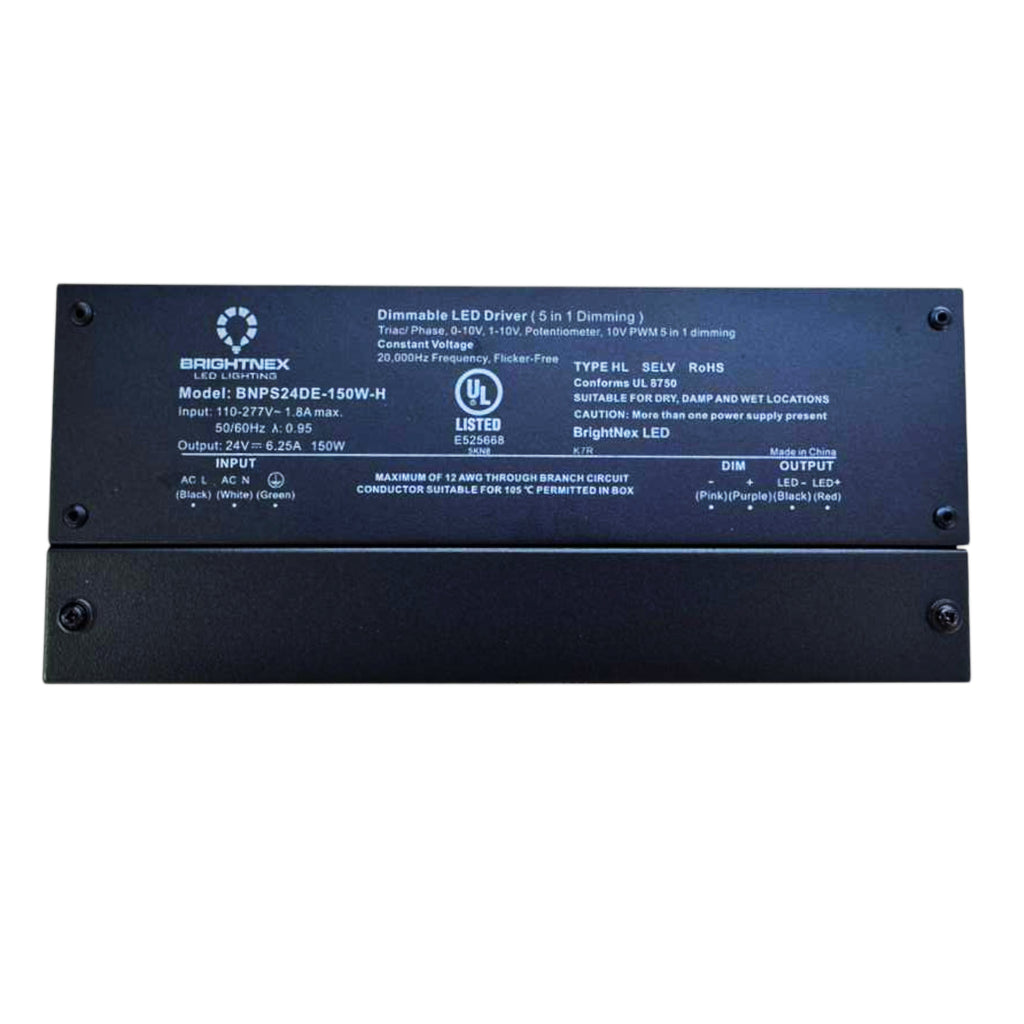

• Part Number:
  BNPS12DE-150W-H
  BNPS24DE-150W-H


🔹 Mechanical & Wiring (Imperial Units):

• Dimensions: 10.26" × 4.17" × 1.93"

• Weight: 3.97 lb (1.8 kg)

• Wiring:

  • Input: Black (L), White (N), Green (GND) – 3×18 AWG

  • Output: Red (V+), Black (V–) – 2×16 AWG (12V = dual set)

  • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG
