100W TRIAC / ELV / MLV Dimmable LED Driver – 12V/24V – High Power Factor – Flicker-Free Output

This 100W constant voltage LED driver delivers reliable performance with full-range TRIAC, ELV, and MLV dimming compatibility. Designed for both residential and commercial lighting applications, it provides smooth 0–100% dimming and flicker-free light output via PWM technology. With universal 100–277VAC input, high power factor (up to 0.98), and built-in protections against short circuit, overload, and over-temperature, it’s ideal for LED strips, signage, and architectural lighting setups.

Available in both 12V (8.3A) and 24V (4.2A) outputs.

Features

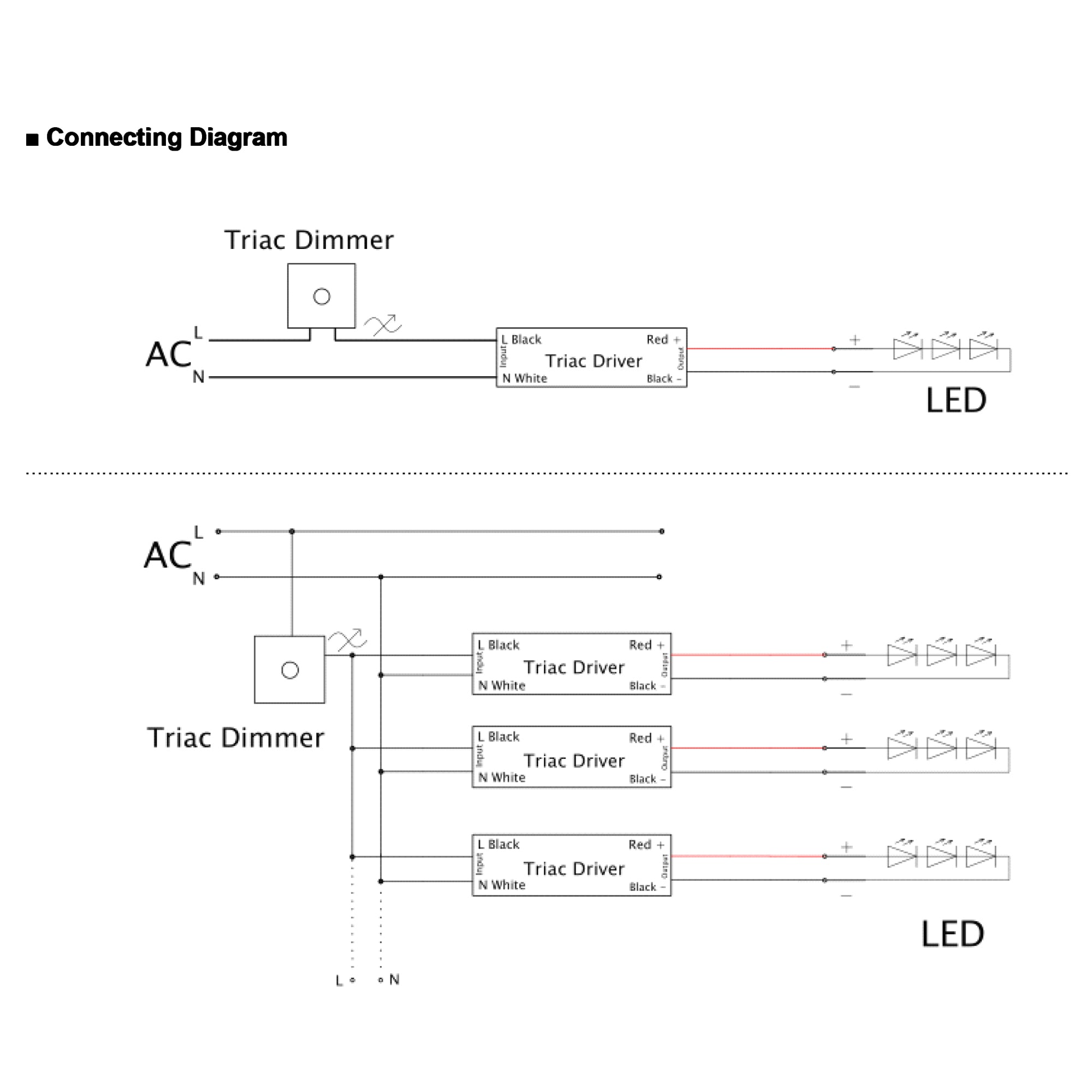

• Dimming Compatibility: Works with TRIAC, ELV, and MLV dimmers

• Smooth Dimming: Full 0–100% brightness range

• Waterproof Rated: Full Iron protection housing, for dry, damp & wet locations (not for submersion).



• Flicker-Free Performance: PWM output ensures consistent light quality

• High Efficiency: Power factor up to 0.98

• Universal Input: 100–277VAC range

• Robust Protection: Short circuit, overload, and over-temperature safeguards

• Constant Voltage Output: 12V (8.3A) and 24V (4.2A) options

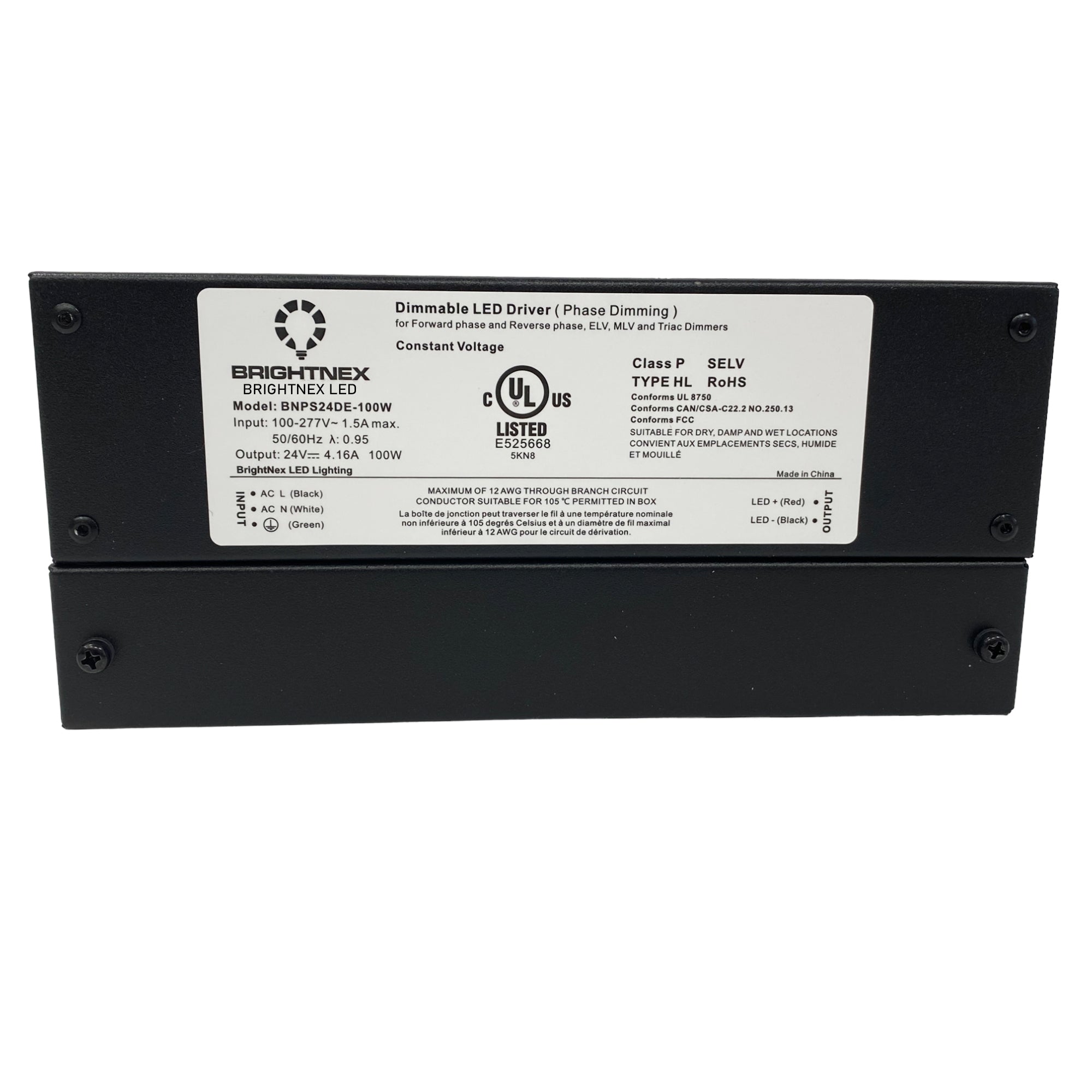

• Certified Build: UL / cUL / FCC / Class P / TYPE HL / SELV / RoHS / Reach

• Compact Size: 6.89" × 2.83" × 1.57" – fits most enclosures
