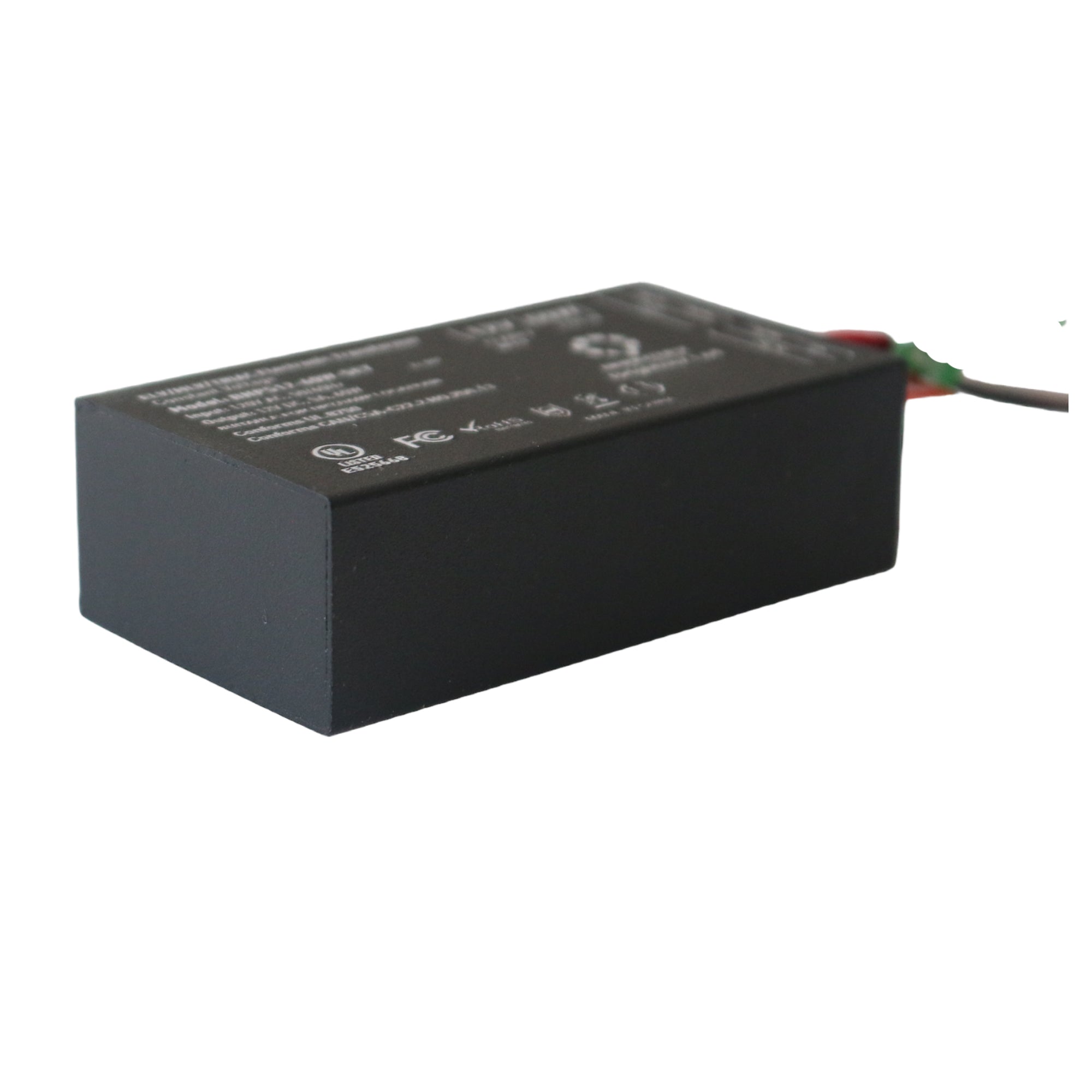

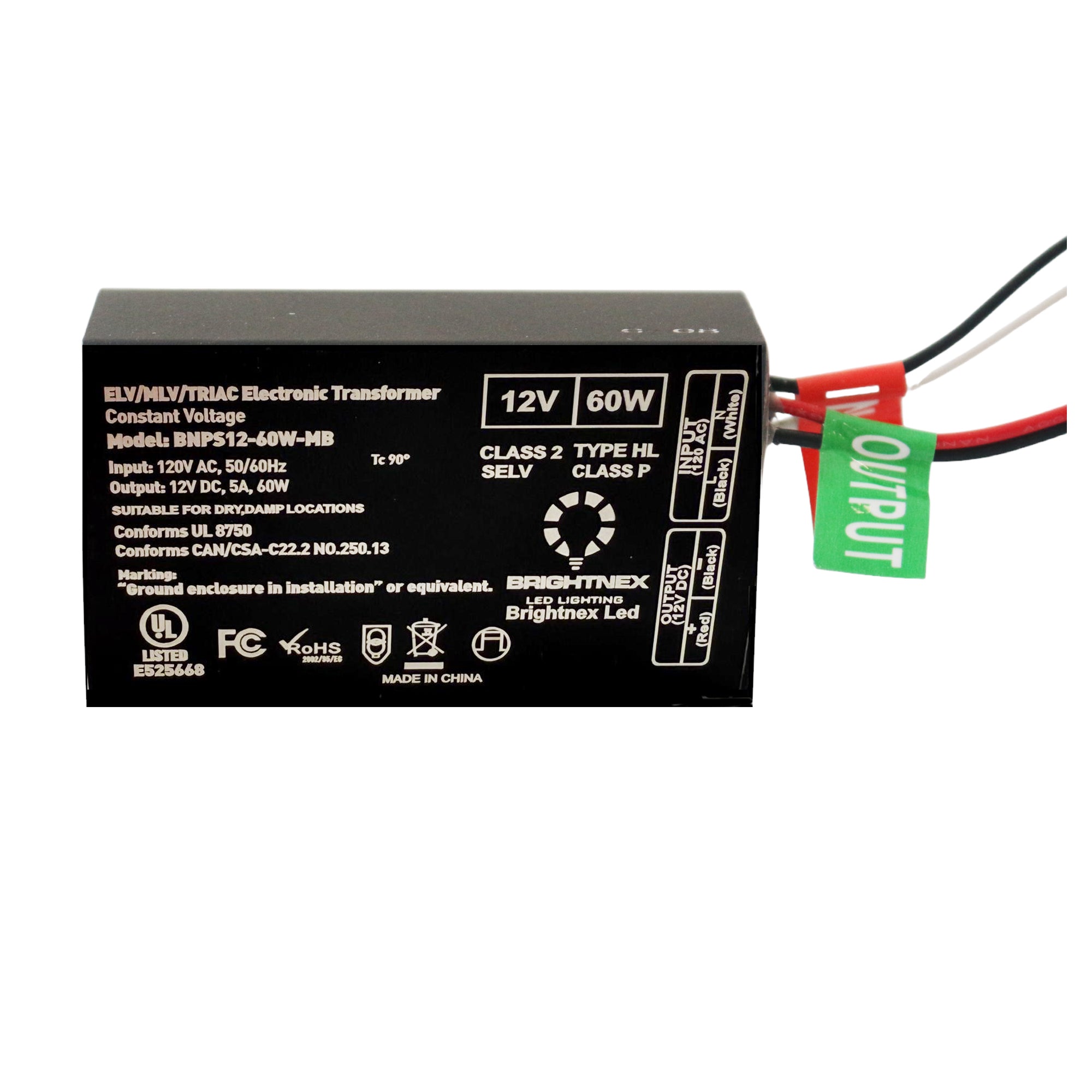

Description
This compact 12V 60W constant voltage LED transformer, optimized for low-voltage lighting systems that require reliable dimming and tight-space installation. It supports smooth 0–100% dimming through TRIAC, ELV, or MLV dimmers and is compatible with popular wall dimmer brands including Lutron CL, Diva, and Leviton Decora.
With a Class 2 output, this transformer ensures safety and code compliance for commercial and residential projects. Built-in short-circuit and overload protection with auto-recovery enhances reliability in the field. Its aluminum housing is approved for dry and damp locations, and its super low loading capability allows operation from 20% to 100% load.
🔧 Specifications:
-
Output Voltage: 12V DC
-
Output Power: 60W
-
Output Current: 5.0A
-
Input Voltage: 120V AC
-
Frequency: 47–63Hz
-
Efficiency: 85% @ full load
-
Power Factor: 0.95 typical
-
THD: < 20% @ 100% load
-
Voltage Tolerance: ±0.5V
-
Load Range: Operates from 20%–100%
-
Protections:
-
Short Circuit – auto-recovery (hiccup mode)
-
Overload – auto-recovery (voltage/power reduction)
-
-
Working Temp: -40°C to +60°C
-
Humidity: 20–95% RH
-
Leakage Current: < 0.5mA @ 120V
-
Certifications: UL8750, Class 2, Class P, FCC, RoHS, SELV, Type HL, REACH
-
Enclosure Rating: Dry and Damp Location
-

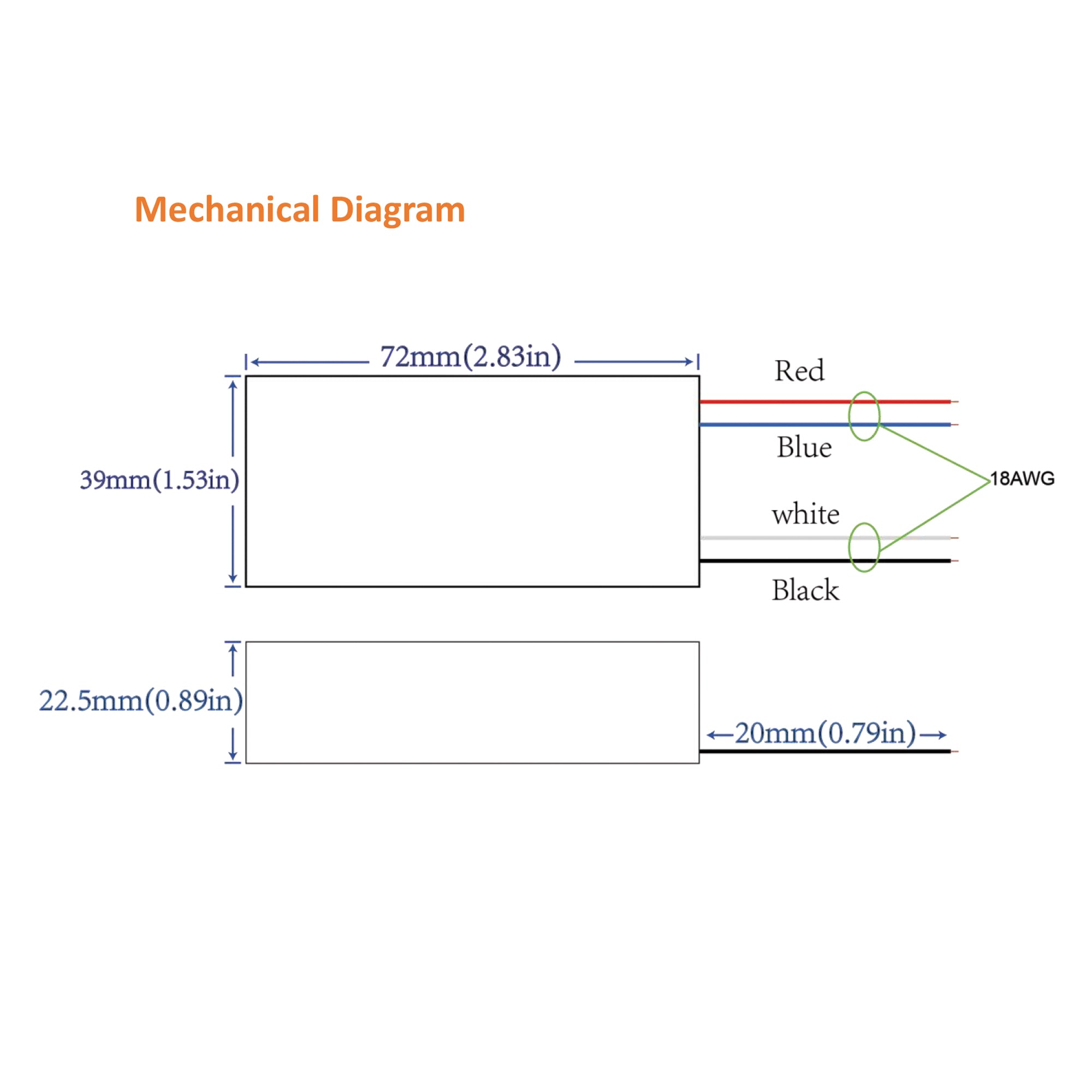

Dimensions: 2.89" × 1.53" × 0.89"
-
Weight: 0.375 lbs
🎚️ Dimming Compatibility:
-
Dimming Range: 0–100%
-
Dimming Types Supported:
-
TRIAC (Leading Edge)
-
ELV (Trailing Edge)
-
MLV (Magnetic Low Voltage)
-
-
Load Range for Dimming: 20–100%

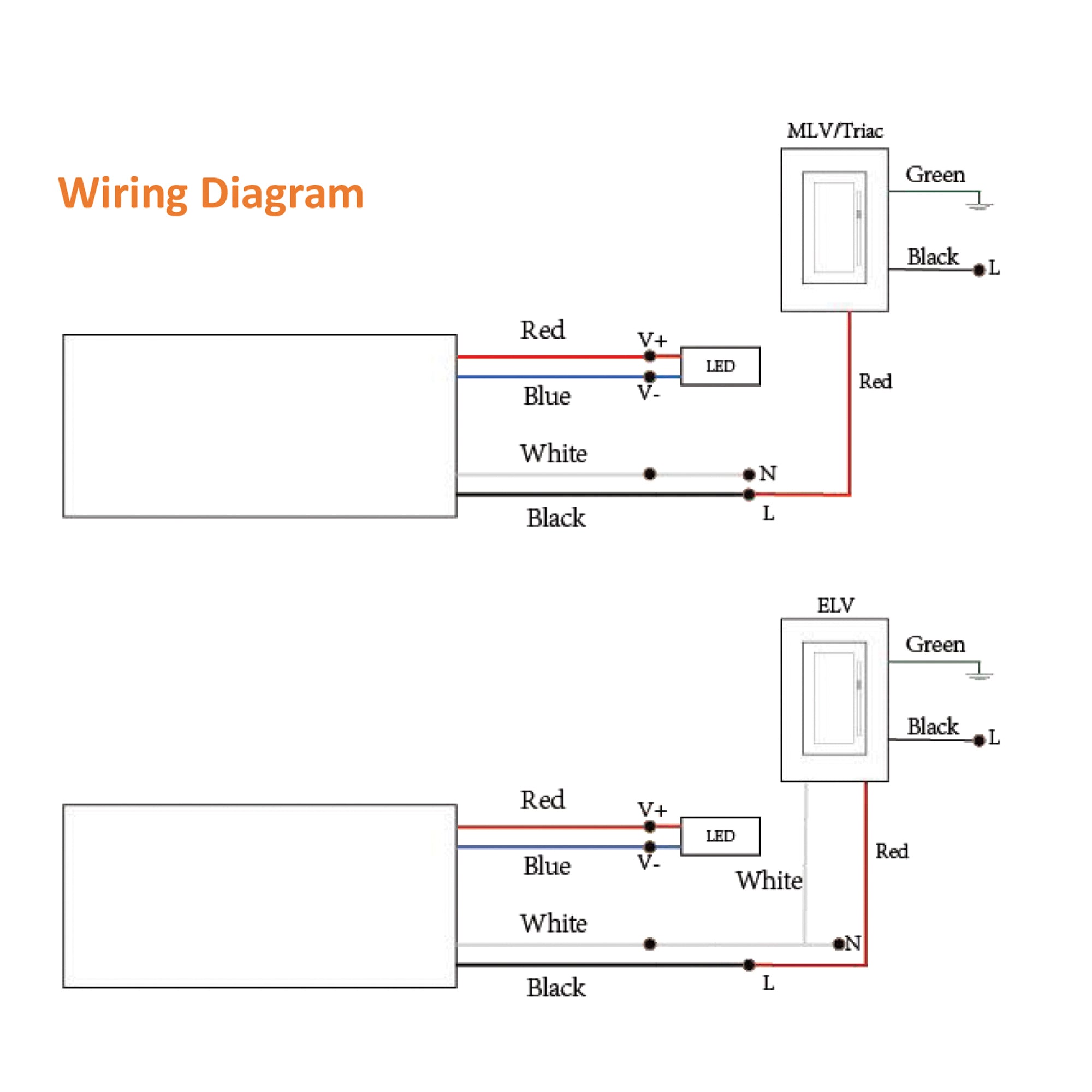

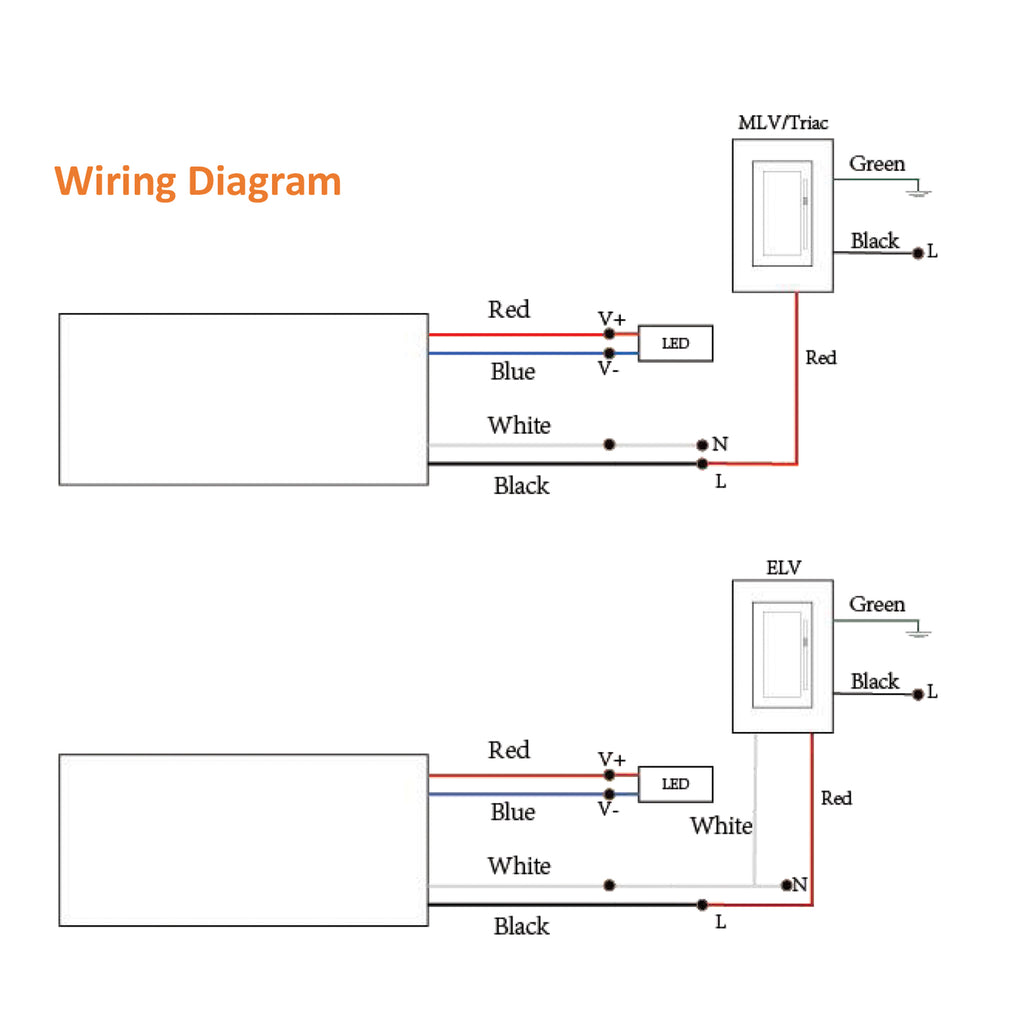

🔌 Wiring:
-
Input (120V AC):
-
Black – Line (18 AWG)
-
White – Neutral (18 AWG)
-
-
Output (12V DC):
-
Red – V+ (18 AWG)
-
Black – V– (18 AWG)
-
⚡ Typical Applications:
-
12V LED strip, tape, and rope lighting
-
Under-cabinet and cove lighting
-
Signage and retail lighting
-
OEM lighting assemblies
-
Class 2 low-voltage residential/commercial installs
🔹 Model Reference:
BNPS12‑60W‑SET
