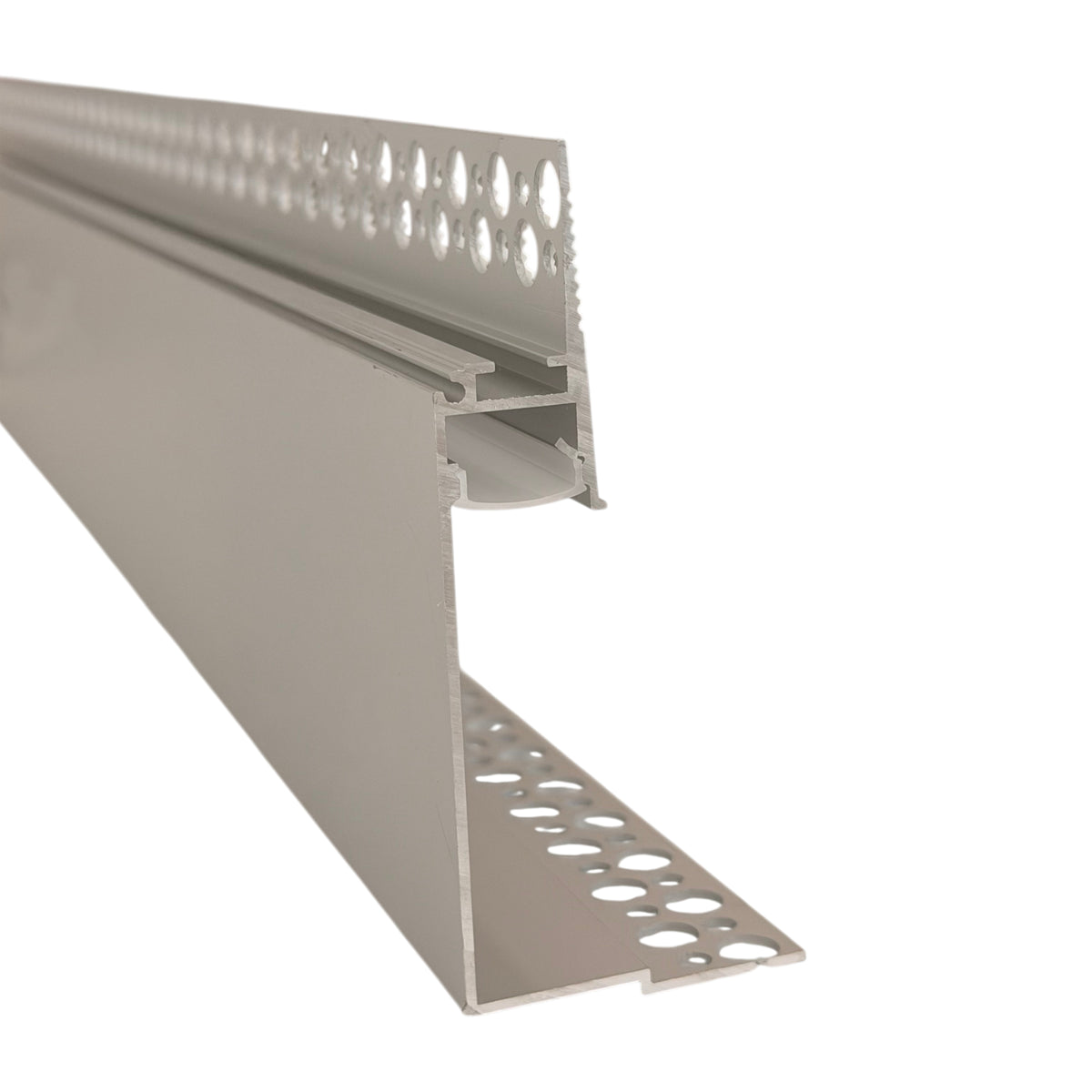

8FT Plaster-In LED Baseboard Channel – BN5620
Create clean, integrated architectural lighting along walls and baseboards with the BN5620 Plaster-In LED Baseboard Channel. Designed for recessed drywall and plaster installations, this aluminum profile integrates directly into the wall to create a modern linear lighting detail with minimal visible hardware.
The BN5620 features a dedicated LED strip compartment with a diffuser, while the perforated plaster-in flanges allow the profile to become securely integrated into the surrounding wall finish.
Key Features
- Model: BN5620
- Material: Aluminum
- Installation: Plaster-In / Recessed
- Application: Baseboard and Wall Lighting
- LED Compartment Width: Approx. 0.598"
- Diffuser: Included
- Overall Profile Height: Approx. 3.945"
- Perforated Flanges: Designed for drywall and plaster integration
- Lighting Style: Indirect / Architectural Linear Lighting
Designed for Plaster-In Baseboard Lighting
The BN5620 is designed to integrate LED strip lighting directly into architectural wall details.
Unlike conventional surface-mounted LED channels, the profile becomes part of the finished wall, helping create a clean and minimalist lighting installation.
It is ideal for:
- LED baseboard lighting
- Drywall lighting
- Architectural wall lighting
- Hallways and corridors
- Hotels and hospitality spaces
- Restaurants
- Retail interiors
- Offices
- Modern residential interiors
- Commercial architectural projects
Integrated Architectural Design

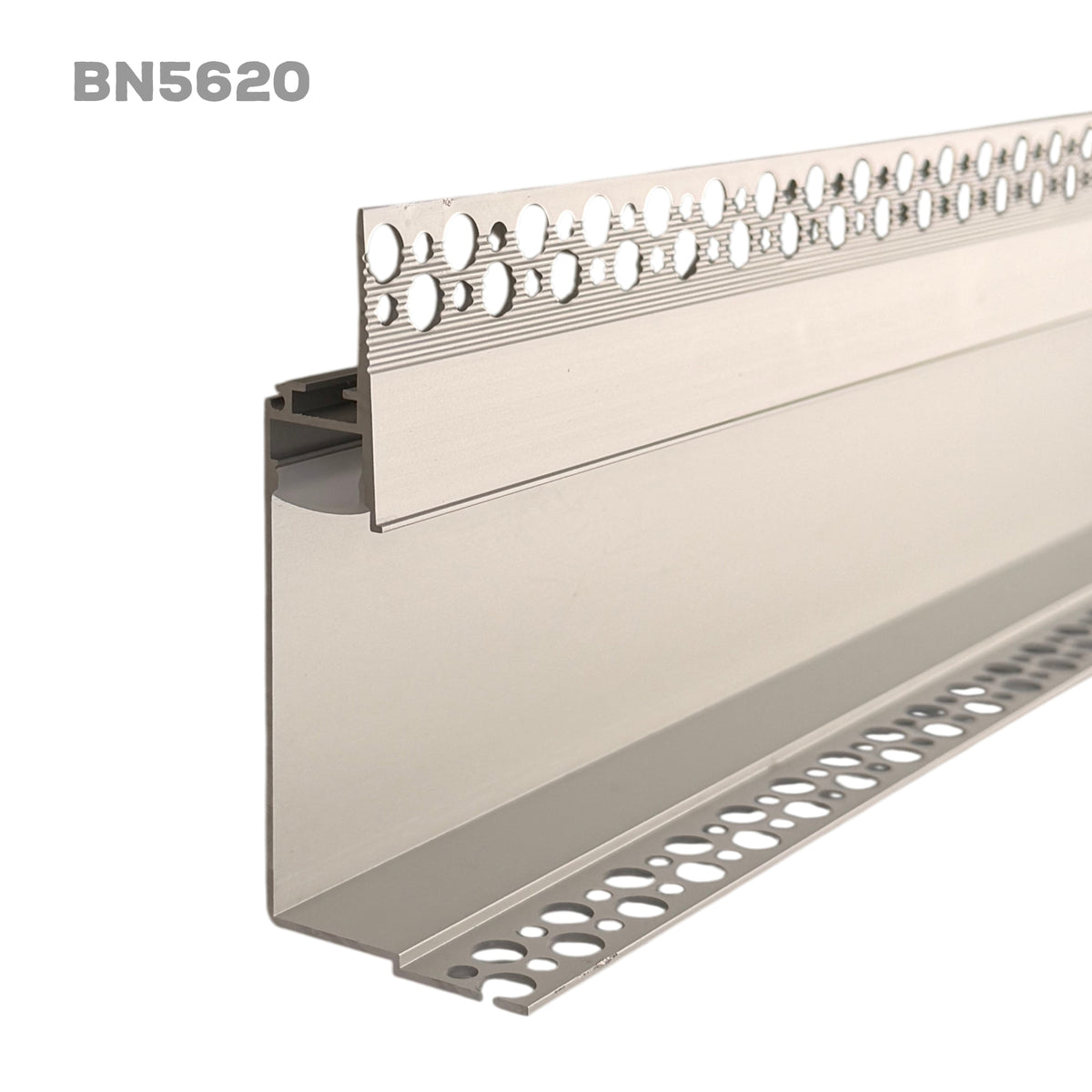

The perforated mounting flanges allow drywall compound or plaster to integrate with the profile, helping conceal the mounting edges after finishing.
Once installed, the aluminum channel becomes part of the wall construction rather than appearing as a conventional surface-mounted LED fixture.
Dedicated LED Strip Compartment
The LED strip installs inside a dedicated channel near the upper portion of the profile.

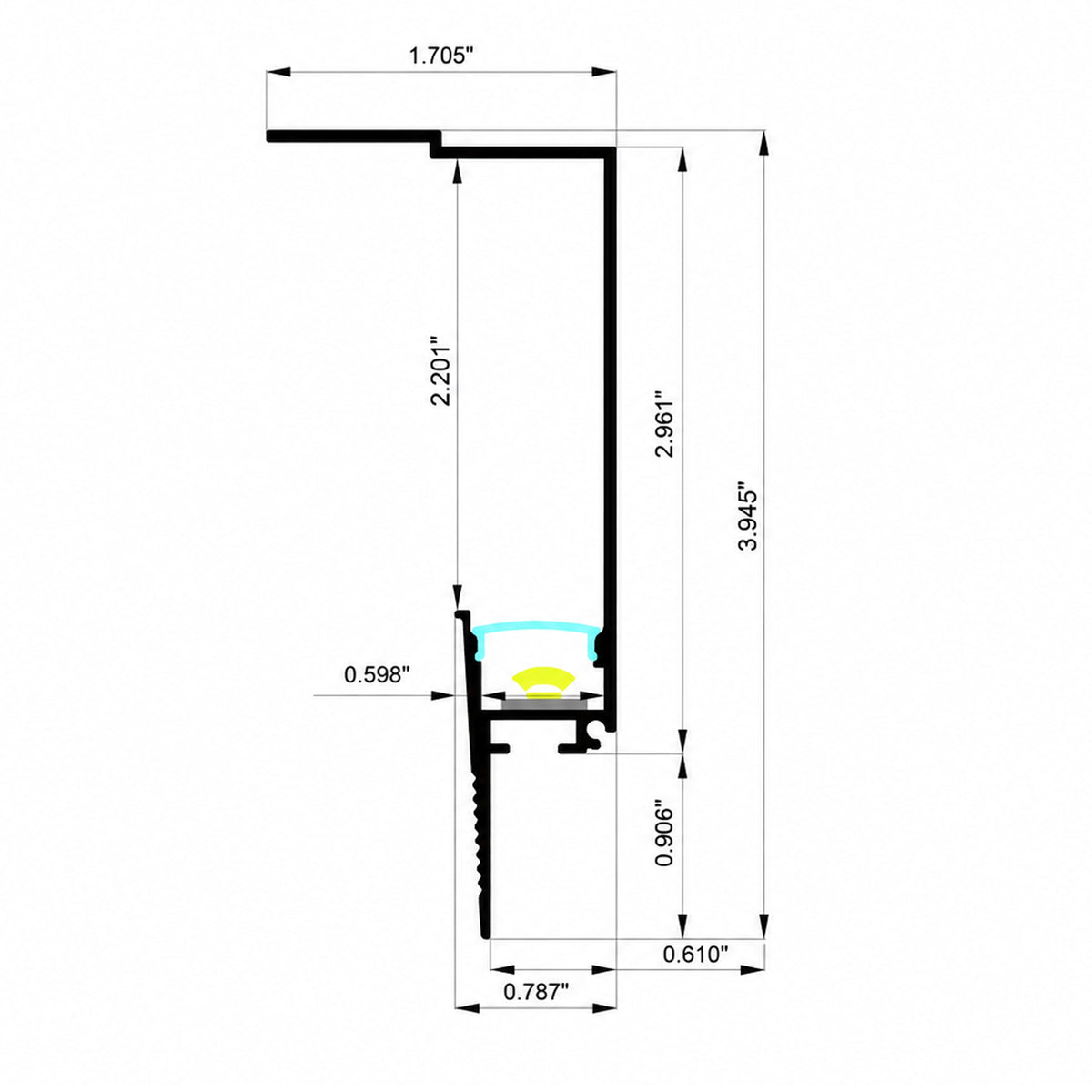

According to the supplied dimensional drawing, the LED compartment is approximately 0.598 inches wide, while the diffuser covers the lighting chamber for a cleaner finished appearance.
Always verify the actual width of the selected LED strip before installation.
Ideal for Modern Baseboard and Wall Lighting
The BN5620 can be used to create continuous linear illumination along the lower portion of walls, providing both decorative and functional architectural lighting.
Its recessed design is particularly suitable for projects where designers want the lighting detail to appear integrated into the architecture rather than added after construction.
Built for Professional Architectural Projects
The BN5620 is designed for electricians, contractors, builders, architects, lighting designers, drywall installers, and commercial project buyers working on professional architectural lighting installations.
For best results, coordinate the aluminum profile, LED strip, driver, wiring, and wall finishing requirements before drywall or plaster work is completed.
Planning a larger architectural lighting project? Contact BrightNex for wholesale pricing and project inquiries.
