Description

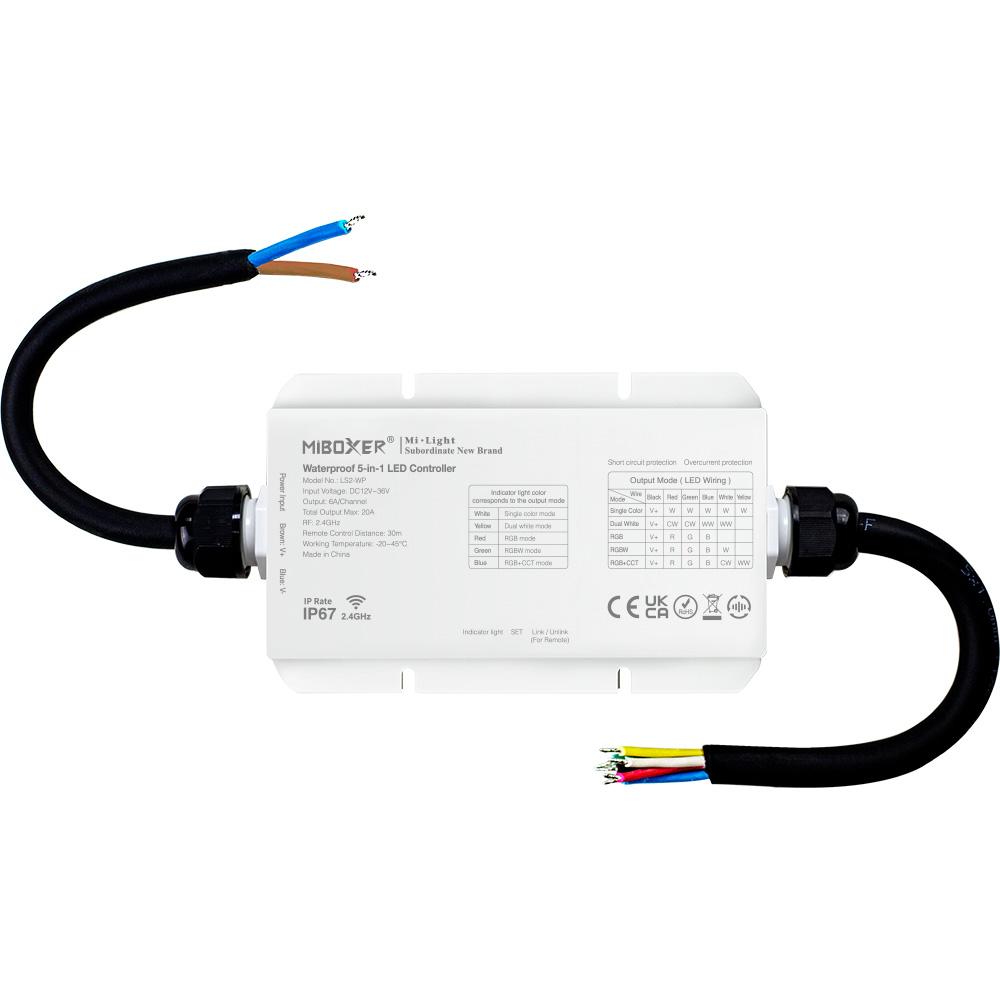

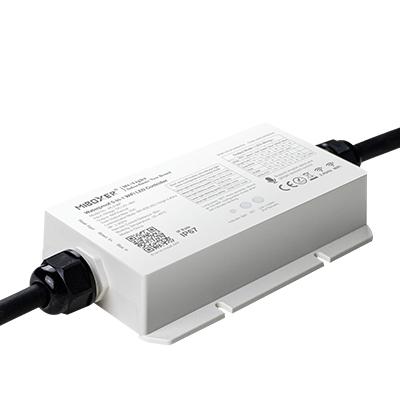

The MiBoxer WL5-WP Waterproof 5-in-1 WiFi LED Controller is a versatile smart lighting solution designed for residential, commercial, and architectural LED strip installations. Featuring an IP67-rated waterproof and dust-resistant housing, it provides reliable protection for installations exposed to moisture and demanding environmental conditions.
This advanced controller supports five LED strip configurations: Single Color, CCT (Dual White), RGB, RGBW, and RGB+CCT, allowing lighting professionals to use one controller across multiple LED lighting applications.
With built-in WiFi and 2.4GHz RF wireless connectivity, the WL5-WP offers convenient smartphone control and compatibility with supported MiBoxer wireless remotes. Voice-control integration with Amazon Alexa and Google Assistant provides additional flexibility for smart lighting systems.
Operating on 12–36V DC, the controller delivers up to 6A per channel, with a maximum combined output of 20A, making it suitable for a wide range of constant-voltage LED strip installations.
Part #: BN5-WP-Controller
Key Features
-
5-in-1 LED Strip Compatibility – Single Color, CCT, RGB, RGBW, and RGB+CCT
-
IP67 Waterproof Protection – Dust-tight housing with protection against temporary water immersion
-
Built-in WiFi – Convenient smartphone-based lighting control
-
2.4GHz RF Wireless Control – Compatible with supported MiBoxer remotes
-
Smart Home Integration – Supports Alexa and Google Assistant integration
-
12–36V DC Operation – Suitable for compatible constant-voltage LED systems
-
High Output Capacity – Up to 6A per channel and 20A total
-
30m Wireless Range – Up to approximately 98 ft RF control distance
-
Multi-Color Lighting Control – Adjust brightness, color, and color temperature according to the connected LED strip
-
Professional Installation Flexibility – Suitable for protected indoor and outdoor lighting applications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MiBoxer |
| Model | WL5-WP |
| BrightNex Part # | BN5-WP-Controller |
| Product Type | Waterproof 5-in-1 LED Controller |
| Input Voltage | DC 12–36V |
| Output Current | 6A/Channel |
| Maximum Total Output | 20A |
| LED Compatibility | Single Color, CCT, RGB, RGBW, RGB+CCT |
| Wireless Communication | WiFi + 2.4GHz RF |
| RF Control Distance | Up to 30m (98 ft) |
| IP Rating | IP67 |
| Operating Temperature | -20°C to +45°C |
Compatibility
Compatible with constant-voltage LED strips operating within the supported voltage and current limits.
Works with supported MiBoxer 2.4GHz RF remotes, including compatible RGB+CCT remote models such as FUT092 when configured for the appropriate lighting system.
Important: A suitable DC power supply is required. The WL5-WP is a low-voltage LED controller and must not be connected directly to AC mains power. Outdoor installations must use appropriate waterproof connections and power supplies.
Applications
-
Outdoor architectural accent lighting
-
Landscape and patio LED strip installations
-
Under-cabinet and kitchen lighting
-
RGB+CCT decorative lighting
-
Commercial storefront lighting
-
Hospitality and restaurant lighting
-
Cove and ceiling lighting
-
Residential smart lighting systems
-
Multi-zone architectural lighting
