Description

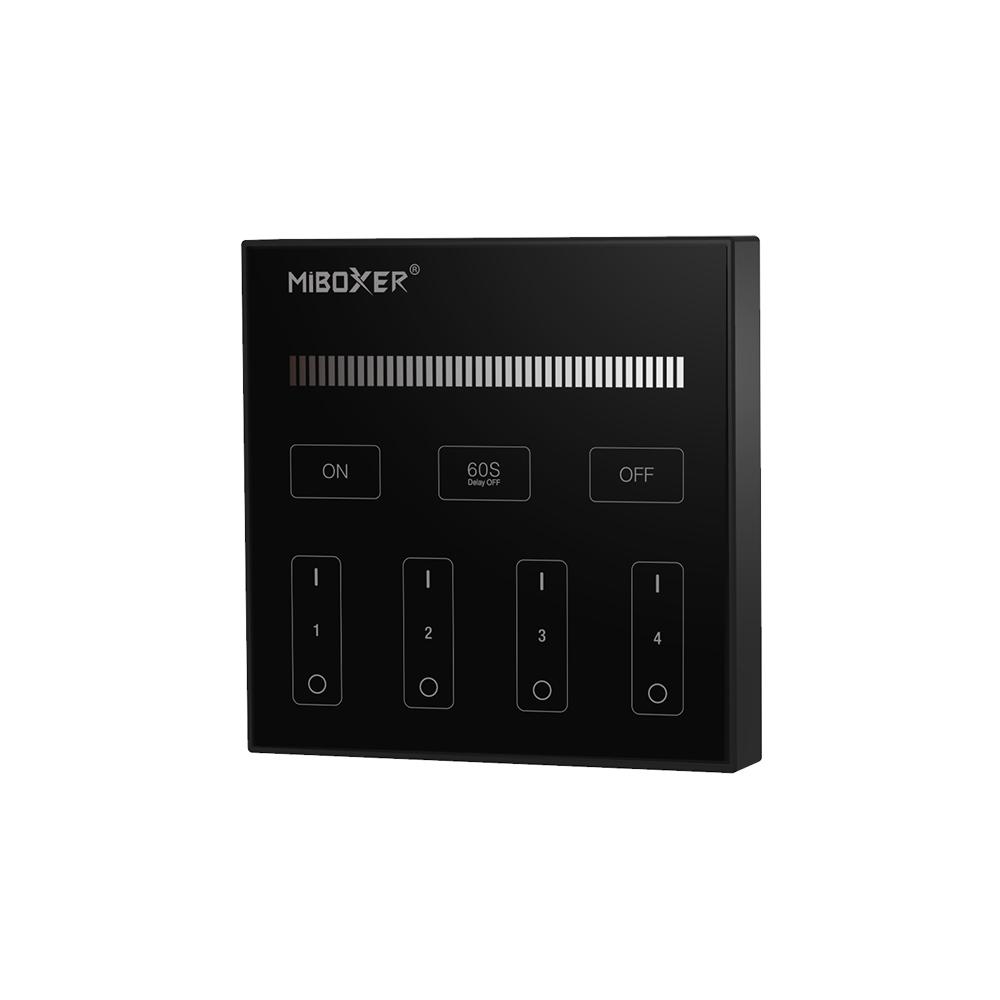

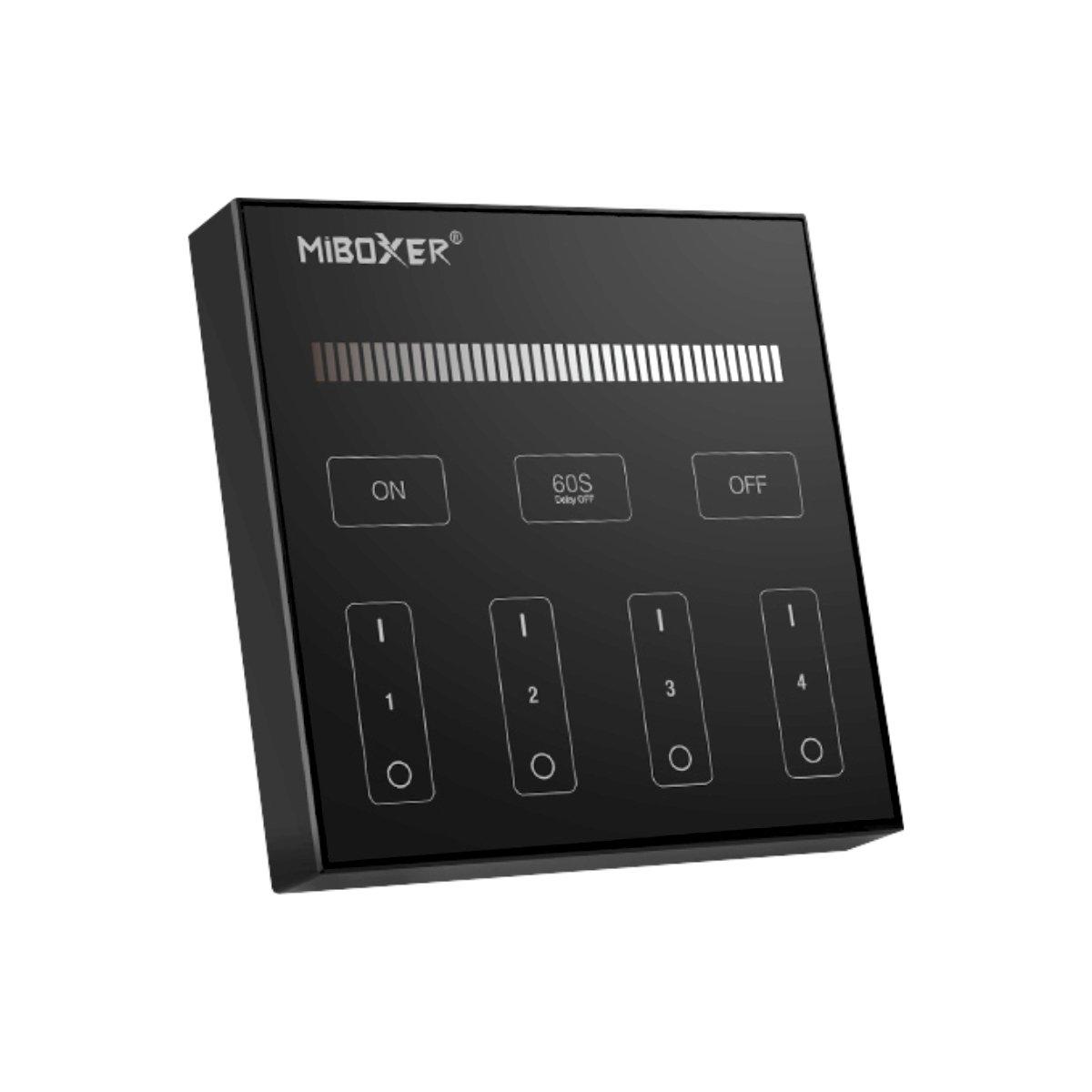

The MiBoxer B1-B Black Single Color 4-Zone LED Wall Controller is a stylish, battery-powered wireless touch panel designed for convenient control of single-color LED lighting systems.
Featuring four independent lighting zones, the B1-B allows users to control separate lighting areas individually or together. Its responsive touch-sensitive dimming slider provides smooth brightness adjustment, making it ideal for residential, commercial, and architectural LED installations.
The controller uses 2.4GHz RF wireless technology to communicate with compatible MiBoxer LED receivers at distances of up to 30 meters (98 ft).
With its modern black finish and compact 86 × 86mm wall-mounted design, the B1-B offers a professional appearance for kitchens, living rooms, offices, hotels, retail spaces, and other lighting projects.
Powered by two AAA batteries, the panel requires no direct power or control wiring at the wall location, simplifying installation.
Part #: BN1B-Single-Color-Controller
Key Features
-
4-Zone Single Color Control – Independently control up to four lighting zones
-
Black Touch Panel Design – Modern appearance for contemporary interiors
-
Touch-Sensitive Dimming – Convenient brightness adjustment
-
2.4GHz RF Wireless Communication – Reliable wireless lighting control
-
30m Control Distance – Up to approximately 98 ft
-
Battery-Powered Operation – Uses 2 × AAA batteries
-
86 × 86mm Wall Panel – Compact wall-mounted design
-
Individual or Group Control – Manage multiple compatible lighting zones
-
Low Standby Consumption – Approximately 20μA
-
Professional Installation Flexibility – No direct LED load wiring at the wall panel
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MiBoxer |
| Model | B1-B |
| BrightNex Part # | BN1B-Single-Color-Controller |
| Product Type | Single Color LED Wall Controller |
| Color | Black |
| Lighting Zones | 4 |
| Operating Voltage | 3V DC |
| Power Source | 2 × AAA Batteries |
| Transmission Frequency | 2400–2483.5MHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Wireless Control Distance | Up to 30m (98 ft) |
| Standby Current | 20μA |
| Panel Dimensions | 86 × 86mm |
| Communication | 2.4GHz RF |
Compatibility
The MiBoxer B1-B is designed for use with compatible MiBoxer 2.4GHz single-color LED receivers.
It can be used to control multiple single-color lighting zones, including compatible COB and SMD LED strip installations.
Important: The B1-B is a wireless wall controller, not a direct LED power controller. A compatible MiBoxer receiver and properly rated LED power supply are required.
Applications
-
Under-cabinet LED lighting
-
Architectural cove lighting
-
Kitchen and living room lighting
-
Bedroom accent lighting
-
Office lighting
-
Retail display lighting
-
Hotel and hospitality lighting
-
Multi-zone single-color LED installations
