Dimmable LED Driver 12V, 120W for Wet, Damp, Dry Locations, Class 2, UL Certified (Dimmable LED Transformer)

Are You a Retailer? Access Exclusive Wholesale Prices Today!

Description

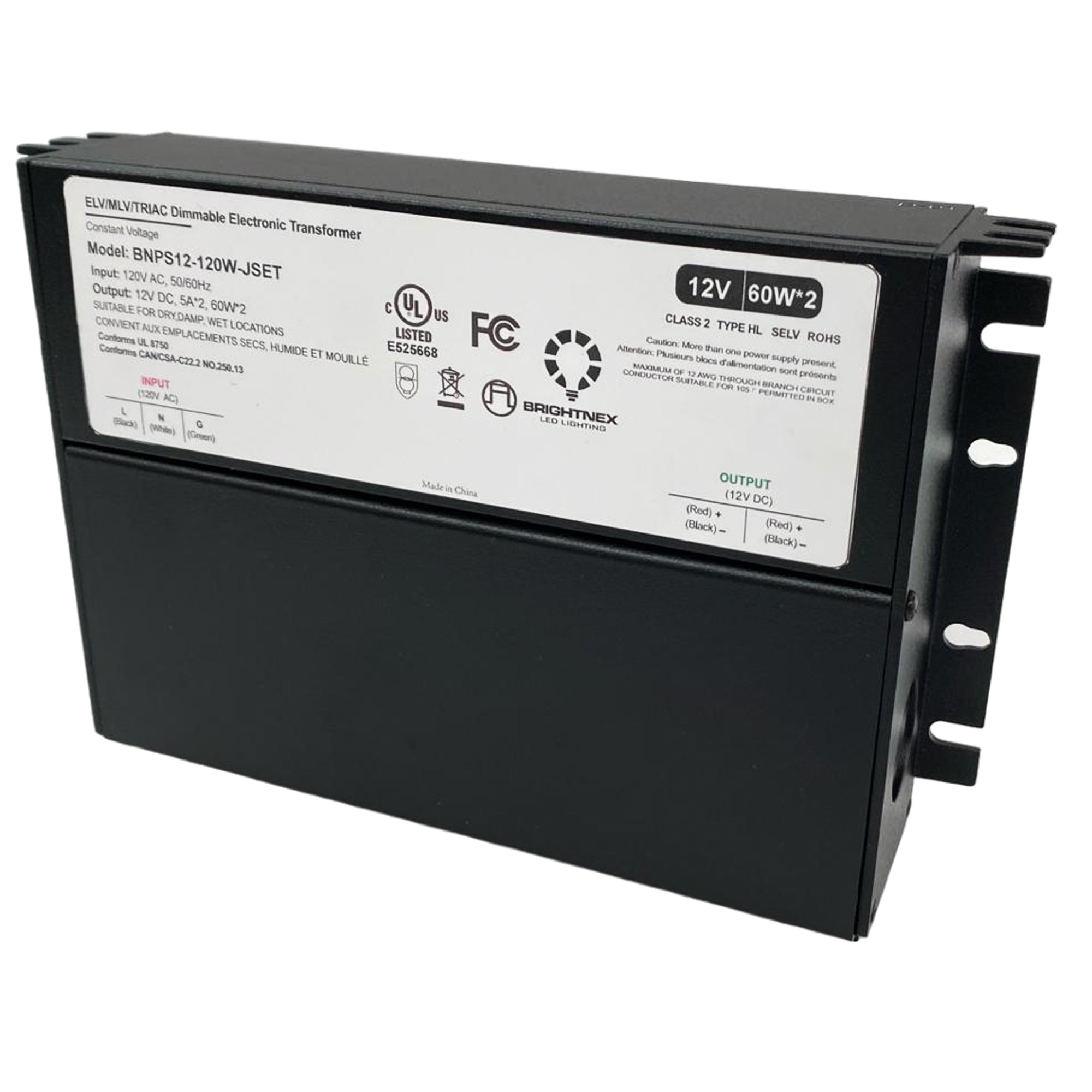

This Class 2 UL-certified dimmable transformer with an aluminum housing has been designed to be used in wet, damp, and dry locations. Dimensions: 7.40x4.74x1.65 inches (L*W*H). This dimmable transformer (LED Driver) is compatible with Triac/ELV/MLV dimming.

Input: 120V, 47-63HZ
Output: 12V, Multi 5A*2, 60W*2

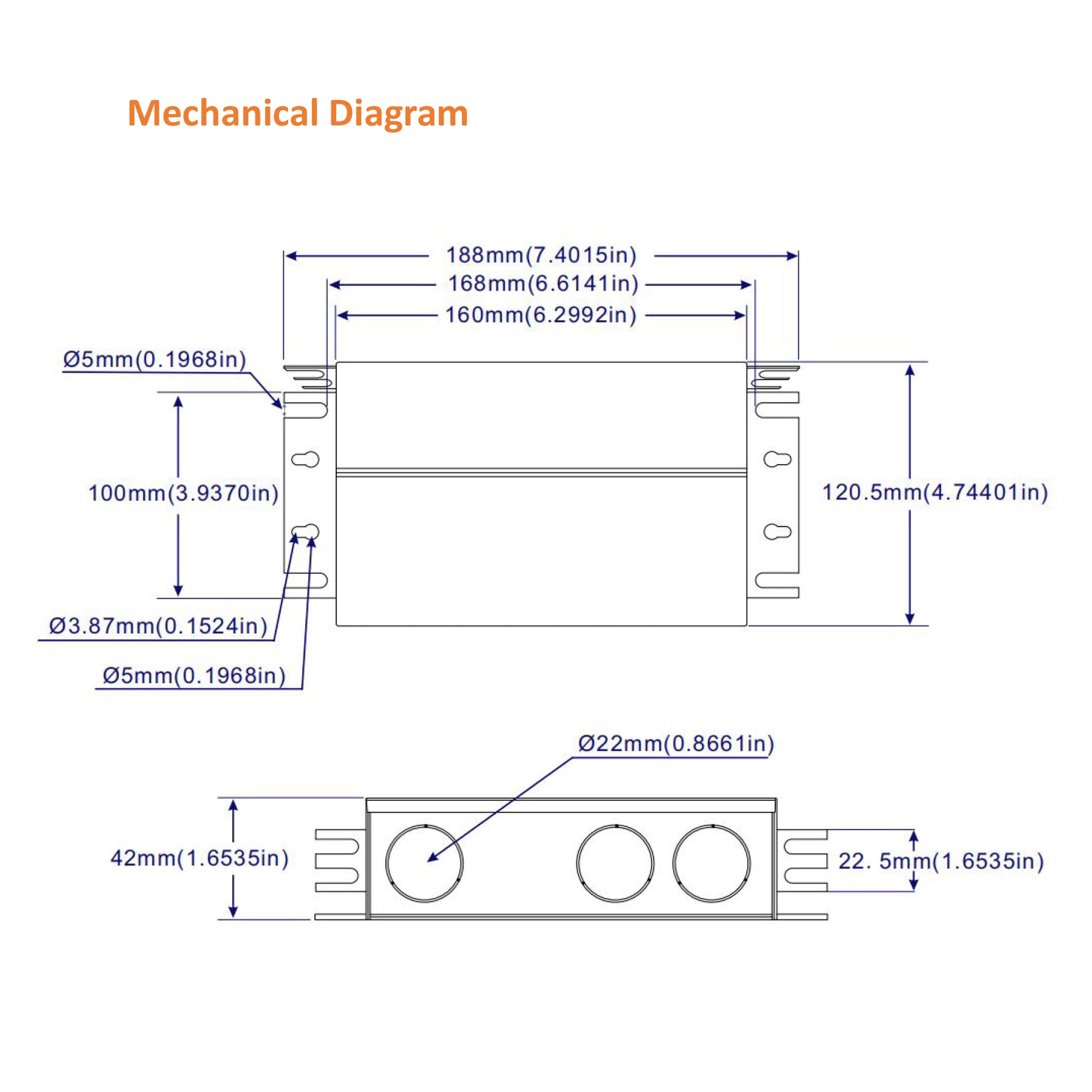

Transformer Dimensions: 7.40x4.74x1.65 inches (L*W*H)
Model Number: BNPS12-120W-JSET

Feature

UL Certified, Class 2, Type HL

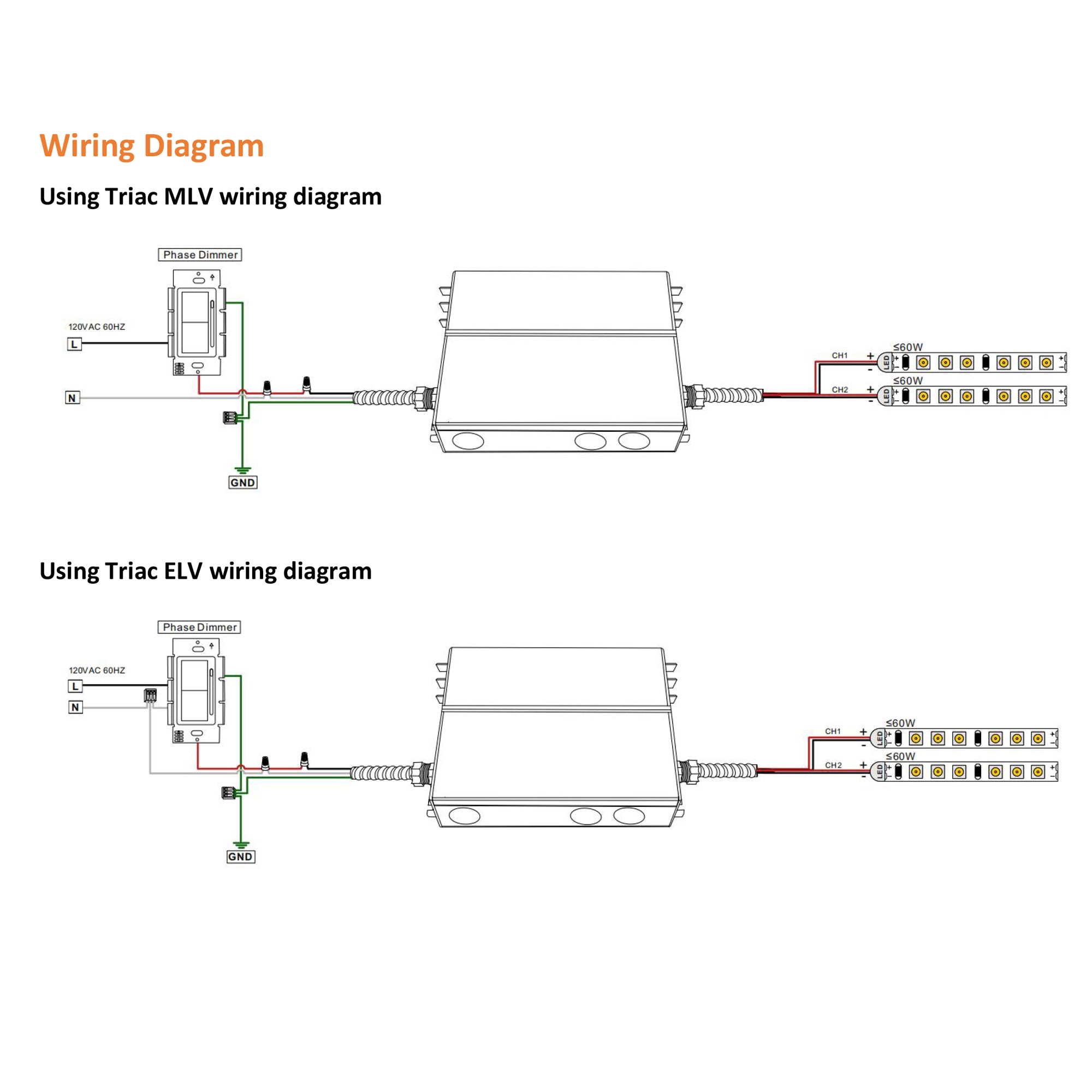

Dimming: Triac/ ELV/ MLV

Damp,dry, wet location

120Vac input

Dimming 0-100%

Aluminum housing, for dry, damp,wet

Compatible with popular dimmers in the market, Lutron-CL, Diva series

Size: 7.40x4.74x1.65 inch (L*W*H)

Super low loading request, works perfect at 20-100% load

Short-circuit, over-load protection

Constant voltage type

THD<20%@120V Max. load

Build in active PFC, typical Power factor=0.98
