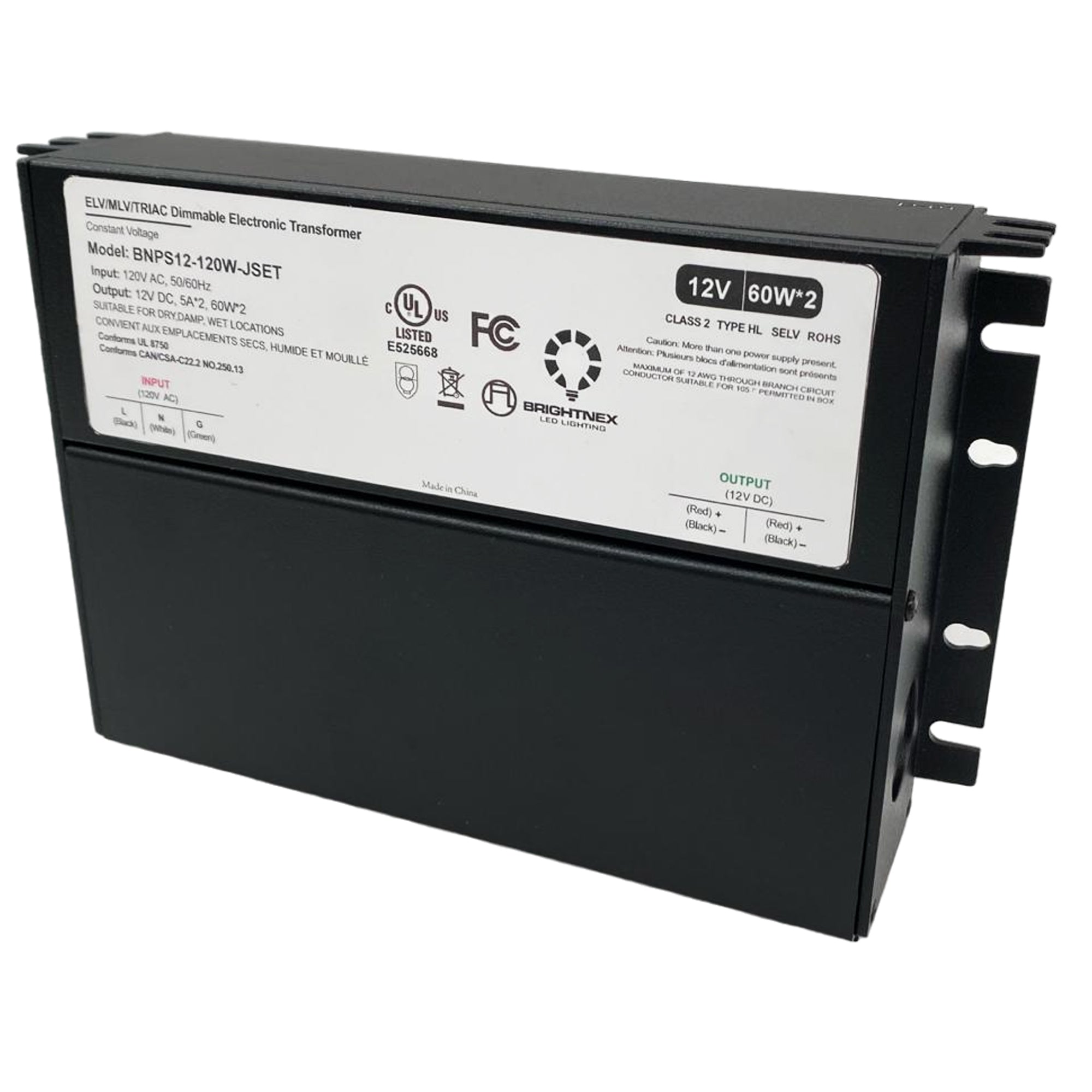

Description
This 12V 120W dimmable constant voltage LED transformer features dual output channels (60W × 2) and supports full-range 0–100% dimming via TRIAC, ELV, or MLV dimmers. It is built for LED lighting systems requiring a compact, reliable, and safe Class 2 power source.
Housed in a durable aluminum case rated for dry, damp, and wet locations, it includes short-circuit and overload protection, and operates efficiently from 20% to 100% load. The transformer integrates easily into commercial and residential lighting projects, offering stable output and excellent dimmer compatibility.

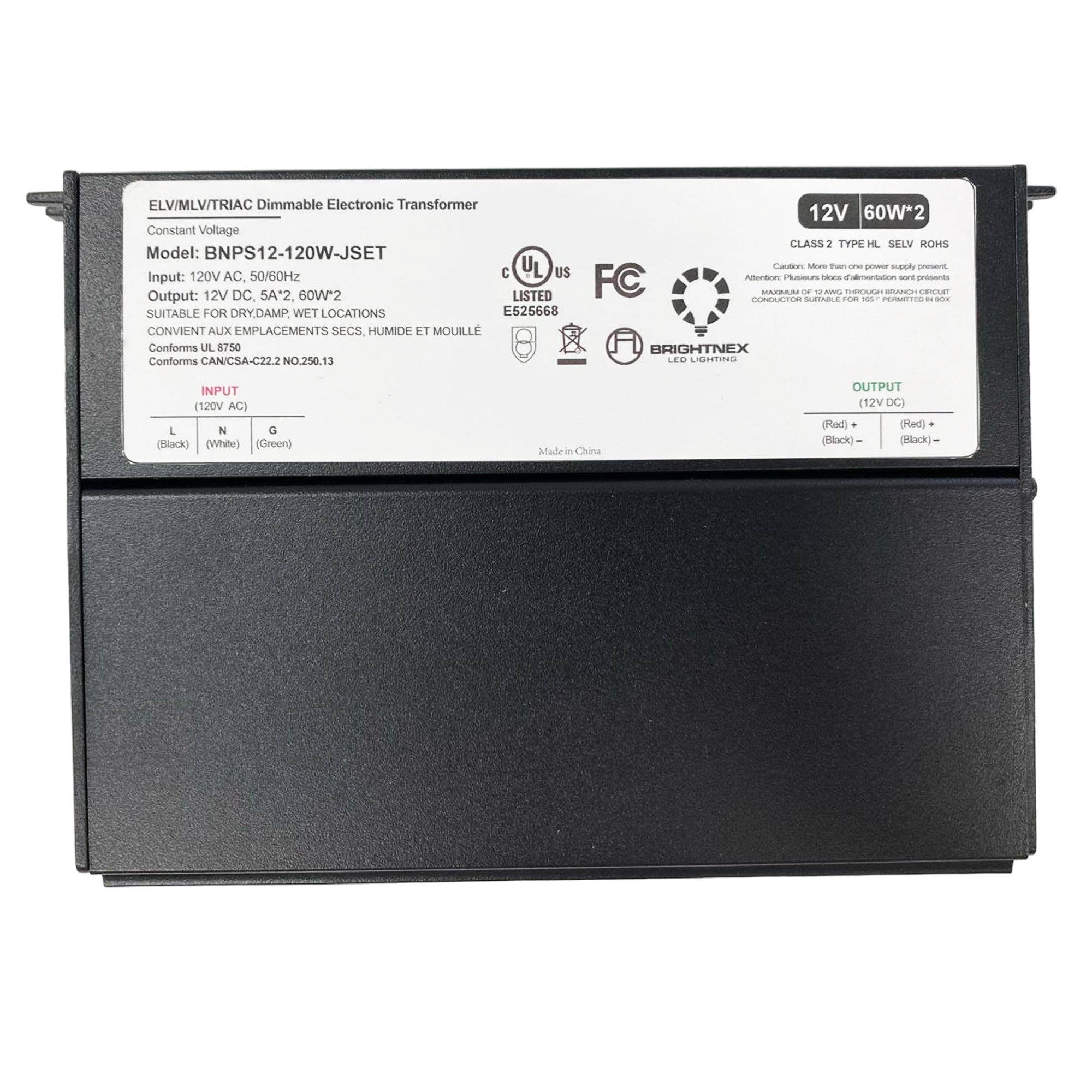

🔧 Specifications:
-
Output Voltage: 12V DC
-
Output Power: 120W (2 × 60W channels)
-
Output Current: 5.0A × 2
-
Input Voltage: 120V AC
-
Frequency: 47–63Hz
-
Efficiency: 88% @ full load
-
Power Factor: 0.98 typical @ 120V
-
THD: < 20% @ 100% load
-
Voltage Tolerance: ±0.5V
-
Load Regulation: ±1%
-
Leakage Current: < 0.5mA @ 120V
-
Load Range: Operates from 20–100%
-
Certifications: UL8750, FCC, Class 2, Type HL, RoHS
-
Enclosure Rating: Dry, Damp, and Wet Location (Not for Submersion)
-
Operating Temp: -40°F to +140°F (-40°C to +60°C)
-

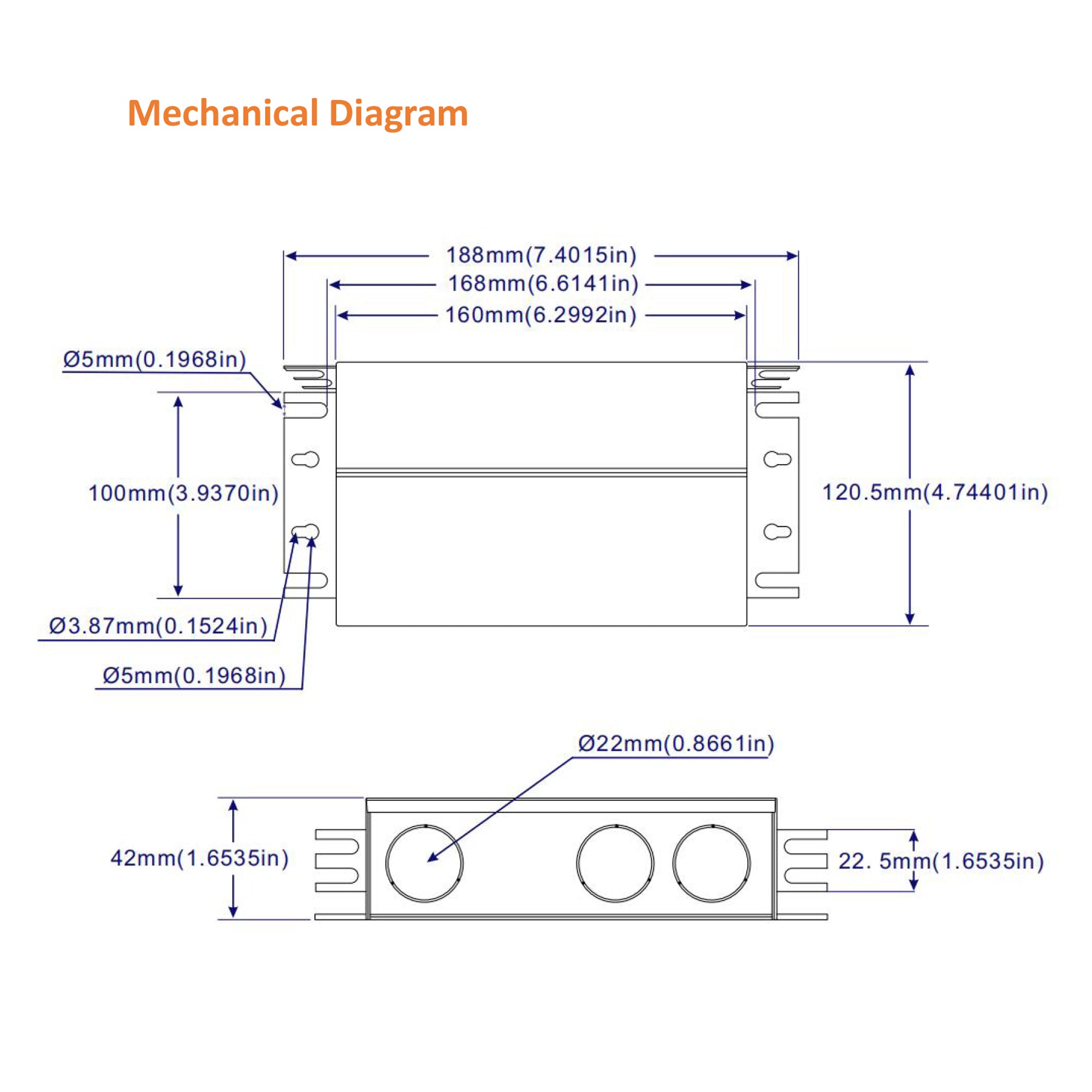

Dimensions: 7.40" × 4.74" × 1.65" (L × W × H)
-
Weight: 1.76 lbs (0.8 kg)

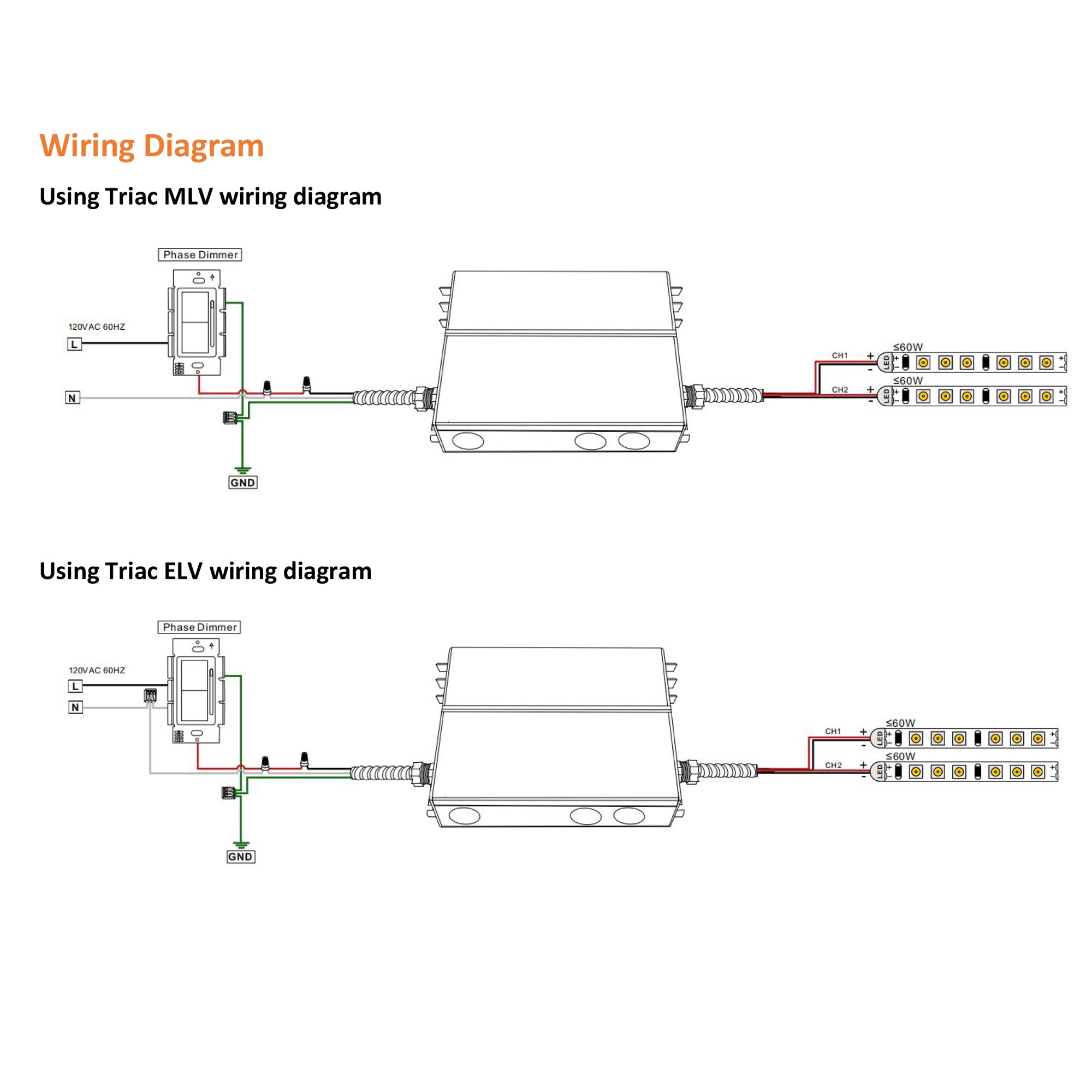

🎚️ Dimming Compatibility:
-
Dimming Range: 0–100%
-
Dimming Types Supported:
-
TRIAC (Leading Edge)
-
ELV (Trailing Edge)
-
MLV (Magnetic Low Voltage)
-
-
Compatible Dimmer Brands:
-
Lutron Diva, CL, Caseta
-
Leviton Decora, SureSlide
-
-
Stable Operation Range: 20%–100%

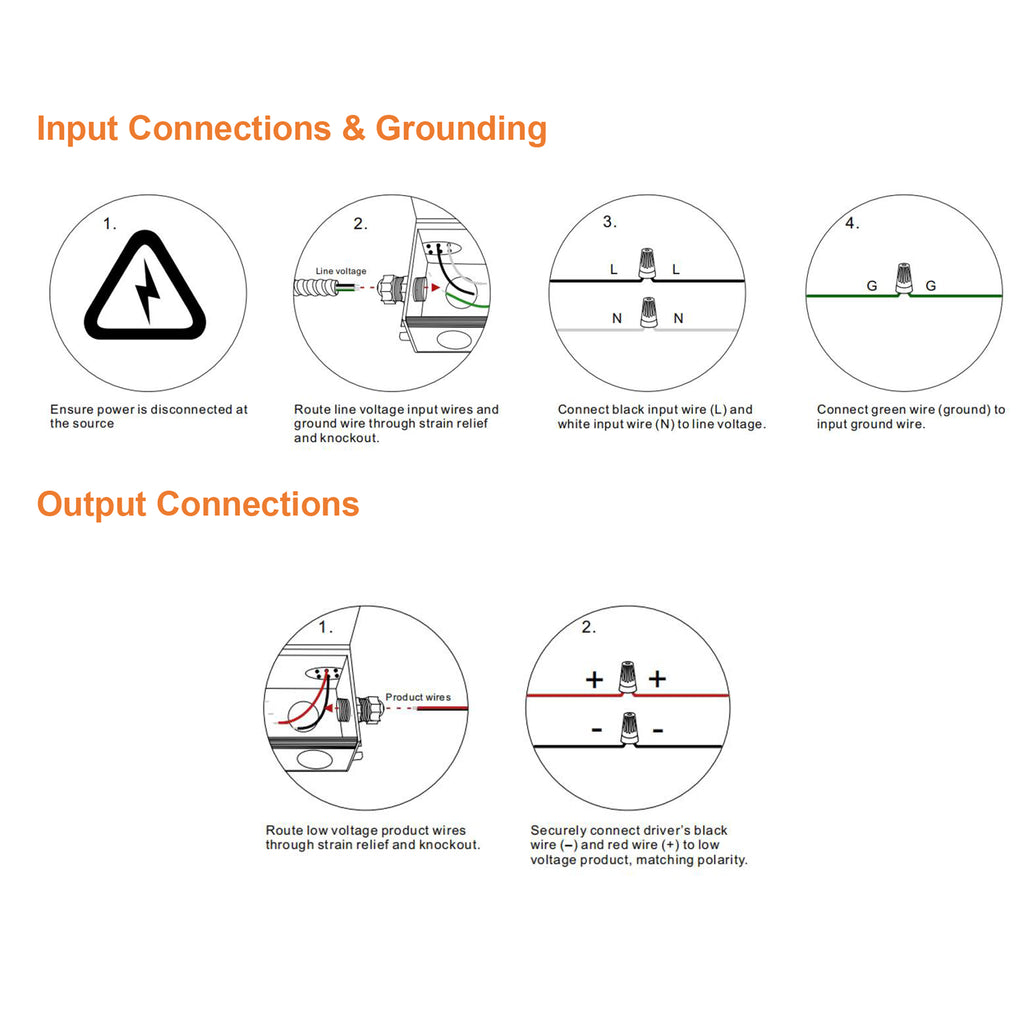

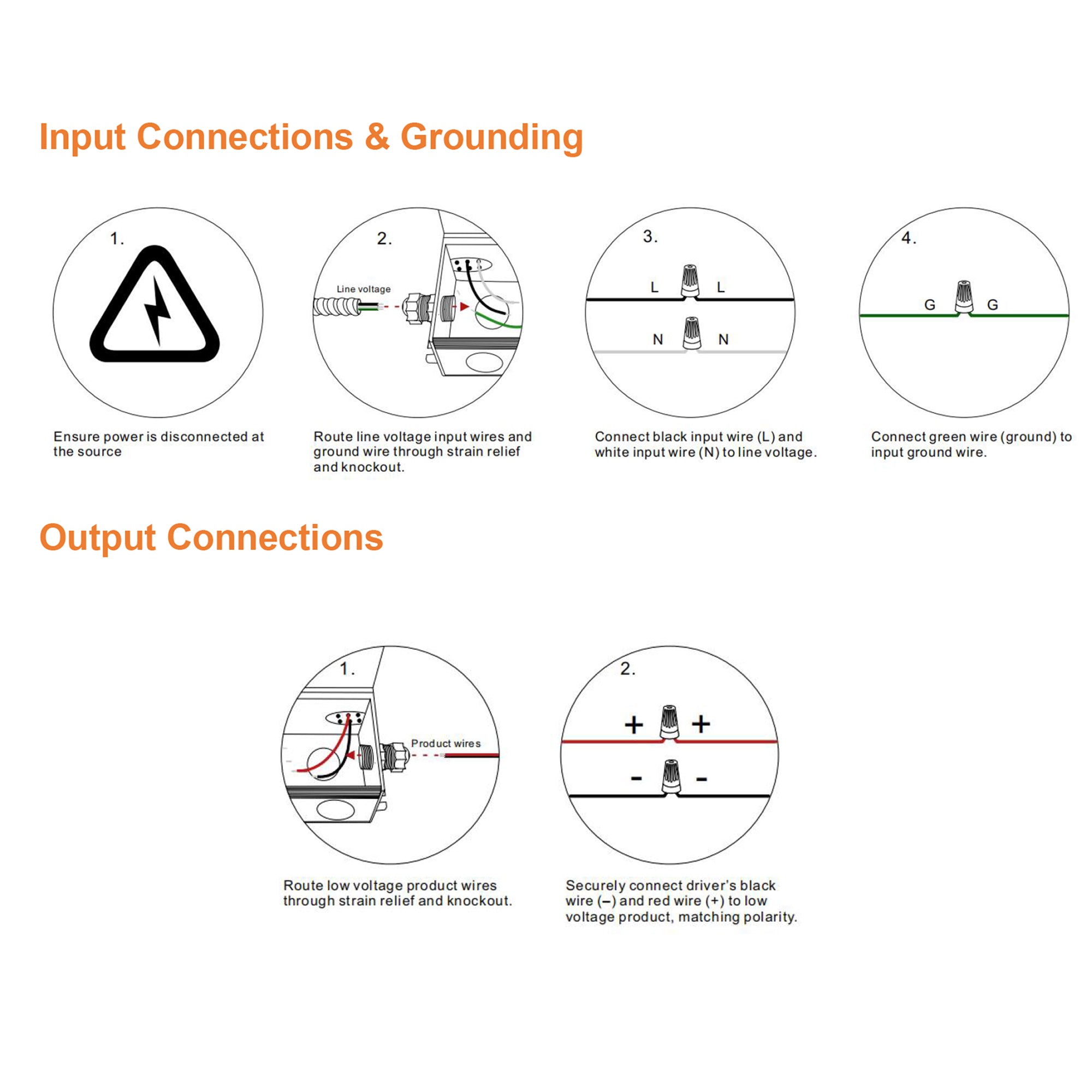

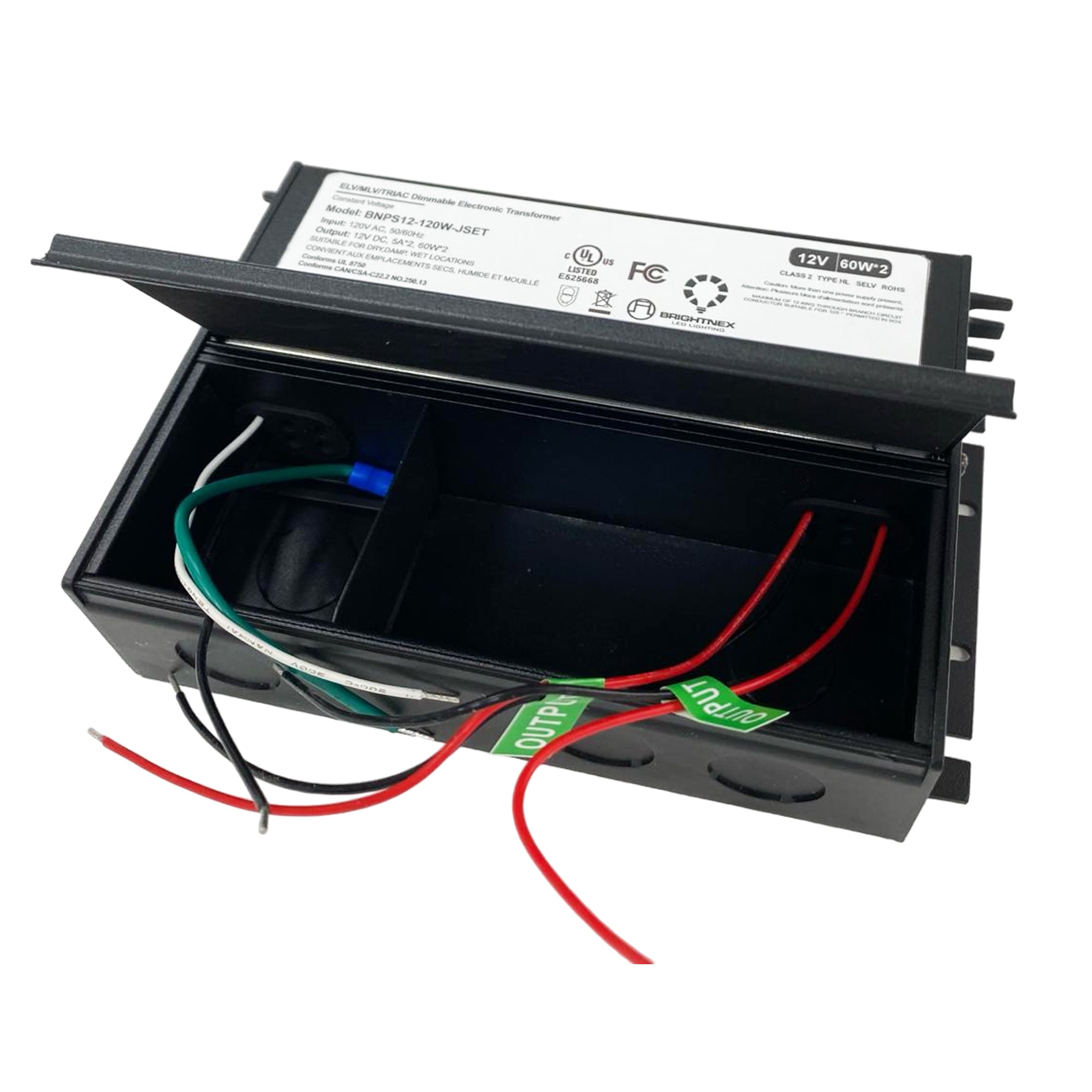

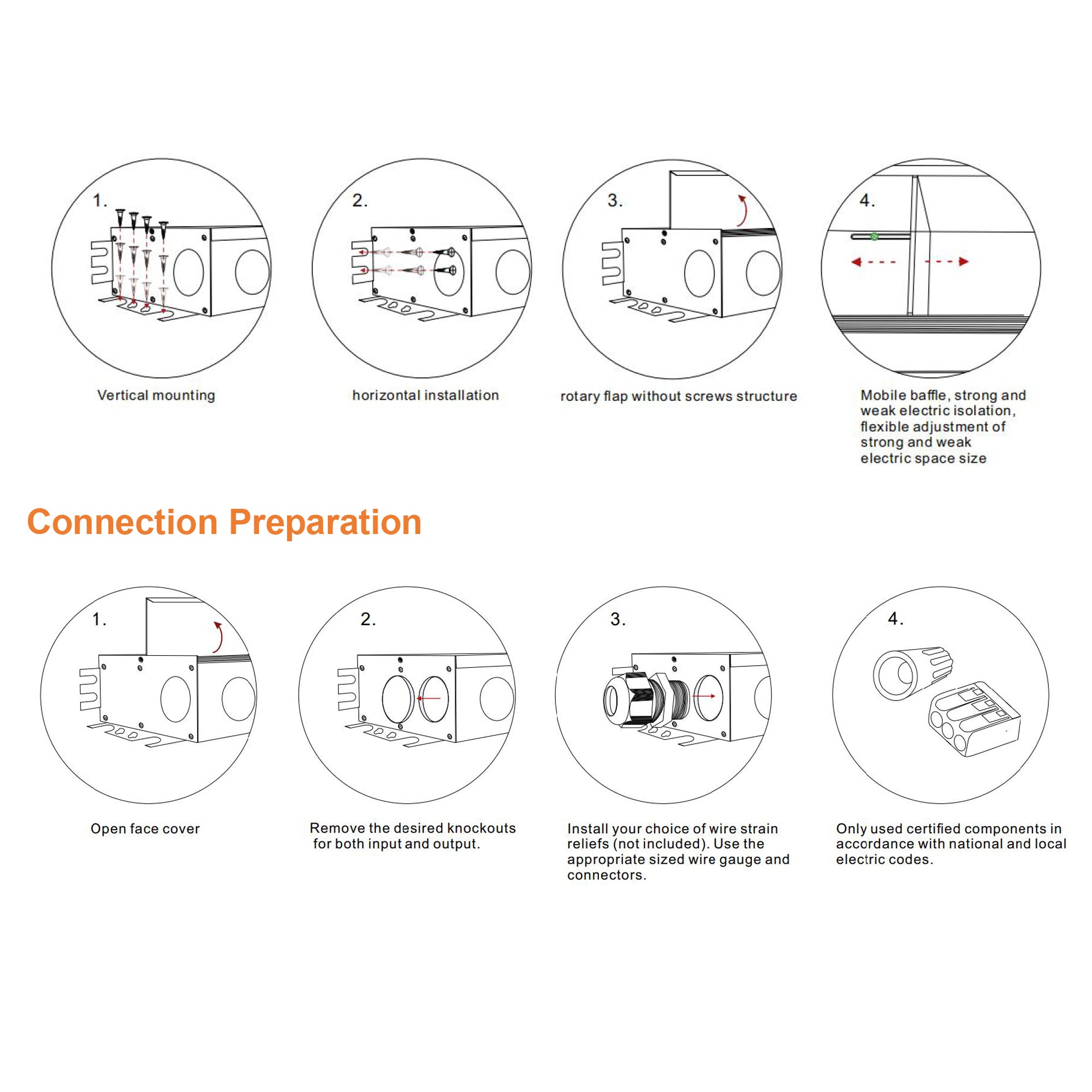

🔌 Wiring :
-
Input (120V AC):
-
Black – Line (18 AWG)
-
White – Neutral (18 AWG)
-
Green – Ground (18 AWG)
-
-
Output (12V DC, Dual Channels):
-
Red – V+ (18 AWG)
-
Blue – V– (18 AWG)
-
⚡ Typical Applications:
-
12V dual-channel LED strip and tape lighting
-
Signage, display, and retail lighting
-
Cove and under-cabinet lighting
-
Damp and wet location (Not for Submersion)
-
Class 2 residential or commercial LED systems
🔹 Model / Part:
BNPS12‑120W‑JSET
