Brightnex LED Lighting

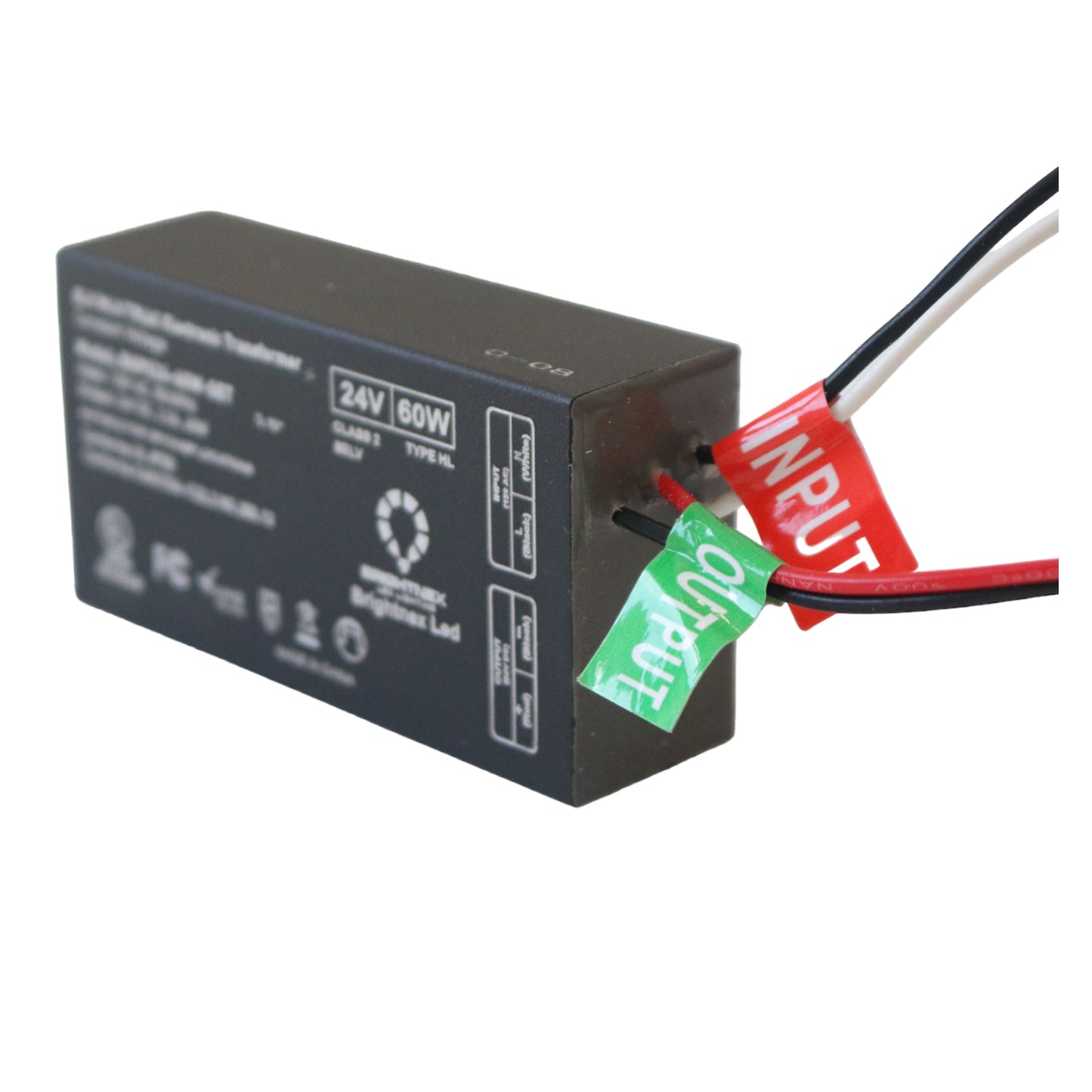

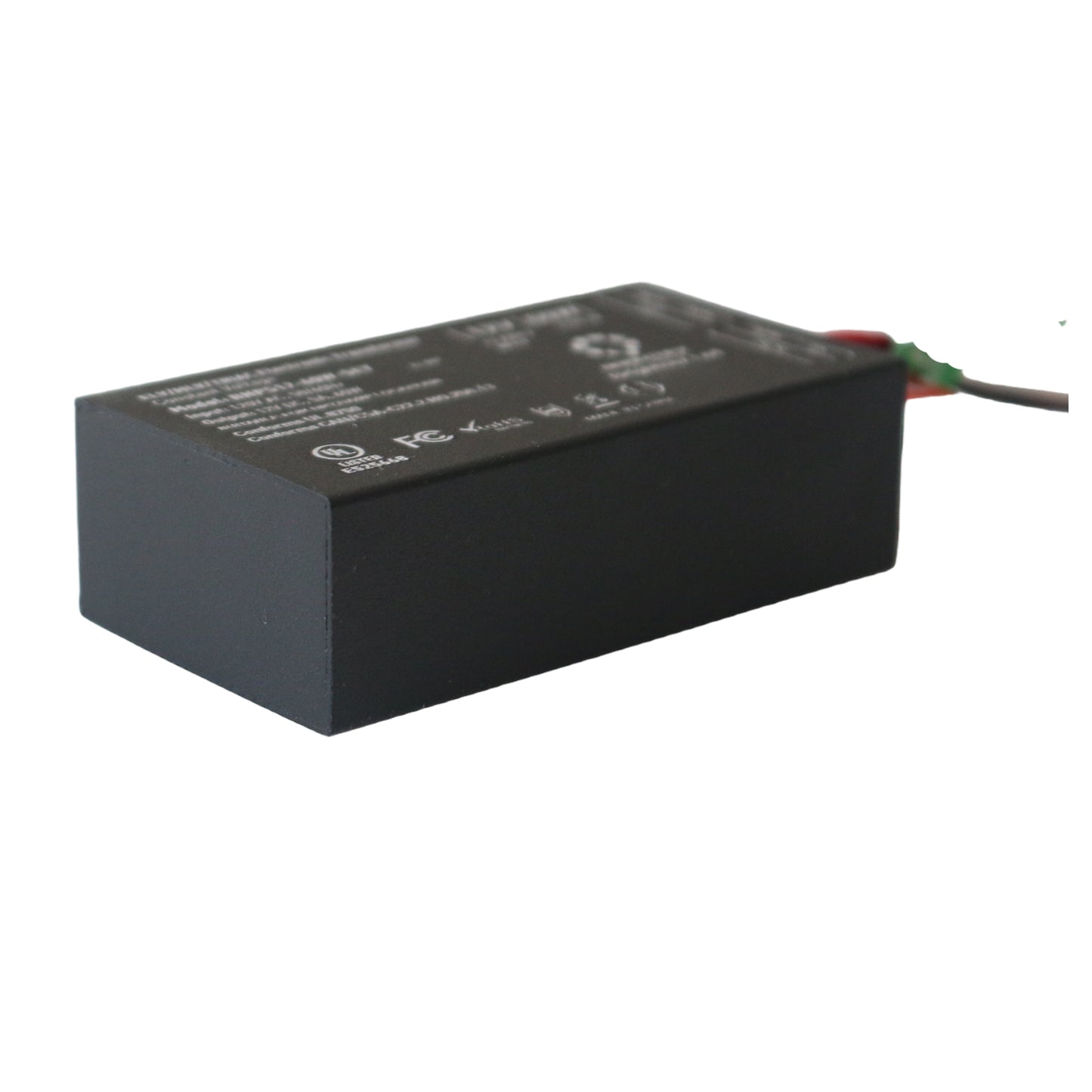

Smallest DIMMABLE TRANSFORMER (LED Driver), 24V, 60W

Regular price
Regular price Sale price
Sale Sold out

This smallest Transformer (Dimensions: 2.83x1.53x0.79 inches (L*W*H)) is smaller than our Compact Transformer (Dimensions: 3.31x1.57x0.98 inches (L*W*H)). They are UL-certified dimmable transformers (LED Driver) compatible with Triac/ELV/MLV dimming. Suitable for dry and damp locations, they fit in a 4" Junction box. The AC input is 120Vac, and 88% efficiency with short circuit protection.

Input: 120 V AC, 0.7A, 50/60Hz
Output: 24V DC, 2.5A, 60W, PF>0.9

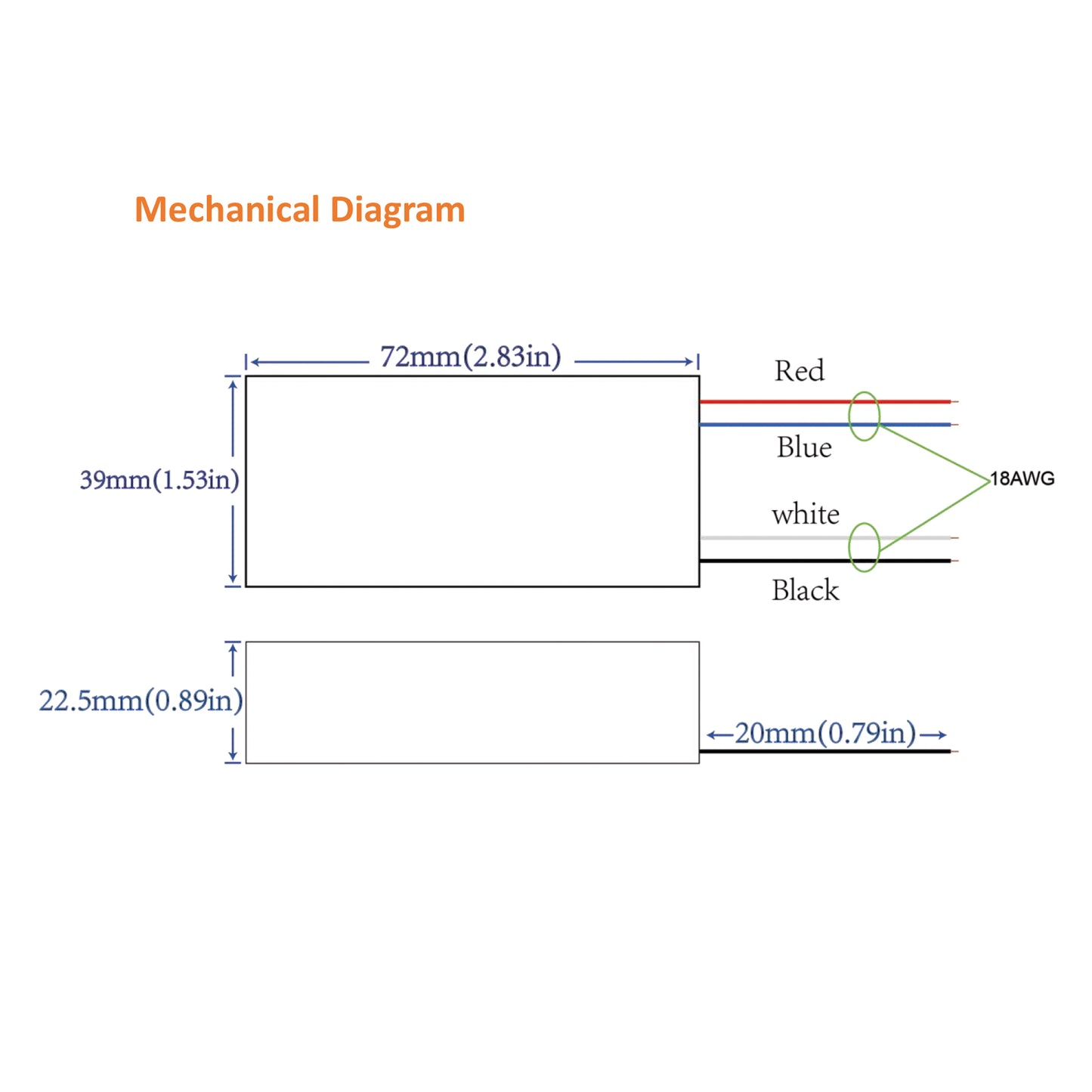

Transformer Dimensions: 2.83x1.53x0.79 inch (L*W*H)

Model Number: BNPS24-60W-SET

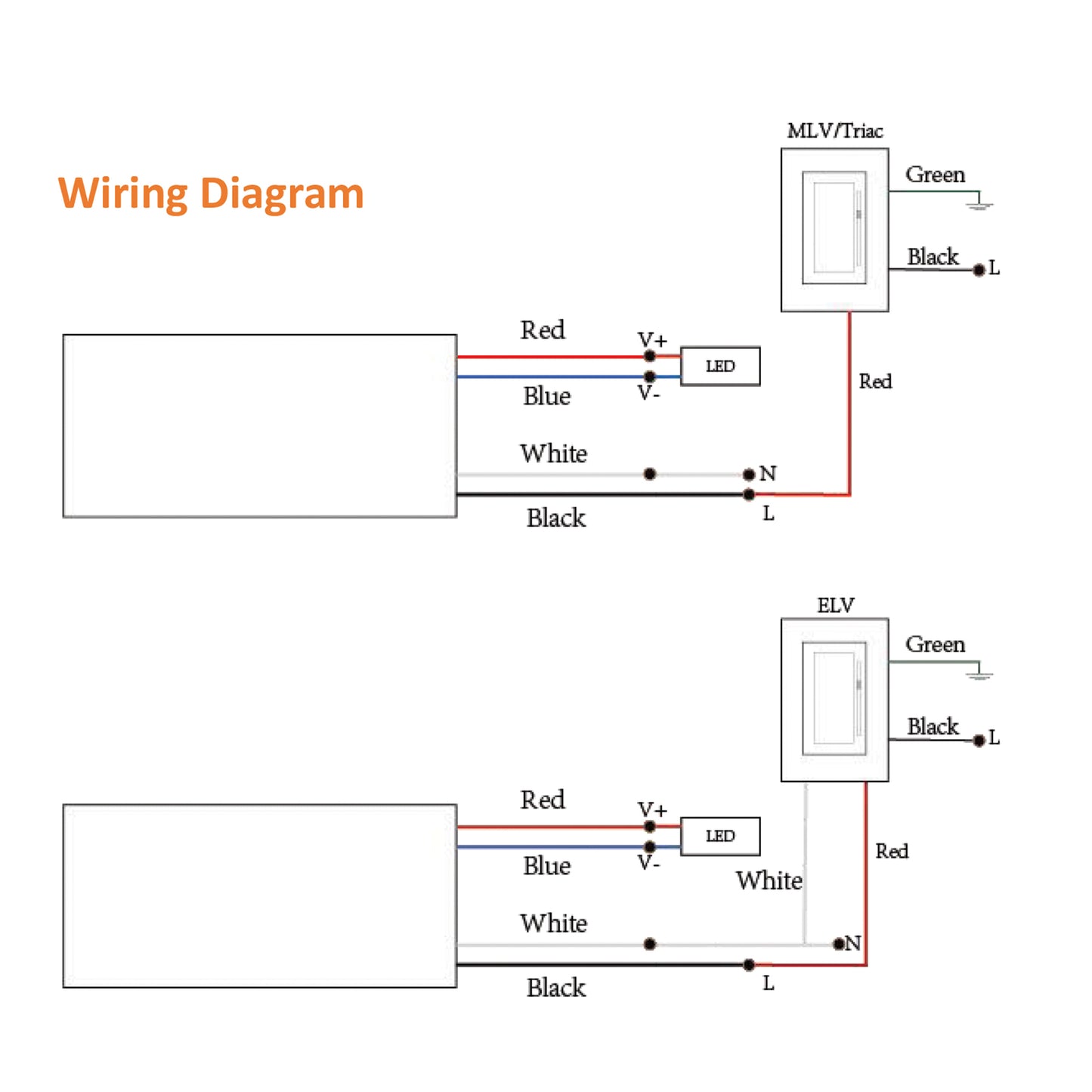

Compatible with Triac/ ELV/ MLV dimming, Lutron-CL, Diva series

Dimming 0-100%

UL Certified,Class 2,Type HL

Damp and dry location

120Vac input

Frequency Range 47-63HZ

Efficiency (Typ.) 88%@120VAC

Working Temp. Tcase=-40 ~ +60

Working humidity 20 ~ 95% RH non-condensing

Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH

Build in active PFC, typical power factor=0.94

THD<20%(@100% load)

Constant voltage type

Size: 2.83x1.53x0.79 inch (L*W*H)

Super low loading request works perfect at 20-100% load.

Short-circuit, over-load protection.
