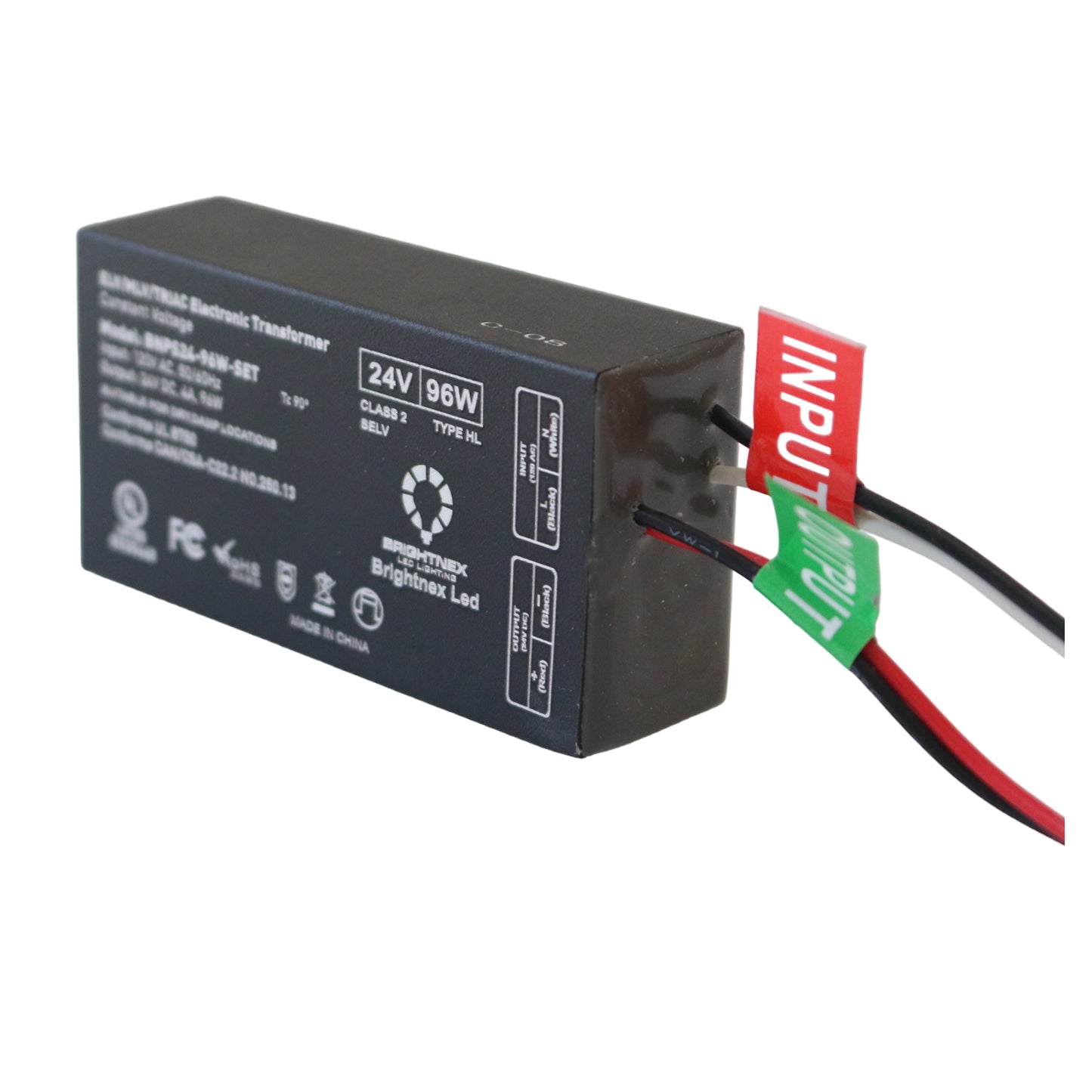

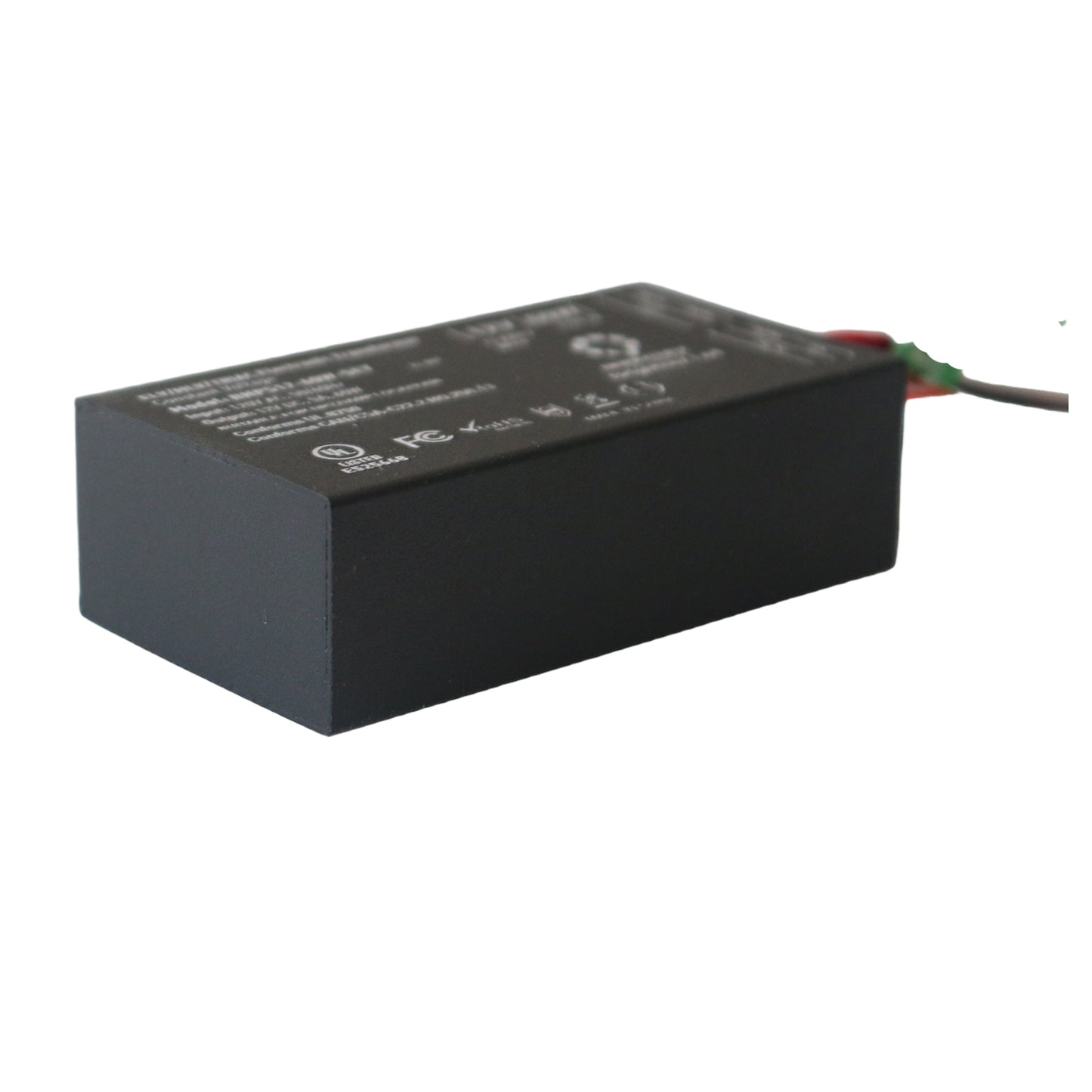

Smallest DIMMABLE TRANSFORMER (LED Driver), 24V, 96W
This smallest Transformer (Dimensions: 2.83x1.53x0.79 inches (L*W*H)) is smaller than our Compact Transformer (Dimensions: 3.31x1.57x0.98 inches (L*W*H)). They are UL-certified dimmable transformers (LED Driver) compatible with Triac/ELV/MLV dimming. Suitable for dry and damp locations, they fit in a 4" Junction box. The AC input is 120Vac, and 88% efficiency with short circuit protection.
Input: 120 V AC, 0.7A, 50/60Hz
Output: 24V DC, 4A, 96W, PF>0.9

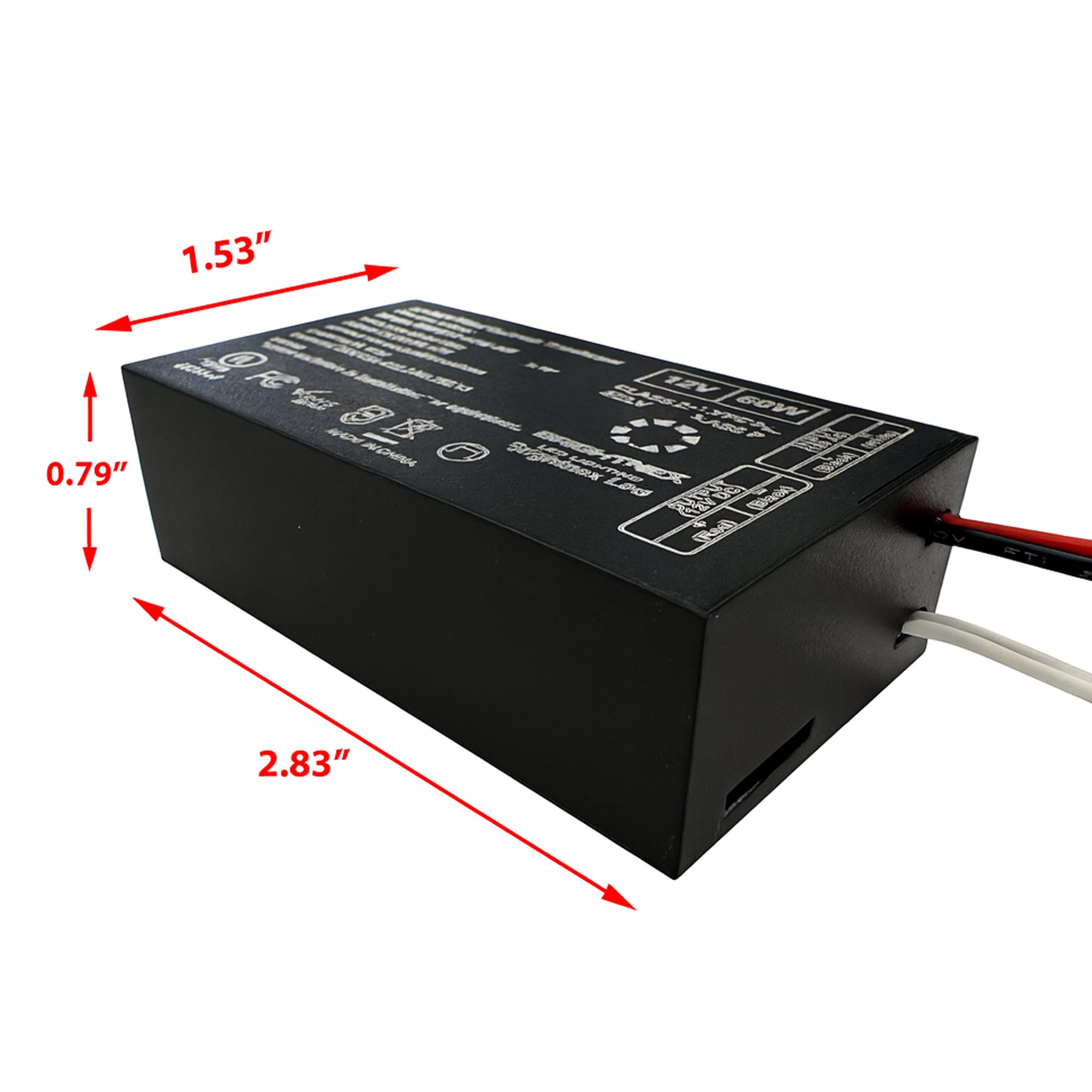

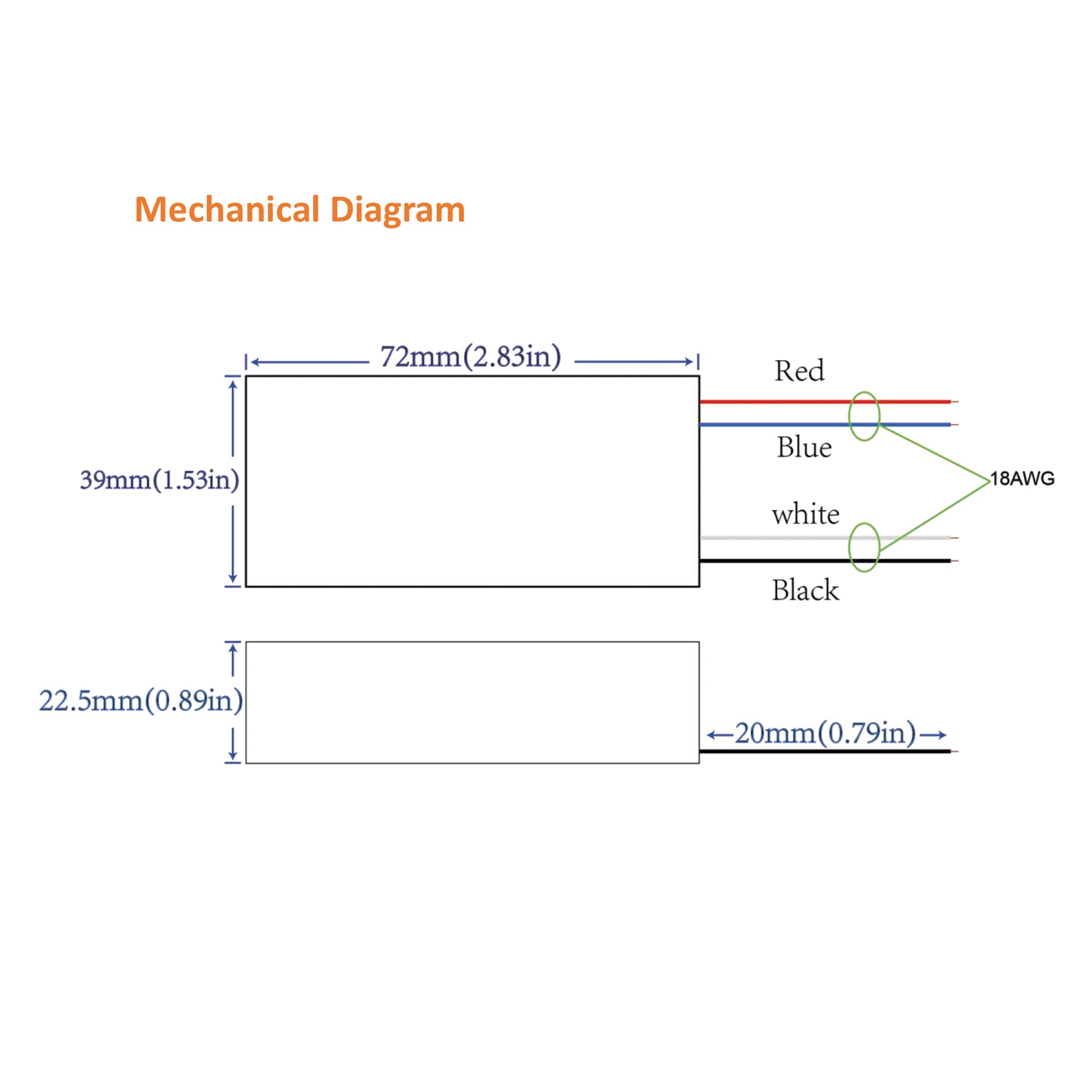

Transformer Dimensions: 2.83x1.53x0.79 inch (L*W*H)

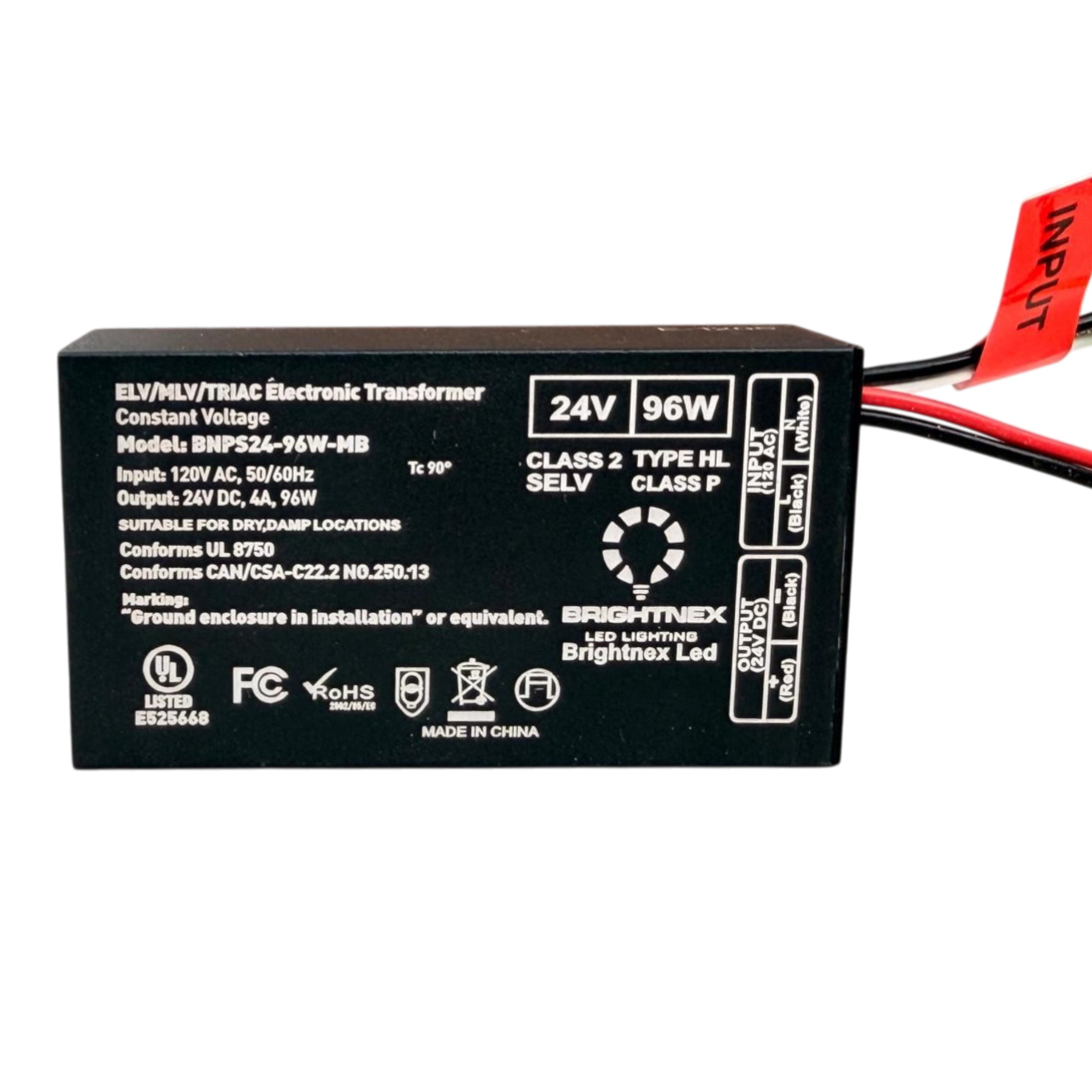

Model Number: BNPS24-96W-SET
Feature
|

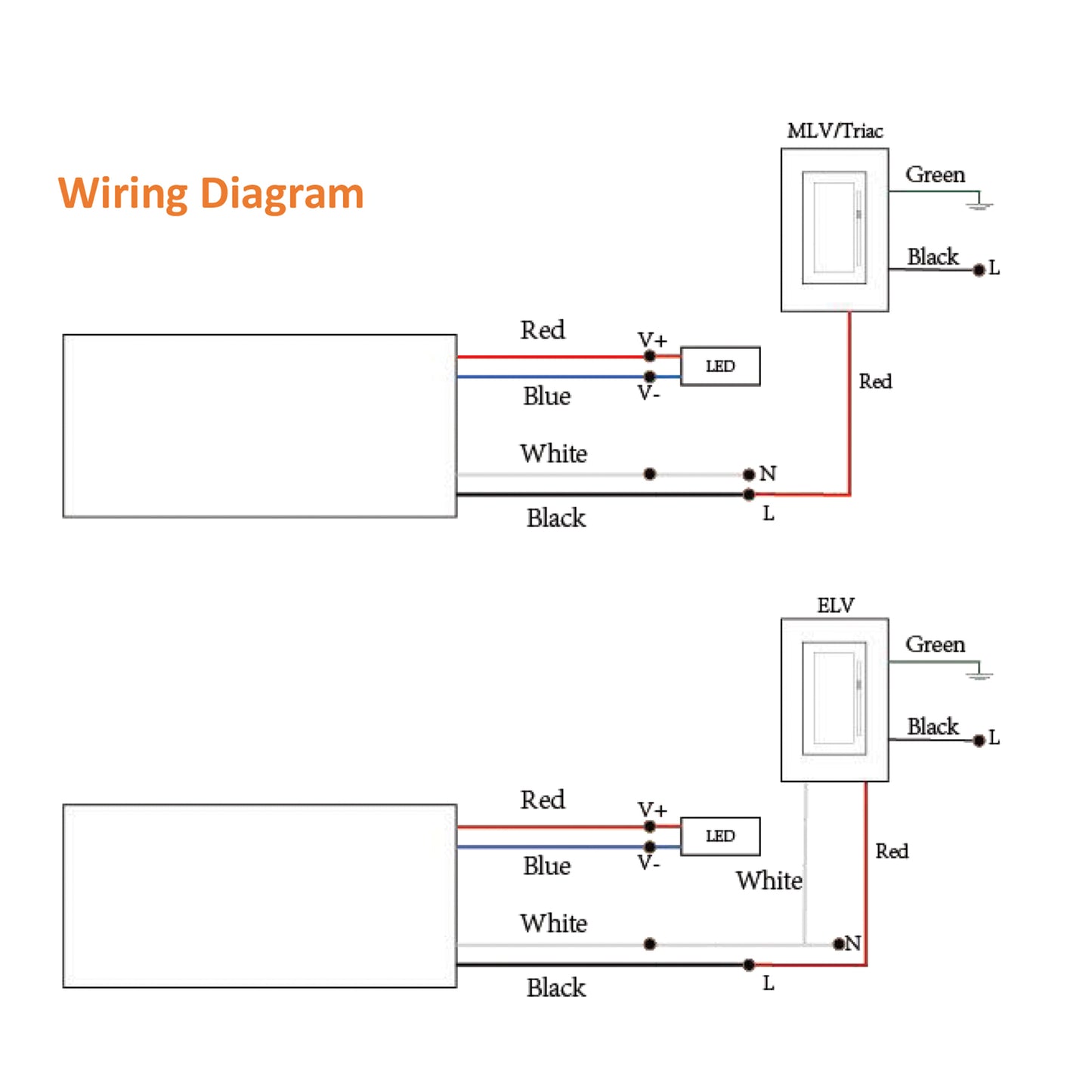

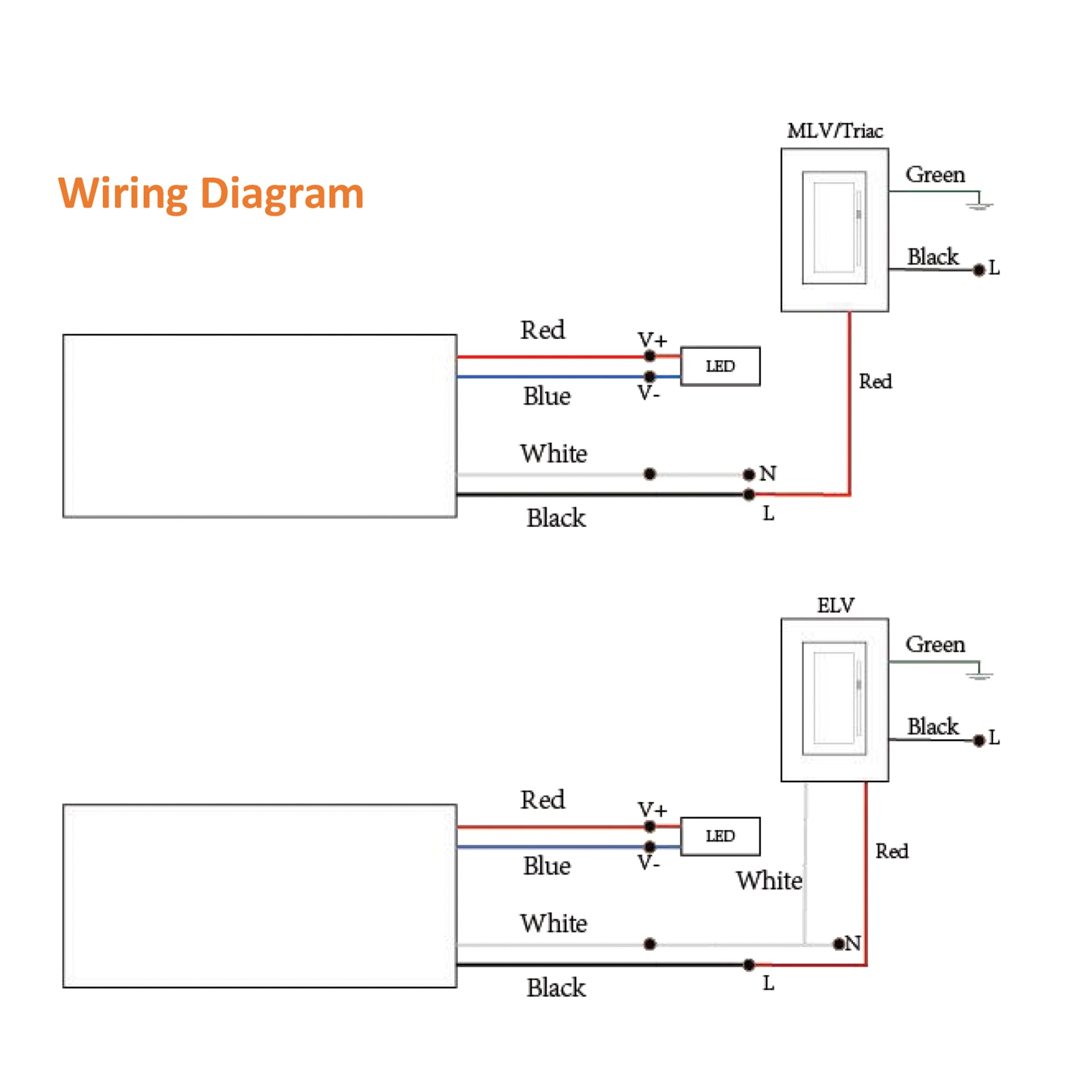

Compatible with Triac/ ELV/ MLV dimming, Lutron-CL, Diva series |
|
Dimming 0-100% |
|
UL Certified,Class 2,Type HL |
|
Damp and dry location |
|
120Vac input |
|
Frequency Range 47-63HZ |
|
Efficiency (Typ.) 88%@120VAC |
|
Working Temp. Tcase=-40 ~ +60 |
|
Working humidity 20 ~ 95% RH non-condensing |
|
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH |
|
Build in active PFC, typical power factor=0.94 |
|
THD<20%(@100% load) |
|
Constant voltage type |
|
Size: 2.83x1.53x0.79 inch (L*W*H) |
|
Super low loading request works perfect at 20-100% load. |
|
Short-circuit, over-load protection. |
