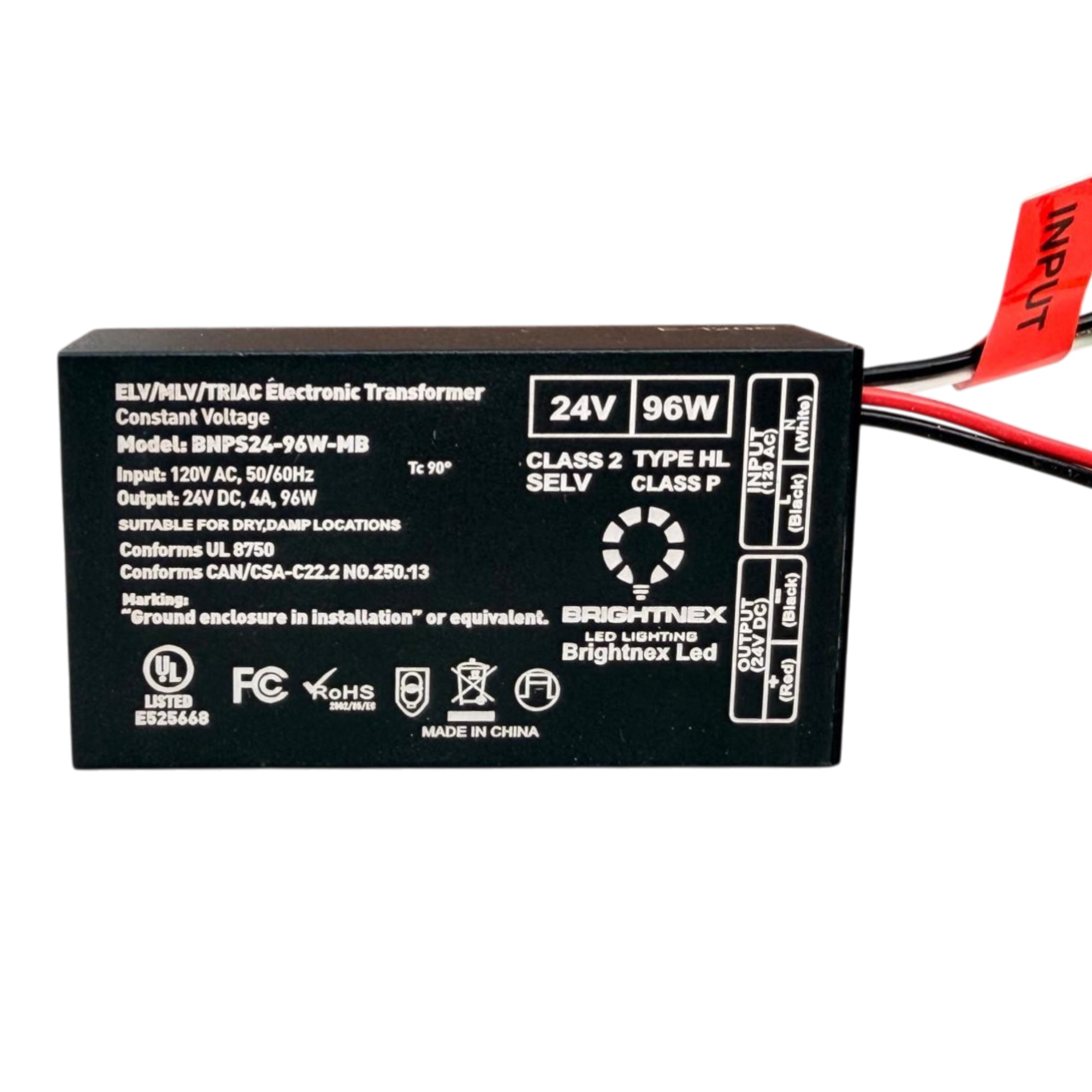

24V 96W Dimmable LED Transformer | TRIAC/ELV/MLV | UL Class 2, P | Compact Constant Voltage Driver

This 24V 96W constant voltage LED transformer is built to deliver stable output and smooth dimming performance across a wide range of low-voltage LED lighting systems. It supports full-range dimming (0–100%) with leading- and trailing-edge dimmers, including TRIAC, ELV, and MLV types.

The transformer features short-circuit and overload protection with auto-recovery, operates from 20% to 100% load, and is housed in a compact aluminum enclosure for easy integration in dry and damp environments. With UL Class 2 output and FCC compliance, it meets key requirements for safety and performance in commercial or residential LED lighting applications.

---

🔧 Specifications:

• Output Voltage: 24V DC

• Output Power: 96W

• Output Current: 4.0A

• Input Voltage: 120V AC

• Frequency: 47–63Hz

• Efficiency: 86% @ 120VAC full load

• Power Factor: 0.95 typical

• THD: < 20% @ 100% load

• Voltage Tolerance: ±0.5V

• Load Regulation: ±1%

• Leakage Current: < 0.5mA @ 120V

• Load Range: 20–100%

• Protections:

  • Short Circuit – hiccup mode, auto-recovery

  • Overload – auto-recovery or re-power

• Operating Temp: -40°C to +60°C

• Humidity: 20–95% RH

• Storage Temp: -40°C to +90°C

• Certifications: UL8750, FCC, Class 2, Class P, Type HL, RoHS, SELV, REACH

• Enclosure Rating: Dry and Damp Locations

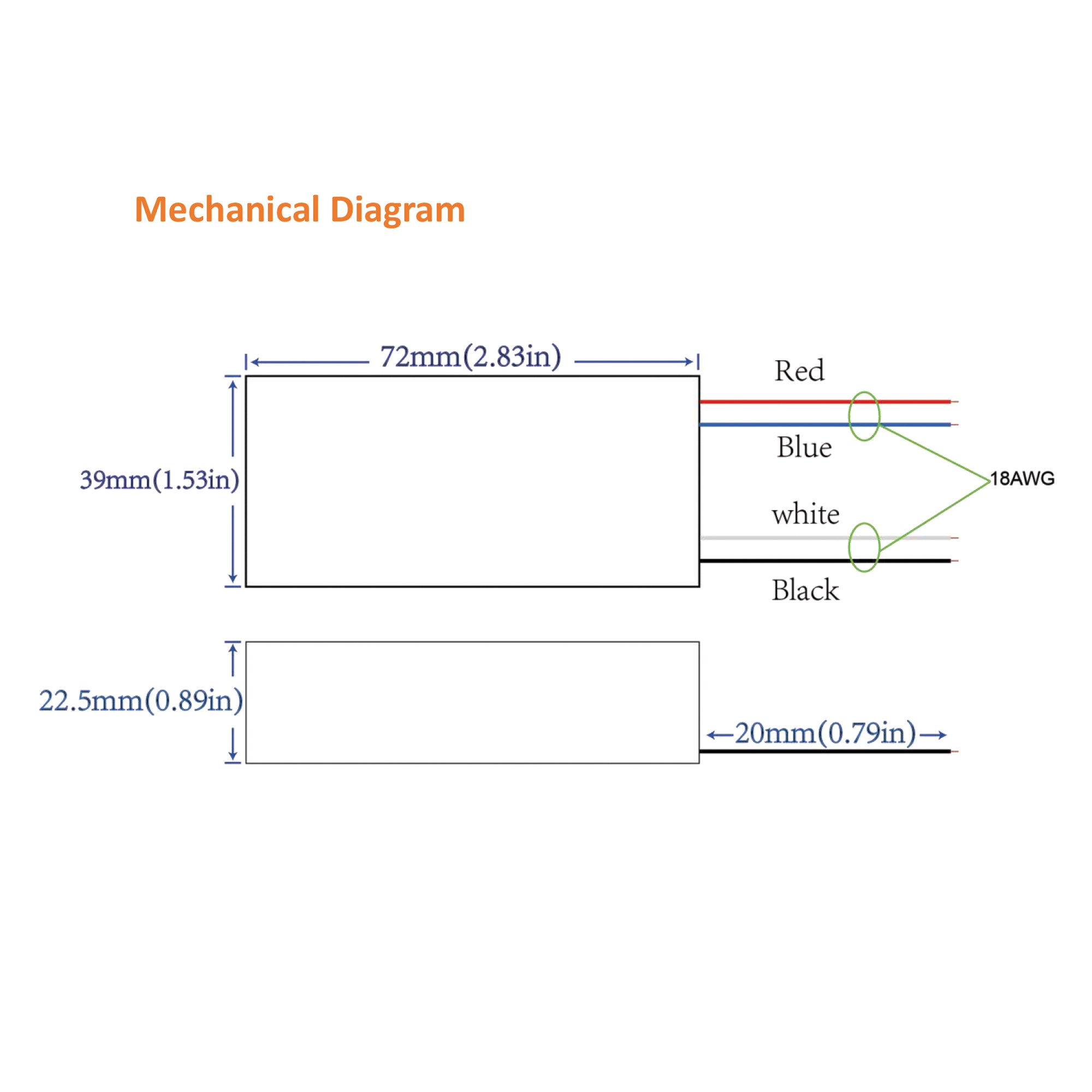

• Dimensions: 2.89" × 1.53" × 0.89"

• Weight: 0.375 lbs

---

🎚️ Dimming Compatibility:

• Dimming Range: 0–100%

• Dimming Types Supported:

  • TRIAC (Leading Edge)

  • ELV (Trailing Edge)

  • MLV (Magnetic Low Voltage)

• Compatible With:

  • Lutron Diva, CL, Caseta

  • Leviton Decora, SureSlide, IllumaTech

• Recommended Load Range for Stable Dimming: 20–100%

---

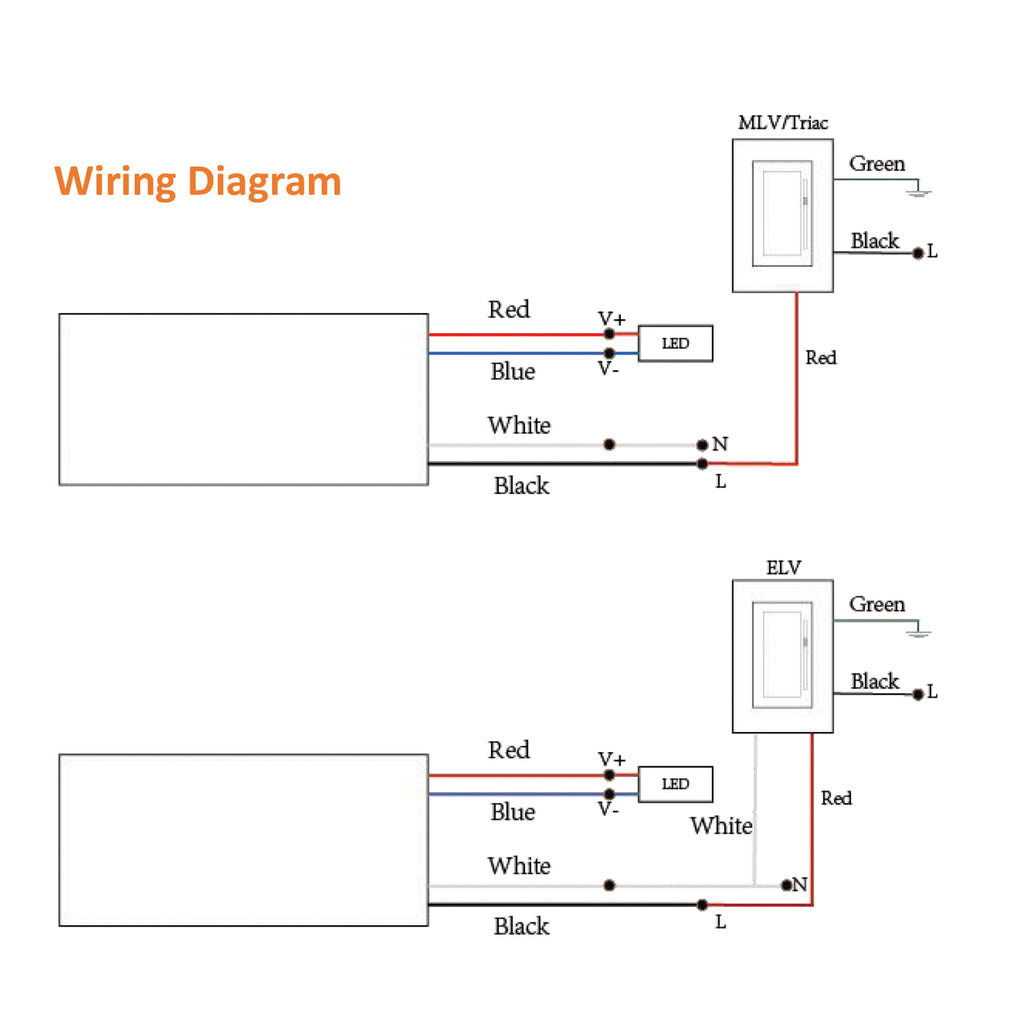

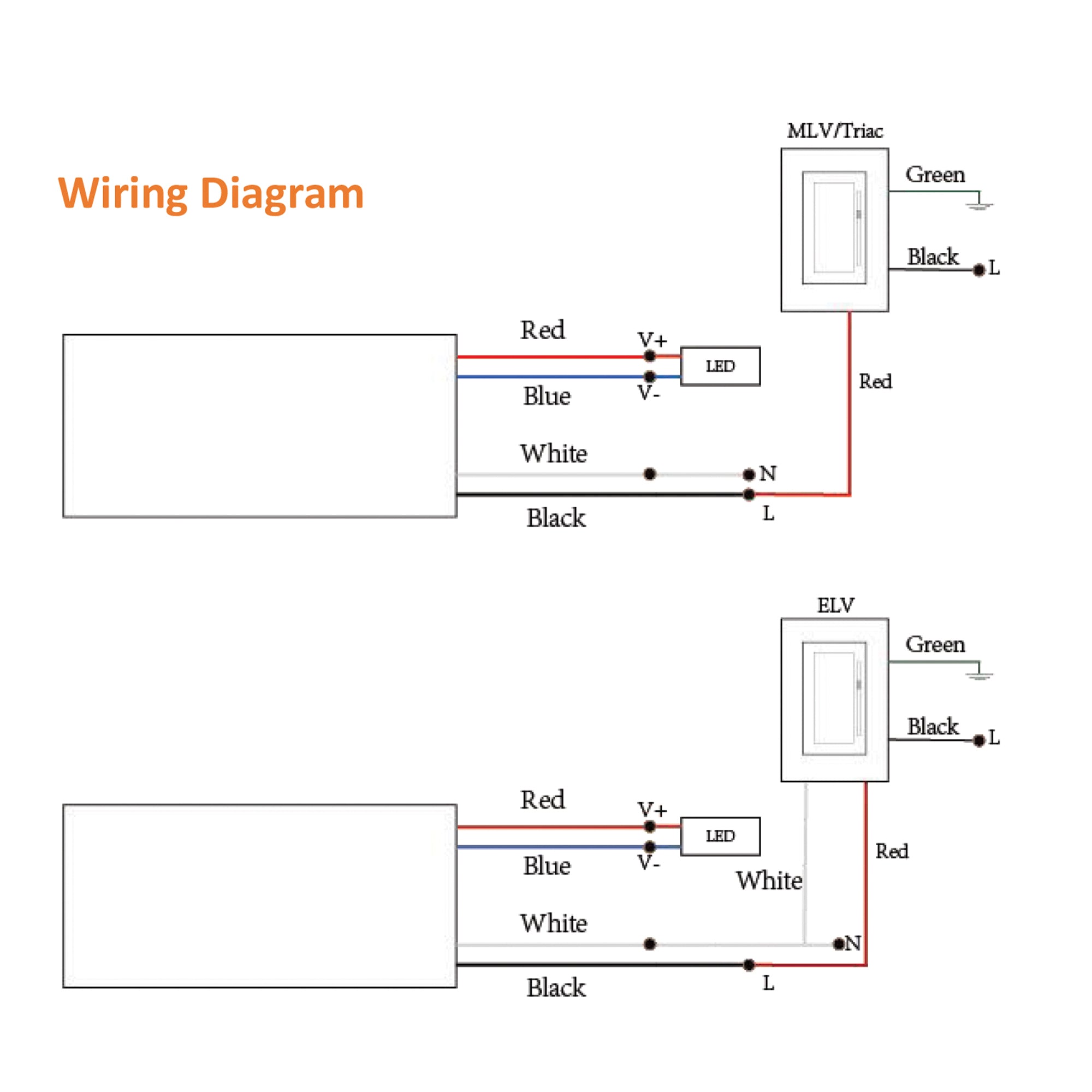

🔌 Wiring (See Page 3):

• Input (120V AC):

  • Black – Line (18 AWG)

  • White – Neutral (18 AWG)

• Output (24V DC):

  • Red – V+ (18 AWG)

  • Black – V– (18 AWG)

---

⚡ Typical Applications:

• 24V LED strip and tape lighting

• Display and architectural lighting

• Retail, shelf, or signage lighting

• Under-cabinet and cove installations

• Class 2 compliant lighting systems in space-limited environments

---

🔹 Model / Part:

BNPS24‑96W‑SET
