24V 96W CCT LED Driver – Flicker-Free, Integrated Dimming with Preset & 3-Way Switch, Tunable

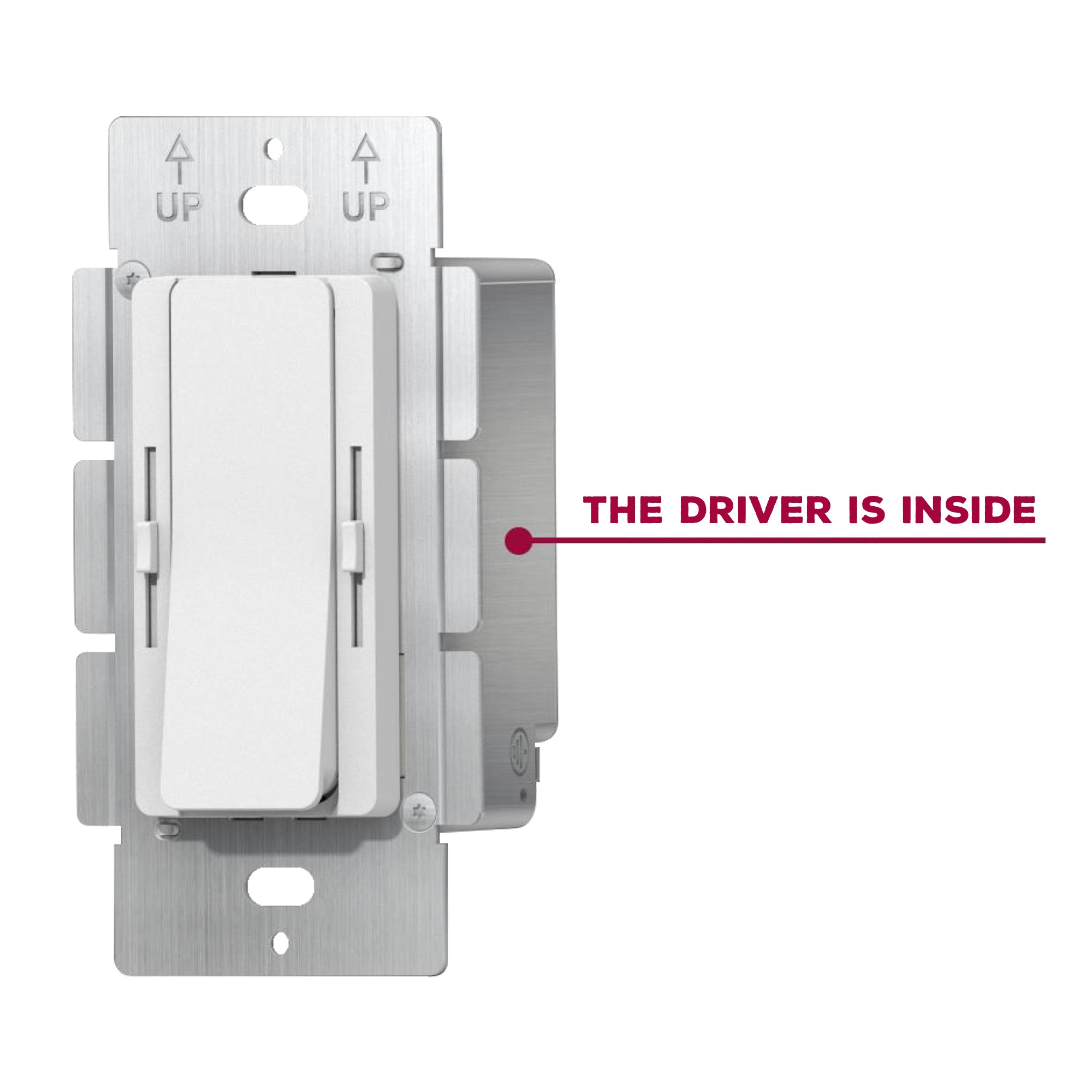

The SDD-24096-CCT is a constant voltage 24V DC LED driver delivering up to 96 watts of output power, designed for tunable white (CCT) LED systems. It features a built-in rotary dimmer that allows both brightness and color temperature adjustment from a single control, eliminating the need for external dimmers or controllers. Compatible with 3-way wall switches, this unit includes a preset ON/OFF switch, making it ideal for both retrofit and new installations.

The driver provides flicker-free dimming using 16kHz PWM and supports a wide dimming range (0.3%–100%). It offers full protections and is UL, FCC, RoHS, Class P, and SELV certified, making it suitable for commercial, architectural, and residential projects. Designed for dry and damp-rated environments, it ensures reliable performance and compliance with safety standards.

---

⚙️ Key Features

• Constant voltage 24V DC output (96W max)

• Integrated dual-function rotary dimmer (CCT + brightness)

• Preset ON/OFF + 3-way switch compatibility

• Flicker-free 16kHz PWM output, gamma 2.2 curve

• Dual channel output for warm and cool LEDs

• Adjustable output voltage via trim dial

• High power factor and low THD

• Full electronic protections (SCP / OLP / OTP)

• Designed for dry and damp-rated installations

• UL, cUL, FCC, RoHS, Class P, SELV certified

---

📐 Specifications

• Output Voltage: Adjustable 24–26V DC

• Rated Power: 96W

• Rated Current: 4A

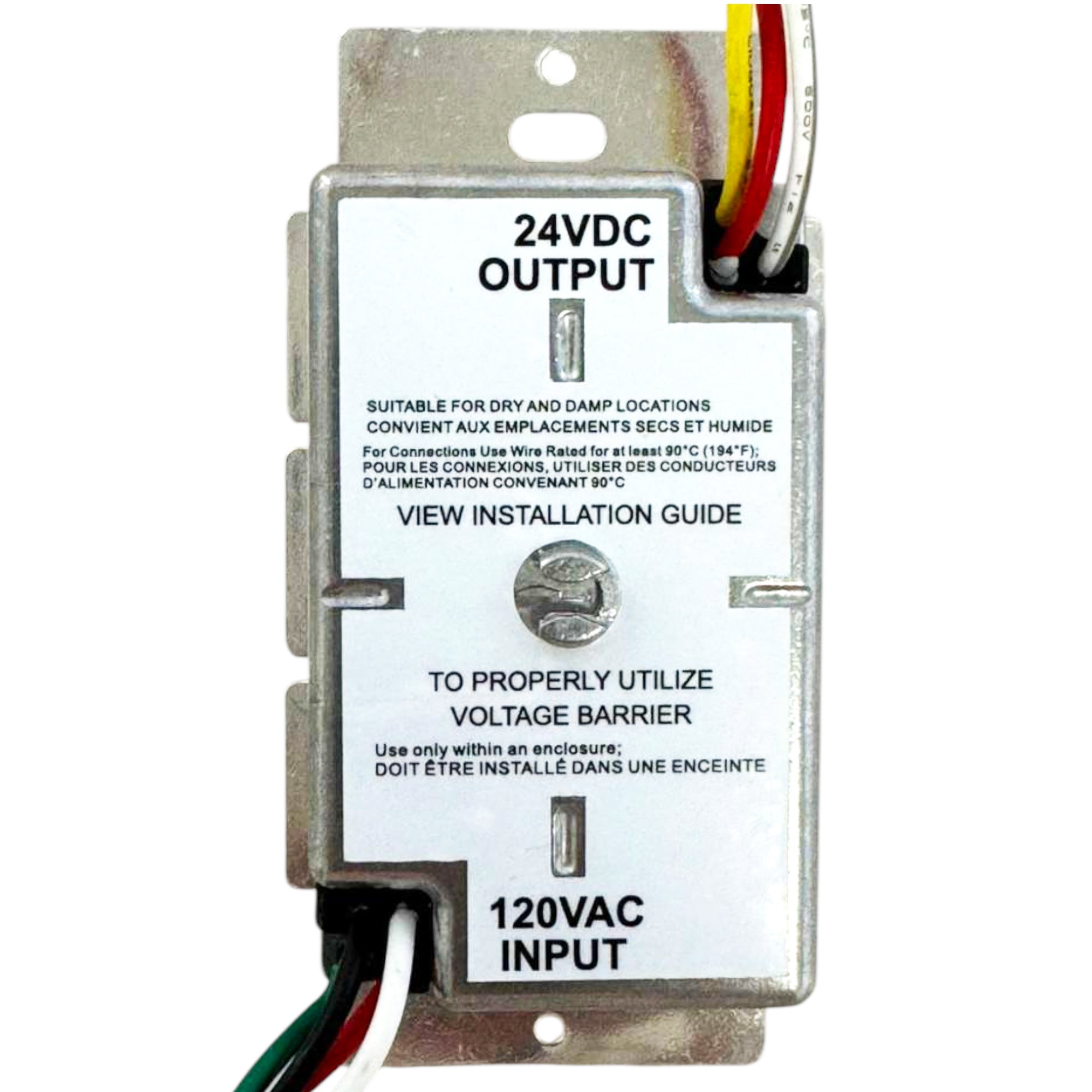

• Input Voltage: 120VAC ±10%, 60Hz

• Power Factor: ≥0.99

• Efficiency: 91%

• THD: ≤10%

• Dimming Range: 0.3% – 100%

• Dimming Type: Built-in rotary dimmer (CCT + brightness), preset ON/OFF, 3-way compatible

• Flicker-Free: Yes (16kHz PWM, Gamma 2.2)

• Certifications: UL, cUL, FCC, RoHS, Class P, SELV

• Use Location: Dry and Damp rated

• Part Number: BNPS24DE-96W-C

---

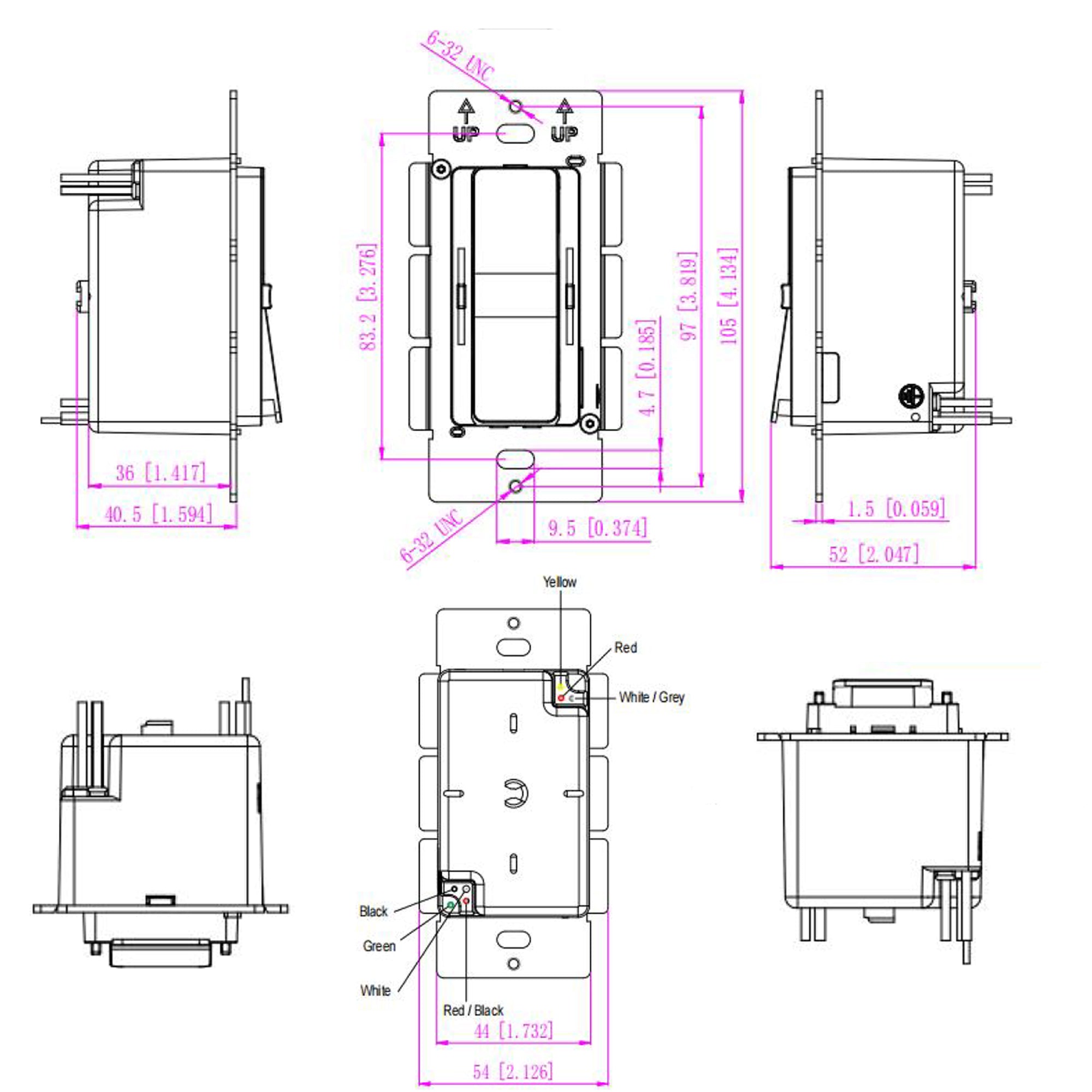

🧰 Mechanical Specifications

• Dimensions: 4.13" × 2.13" × 2.00" (105 × 54 × 51 mm)

• Net Weight: 0.55 lb (0.25 kg)

• Case Material: Aluminum

• Finish: Black anodized

• Mounting: Surface-mount with flange holes

• Cooling Method: Natural air convection

• Ambient Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 20–90% RH, non-condensing

• IP Rating: IP20 (indoor use only)

---

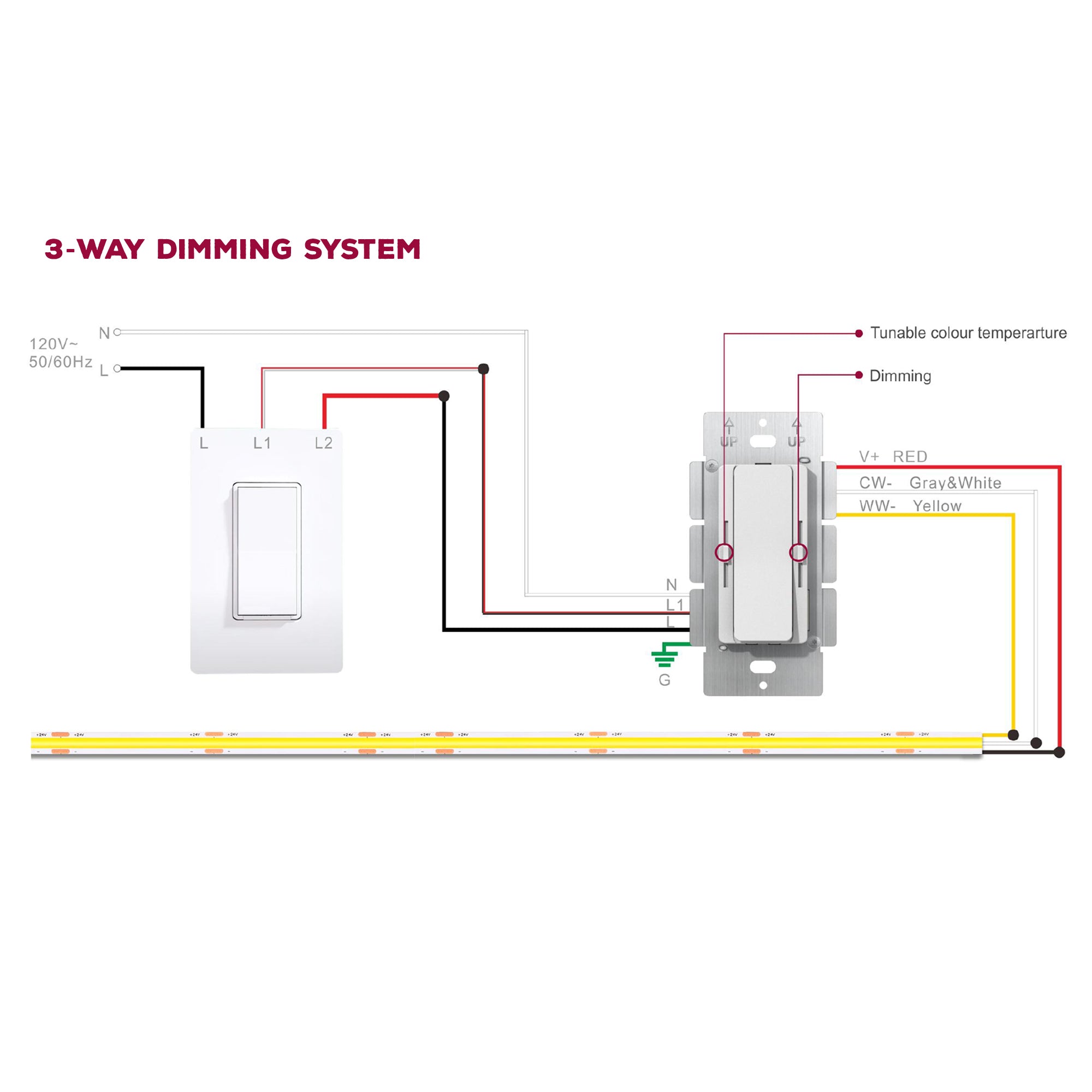

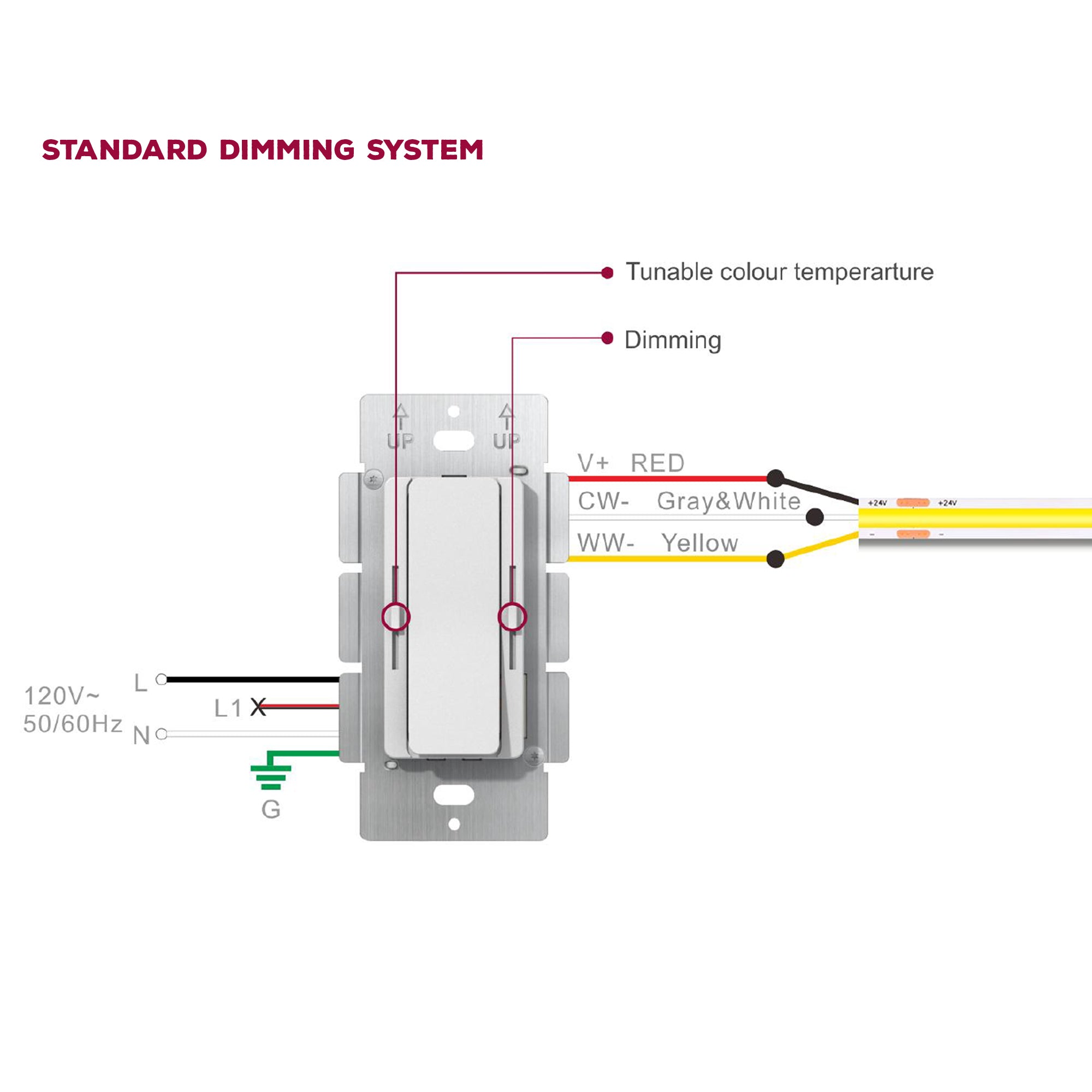

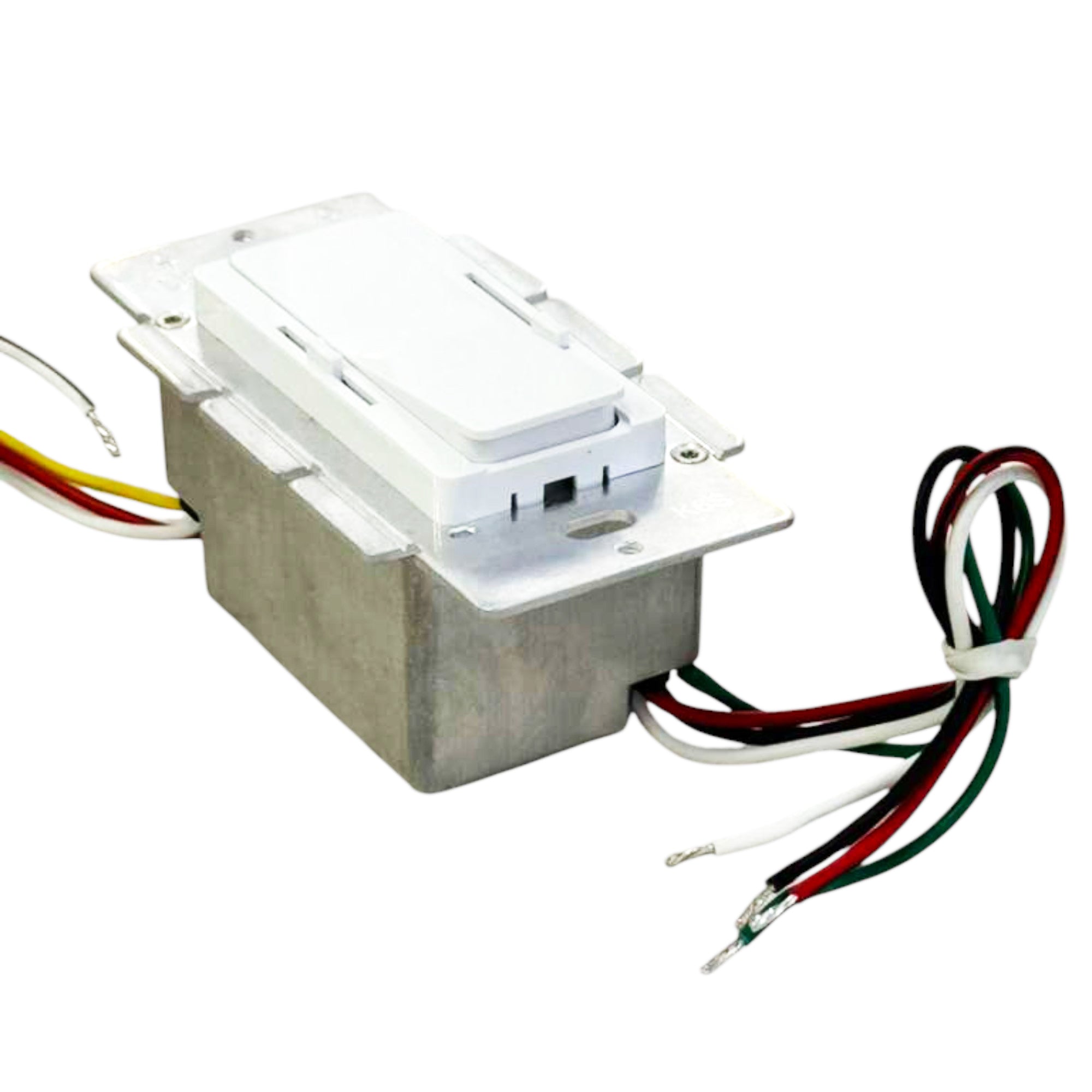

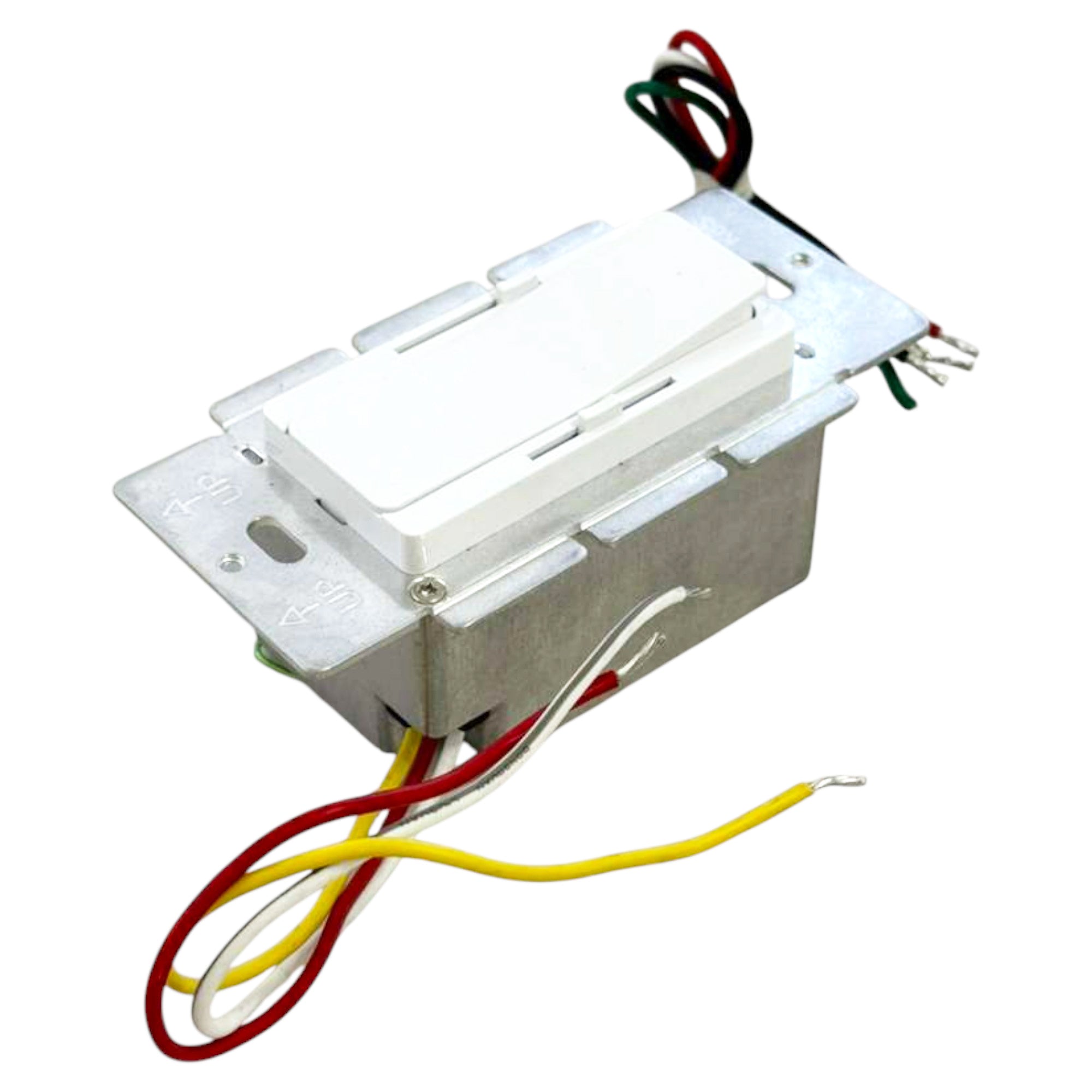

🔌 Wiring

• Input Wires (18AWG):

  • Black (L) – Line

  • Red/Black (L1) – Line (for 3-way switch)

  • White (N) – Neutral

  • Green (FG) – Ground

• Output Wires (18AWG):

  • Red (V+) – Positive

  • Gray/White (CW) – Cool White Channel

  • Yellow (WW) – Warm White Channel
