Description

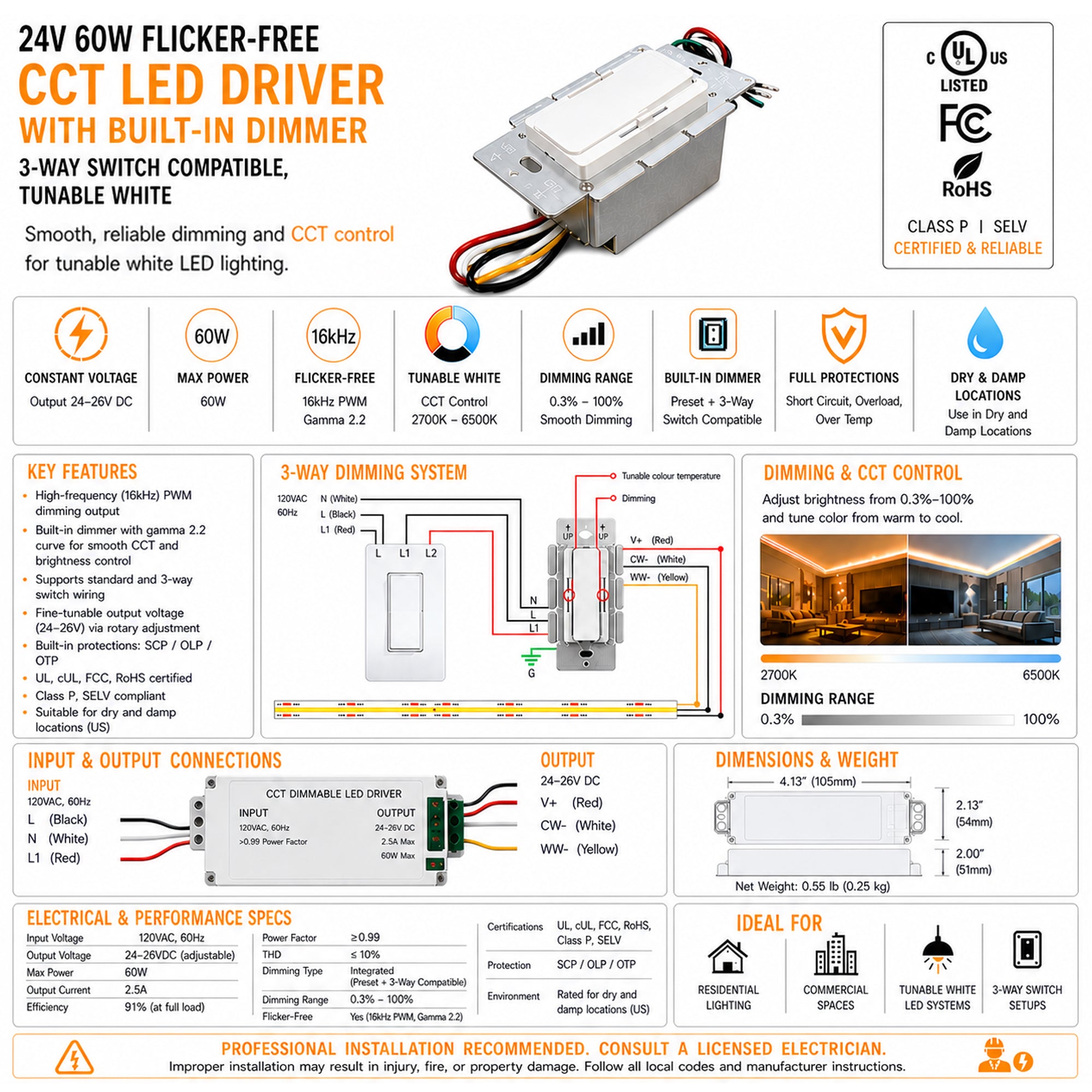

This 60W 24V constant voltage LED driver from the SDD-CCT series is designed for tunable white applications. It integrates a high-frequency (16kHz) PWM dimming output and a built-in dimmer module with a gamma 2.2 curve for precise brightness and color temperature adjustment. The unit supports both standard and 3-way switch wiring, making it highly adaptable for complex lighting layouts.
The output voltage is fine-tunable via onboard rotary adjustment (24–26V) for precise load matching. Built-in protections against short-circuit, overload, and over-temperature conditions ensure long-term reliability. This Class P, SELV-compliant unit is UL and FCC certified, with high power factor (0.99) and THD <10%. Suitable for dry and damp locations, ideal for architectural and commercial LED installations requiring adjustable white lighting.
📐 Electrical & Performance Specs
-
Input Voltage: 120VAC, 60Hz
-
Output Voltage: 24–26VDC (adjustable)
-
Max Power: 60W
-
Output Current: 2.5A
-
Efficiency: 91% (at full load)
-
Power Factor: ≥0.99
-
THD: ≤10%
-
Dimming Type: Integrated (Preset + 3-Way Compatible)
-
Dimming Range: 0.3% – 100%
-
Flicker-Free: Yes (16kHz PWM, Gamma 2.2)
-
Certifications: UL, cUL, FCC, RoHS, Class P, SELV
-
Protection: SCP / OLP / OTP
-
Environment: Rated for dry and damp locations (US)
- Part #: BNPS24DE-60W-C
📏 Mechanical Details
-
Dimensions: 4.13" × 2.13" × 2.00" (105 × 54 × 51 mm)
-
Weight: 0.55 lb (0.25 kg)
-
Wiring:
-
Input: Black (L), White (N), Red-Black (L1), Green (FG) – 18AWG
-
Output: Red (V+), Gray/White (CW-), Yellow (WW-) – 18AWG
-
🧰 Use Case Notes
-
Compatible with tunable white linear LED modules and COBs
-
Suitable for architectural lighting, retail ambient lighting, and layered residential scenes
-
Onboard dimmer is not replaceable (non-interchangeable faceplate)
