24V 160W CCT LED Driver – Flicker-Free, Integrated Dimming with Preset & 3-Way Switch, Tunable

The SDD-24160-CCT is a 2-in-1 LED driver + dimmer designed for tunable white (CCT) LED lighting applications. It supports 24V constant voltage output up to 160W, offering both brightness and color temperature control directly through its built-in rotary knob.

Equipped with flicker-free 16kHz PWM dimming (gamma 2.2), this driver ensures smooth visual performance and healthy lighting. It is suitable for both standard and 3-way switch setups, and eliminates typical driver-switch compatibility issues. Designed for dry and damp locations, it carries full UL, FCC, RoHS, SELV, and Class P certifications.

---

⚙️ Key Features

• Integrated constant voltage driver + dimmer

• Output voltage adjustable: 24–26V DC

• Maximum output power: 160W

• Flicker-Free PWM dimming (16kHz, gamma 2.2)

• Dual channel: CW & WW control

• Preset ON/OFF rotary dimmer built-in

• 3-way switch compatible

• High efficiency: 94.5%

• THD <10%, PF ≥ 0.99

• Full protection: OLP / SCP / OTP

• UL, FCC, RoHS, Class P, SELV listed

• Designed for dry and damp environments

• 5-Year warranty

---

📐 Specifications

• Input Voltage: 120VAC ±10%, 60Hz

• Rated Output Voltage: 24V DC (adjustable to 26V)

• Rated Current: 6.67A

• Rated Power: 160W

• Power Factor: ≥0.99 (full load)

• Efficiency: 94.5%

• THD: ≤10%

• Voltage Ripple: ≤2%

• Leakage Current: <0.5mA

• Dimming Range: 0.3% – 100%

• Protection Features:

  • Short Circuit: Hiccup mode

  • Overload: Constant current mode

  • Over Temperature: Shutdown at 100°C, auto-recovery

• Operating Temp: -40°C to +60°C

• Storage Temp: -40°C to +80°C

• Humidity: 20%–95% RH, non-condensing

• IP Rating: IP20 (indoor use)

• Part Number: BNPS24DE-160W-C

---

🧰 Mechanical Specifications

• Dimensions: 4.13" × 2.13" × 2.05" (105 × 54 × 52 mm)

• Weight: 0.60 lb (0.27 kg)

• Cooling: Natural convection

• Housing: Aluminum, black finish

• Mounting: Surface-mount flange

• Vibration Resistance: 2G, 10–500Hz, 3-axis

---

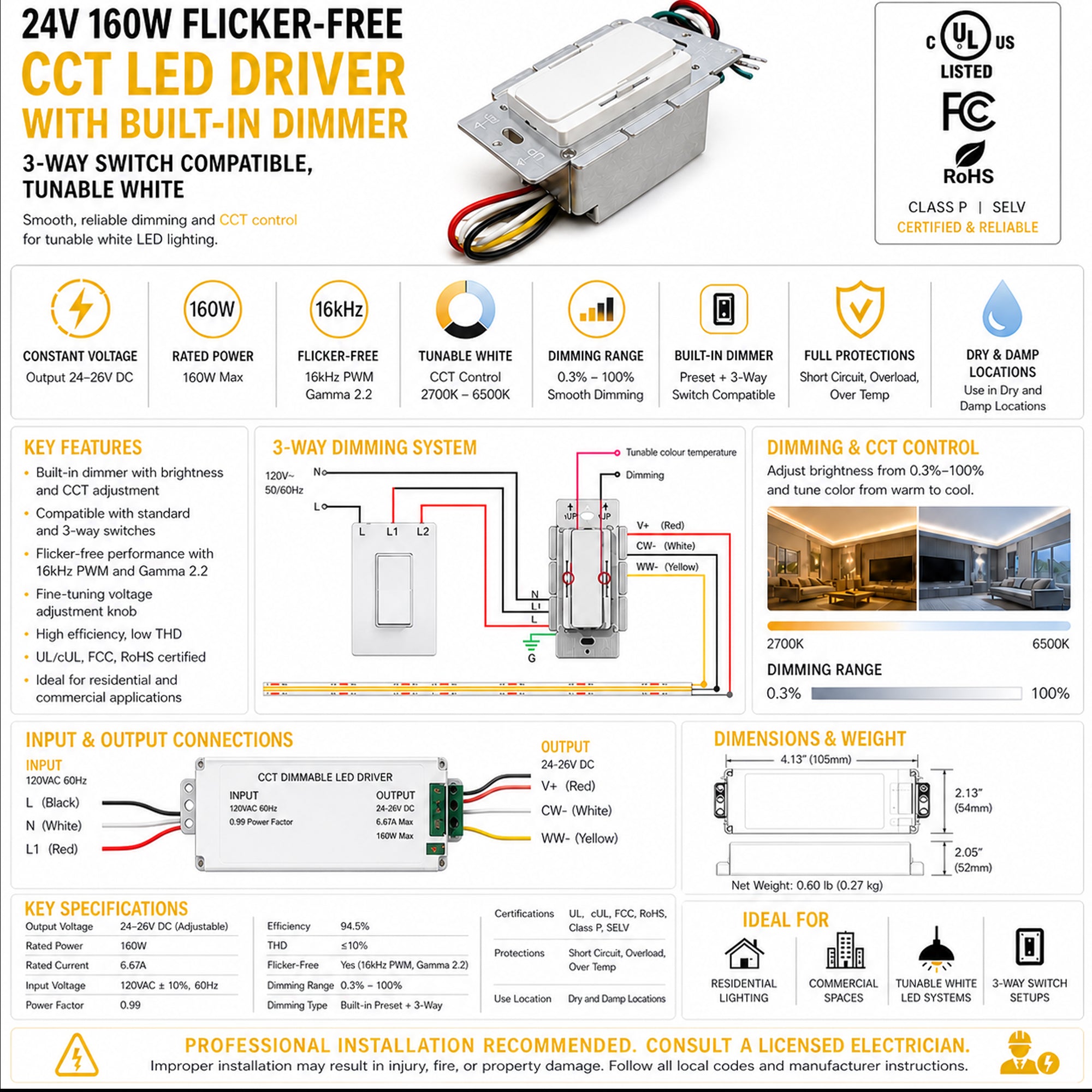

🔌 Wiring

• Input Wires (18AWG):

  • Black (L) – Live

  • Red/Black (L1) – Live (for 3-way switch)

  • White (N) – Neutral

  • Green (FG) – Ground

• Output Wires (18AWG):

  • Red (V+) – DC Positive

  • Gray/White (CW−) – Cool White Channel

  • Yellow (WW−) – Warm White Channel
