Description
The 96W LED Driver offers advanced dual dimming capability, supporting both TRIAC (ELV/MLV) and 0-10V dimming protocols. Designed for LED lighting systems that demand smooth and precise dimming, this flicker-free driver features a wide 0.1–100% dimming range via PWM output.
It is built with active PFC, a high-efficiency design, and complete protection features, including short-circuit, overload, and thermal shutdown with auto-recovery. Fully compliant with UL, FCC, Type HL, RoHS, SELV, and Class 2, and packaged in a robust iron housing with a built-in junction box, this driver is ideal for residential, commercial, and outdoor installations in dry, damp, or wet locations.
🔹 Key Features:
-
Output Power: 96W
-
Output Voltages:
-
24V DC @ 4A
-
-
Input Voltage: 100–277V AC, 50/60Hz
-
Efficiency:
-
Up to 84% @ 120V AC (24V)
-
-
Power Factor: > 0.9
-
THD: < 20% @ full load
-
Dimming Types:
-
TRIAC / ELV / MLV (forward & reverse phase)
-
0-10V / 1-10V / 10V PWM / Potentiometer
-
-
Dimming Range: 0.1–100% (PWM, flicker-free)
-
Certifications: UL / cUL, FCC, Class 2, Type HL, SELV, RoHS, UL8750
-
Protection:
-
Short circuit (auto-recovery)
-
Overload (≥110%)
-
Over-temperature (shutdown @ 100 °C ±10 °C, auto-recovery)
-
-

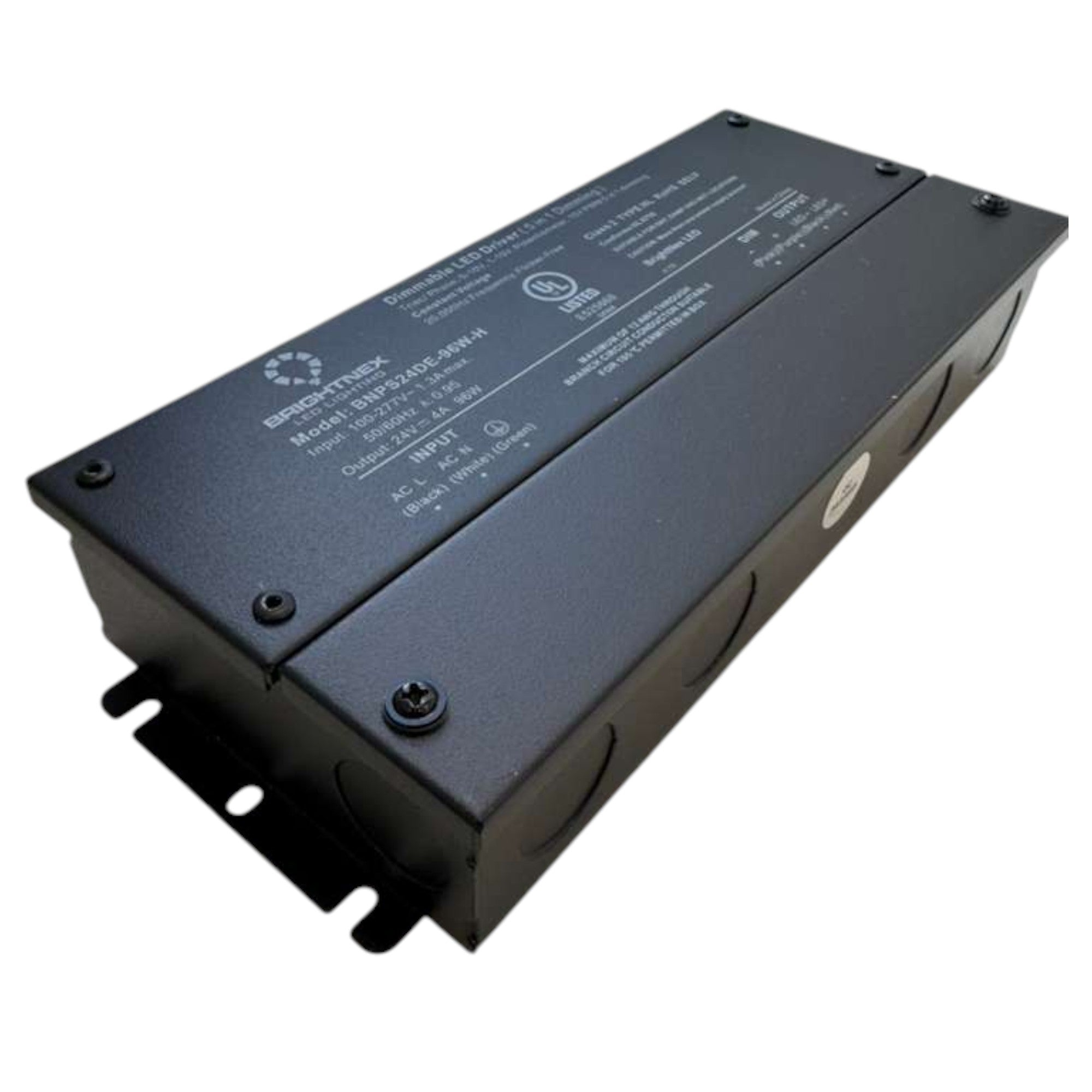

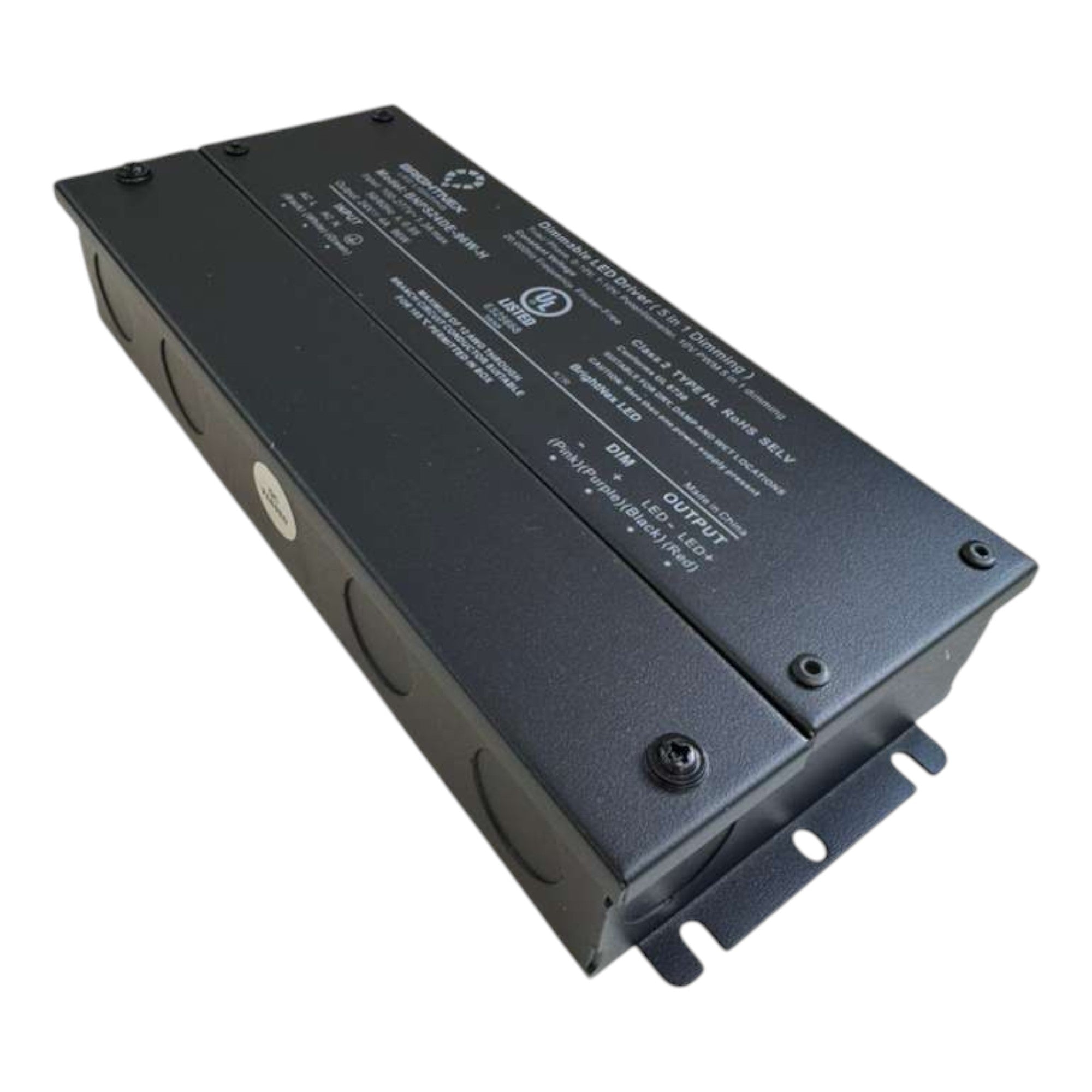

Junction Box: Integrated, with wiring knockouts
-
Environment: Suitable for dry, damp, and wet locations (Not for Submersion)
-
Cooling: Natural convection
- Part Number: BNPS24DE-96W-H
🔹 Mechanical & Wiring (Imperial Units):
-

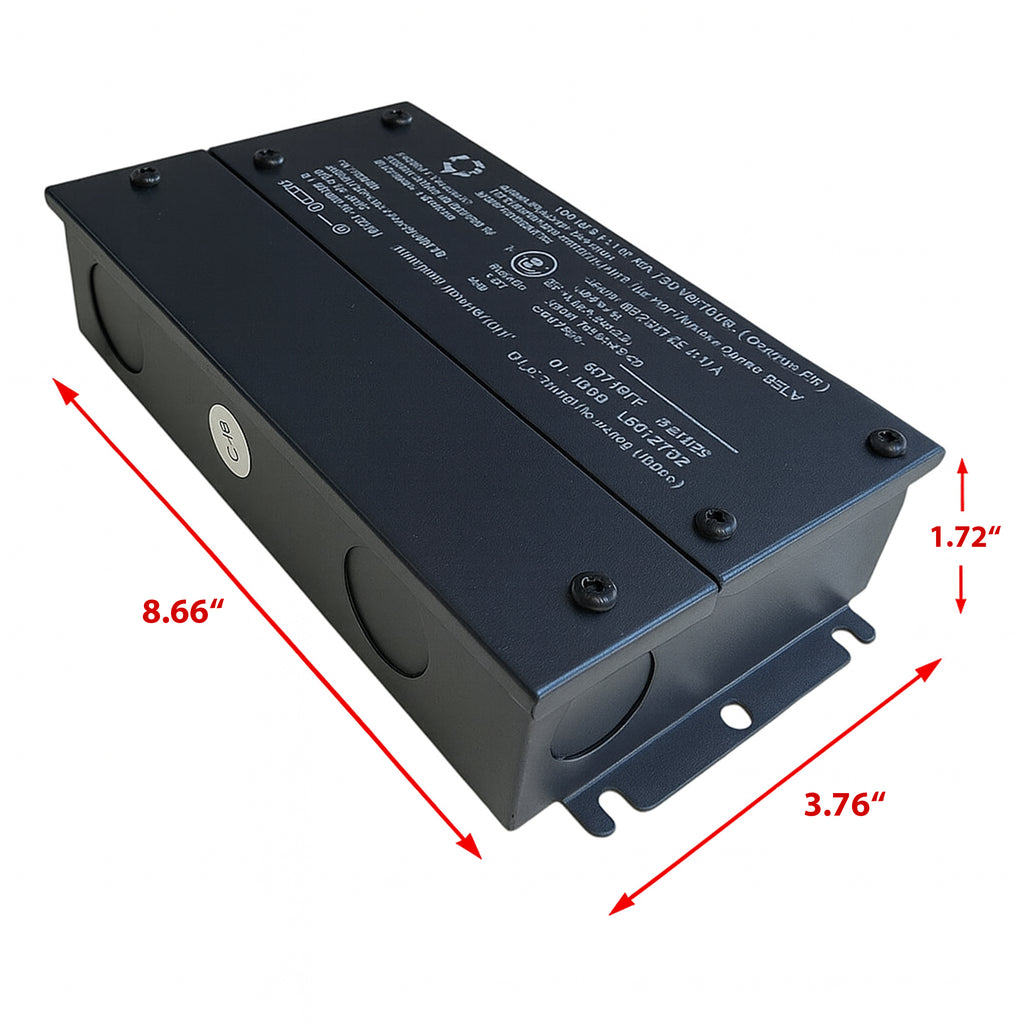

Dimensions: 8.66" × 3.75" × 1.72"
-
Weight: 3.02 lb
-

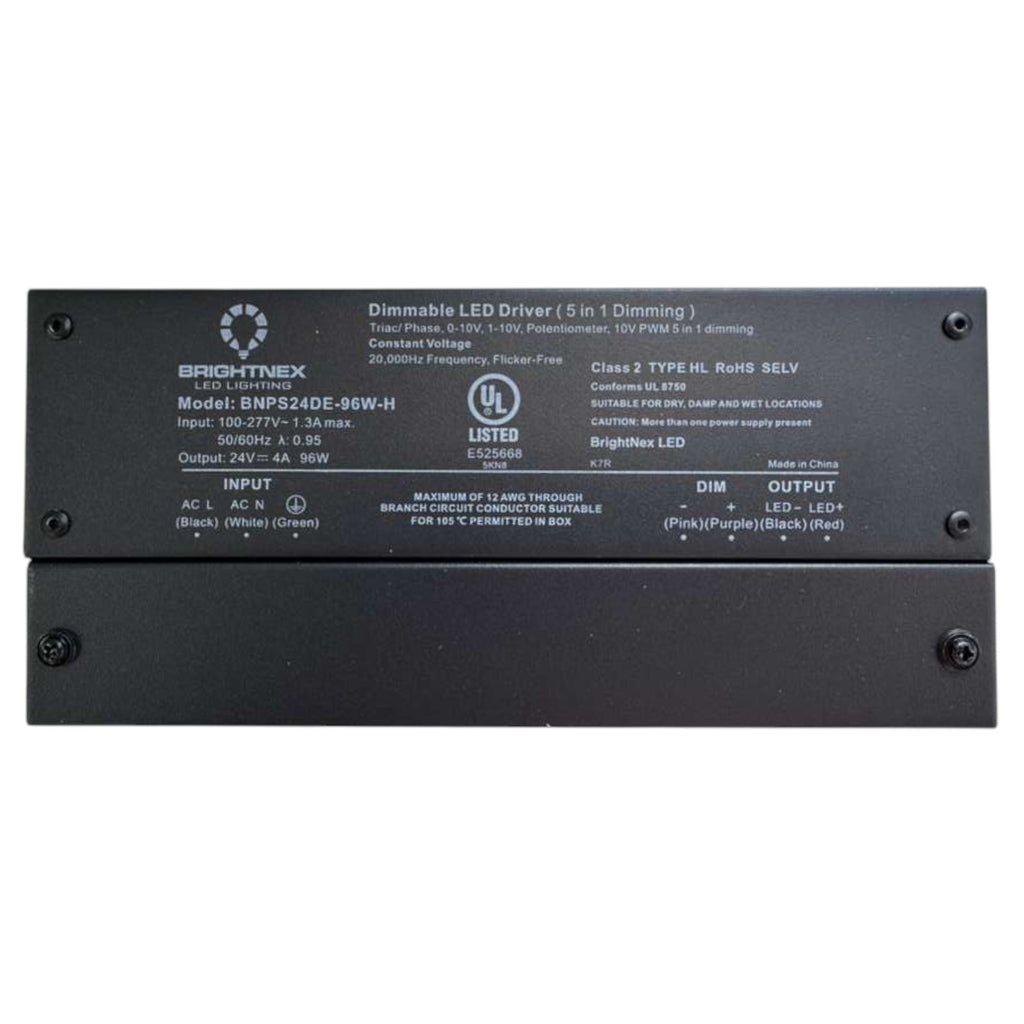

Wiring:
-
Input: Black (L), White (N), Green (GND) – 3×18 AWG
-
Output: Red (V+), Black (V–) – 2×16 AWG
-
Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG
-
