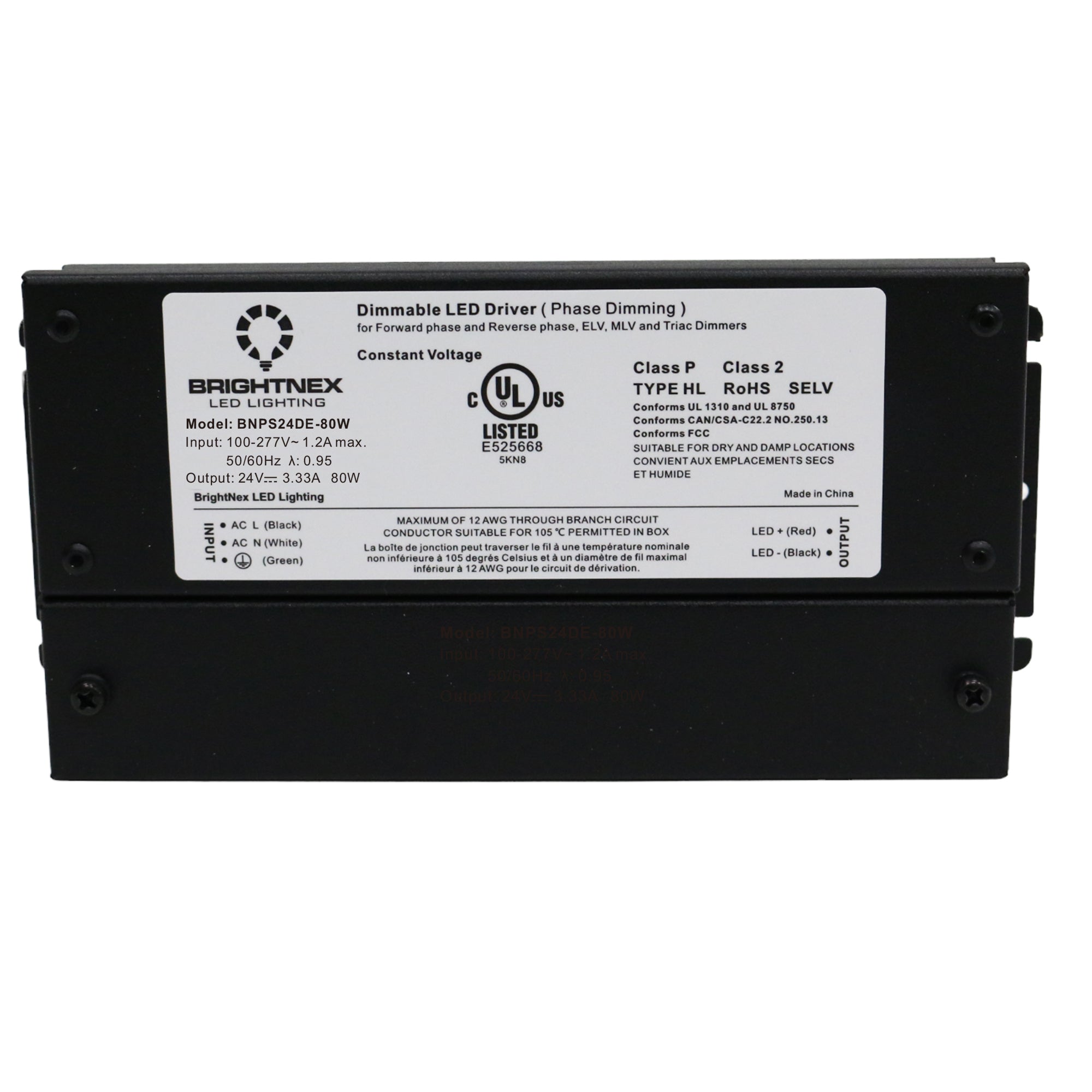

80W TRIAC / ELV / MLV Dimmable LED Driver – 12V/24V Constant Voltage – High PF – Flicker-Free – Phase Cut

This 80W constant voltage LED driver offers reliable phase-cut dimming performance and works with TRIAC, ELV, and MLV dimmers. Designed for both commercial and residential lighting applications, it provides stable, flicker-free output, high efficiency, and a high power factor (PF ≥ 0.95). Available in 12V and 24V options.

Available in both 12V (6.66A) and 24V (3.33A) outputs.

Features

• Phase-Cut Dimming: Compatible with TRIAC, ELV, and MLV wall dimmers

• Voltage Options: Available in both 12V (6.66A) and 24V (3.33A) models

• Waterproof Rated: Full Iron protection housing, for dry, damp & wet locations (not for submersion).



• Power Factor: High PF up to 0.98 for energy efficiency

• Flicker-Free Light: PWM output ensures visual comfort

• Protection: Built-in safeguards for short circuit, overload, and over-temperature

• Smooth Dimming: 0–100% dimming range

• Certified: UL / cUL / FCC / Class 2 (24V) / Class P / TYPE HL / SELV / RoHS / Reach

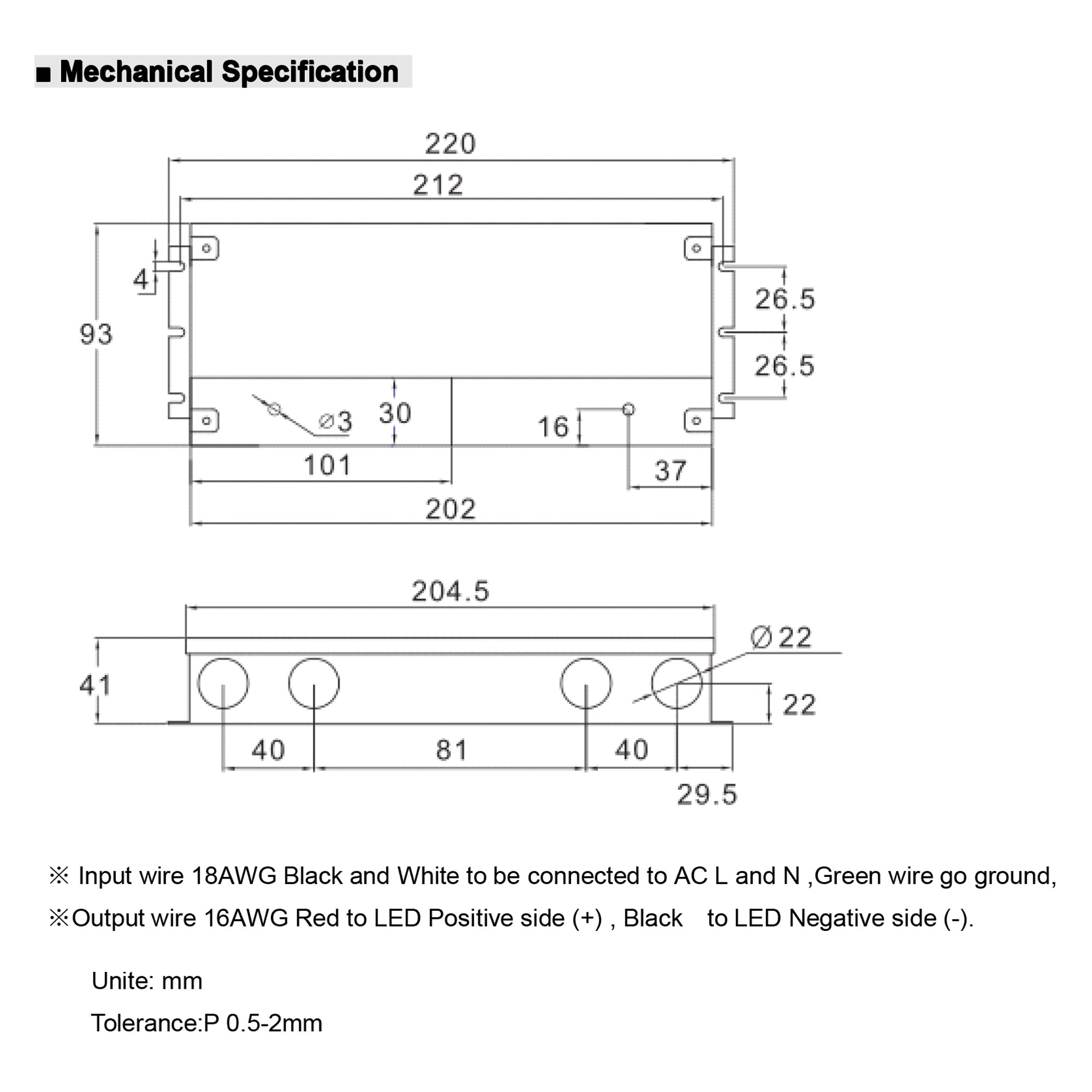

• Size: 8.66" × 3.75" × 1.72"
