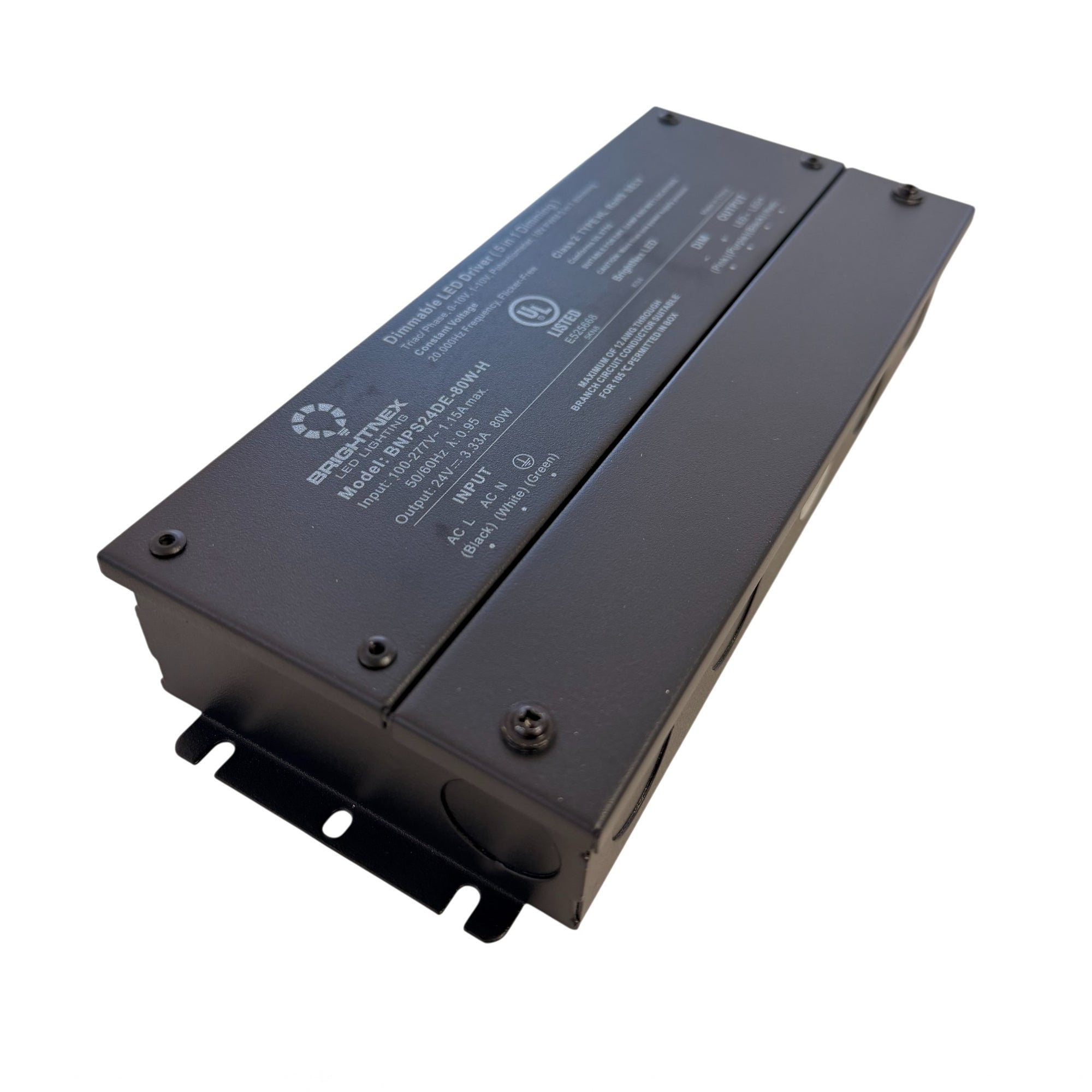

80W TRIAC / ELV / MLV & 0-10V Dimmable LED Driver – 12V/24V – Flicker-Free – Junction Box – UL Certified

The  80W Constant Voltage Driver delivers flicker-free dimming via TRIAC (ELV / MLV) and 0-10V / 1-10V / Potentiometer / 10V PWM.
Certified for UL, FCC, Class 2 12V/24V, Type HL, SELV, and RoHS, it's ideal for both indoor and outdoor applications in wet, damp, and dry locations.
It includes an integrated junction box and provides smooth dimming from 0.1% to 100% with active PFC and natural convection cooling.

🔹 Key Features:

• Output Power: 80W

• Voltage Options:


  • 12V: 6.67A


  • 24V: 3.33A



• Input Voltage: 100–277V AC, 50/60Hz

• Efficiency:

  • Up to 88%

• Power Factor: > 0.9

• THD: < 20%

• Dimming Types:

  • TRIAC (Forward/Reverse Phase)

  • ELV, MLV

  • 0-10V / 1-10V / Potentiometer / 10V PWM

• Dimming Range: 0.1–100%

• Certifications: UL, FCC, Class 2, Type HL, SELV, RoHS

• Protections: Short Circuit, Overload (≥110%), Over Temperature (auto recovery)

• Cooling: Natural convection

• Junction Box: Built-in, with knock-outs

• Environment: Suitable for dry, damp, and wet locations (Not for Submersion)

• Part Number:
  BNPS12DE-80W-H
  BNPS24DE-80W-H


🔹 Mechanical Specs (Imperial Units):

• Dimensions: 8.66" × 3.75" × 1.72"

• Weight: 3.02 lb (1.37 kg)

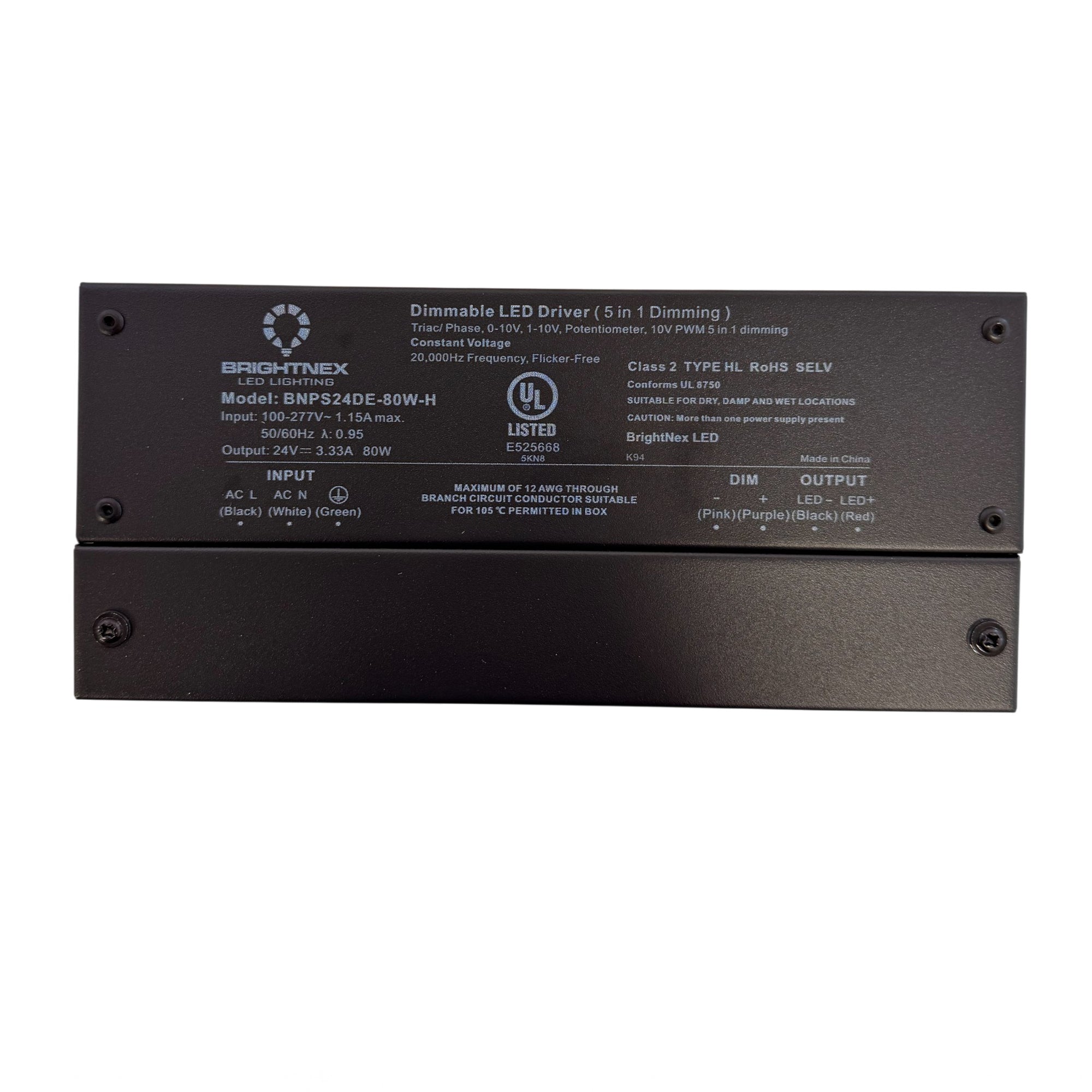

• Wiring (AWG):

  • Input: Black (L), White (N), Green (GND) – 3×18 AWG

  • Output: Red (V+), Black (V–) – 2×16 AWG

  • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG

🔹 Applications:

• LED strip lighting

• Architectural lighting systems

• Commercial dimming controls
