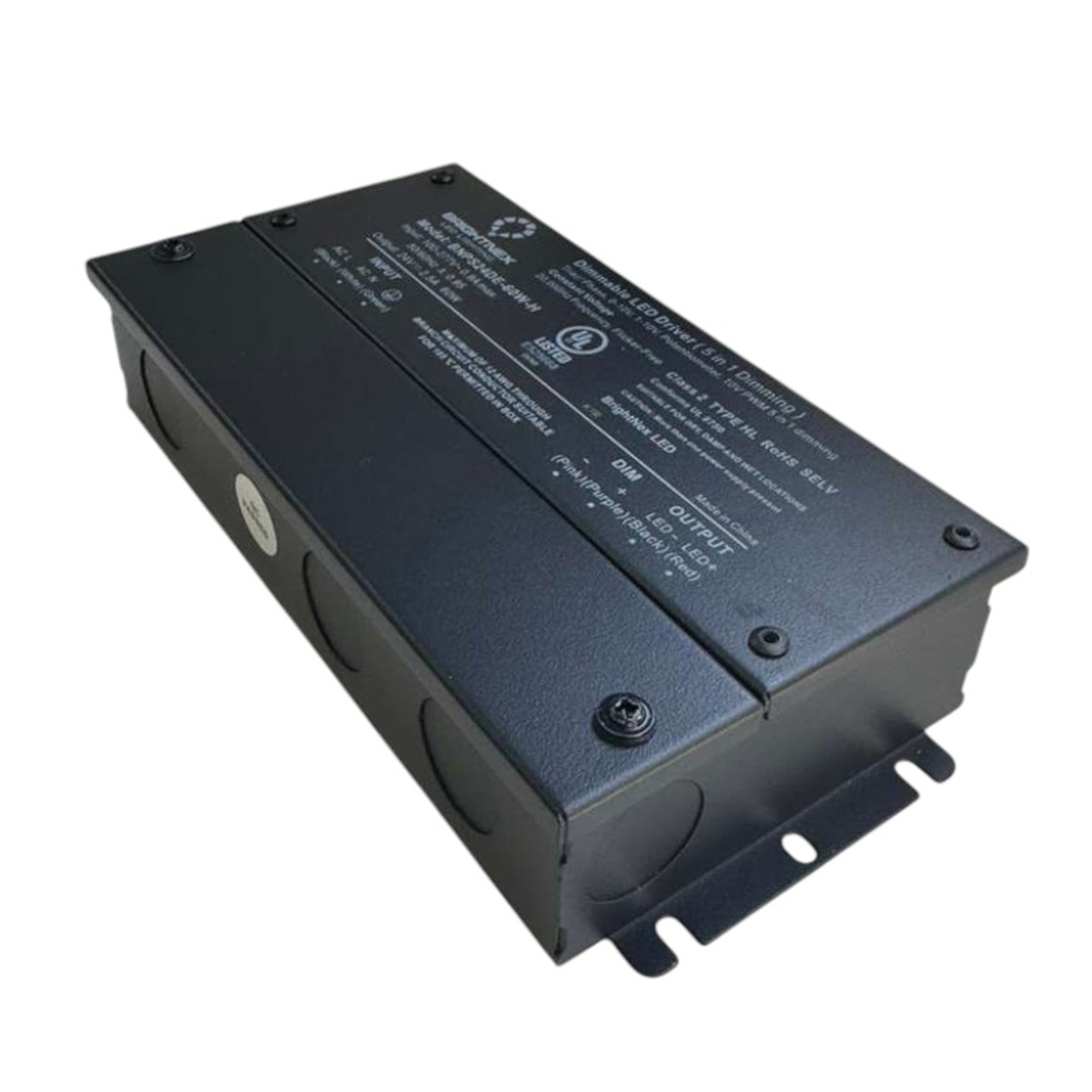

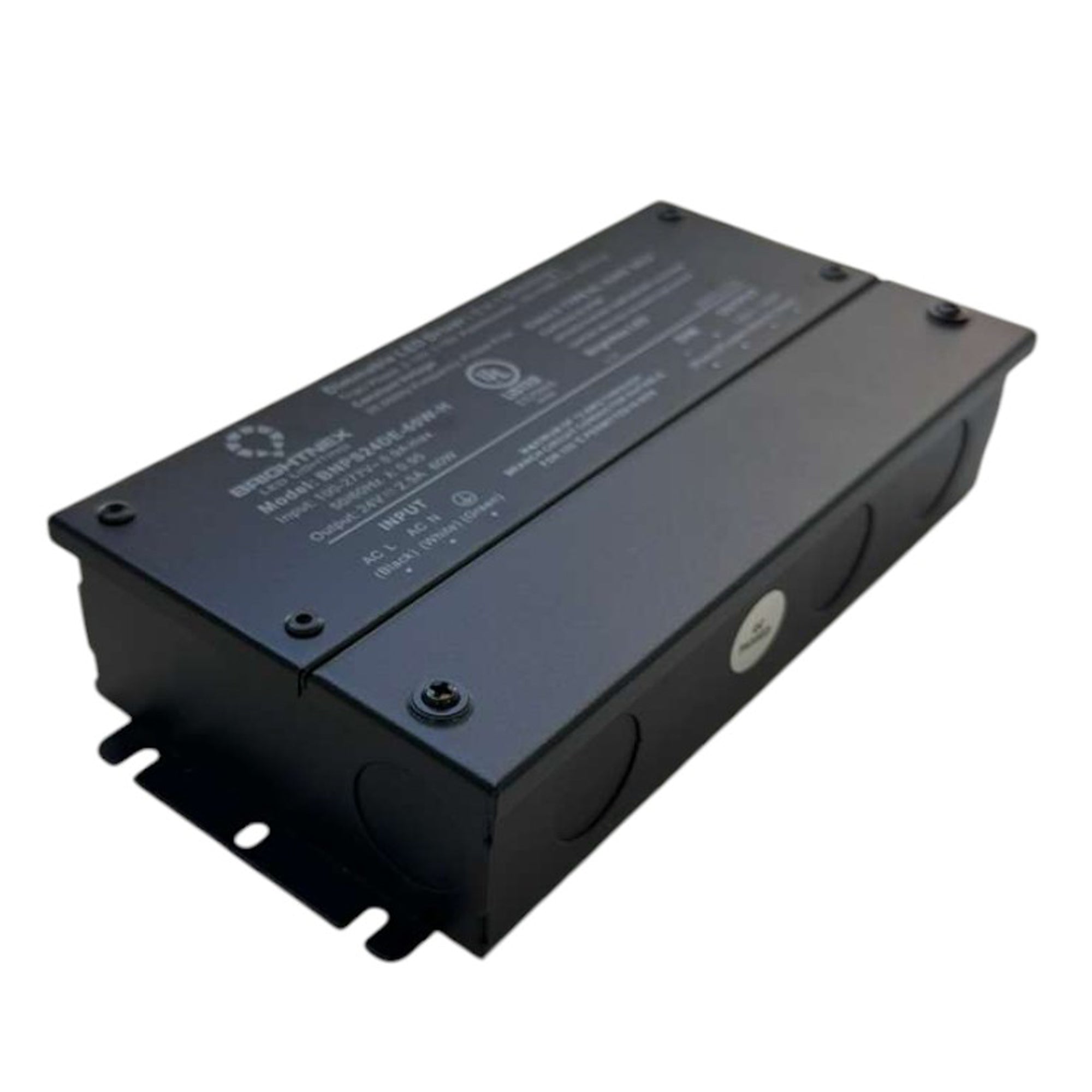

60W TRIAC / ELV / MLV & 0-10V Dimmable LED Driver – 12V / 24V – Flicker-Free – Junction Box – UL Certified

The  60W Driver is a constant voltage, flicker-free LED driver with support for both TRIAC (forward/reverse phase: ELV, MLV) and 0-10V dimming. Designed for low-voltage LED lighting systems, it features a built-in junction box, making it suitable for wet, damp, or dry environments.

Tested and certified for UL, FCC, Class 2, Type HL, SELV, and RoHS, this driver ensures reliable and safe operation with advanced protections and PWM dimming from 0.1–100%.

🔹 Key Features:

• Output Power: 60W

• Output Voltages:

  • 12V DC @ 5A

  • 24V DC @ 2.5A

  • 48V DC @ 1.25A

• Input Voltage Range: 100–277V AC, 50/60Hz

• Efficiency: Up to 85% @ 277V

• Power Factor: > 0.9

• THD: < 20%

• Dimming Types:

  • TRIAC / ELV / MLV (phase-cut)

  • 0-10V / 1-10V / 10V PWM / Potentiometer

• Dimming Range: 0.1–100% (PWM, flicker-free)

• Certifications: UL, cUL, FCC, Class 2, Type HL, SELV, RoHS, UL8750

• Protections:

  • Short-circuit (auto recovery)

  • Overload ≥110% (auto recovery)

  • Thermal: shuts down at 100 °C ±10 °C (auto-recovery)

• Cooling: Natural convection

• Environment: Suitable for wet, damp, and dry locations (Not for Submersion)

• Junction Box: Integrated, knock-out access

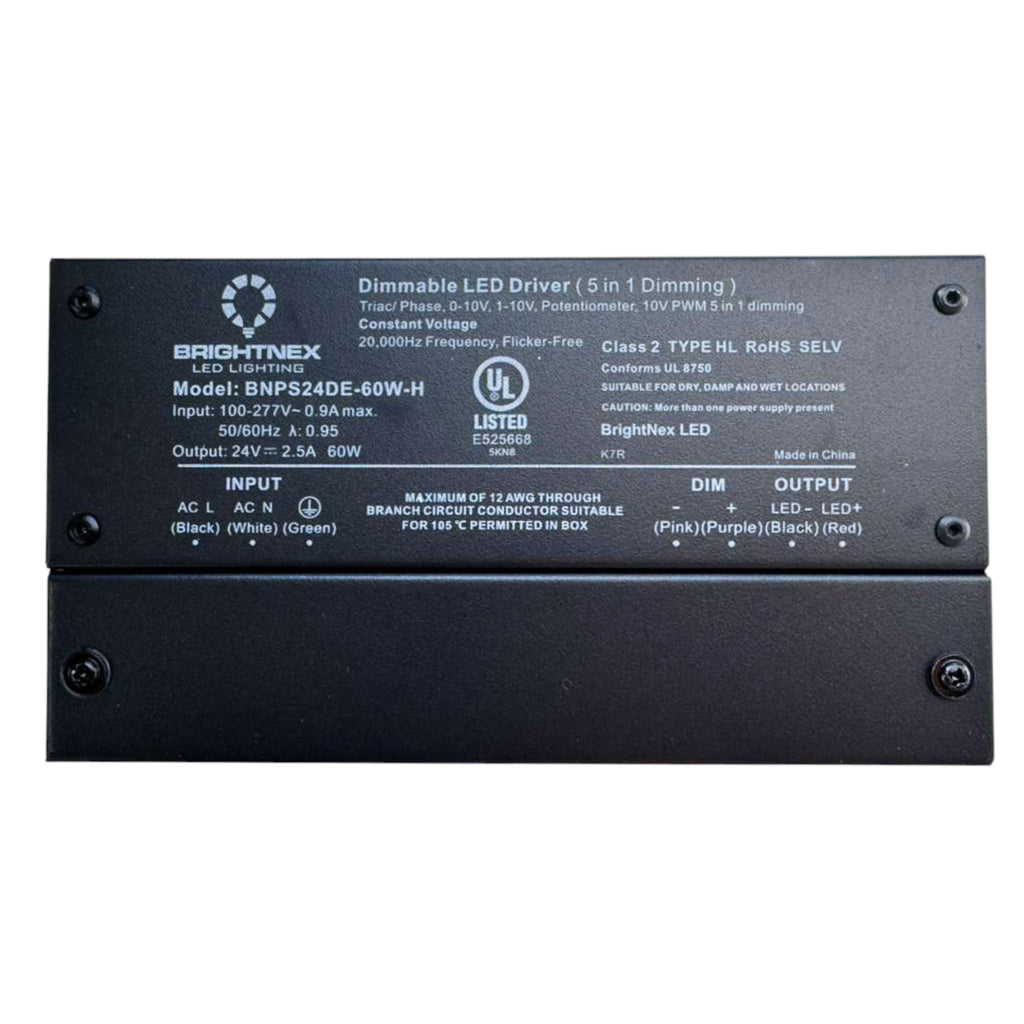

• Part Number:
  BNPS12DE-60W-H
  BNPS24DE-60W-H

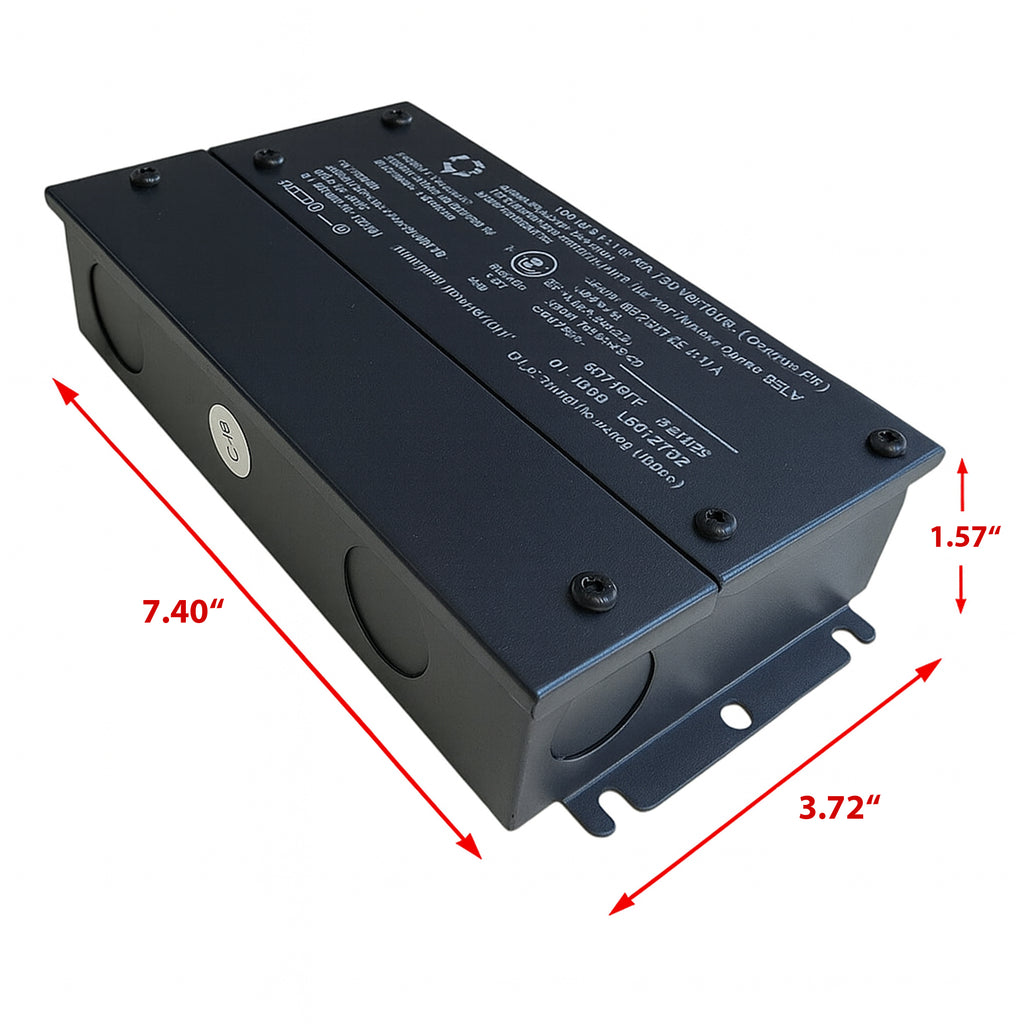

🔹 Mechanical Specs (Imperial Units):

• Dimensions: 7.40" × 3.75" × 1.72"

• Weight: 2.36 lb

• Wiring (AWG):

  • Input: Black (L), White (N), Green (GND) – 3×18 AWG

  • Output: Red (V+), Black (V–) – 2×18 AWG

  • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG

🔹 Applications:

• LED strip and tape lighting

• Architectural and commercial dimming systems

• Outdoor, wet-rated installations

• Compatible with TRIAC & 0-10V dimming systems
