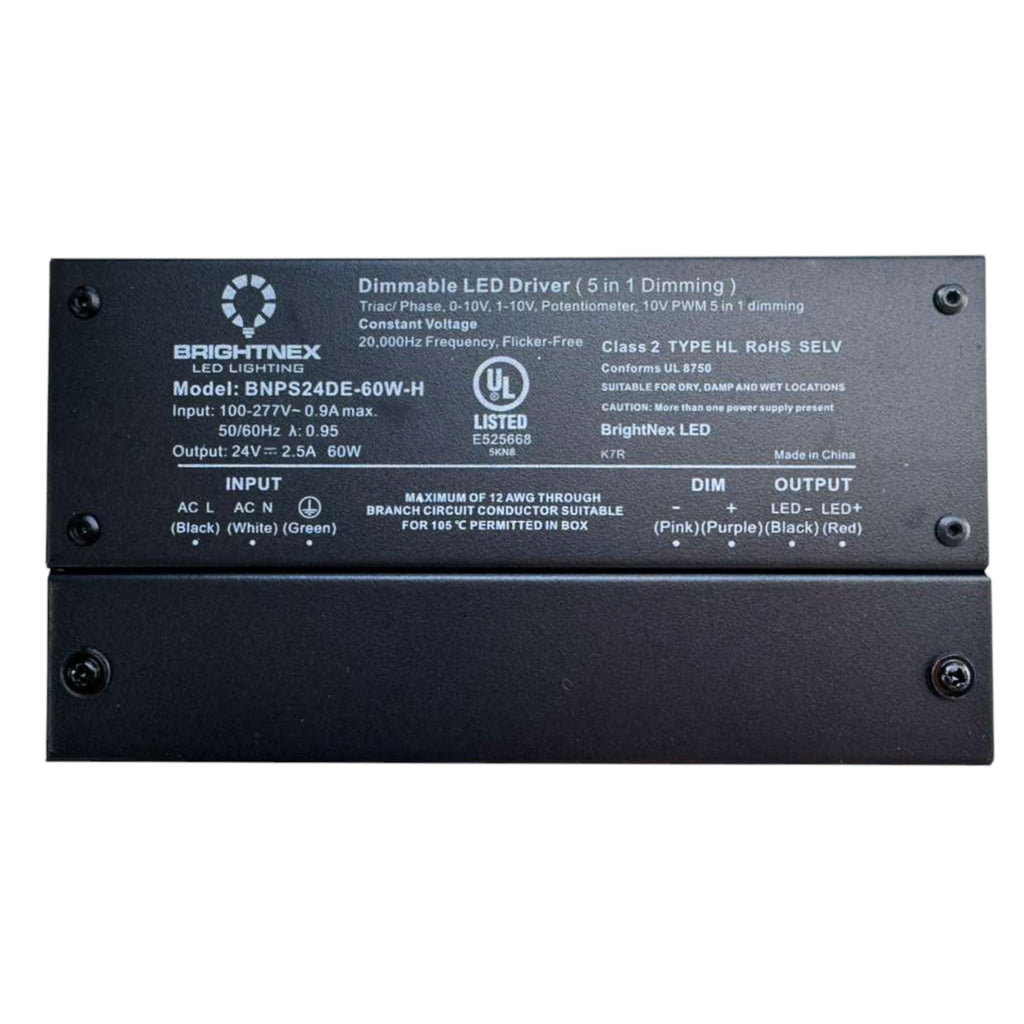

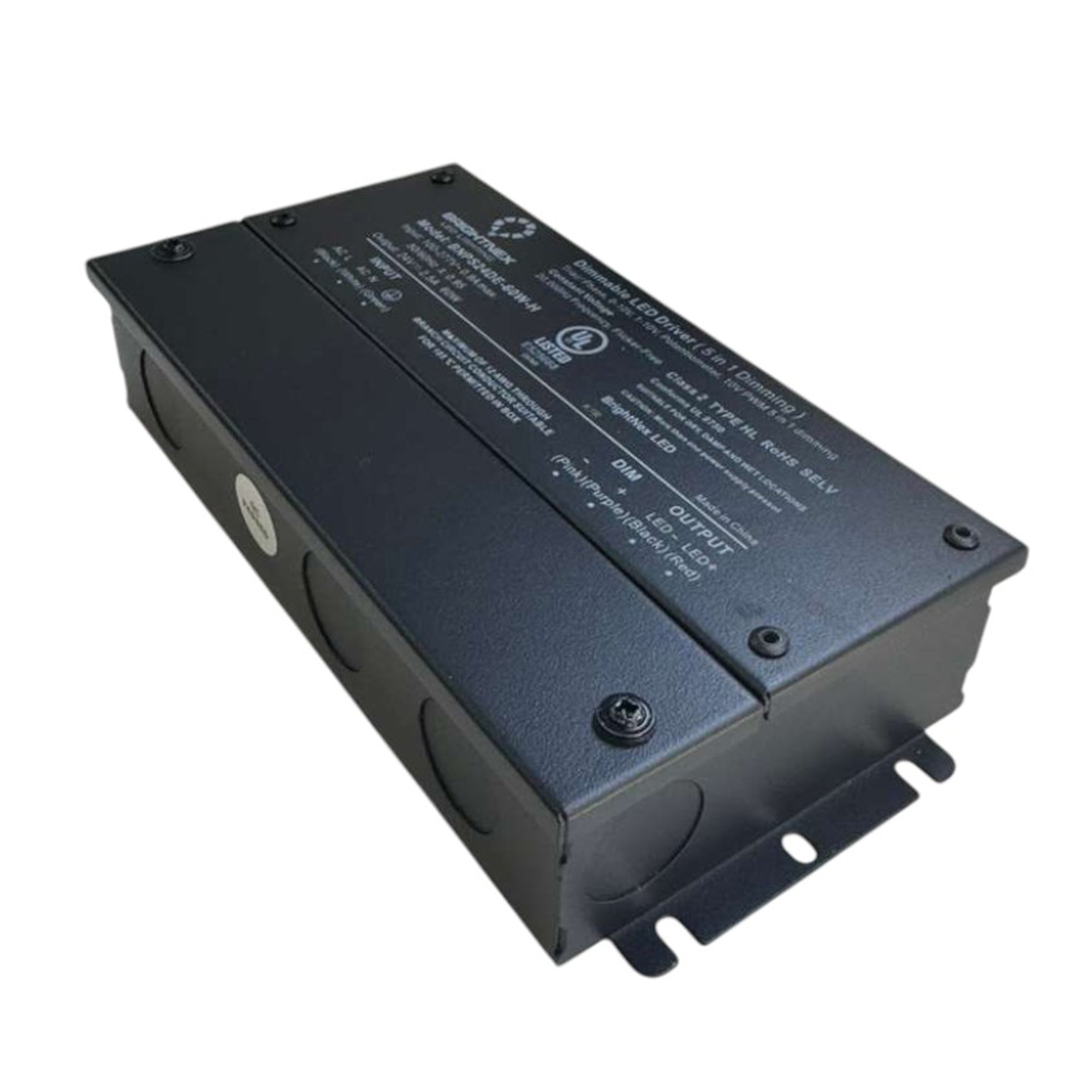

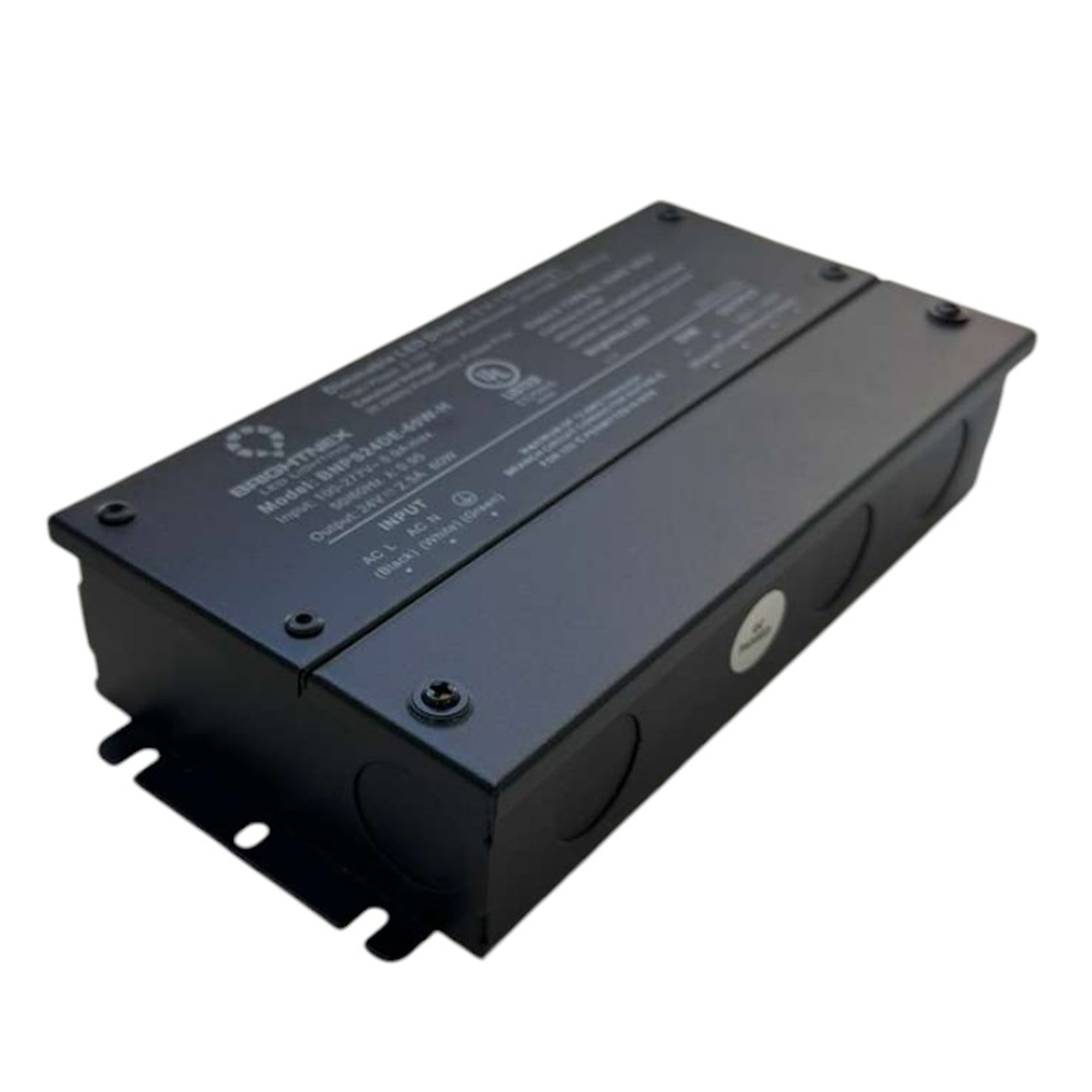

60W 5-in-1 Dimmable LED Driver with Junction Box – 12V / 24V – TRIAC, ELV, MLV, 0-10V, PWM, Potentiometer – Flicker-Free, Full Range Dimming

This 60W constant voltage LED driver delivers full 5-in-1 dimming compatibility with TRIAC, ELV, MLV, 0–10V, PWM, and potentiometer control. It offers smooth 0–100% dimming with a flicker-free 20kHz PWM output, active power factor correction (up to 0.98), and built-in protections against overload, short circuit, and over-temperature. Supplied with an integrated junction box for streamlined wiring and mounting, this driver is UL, cUL, FCC, Type HL, SELV, RoHS certified. Ideal for LED strips, signage, and architectural lighting in dry, damp, or wet environments (not for submersion).

Available in both 12V (5A) and 24V (2.5A) outputs.

Part #: BNPS24DE-60W-H-0-10
Part #: BNPS12DE-60W-H-0-10

Features

• 5-in-1 Dimming Compatibility: Supports TRIAC, ELV, MLV, 0-10V, PWM, and Potentiometer control

• Dimming Range: Smooth 0–100% brightness control

• Universal Input: 100–277VAC with built-in active power factor correction (up to 0.98)

• Flicker-Free Performance: 20kHz PWM output maintains stable light quality

• Constant Voltage Output: Available in 12V (5A) and 24V (2.5A) configurations

• Full Protection: Safeguards against short circuit, overload, and over-temperature

• Certified and Durable: UL, cUL, FCC, Class2, Class P, Type HL, SELV, RoHS rated for dry, damp, and wet locations (not for submersion)

• Efficient Operation: Up to 85% efficiency; THD < 20%

• Built-In Junction Box: Streamlined wiring for easy installation, For dry, damp and wet locations (not for submersion).


• Compact Size: 7.40" × 3.72" × 1.57" — installs easily into most enclosures
