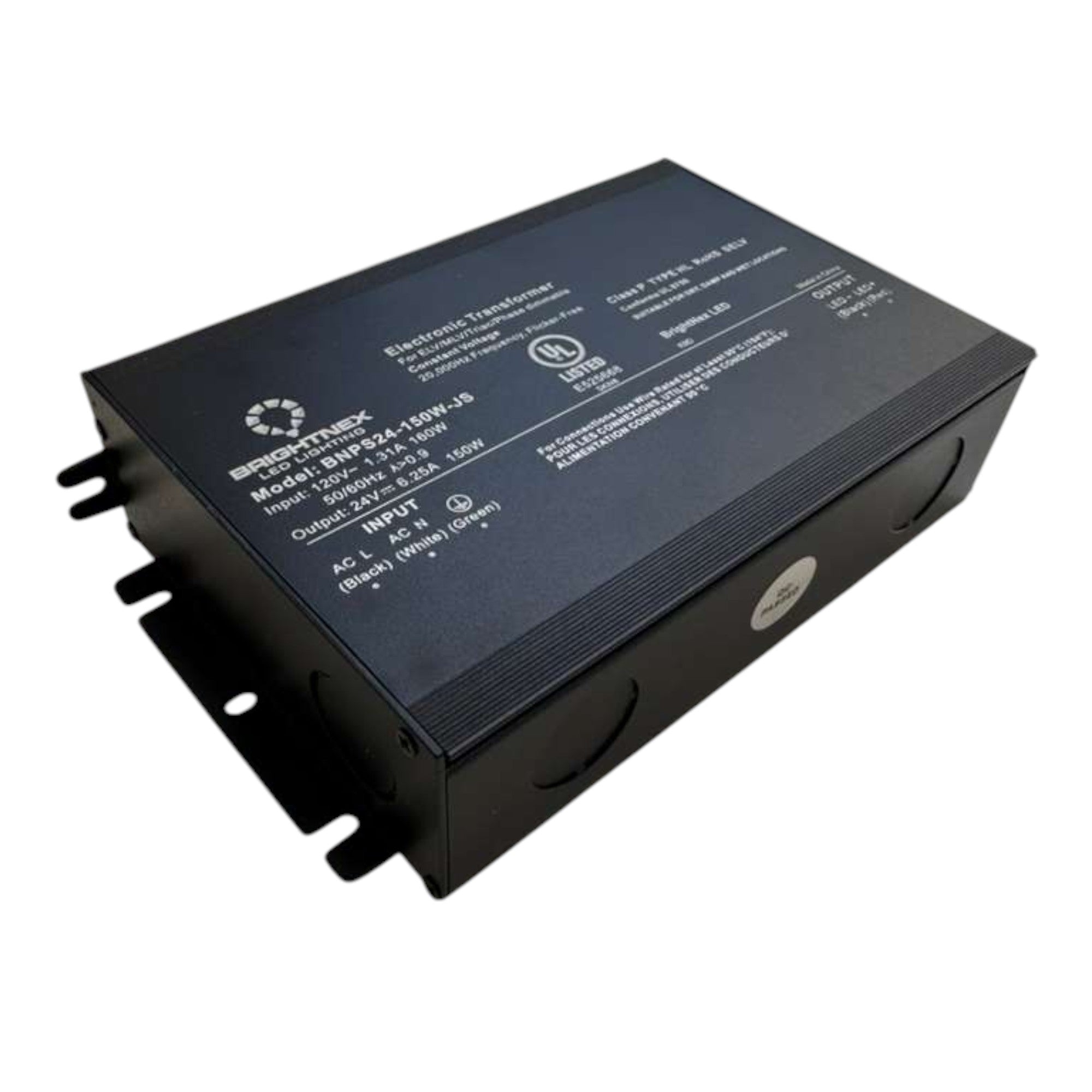

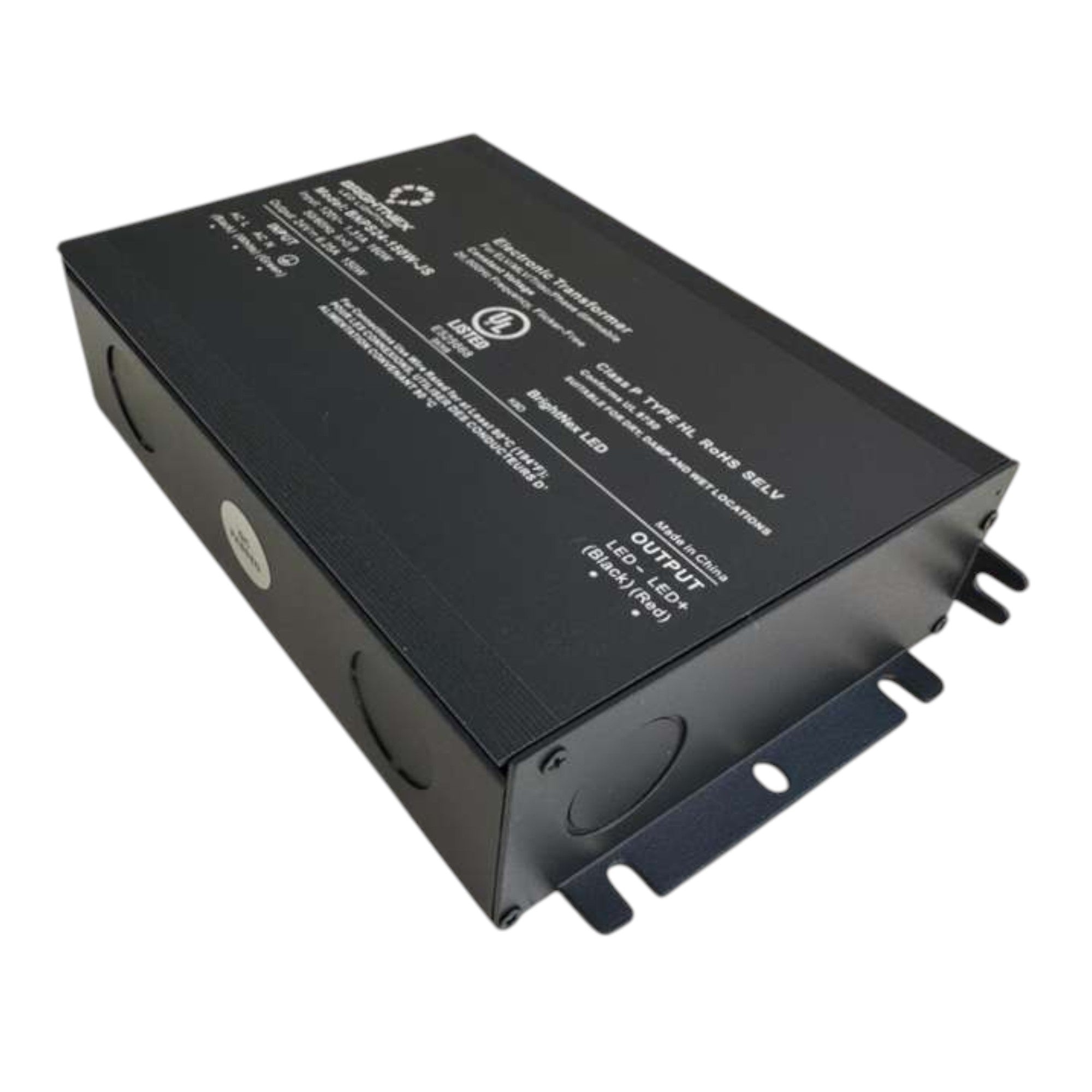

24V 150W Dimmable LED Transformer | TRIAC/ELV/MLV | UL Class P | Wet Location Rated

This 24V 150W constant voltage dimmable LED transformer offers smooth 0–100% dimming performance using TRIAC, ELV, or MLV dimmers. Built for durability and safety, it features a sealed aluminum housing rated for wet, damp, and dry locations.

It operates efficiently across a wide load range (10%–100%) and includes short-circuit and overload protection with automatic recovery. UL Class 2 certified, it ensures safe low-voltage lighting installations in residential and commercial projects.

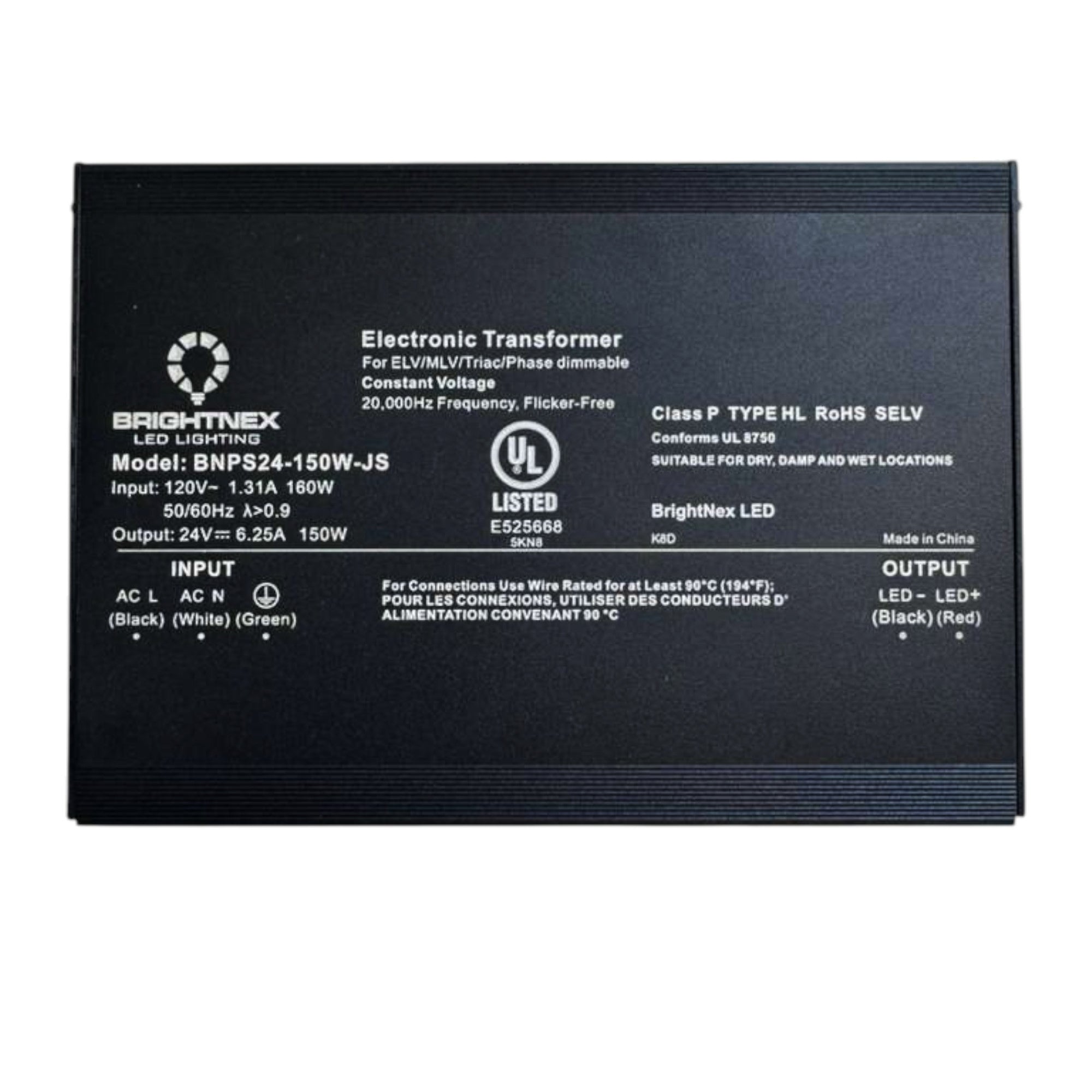

🔧 Specifications:

• Output Voltage: 24V DC

• Output Power: 150W

• Output Current: 6.25A

• Input Voltage: 120V AC

• Frequency: 50/60Hz

• Efficiency: 90% @ 120V full load

• Power Factor: >0.9

• THD: < 20% @ full load

• Voltage Tolerance: ±1.5V

• Leakage Current: < 0.5mA @ 120V

• Load Range: 10% – 100%

• Protections:

  • Short Circuit – hiccup mode, auto-recovery

  • Overload – hiccup mode, auto-recovery

• Working Temp: -40°F to +140°F (-40°C to +60°C)

• Humidity: 20–95% RH non-condensing

• Certifications: UL, FCC, ICES-005, Class P, Type HL, SELV, RoHS, REACH

• Enclosure Rating: Wet, Damp, and Dry Location

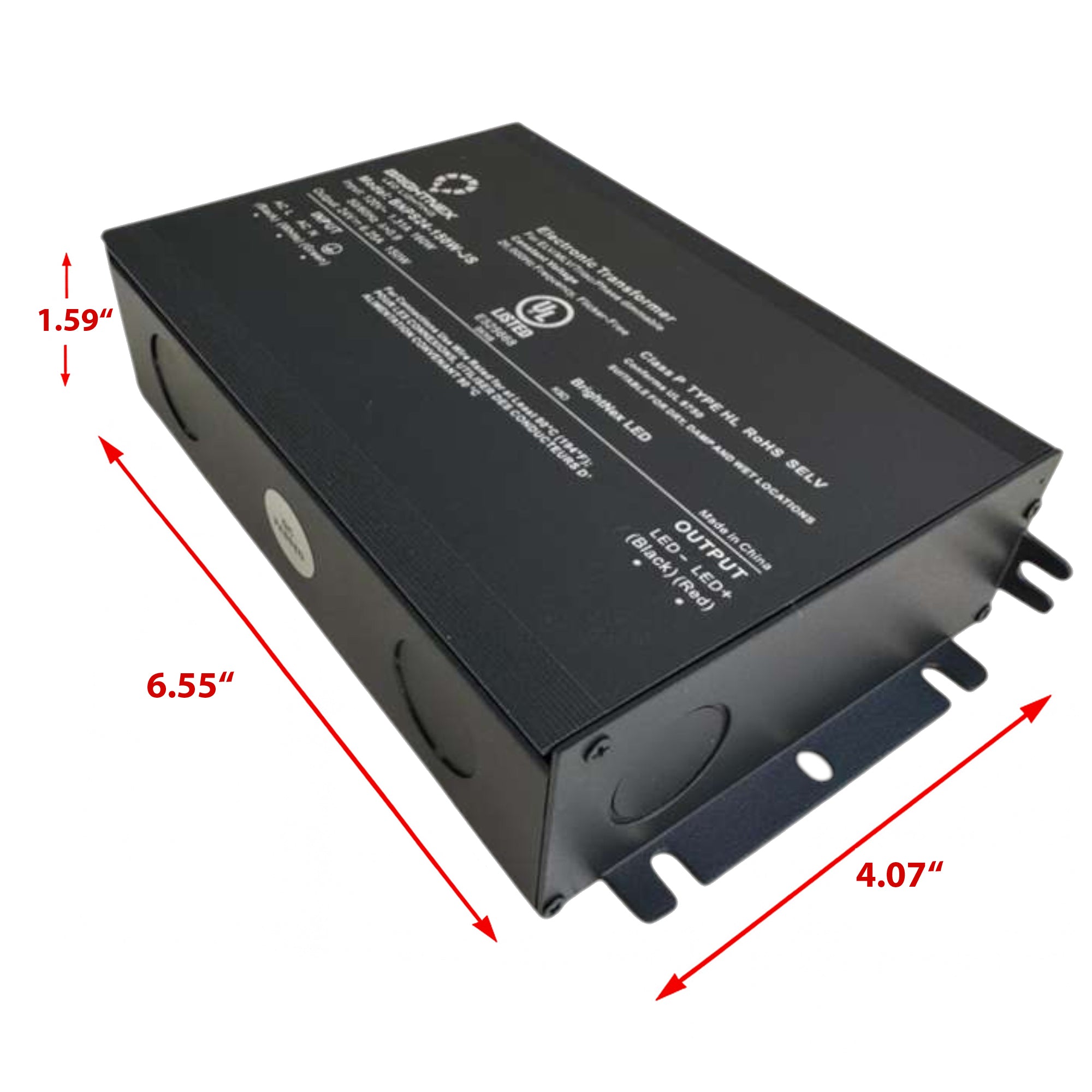

• Dimensions: 6.55" × 4.07" × 1.59" (L × W × H)

• Weight: 1.82 lbs (0.826 kg)

🎚️ Dimming Compatibility:

• Dimming Range: 0–100%

• Supported Protocols:

  • TRIAC (Leading Edge)

  • ELV (Trailing Edge)

  • MLV (Magnetic Low Voltage)

• Tested Compatibility:

  • Lutron CL, Diva series

  • Leviton Decora and SureSlide

🔌 Wiring Details :

• Input (AC 120V):

  • Black – Line (L)

  • White – Neutral (N)

  • Green – Ground (G)

• Output (DC 24V):

  • Red – V+

  • Black – V−

⚡ Typical Applications:

• 24V LED strip and tape lighting


• Under-cabinet and cove lighting

• Signage and commercial installations

• OEM and UL Class 2 low-voltage systems

  Part #: BNPS24-150W-JS
