Description
The 30W Driver is a dual-mode dimmable constant voltage LED driver featuring TRIAC (phase-cut) and 0-10V dimming compatibility. Designed for both residential and commercial lighting applications, this flicker-free driver delivers 0.1–100% dimming range and high reliability in wet, damp, or dry environments, thanks to its built-in junction box.
Certified under UL, Class 2, Type HL, RoHS, SEL2V, and FCC, it also includes built-in active PFC, short-circuit, overload, and thermal protect2ion, offering maximum safety and performance for LED systems.
🔹 Key Features:
-
Output Power: 30W
-
Output Voltages:
-
12V DC @ 2.5A
-
24V DC @ 1.25A
-
48V DC @ 0.63A
-
-
Input Voltage Range: 100–277V AC, 50/60Hz
-
Efficiency:
-
Up to 81% @ 277V AC
-
-
Power Factor: > 0.9
-
THD: < 20% @ full load
-
Dimming Types:
-
TRIAC / ELV / MLV (forward/reverse phase)
-
0-10V / 1-10V / 10V PWM / Potentiometer (4-in-1)
-
-
Dimming Range: 0.1–100% (PWM output, flicker-free)
-
Certifications: UL Listed, Class 2, FCC, Type HL, SELV, RoHS, UL8750
-
Protection:
-
Short-circuit
-
Overload (≥110%)
-
Over-temperature (shutdown @ 100 °C ±10 °C, auto-recovery)
-
-

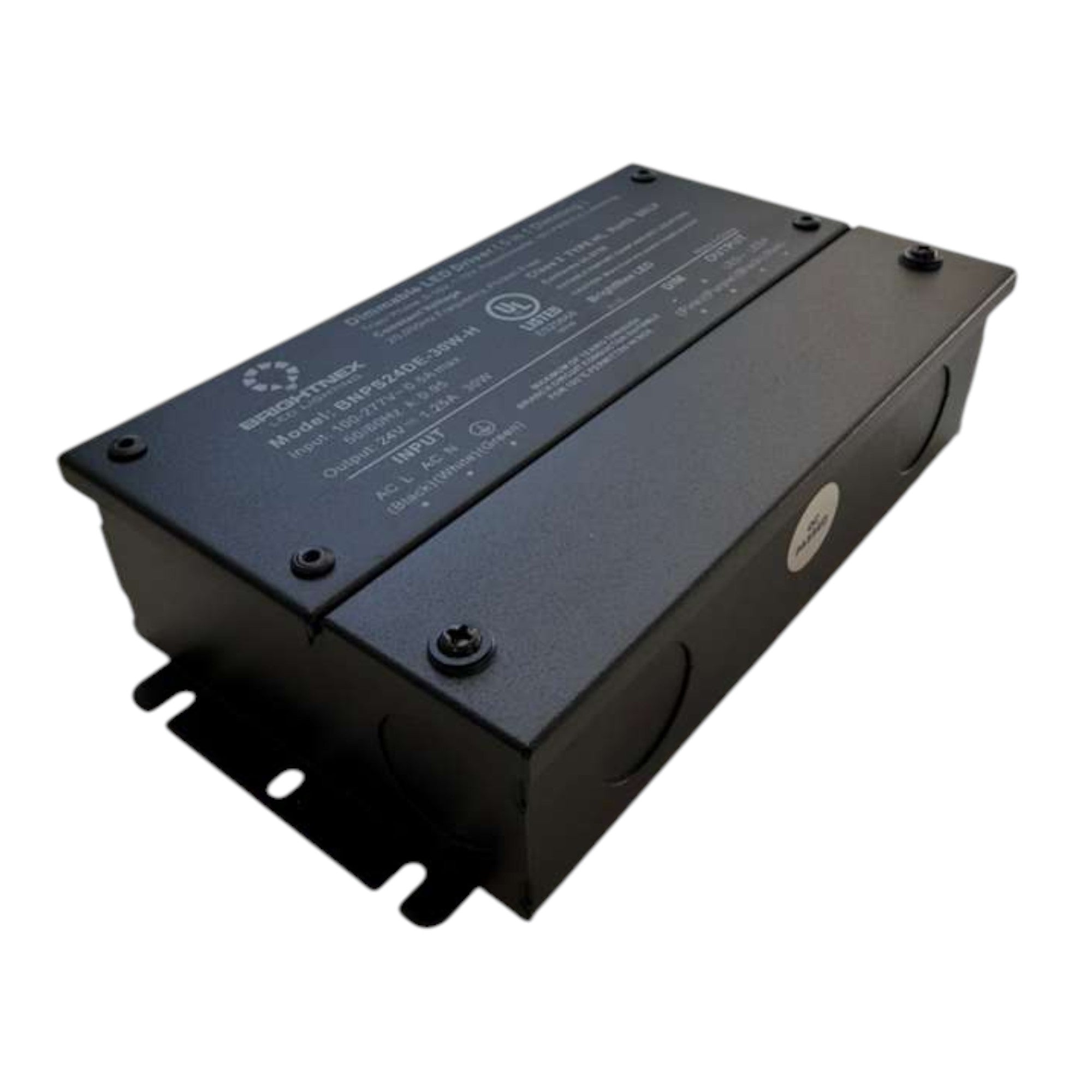

Junction Box: Integrated, with knockouts for wiring
-
Environment: Dry, damp, and wet locations (Not for Submersion)
-
Cooling: Natural convection
-
Part Number:
BNPS12DE-30W-H
BNPS24DE-30W-H
🔹 Mechanical Specs :
-
-

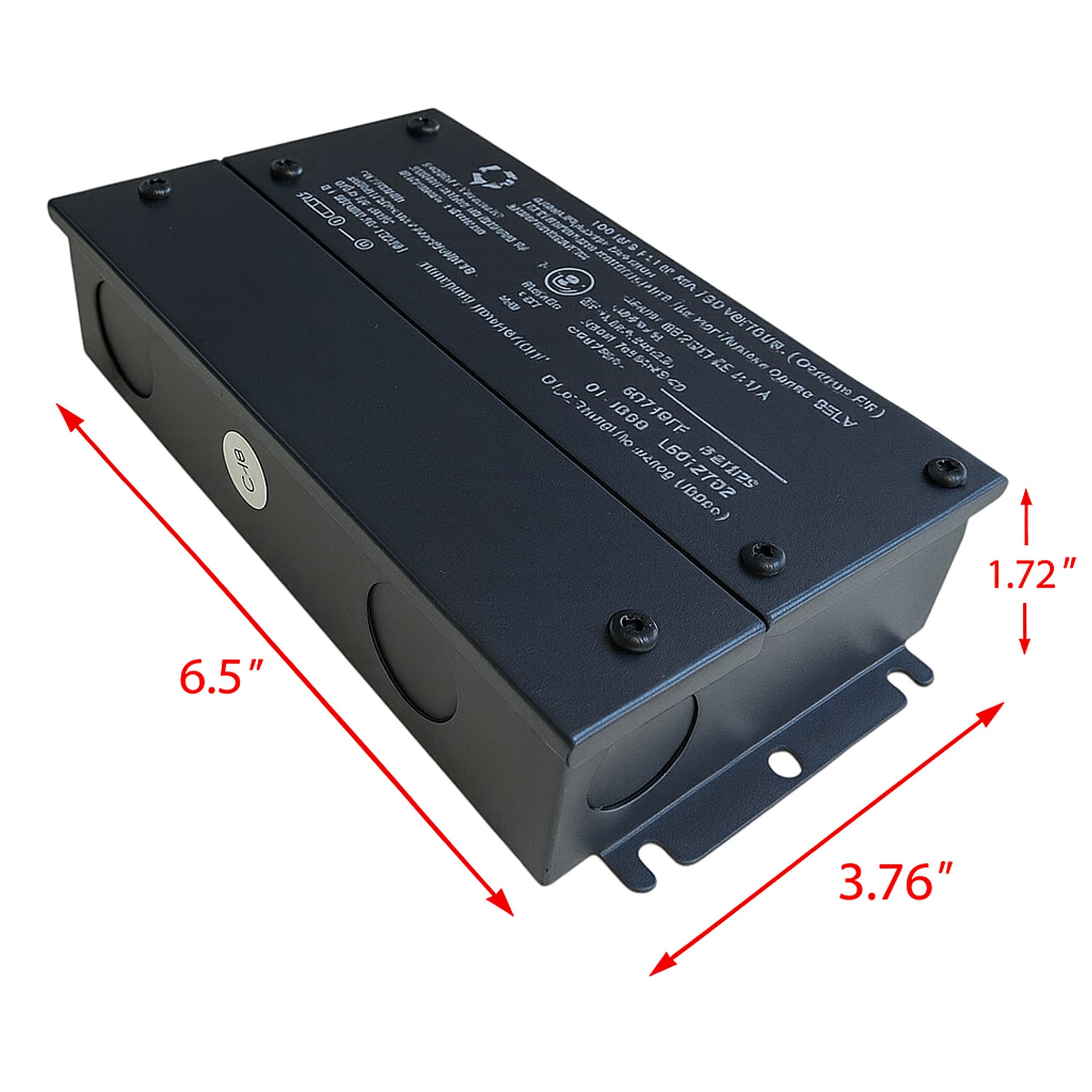

Dimensions: 6.50" × 3.75" × 1.72"
-
Weight: 2.05 lb
-

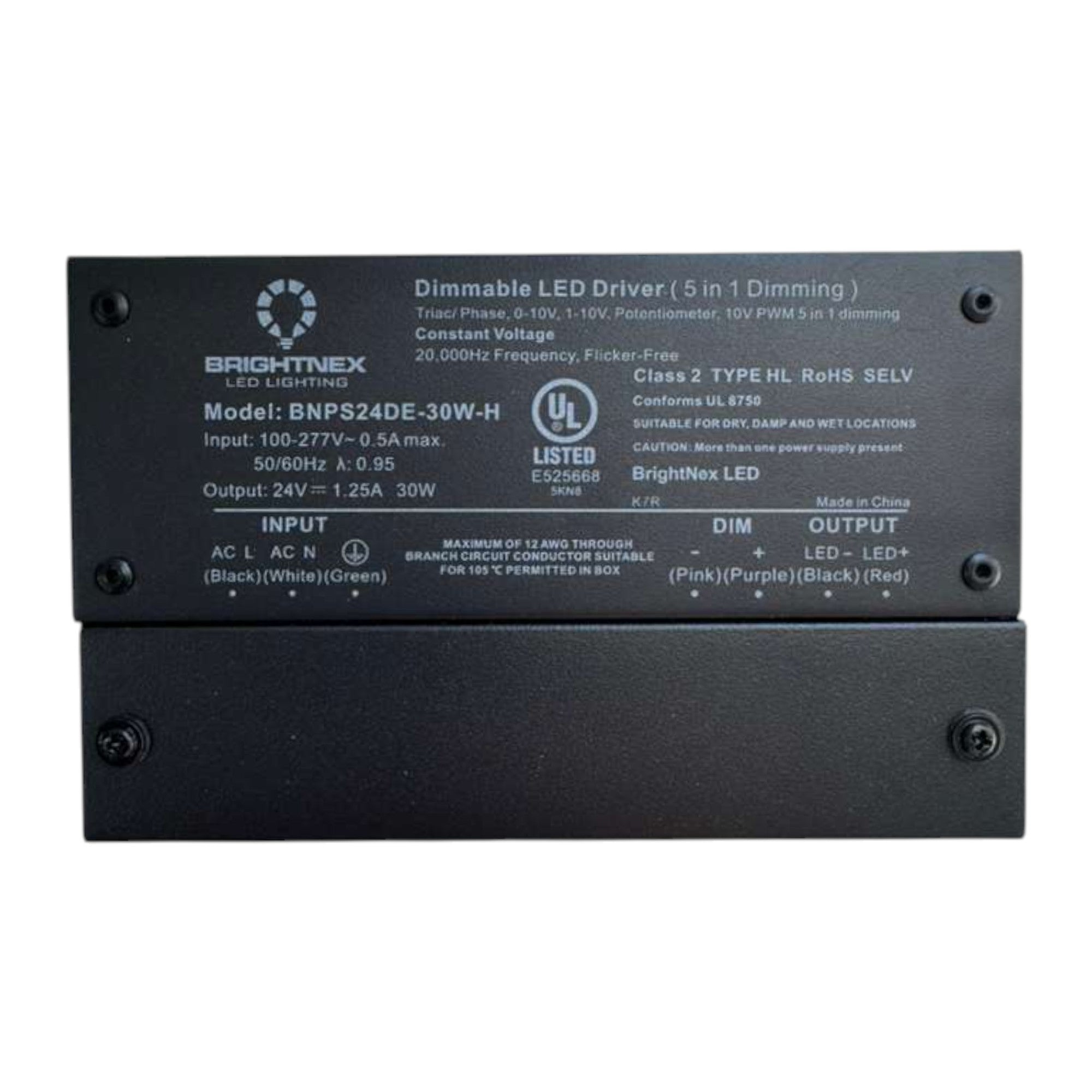

Wiring (AWG):
-
Input: Black (L), White (N), Green (GND) – 3×18 AWG
-
Output: Red (V+), Black (V–) – 2×18 AWG
-
Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG
-
-
🔹 Applications:
-
LED strips, tape lights, and low-voltage linear lighting
-
Residential and commercial dimmable installations
-
Outdoor, wet-rated environments
-
Mixed dimming systems requiring both TRIAC and 0-10V support
