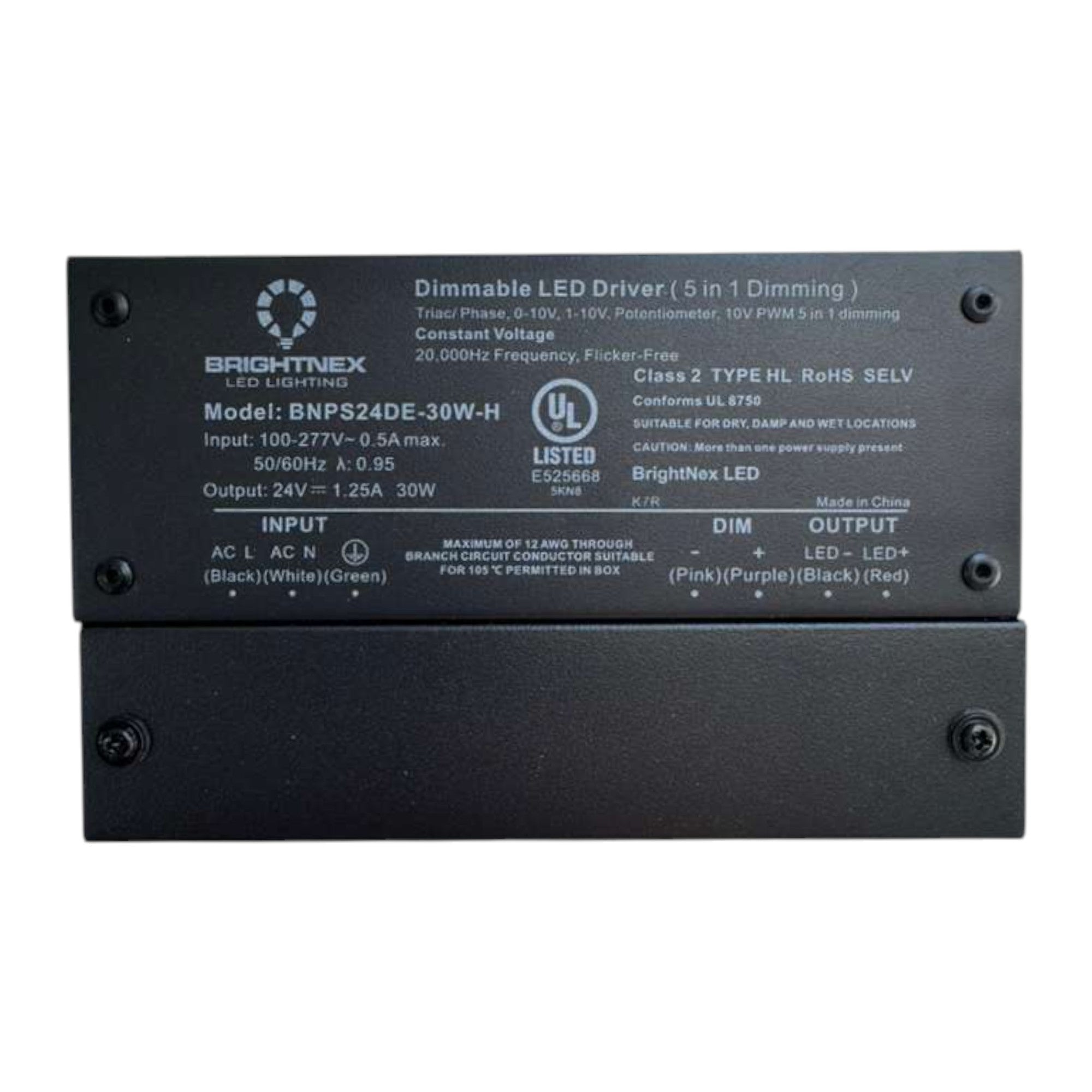

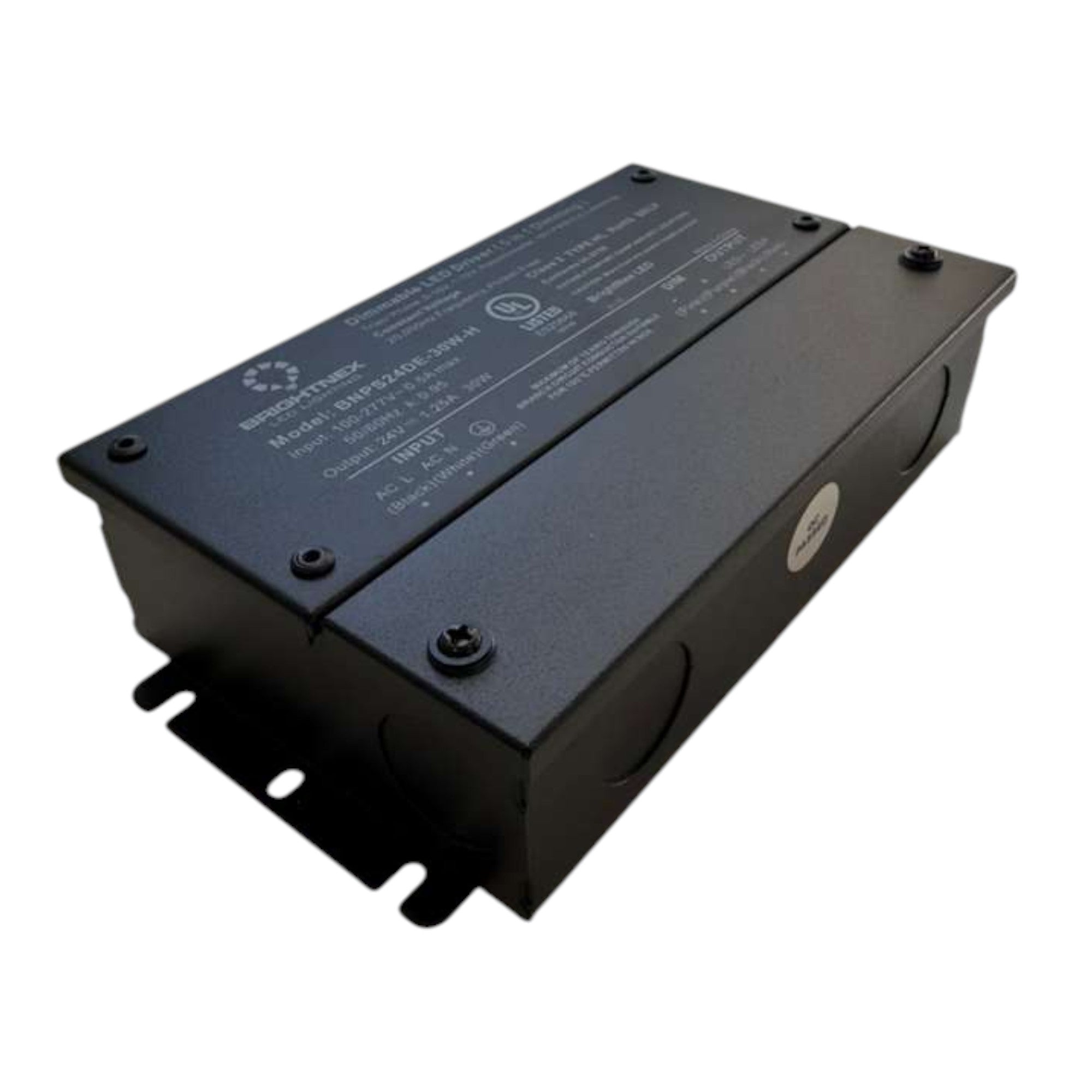

30W 5-in-1 Dimmable LED Driver with Junction Box – 12V / 24V – TRIAC, ELV, MLV, 0-10V, PWM, Potentiometer – Flicker-Free, Full Range Dimming

This 30W constant voltage LED driver delivers full 5-in-1 dimming compatibility with TRIAC, ELV, MLV, 0–10V, PWM, and potentiometer control. It features smooth 0–100% dimming, flicker-free 20kHz PWM output, and active PFC for efficient operation. Built-in protections guard against overload, short circuit, and over-temperature conditions. Supplied with an integrated junction box for streamlined wiring and mounting, and certified with UL / cUL / FCC / TYPE HL / SELV / RoHS /Class 2 this driver is ideal for LED strips, signage, and architectural lighting in dry, damp, or wet locations (not for submersion).

Available in both 12V (2.5A) and 24V (1.25A) outputs.

Part #: BNPS24DE-30W-H-0-10
Part #: BNPS12DE-30W-H-0-10

Features

• 5-in-1 Dimming Compatibility: Supports TRIAC, ELV, MLV, 0-10V, PWM, and Potentiometer control

• Dimming Range: 0.1–100% smooth dimming performance

• Universal Input: 100–277VAC with built-in active PFC (up to 0.99 PF)

• Built-In Junction Box: Streamlined wiring for easy installation, For dry, damp and wet locations (not for submersion).



• Input Voltage: 100–277VAC with built-in active PFC (up to 0.99 PF)

• Constant Voltage Output: Available in 12V (2.5A) and 24V (1.25A)

• Certified Safe: UL, cUL, FCC, Class 2, RoHS, TYPE HL, SELV

• Flicker-Free: High-frequency 20kHz PWM output ensures stable lighting

• Full Protection: Overload, short circuit, and thermal shutdown with auto recovery

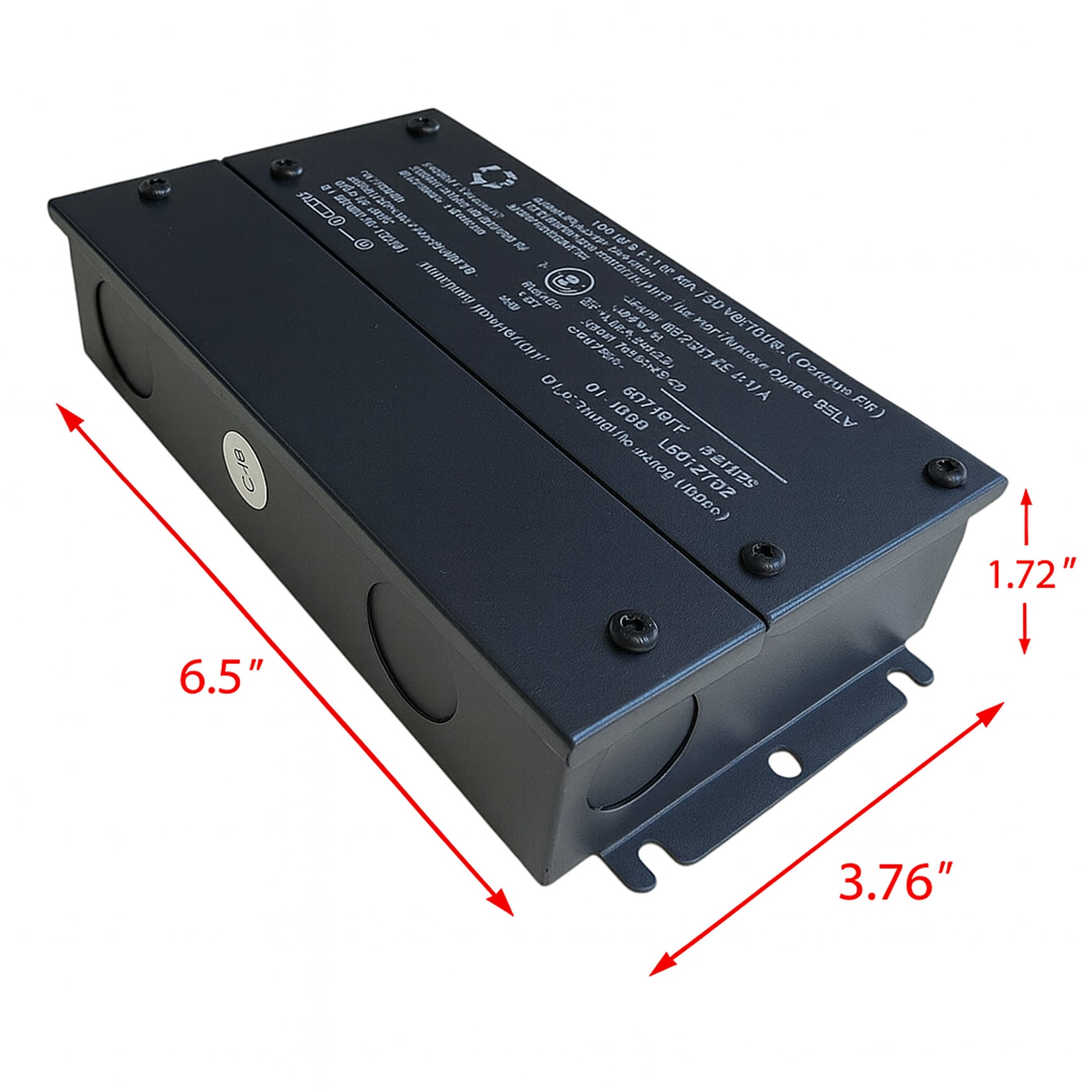

• Compact Size: 6.5" × 3.76" × 1.72" — fits into most standard enclosures

• Efficiency: Up to 81% at full load; THD < 20%
