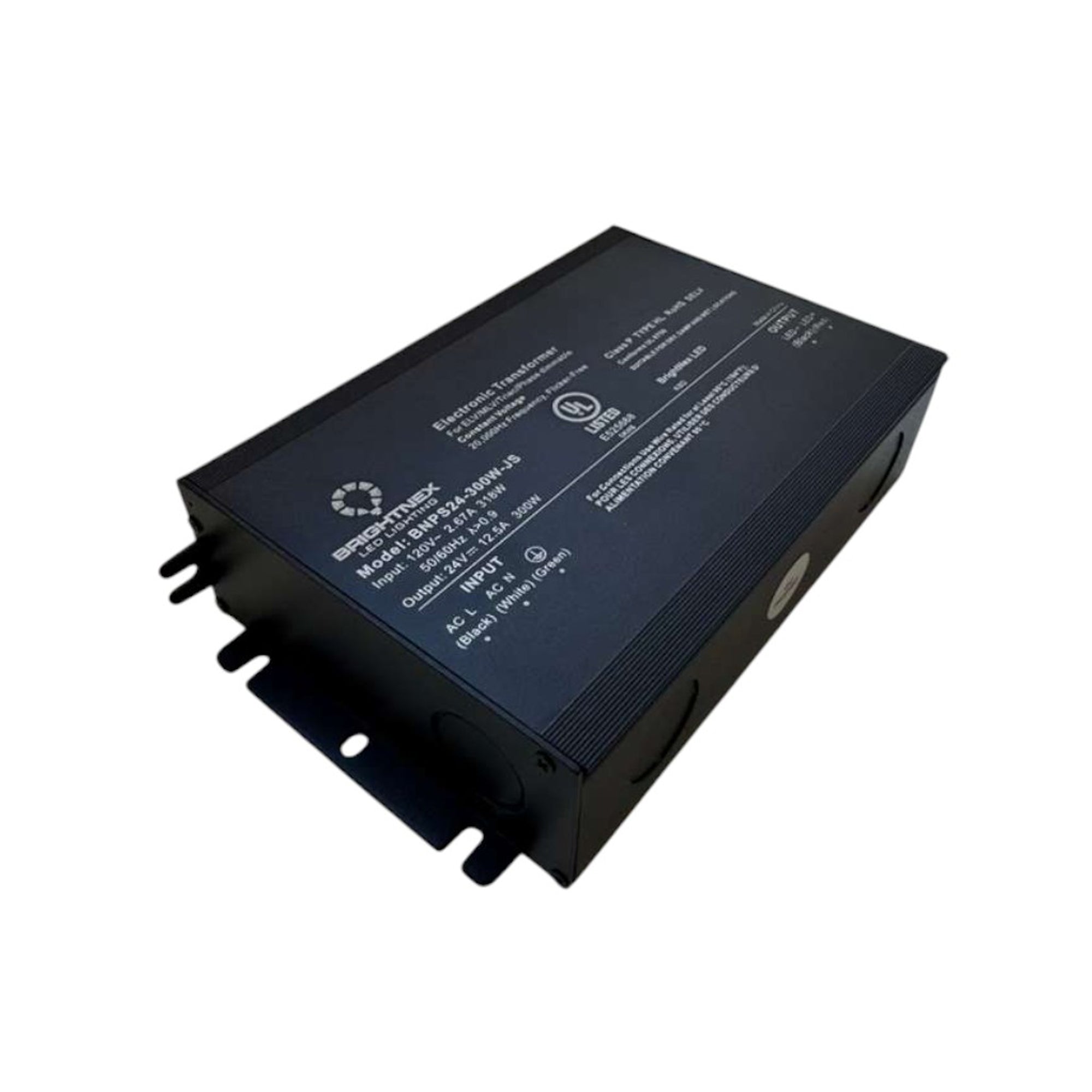

Description
This 24V 300W dimmable constant voltage transformer is a high-output, efficient power supply designed for large LED lighting loads. It supports smooth 0–100% dimming via TRIAC, ELV, and MLV dimmers, and is housed in a durable, compact aluminum enclosure rated for wet, damp, and dry locations.
Engineered for reliability and ease of integration, this transformer includes short-circuit and overload protection, a high efficiency rating of 90%, and Class 2 compliance. It's compatible with industry-standard wall dimmers including Lutron CL and Diva, making it a versatile choice for residential and commercial installations.
🔧 Specifications:
-
Output Voltage: 24V DC
-
Output Power: 300W
-
Output Current: 12.5A
-
Input Voltage: 120V AC
-
Frequency: 50/60Hz
-
Efficiency: 90% @ full load
-
Power Factor: > 0.9
-
THD: < 20% @ 100% load
-
Voltage Tolerance: ±1.5V
-
Leakage Current: < 0.5mA @ 120V
-
Load Range: 10% – 100%
-
Protections:
-
Short Circuit – hiccup mode, auto-recovery
-
Overload – hiccup mode, auto-recovery
-
-
Operating Temp: -40°F to +140°F (-40°C to +60°C)
-
Storage Temp: -40°F to +194°F
-
Humidity: 20–95% RH (non-condensing)
-
Certifications: UL8750, FCC, ICES-005, Class P, Type HL, SELV, RoHS, REACH
-
Enclosure Rating: Dry, Damp, Wet Location (Not for Submersion)
-

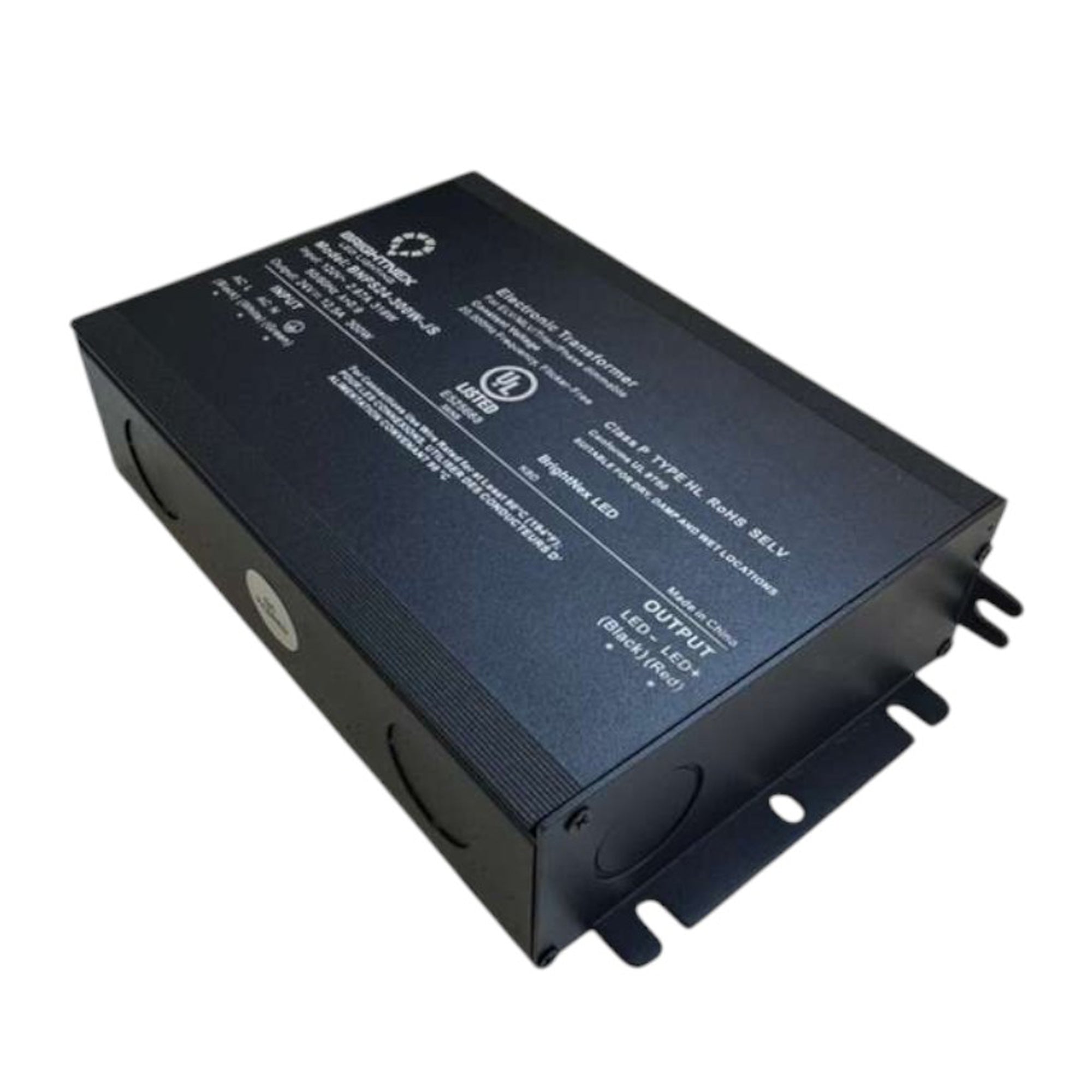

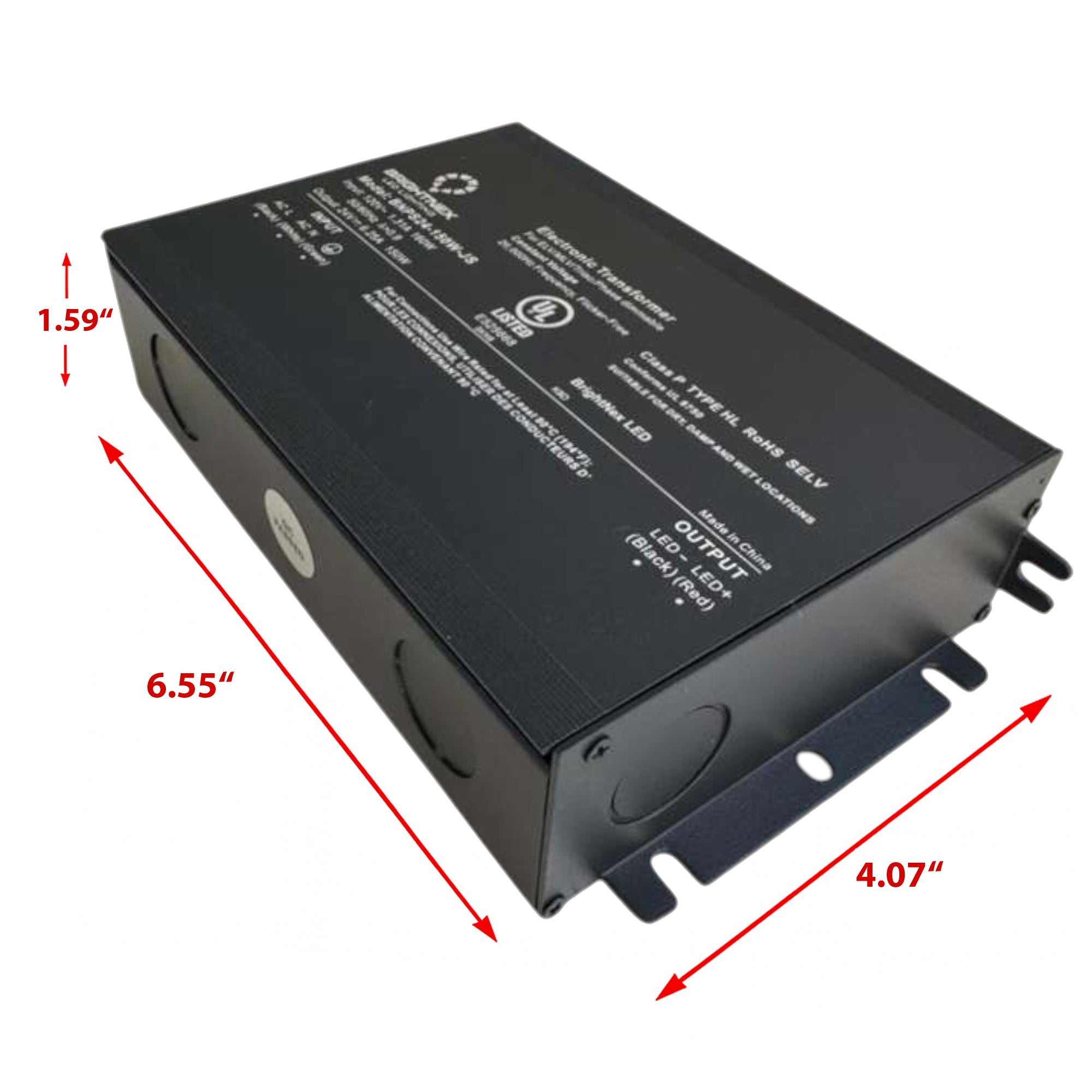

Dimensions: 6.55" × 4.07" × 1.59" (L × W × H)
-
Weight: 1.82 lbs (0.826 kg)
🎚️ Dimming Compatibility:
-
Dimming Range: 0–100%
-
Dimming Types:
-
TRIAC (Leading Edge)
-
ELV (Trailing Edge)
-
MLV (Magnetic Low Voltage)
-
-
Tested Compatible With:
-
Lutron Diva, CL
-
Leviton Decora and SureSlide
-

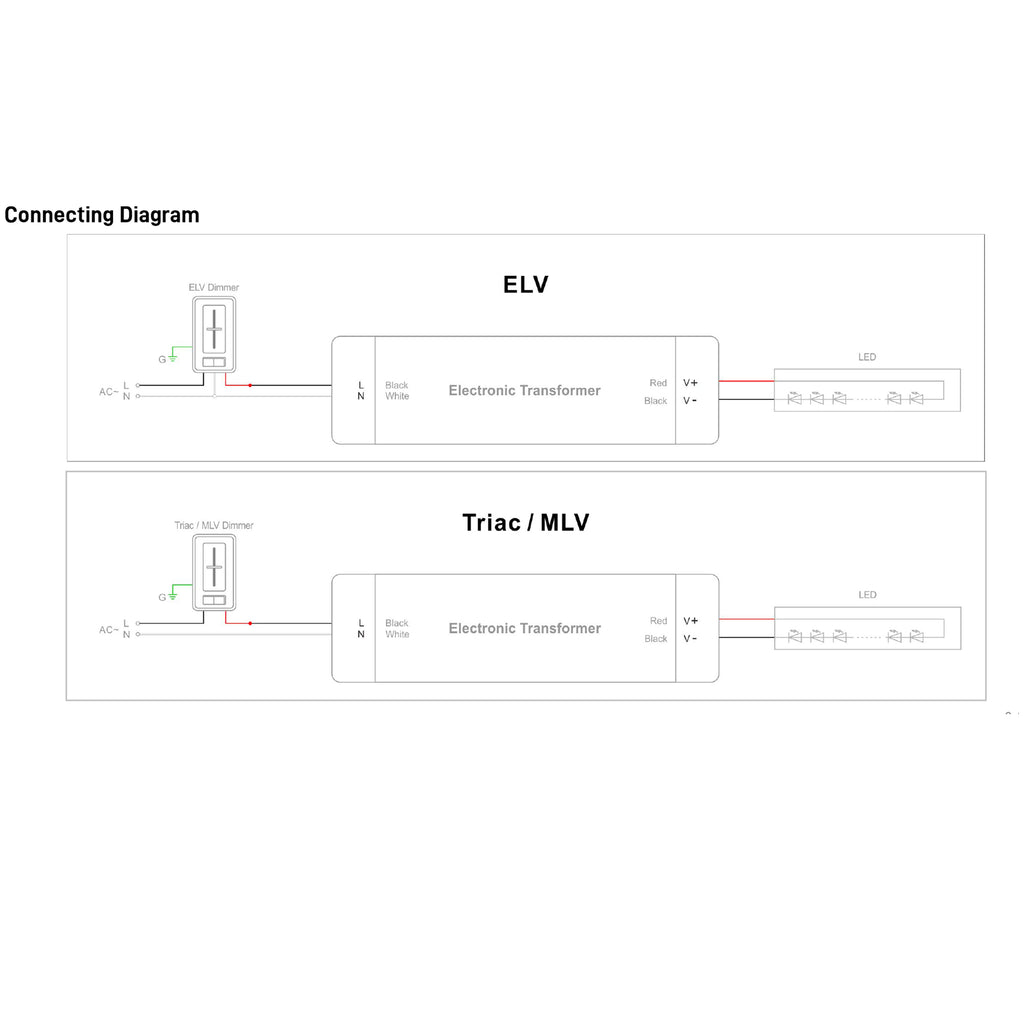

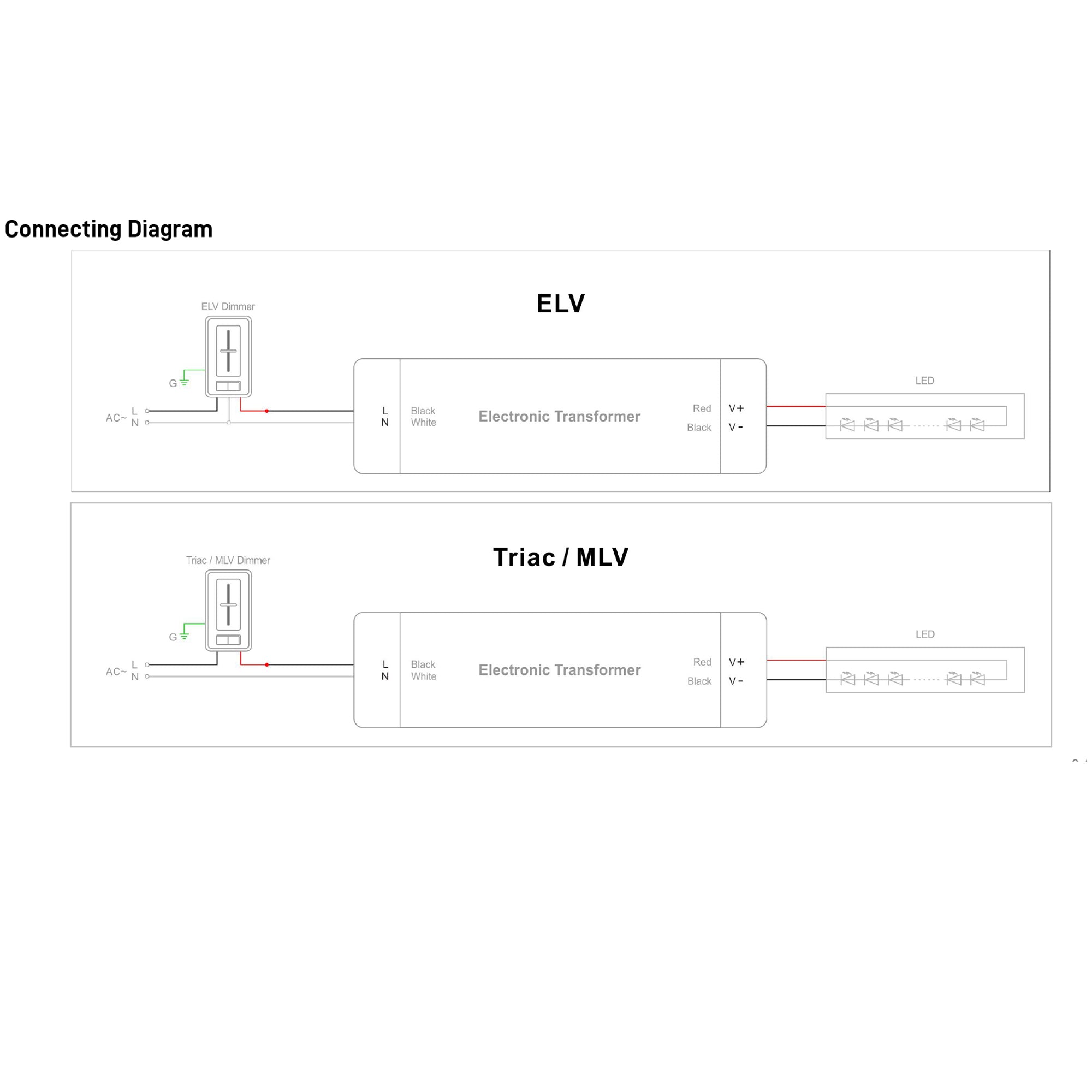

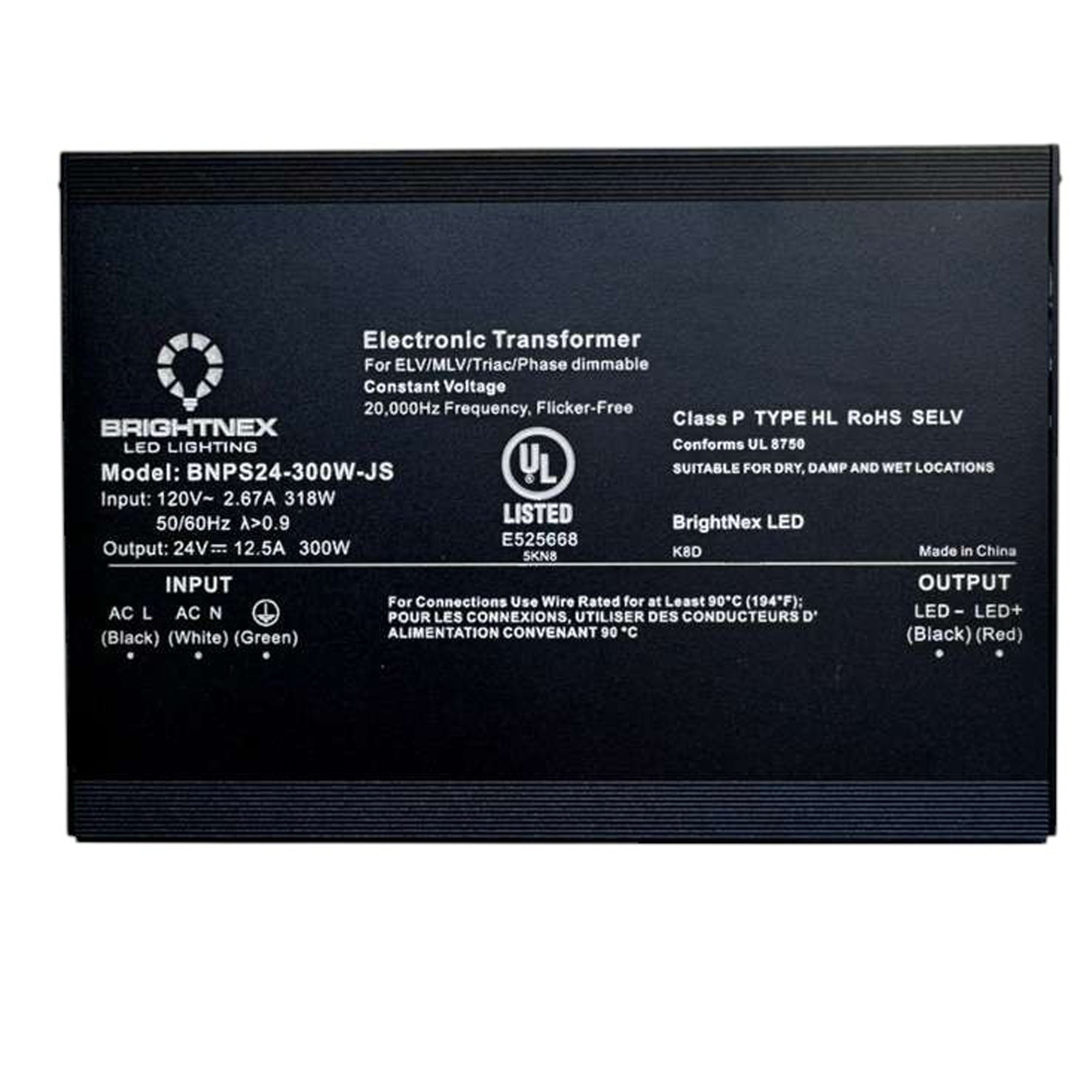

🔌 Wiring (See Page 3):
-
Input (AC 120V):
-
Black – Line (L)
-
White – Neutral (N)
-
Green – Ground (G)
-
-
Output (DC 24V):
-
Red – V+
-
Black – V–
-
⚡ Typical Applications:
-
High-output 24V LED strip, tape, or module lighting
-
Residential or commercial dimmable lighting systems
-
Class P UL-compliant large-scale LED assemblies
Part #: BNPS24-300W-JS
