Description
This 300W constant voltage LED driver from the KVF series delivers smooth phase-cut dimming performance with compatibility for TRIAC, ELV, MLV, and forward/reverse phase dimmers. Designed for both commercial and residential lighting, it supports 12V and 24V outputs with high efficiency and a power factor up to 0.99. Built with a durable enclosure, fully protected against short circuits, overloads, and over-temperature events.
Available in both 12V (25A) and 24V (12.5A) outputs.
Features
-

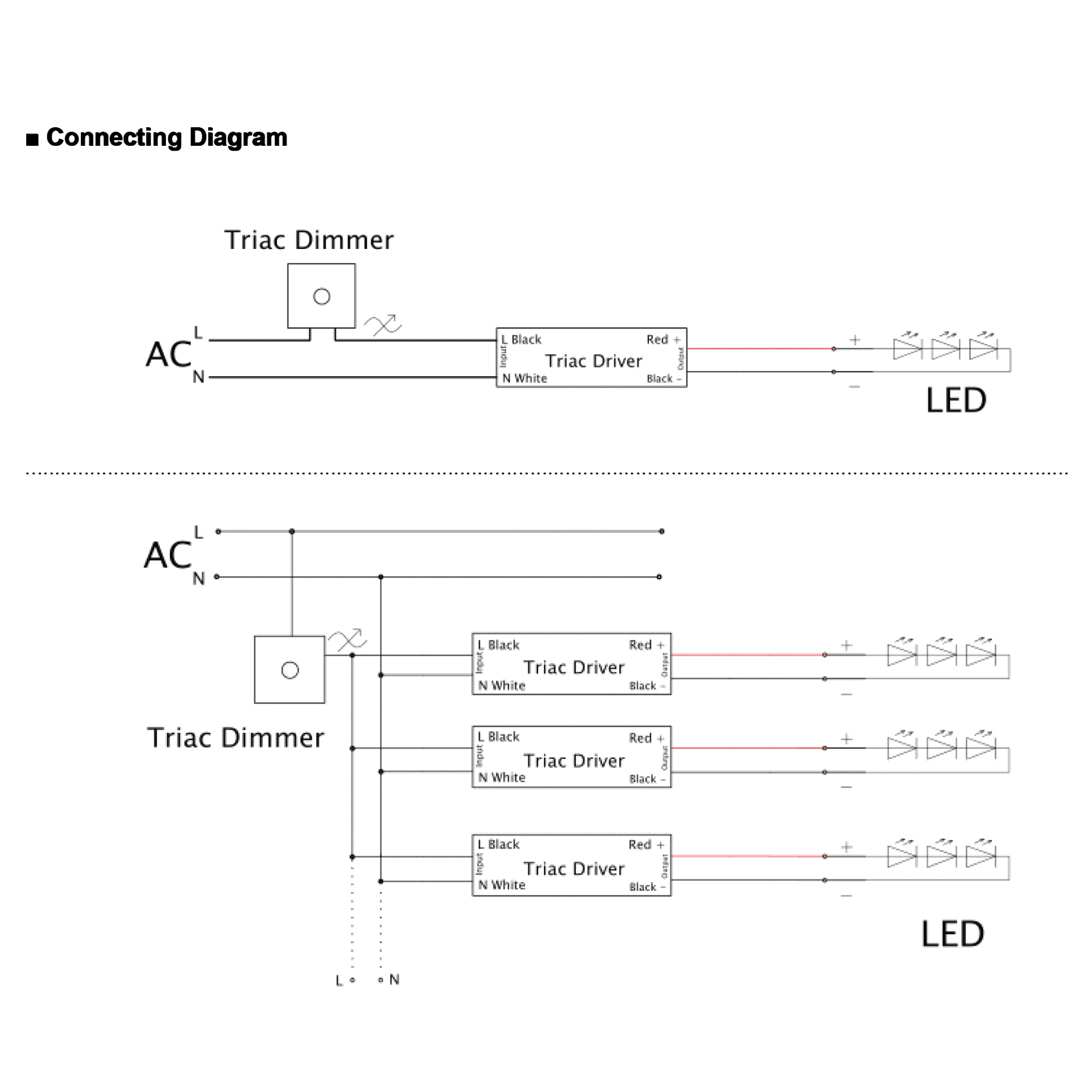

Phase-Cut Dimming: Compatible with TRIAC, ELV, MLV, forward/reverse phase dimmers
-
Dimming Range: Smooth 0–100% dimming with deep dimming capability to 0.1%
-
Wide Input Range: 110–277VAC input with active PFC (PF up to 0.99)
-
Waterproof Rated: Full Iron protection housing, for dry, damp & wet locations (not for submersion).
-
High Efficiency: Up to 91% energy efficiency
-
Constant Voltage Output: Available in both 12V (25A) and 24V (12.5A) options
-
Full Protection: Short circuit, overload, and over-temperature protection
-
Certified & Compliant: UL / cUL / FCC / Class P / TYPE HL / SELV / RoHS / Reach
-

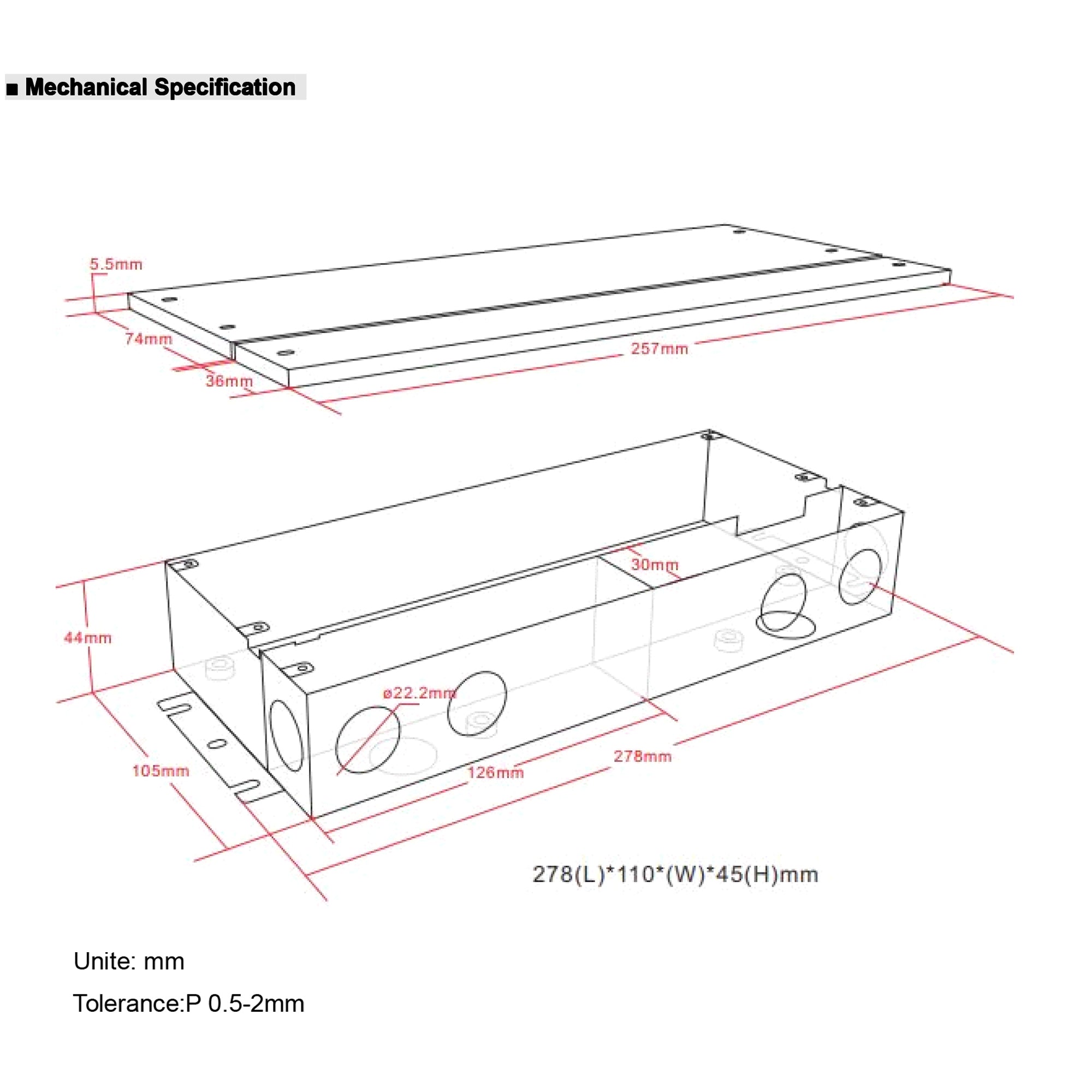

Compact Dimensions: 10.95" × 4.33" × 1.91" – fits into most enclosures
