Description
The 300W LED Driver is designed for high-performance LED lighting systems, offering both TRIAC (Forward/Reverse Phase – ELV/MLV) and 0-10V / PWM / Potentiometer dimming. Engineered for commercial-grade reliability, it ensures flicker-free output across the full dimming range of 0.1% to 100%. With built-in active PFC, PWM dimming, and robust protection features, this UL Listed unit comes integrated with a junction box, ensuring secure installation for dry, damp, and wet locations.
🔹 Key Specifications:
-
Output Power: 300W
-
Output Voltages:
-
12V DC @ 25A
-
24V DC @ 12.5A
-
-
Input Voltage: 110–277V AC, 50/60Hz
-
Efficiency (Typical):
-
12V: 87% @120V / 89% @277V
-
24V: 88% @120V / 91% @277V
-
-
Power Factor: > 0.9
-
THD:
-
≤10% @120V
-
≤15% @277V
-
-

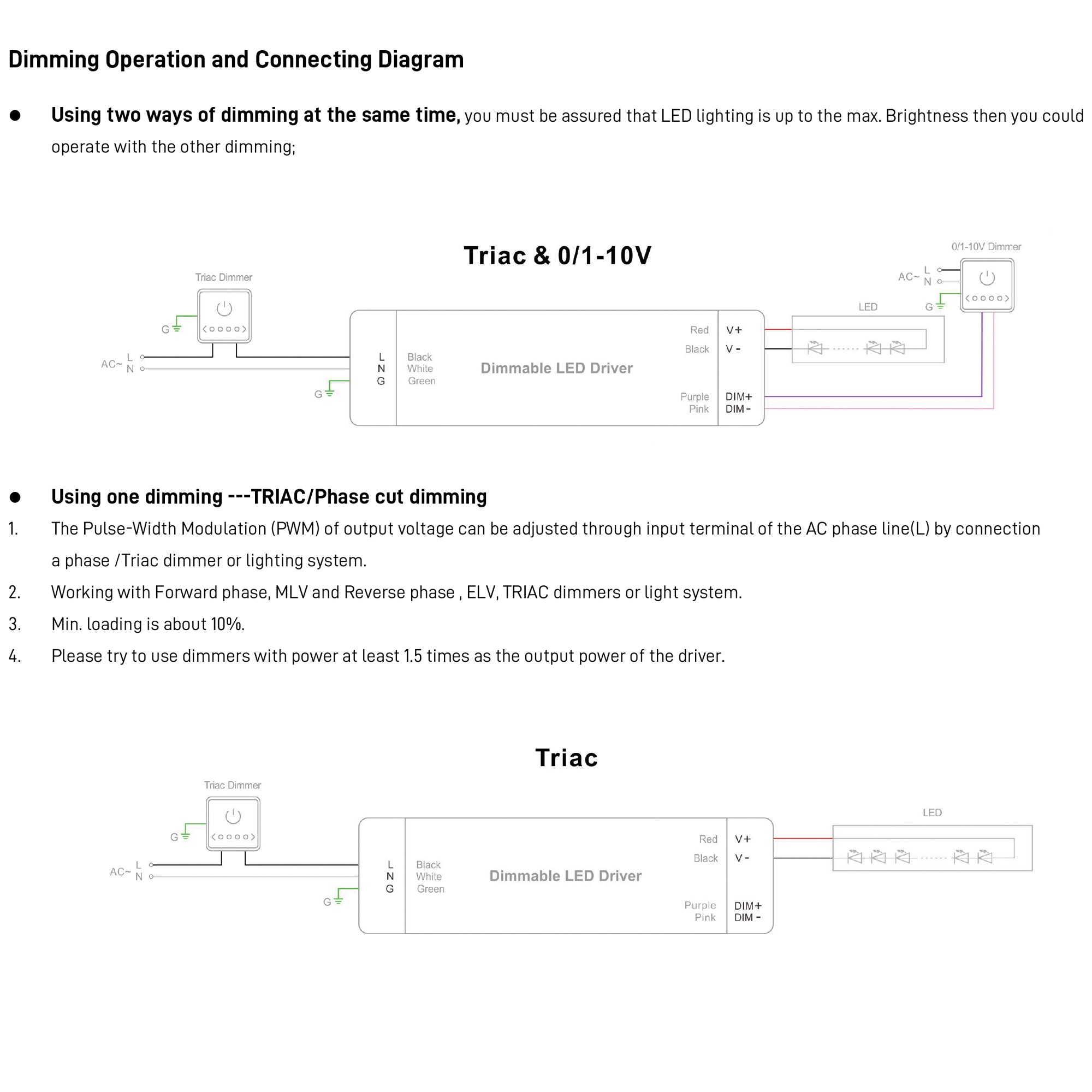

Dimming Options:
-
TRIAC / ELV / MLV
-
0-10V / 1-10V / 10V PWM / Potentiometer
-
-
Dimming Range: 0.1–100%, Flicker-Free PWM Output
-
Certifications: UL / cUL / FCC / SELV / RoHS / Type HL / UL8750
-
Protection Features:
-
Short Circuit (Auto-Recovery)
-
Overload (≤120%, Auto-Recovery)
-
Thermal Shutdown @100 °C ±10 °C
-
-
Cooling Method: Natural Convection
-
Environment: Dry, Damp, and Wet locations (Not for Submersion)
-

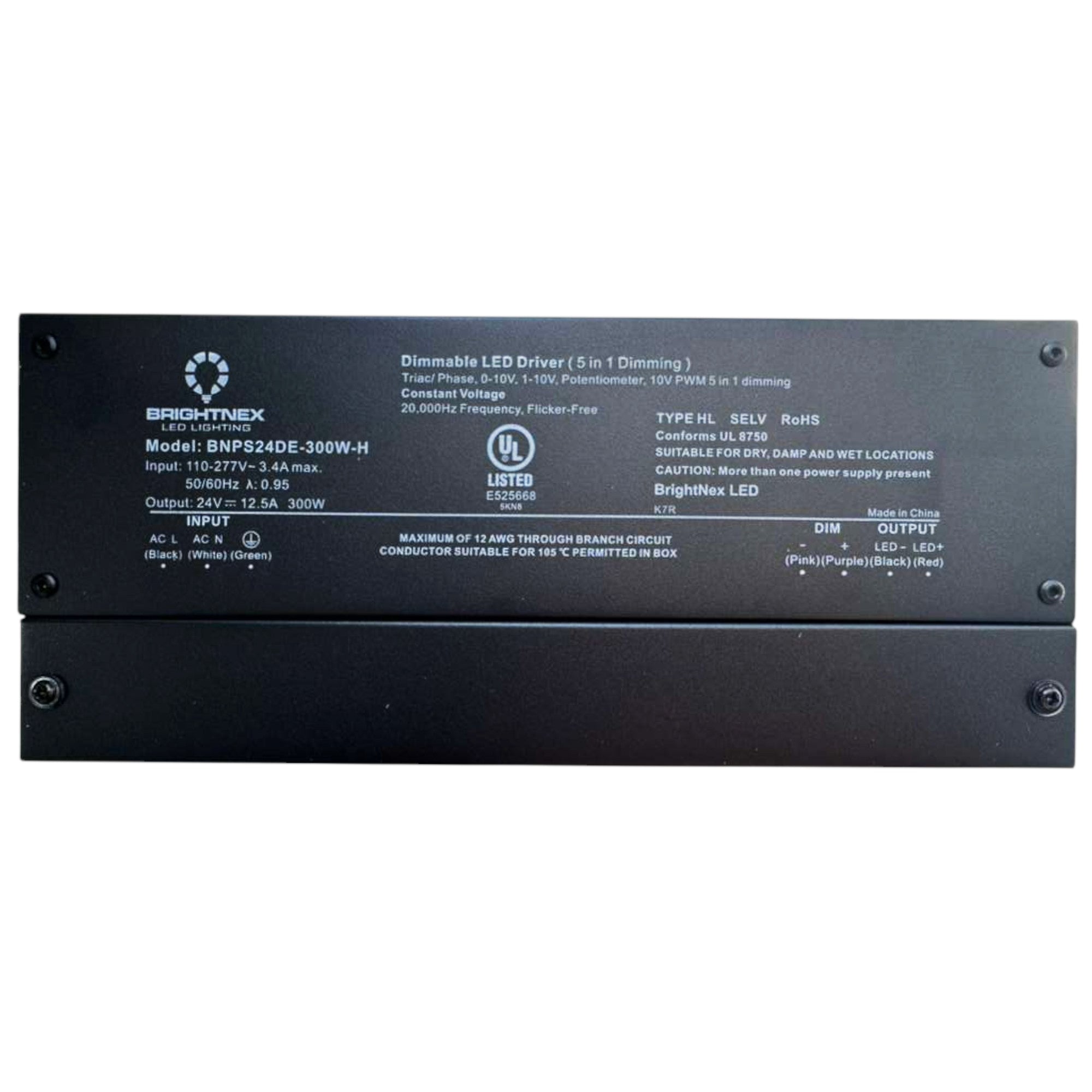

Part Number:
BNPS12DE-300W-H
BNPS24DE-300W-H -
Application: Commercial, Industrial, Outdoor LED Lighting
🔹 Mechanical & Wiring (Imperial Units):
-

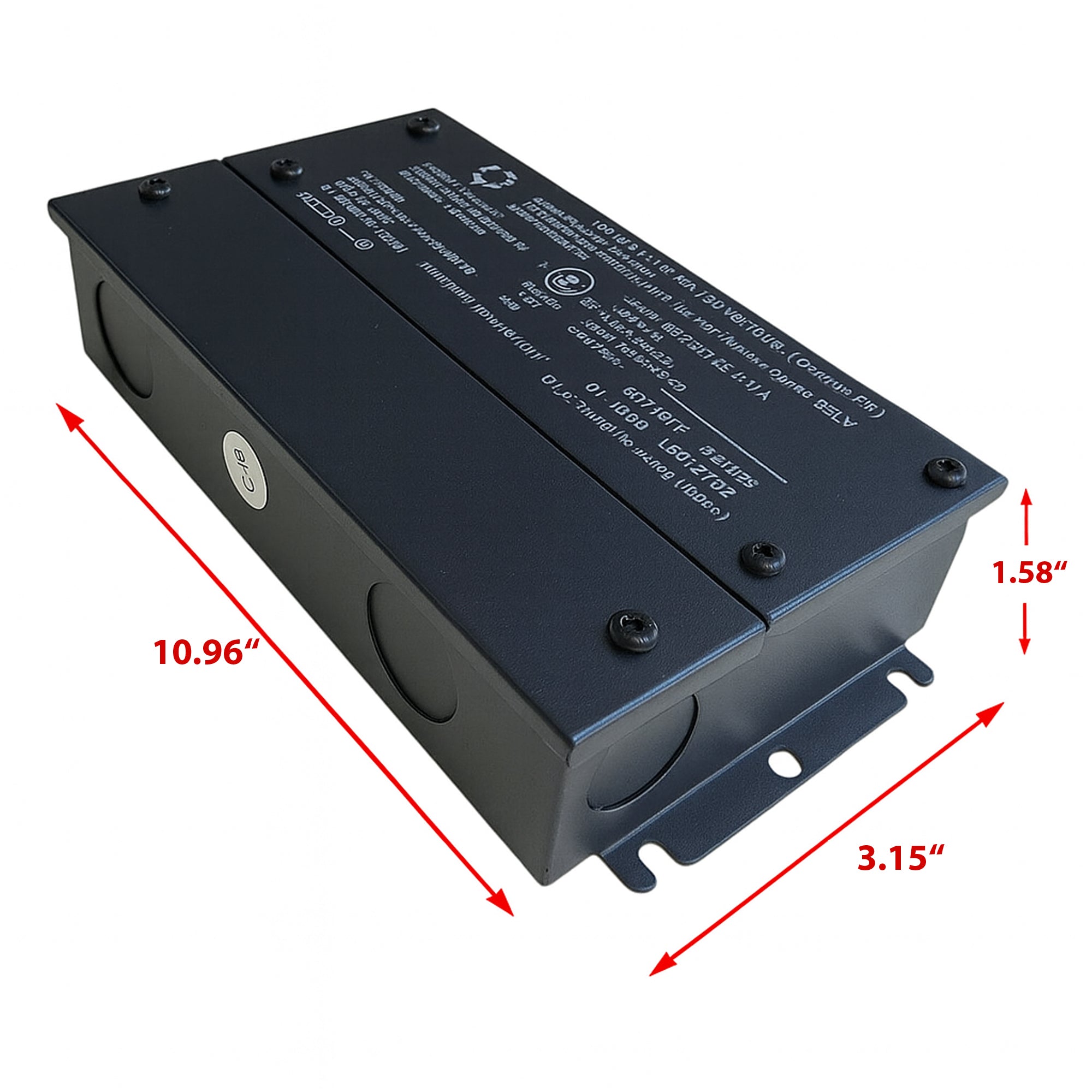

Dimensions: 10.94" × 4.33" × 1.92" (278mm × 110mm × 48.8mm)
-
Weight: 4.81 lb (2.18 kg)
-

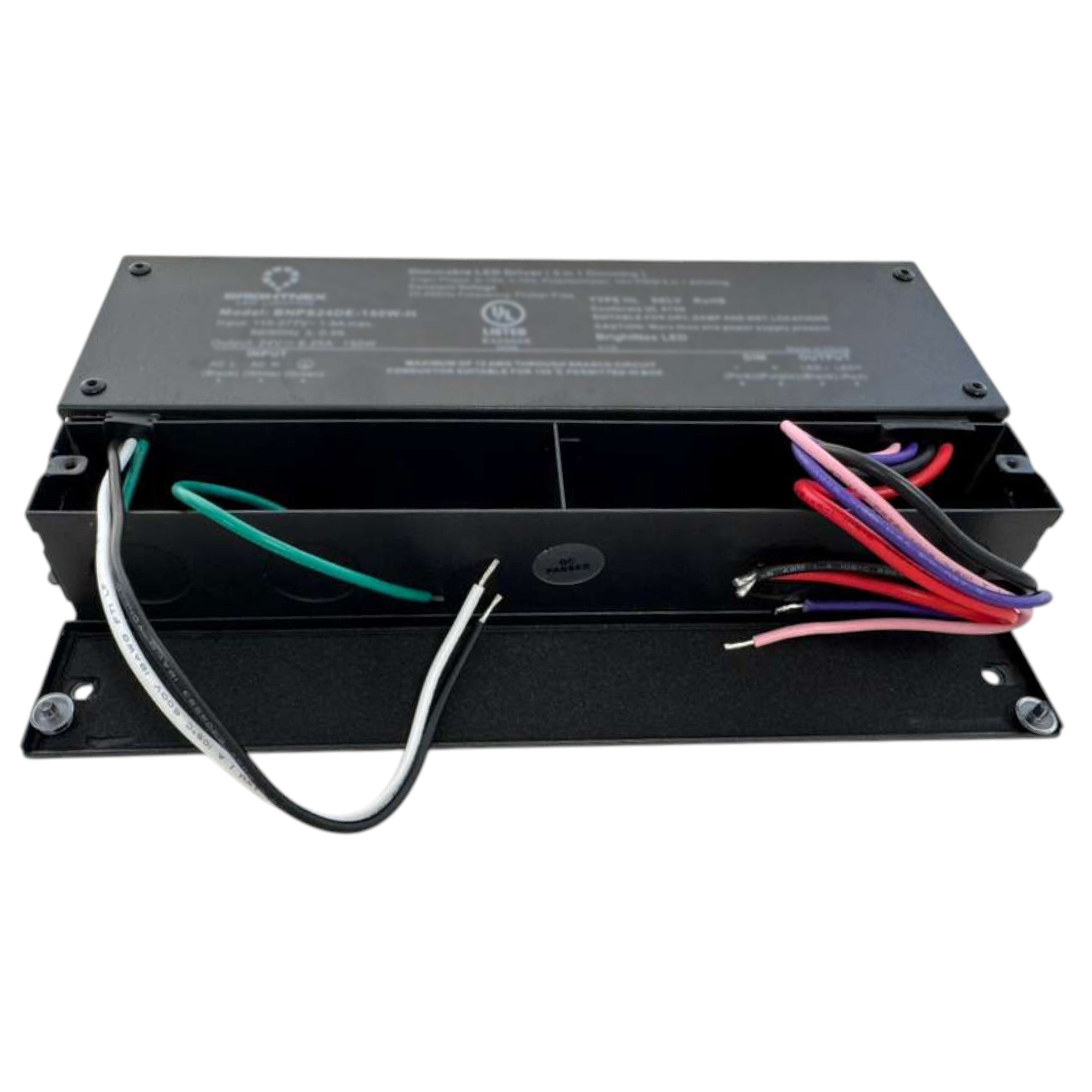

Input Wiring: 3×18 AWG – Black (L), White (N), Green (G)
-
Output Wiring (12V): 4×14 AWG – Red (V+), Black (V–)
-
Output Wiring (24V / 36V / 48V): 2×14 AWG – Red (V+), Black (V–)
-

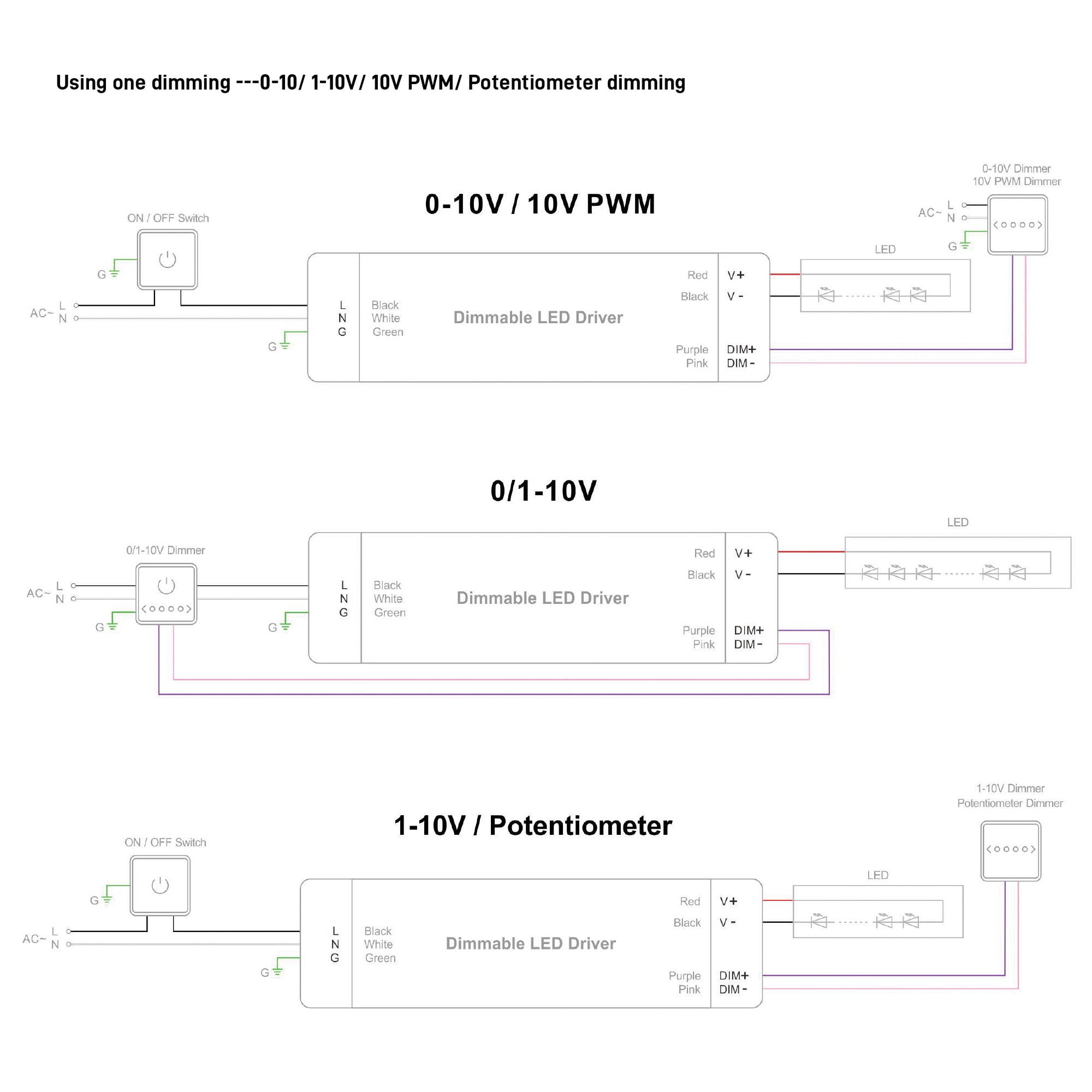

Dimming Wiring: 2×18 AWG – Purple (DIM+), Pink (DIM–)
