24V 96W Dimmable LED Transformer | TRIAC/ELV/MLV | UL Class 2 | Wet Location Rated

Are You a Retailer? Access Exclusive Wholesale Prices Today!

Description

This 24V 96W dimmable constant voltage LED transformer supports smooth, full-range 0–100% dimming via TRIAC, ELV, or MLV dimmers. Built with a compact aluminum enclosure and rated for wet, damp, and dry locations, it is ideal for LED strip and tape lighting in both residential and commercial settings.

Engineered for reliable operation, it includes short-circuit and overload protection with auto-recovery, active power factor correction, and operates from 20% to 100% load. With Class 2 compliance and high efficiency, it ensures code-ready installations in professional lighting systems.

🔧 Specifications:

  • Output Voltage: 24V DC

  • Output Power: 96W

  • Output Current: 4.0A

  • Input Voltage: 120V AC

  • Frequency: 47–63Hz

  • Efficiency: 87% @ 120V full load

  • Power Factor: 0.98 typical

  • THD: < 20% @ 100% load

  • Voltage Tolerance: ±0.5V

  • Load Regulation: ±1%

  • Leakage Current: < 0.5mA @ 120V

  • Working Temperature: -40°F to +140°F (-40°C to +60°C)

  • Humidity: 20–95% RH, non-condensing

  • Storage Temp: -40°F to +194°F (-40°C to +90°C)

  • Certifications: UL8750, FCC, Class 2, Type HL, RoHS

  • Enclosure Rating: Wet, Damp, and Dry Location

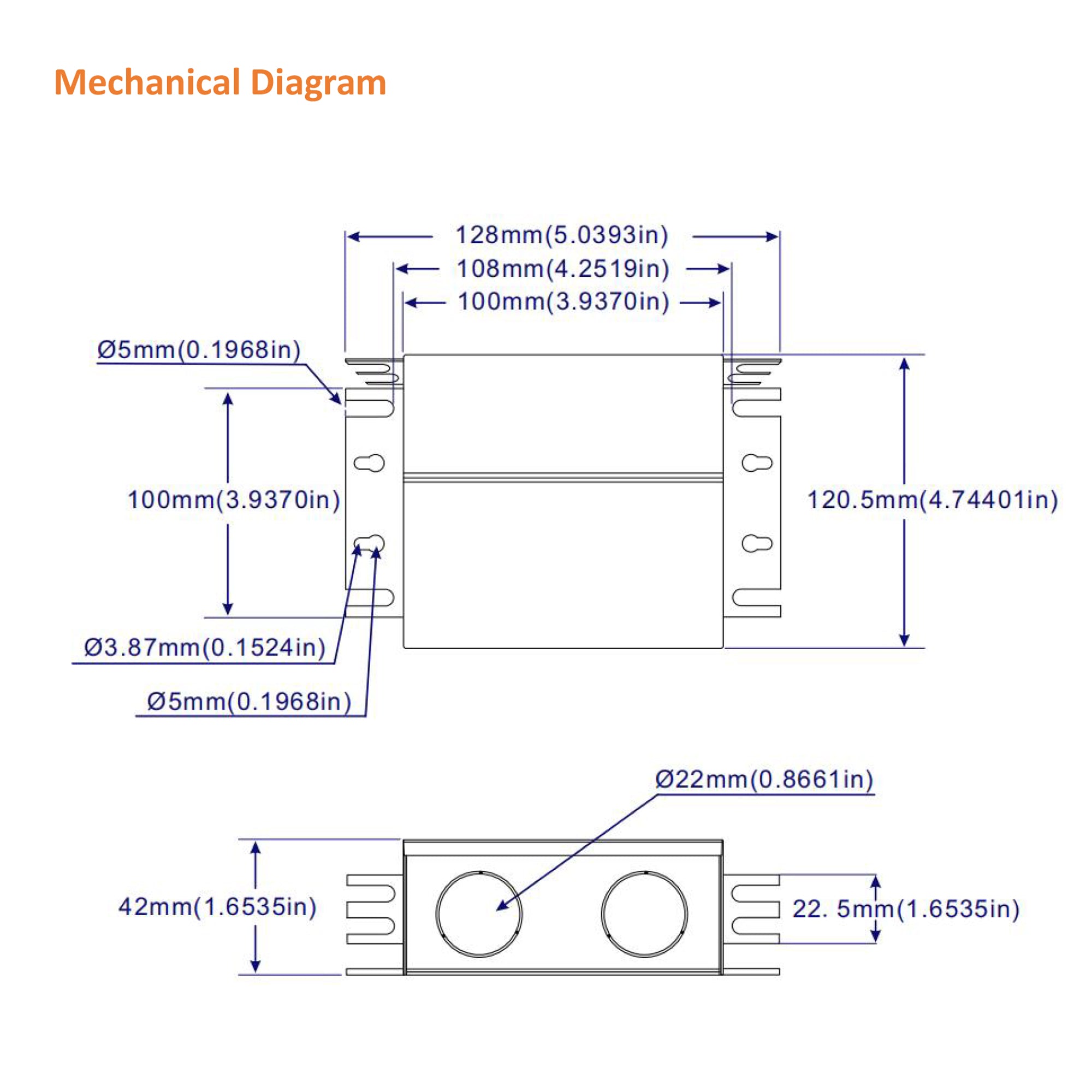

  • Dimensions: 5.03" × 4.74" × 1.65" (L × W × H)

  • Weight: 1.21 lbs (0.55 kg)

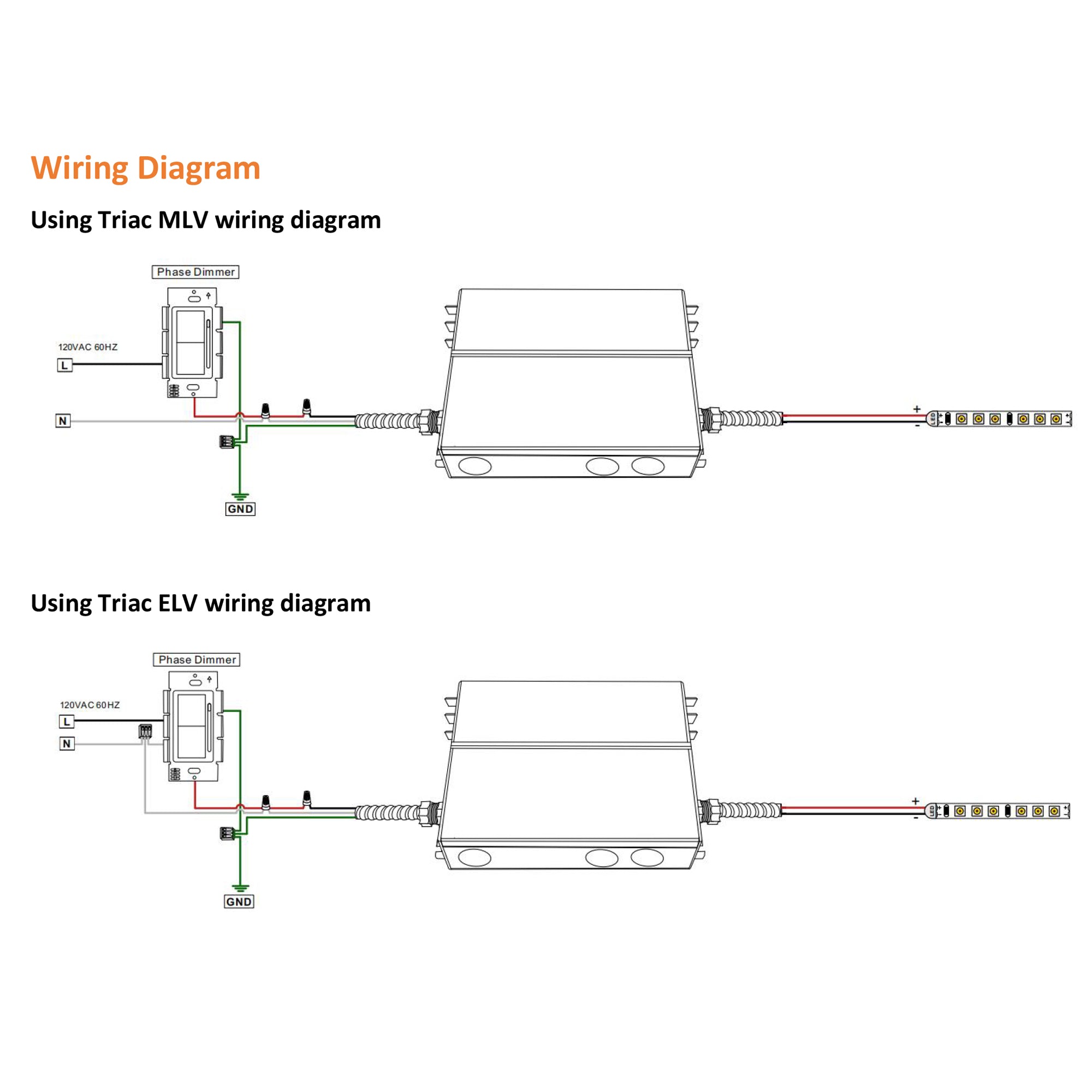

🎚️ Dimming Compatibility:

  • Dimming Range: 0–100%

  • Dimming Types Supported:

    • TRIAC (Leading Edge)

    • ELV (Trailing Edge)

    • MLV (Magnetic Low Voltage)

  • Compatible Dimmers:

    • Lutron CL, Diva Series

    • Leviton Decora, SureSlide

  • Stable Dimming Load Range: 20–100%

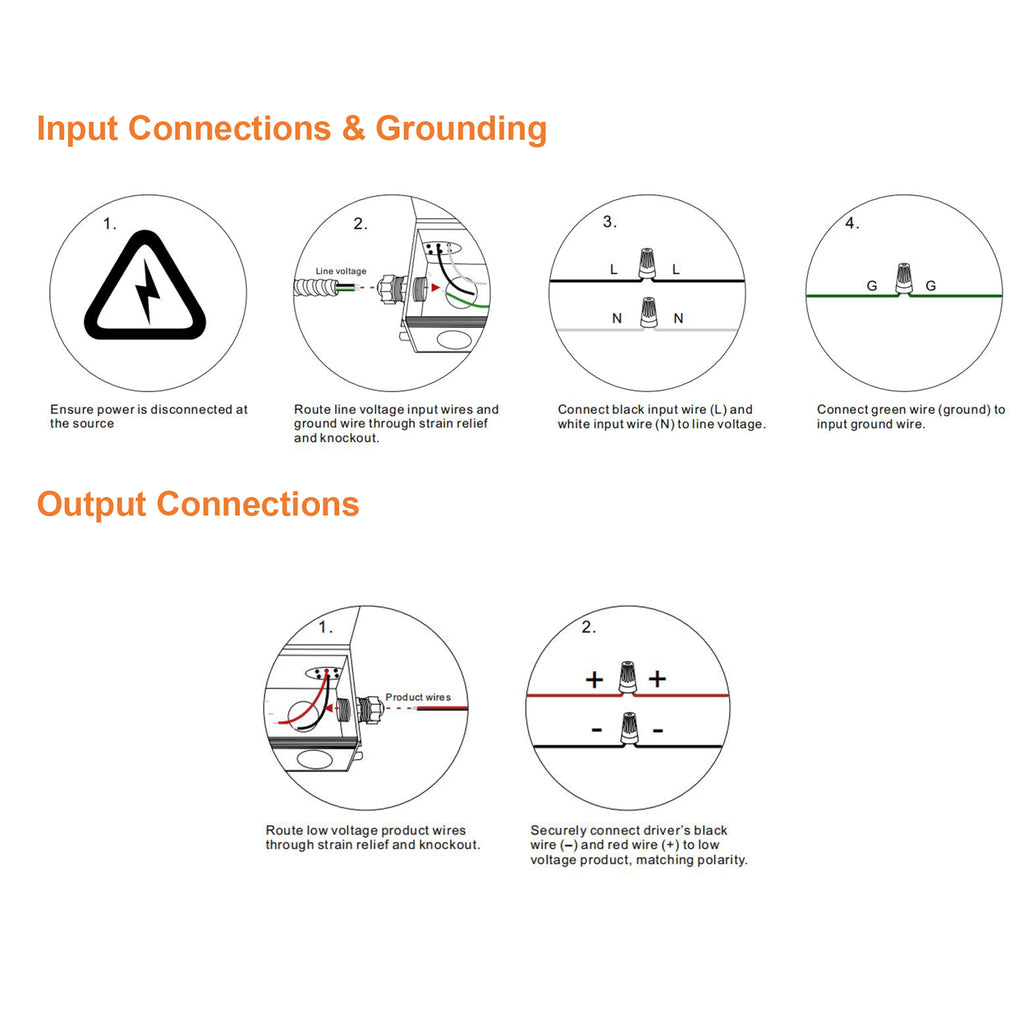

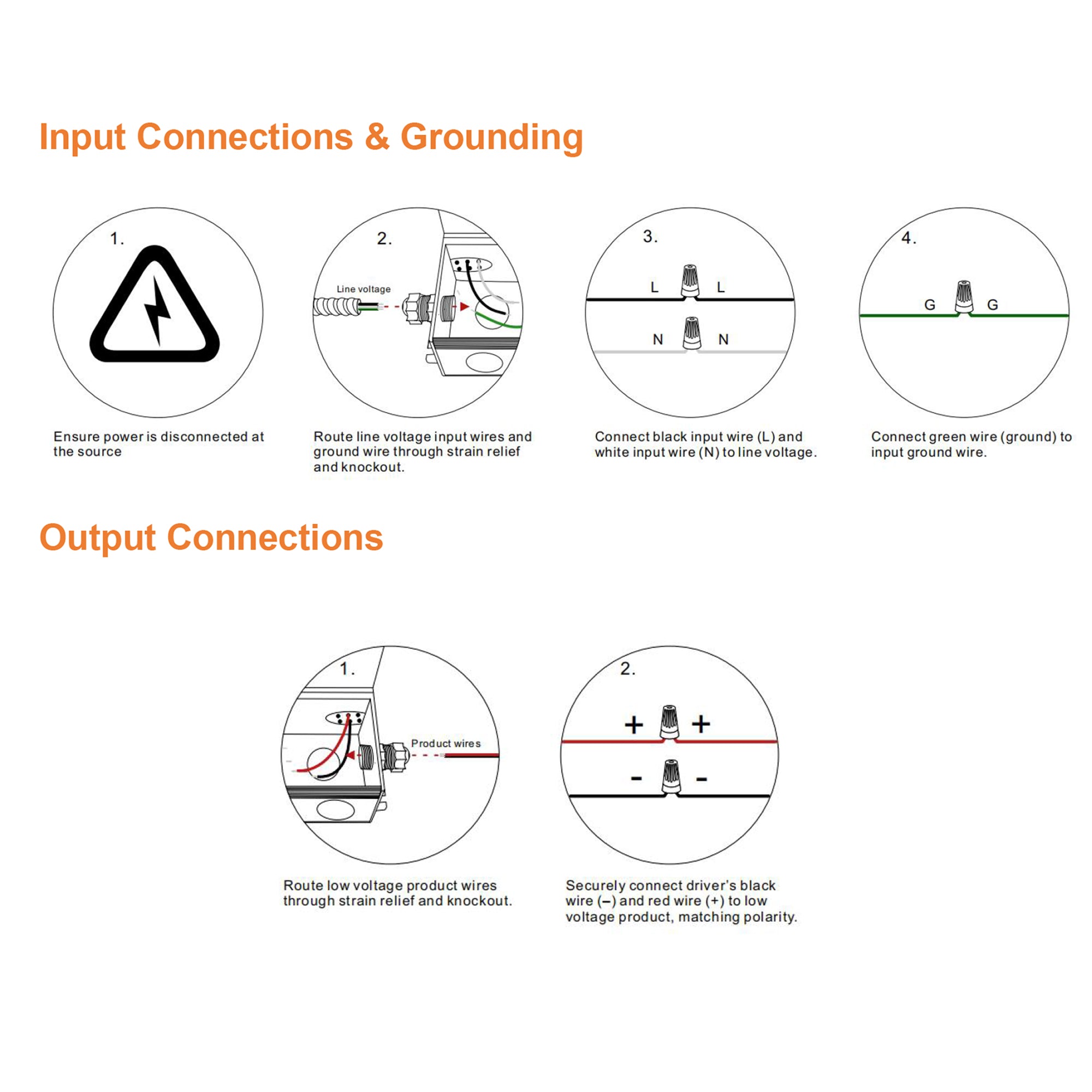

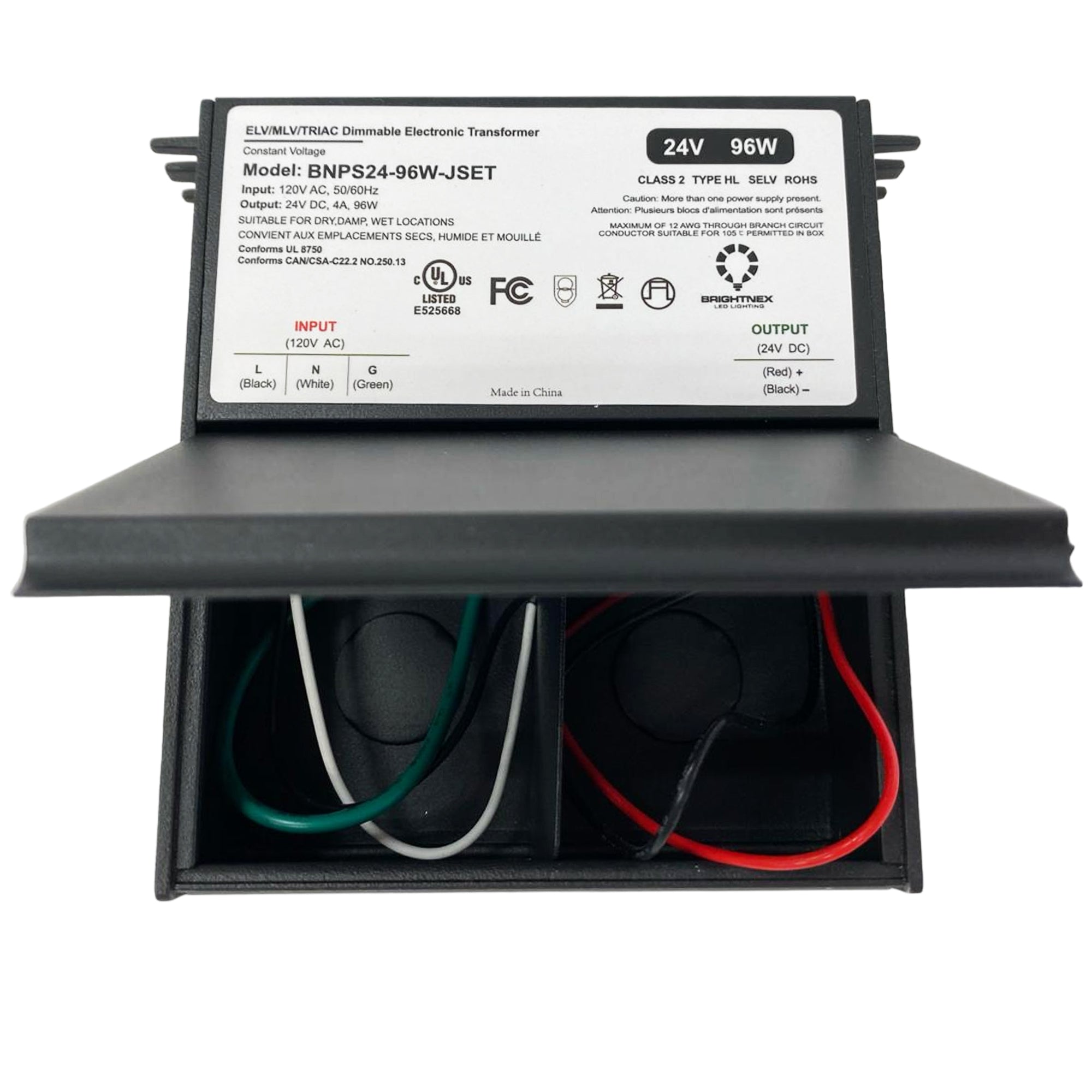

🔌 Wiring Details :

  • Input (AC 120V):

    • Black – Line (18 AWG)

    • White – Neutral (18 AWG)

    • Green – Ground (18 AWG)

  • Output (DC 24V):

    • Red – V+ (18 AWG)

    • Blue – V– (18 AWG)

⚡ Typical Applications:

  • 24V LED strip and tape lighting

  • Signage, cove, and under-cabinet lighting

  • Retail and display lighting systems

  • UL Class 2 compliant commercial installations

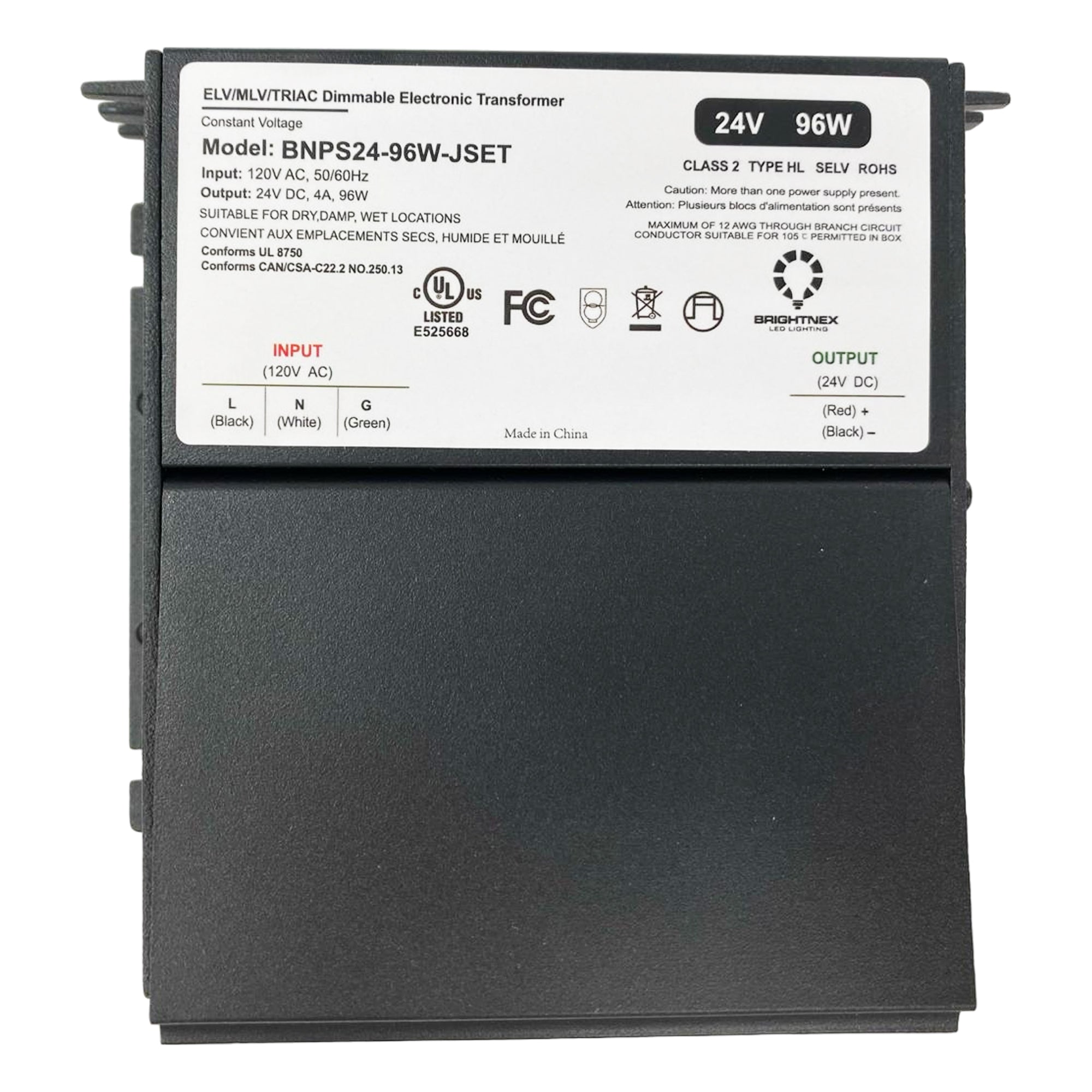

🔹 Model / Part:

BNPS24‑96W‑JSET
