Description
This 24V 60W constant voltage LED transformer, engineered for precision dimming and reliable performance in low-voltage lighting systems. With TRIAC, ELV, and MLV dimming compatibility, it delivers 0–100% dimming, making it ideal for LED tape, strip, and cabinet lighting in both residential and commercial installs.
Built in a compact aluminum enclosure, this transformer features short-circuit and overload protection with auto-recovery, supports load ranges from 20–100%, and is certified for dry and damp locations. Its UL Class 2 rating ensures safe output and simplifies inspection approvals.
🔧 Specifications:
-
Output Voltage: 24V DC
-
Output Power: 60W
-
Output Current: 2.5A
-
Input Voltage: 120V AC
-
Frequency: 47–63Hz
-
Efficiency: 85% @ full load
-
Power Factor: 0.95 typical
-
THD: < 20% @ 100% load
-
Voltage Tolerance: ±0.5V
-
Load Range: Operates from 20%–100%
-
Leakage Current: < 0.5mA @ 120V
-
Protections:
-
Short Circuit – auto-recovery (hiccup mode)
-
Overload – auto-recovery (power derating)
-
-
Working Temp: -40°C to +60°C
-
Humidity: 20–95% RH
-
Certifications: UL8750, Class 2, Class P, Type HL, FCC, RoHS, SELV, REACH
-
Enclosure Rating: Dry and Damp Location
-

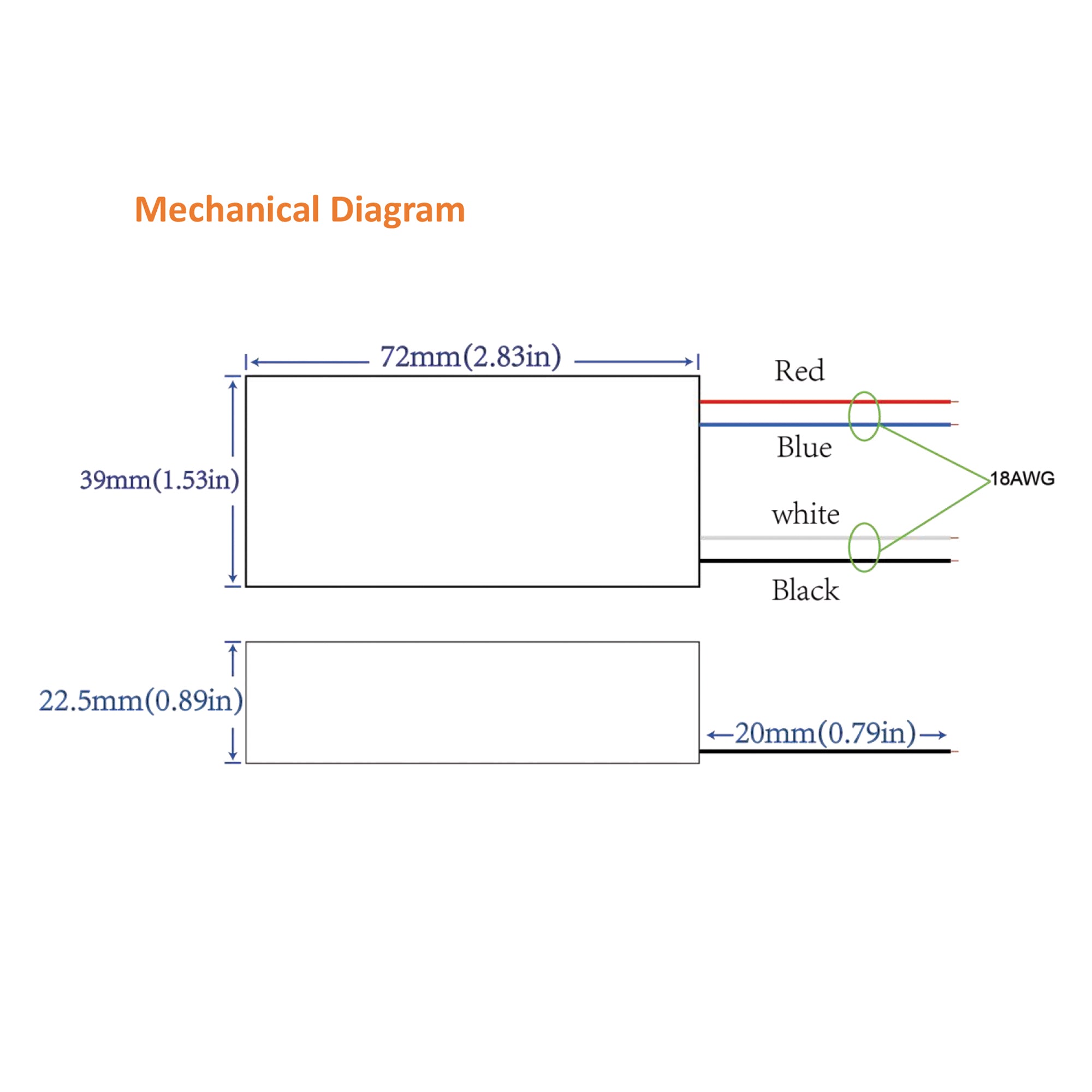

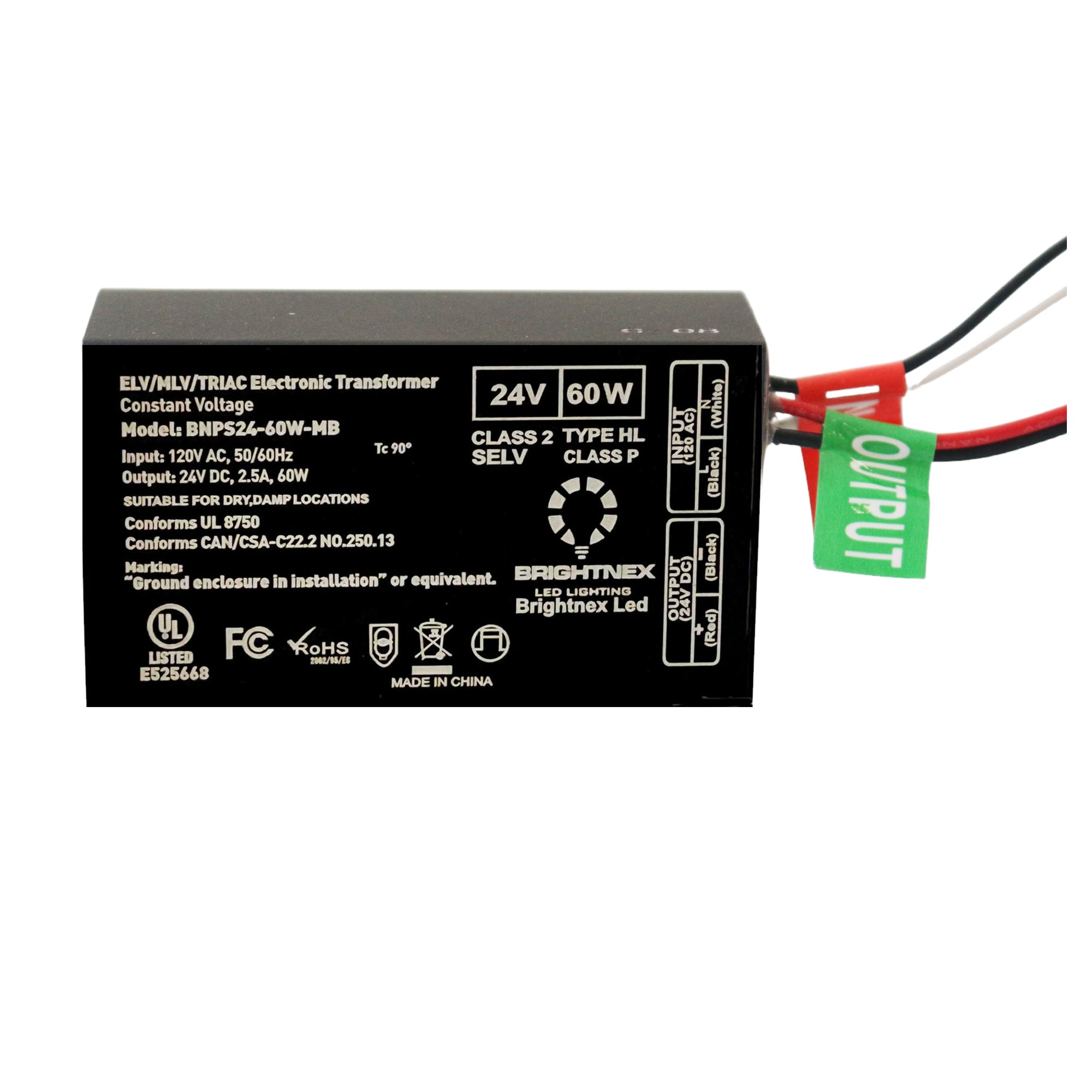

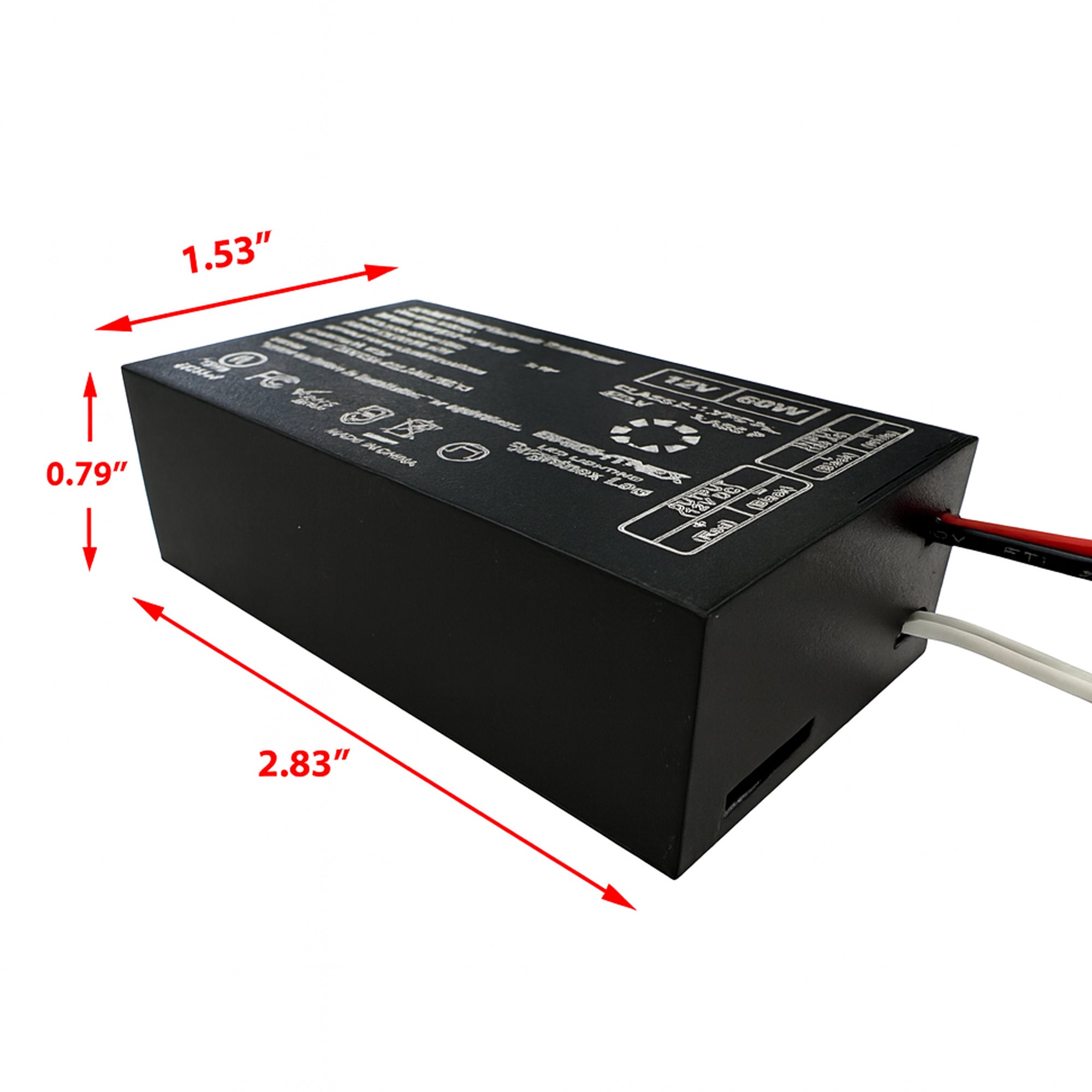

Dimensions: 2.89" × 1.53" × 0.89"
-
Weight: 0.375 lbs
🎚️ Dimming Compatibility:
-
Dimming Range: 0–100%
-
Supported Dimming Types:
-
TRIAC (Leading Edge)
-
ELV (Trailing Edge)
-
MLV (Magnetic Low Voltage)
-
-
Compatible With:
-
Lutron CL, Diva, Caseta
-
Leviton Decora, SureSlide, IllumaTech
-
-
Load Range for Stable Dimming: 20–100%

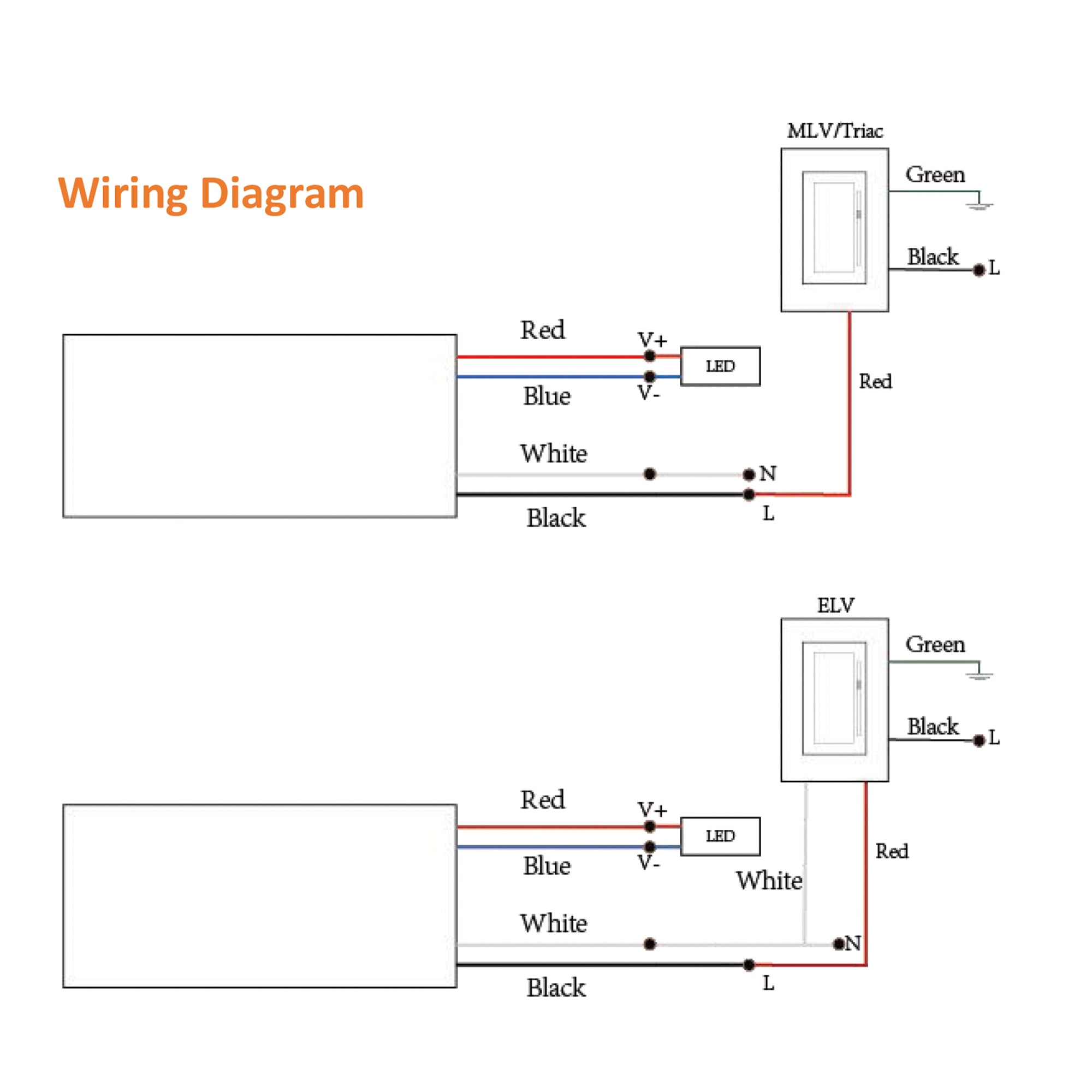

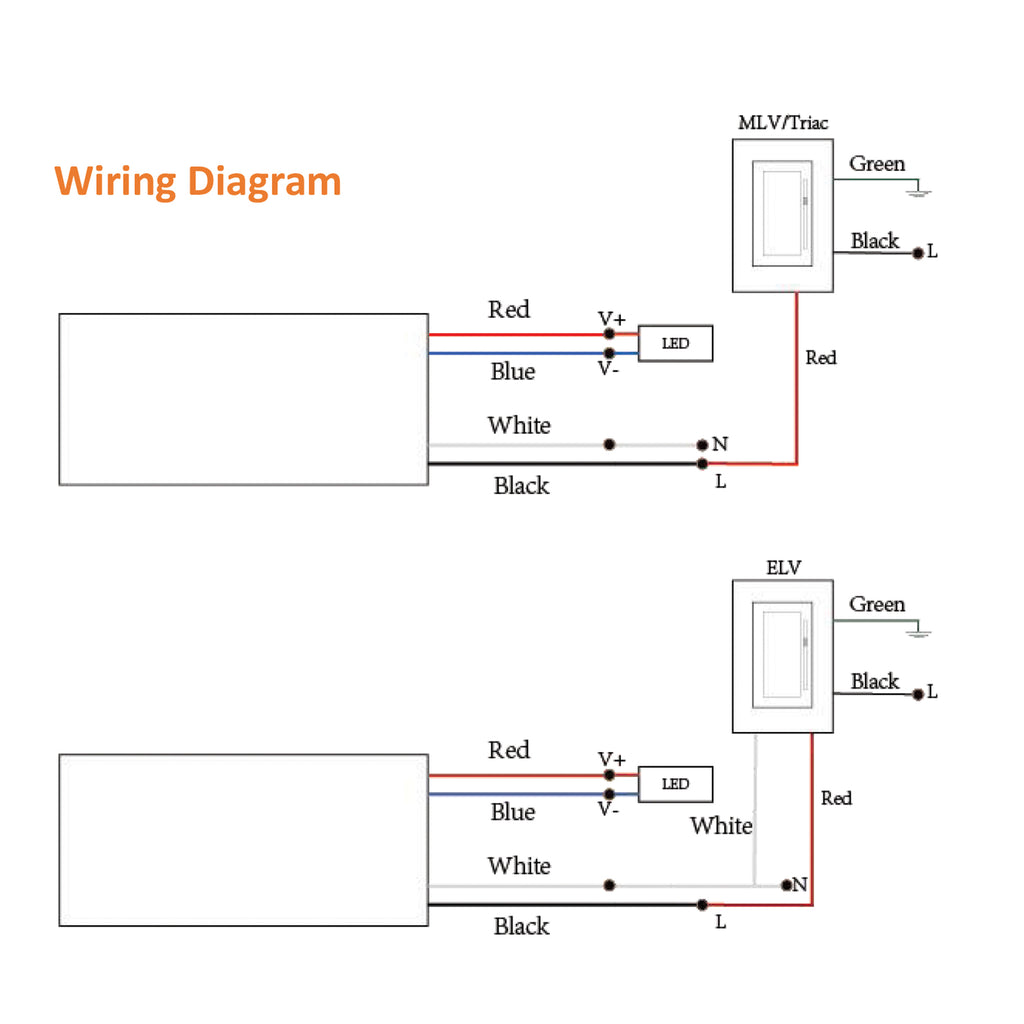

🔌 Wiring (See Page 3 of Datasheet):
-
Input (120V AC):
-
Black – Line (18 AWG)
-
White – Neutral (18 AWG)
-
-
Output (24V DC):
-
Red – V+ (18 AWG)
-
Black – V– (18 AWG)
-
⚡ Typical Applications:
-
24V LED strip, tape, and rope lighting
-
Display and architectural lighting
-
Under-cabinet and shelf lighting
-
Signage and OEM LED assemblies
-
Class 2 installations in tight-space environments
🔹 Model Reference:
BNPS24‑60W‑SET
