24V 60W Dimmable LED Transformer | TRIAC/ELV/MLV | UL Class 2 | Wet Location Rated

Are You a Retailer? Access Exclusive Wholesale Prices Today!

Description

This 24V 60W constant voltage LED transformer is engineered to deliver stable, dimmable power output in demanding environments. It supports full-range 0–100% dimming using TRIAC, ELV, or MLV dimmers, and is well-suited for LED strip and tape lighting systems in residential, retail, or light commercial applications.

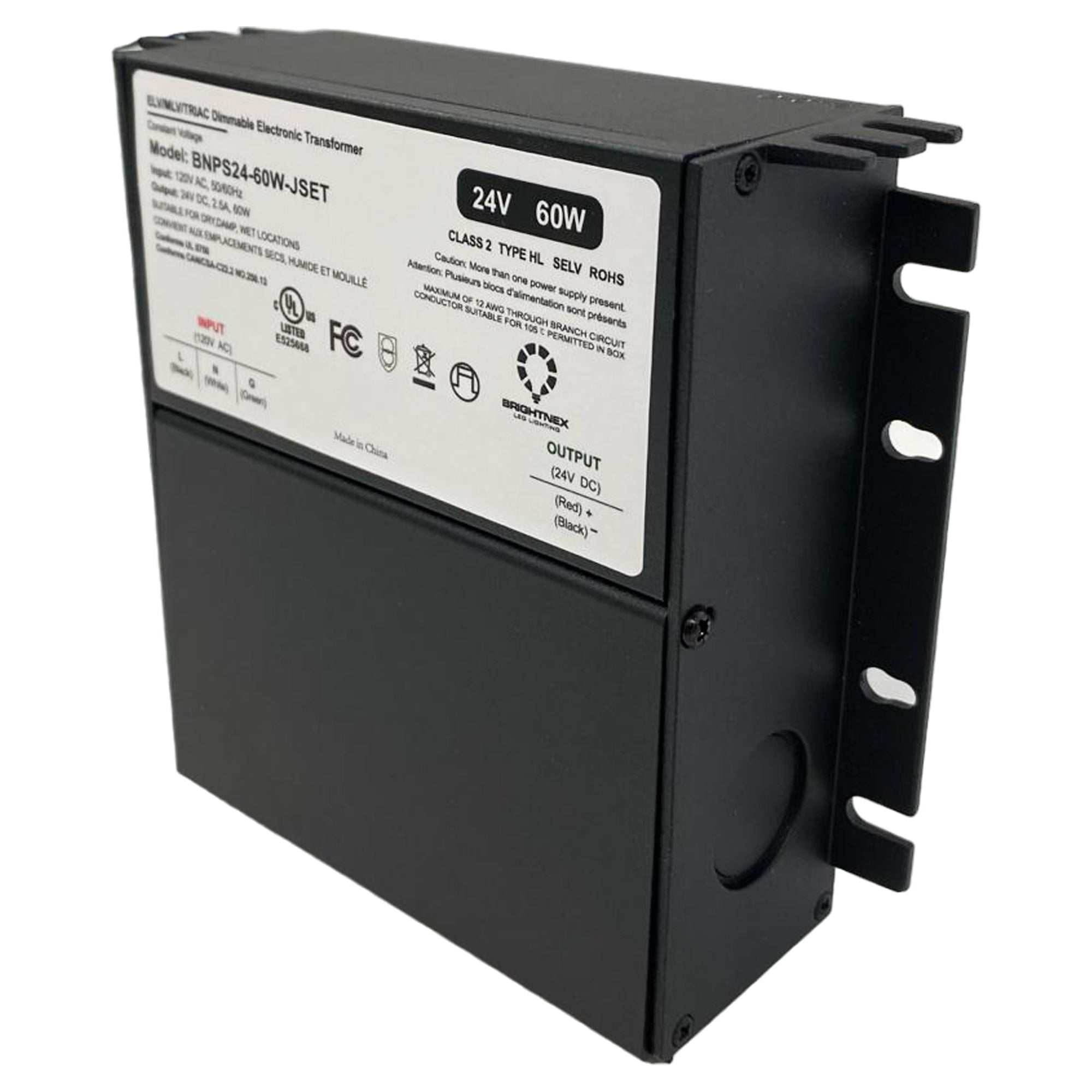

Its aluminum enclosure is rated for dry, damp, and wet locations, making it highly versatile. Built-in short-circuit and overload protection with auto-recovery ensures safe operation, while Class 2 compliance simplifies code approvals. The transformer operates reliably from 20% to 100% load.

🔧 Specifications:

  • Output Voltage: 24V DC

  • Output Power: 60W

  • Output Current: 2.5A

  • Input Voltage: 120V AC

  • Frequency: 47–63Hz

  • Efficiency: 87% @ 120V full load

  • Power Factor: 0.98 typical

  • Total Harmonic Distortion (THD): < 20%

  • Voltage Tolerance: ±0.5V

  • Load Regulation: ±1%

  • Leakage Current: < 0.5mA @ 120V

  • Load Range: 20–100%

  • Working Temp: -40°F to +140°F (-40°C to +60°C)

  • Humidity: 20–95% RH

  • Certifications: UL Pending, FCC, Class 2, Type HL, RoHS

  • Enclosure Rating: Dry, Damp, Wet Location (Not for Submersion)

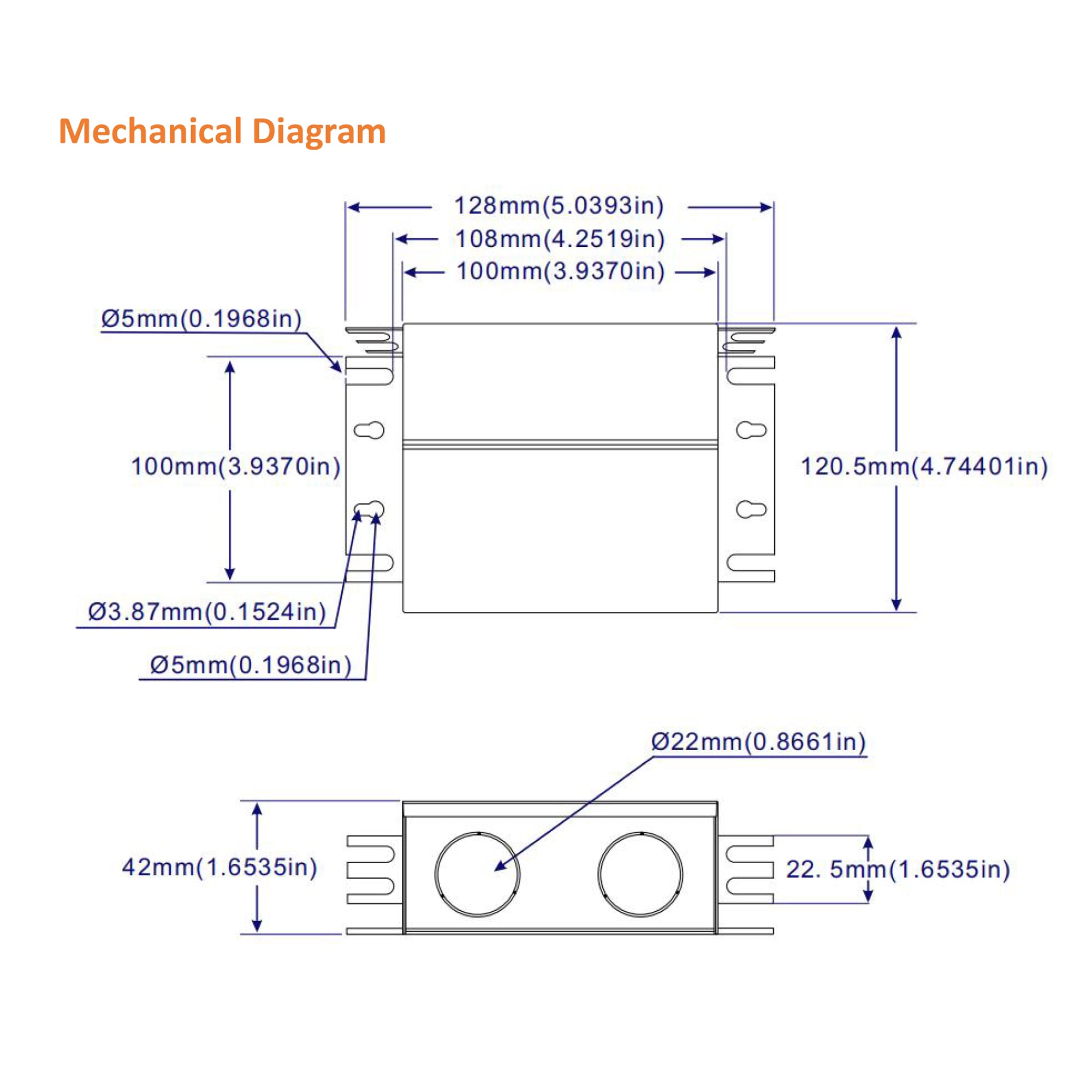

  • Dimensions: 5.03" × 4.74" × 1.65" (L × W × H)

  • Weight: 1.21 lbs

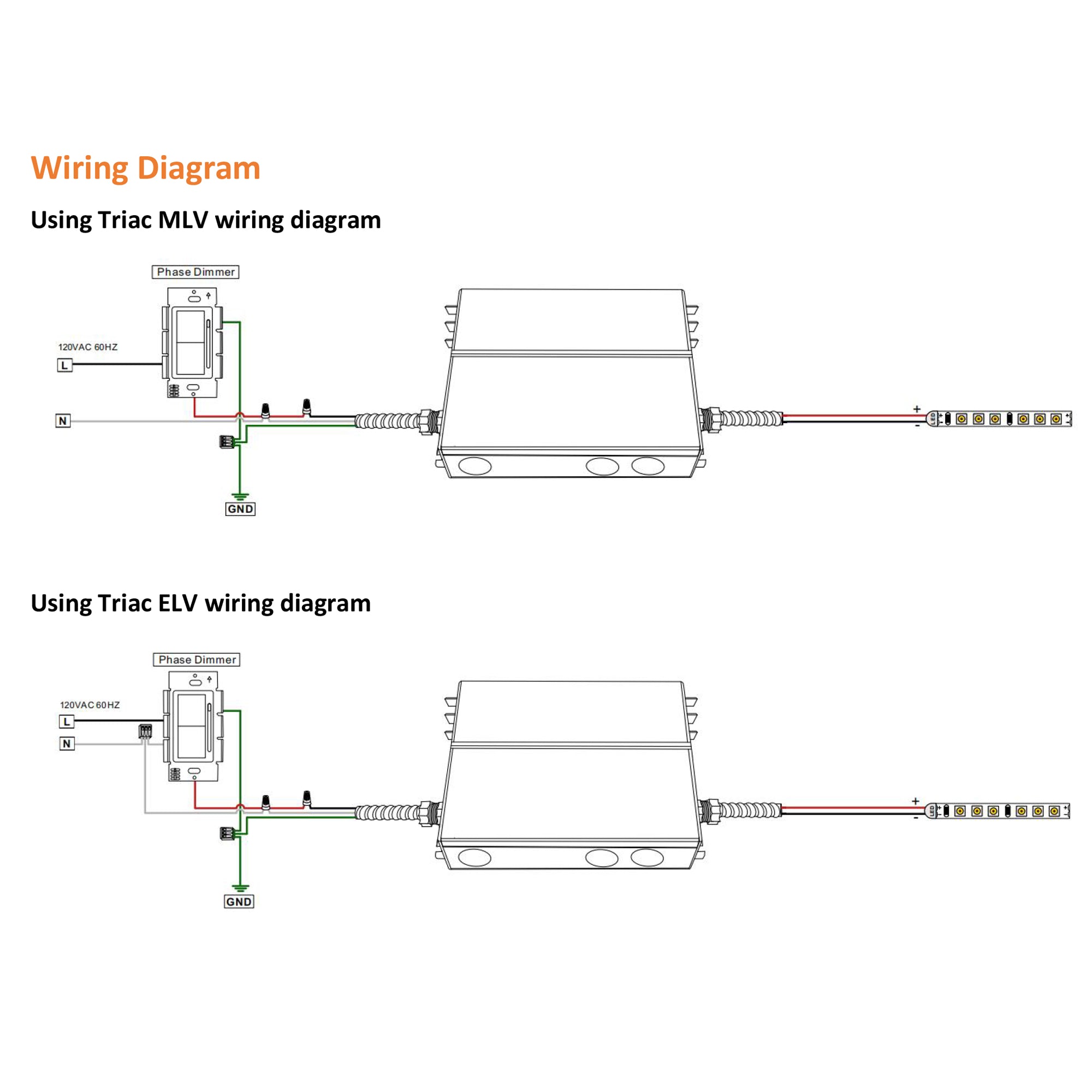

🎚️ Dimming Compatibility:

  • Dimming Range: 0–100%

  • Supported Dimming Types:

    • TRIAC (Leading Edge)

    • ELV (Trailing Edge)

    • MLV (Magnetic Low Voltage)

  • Compatible Dimmers:

    • Lutron Diva, CL, Caseta

    • Leviton Decora, SureSlide

  • Minimum Load for Stable Dimming: 20%

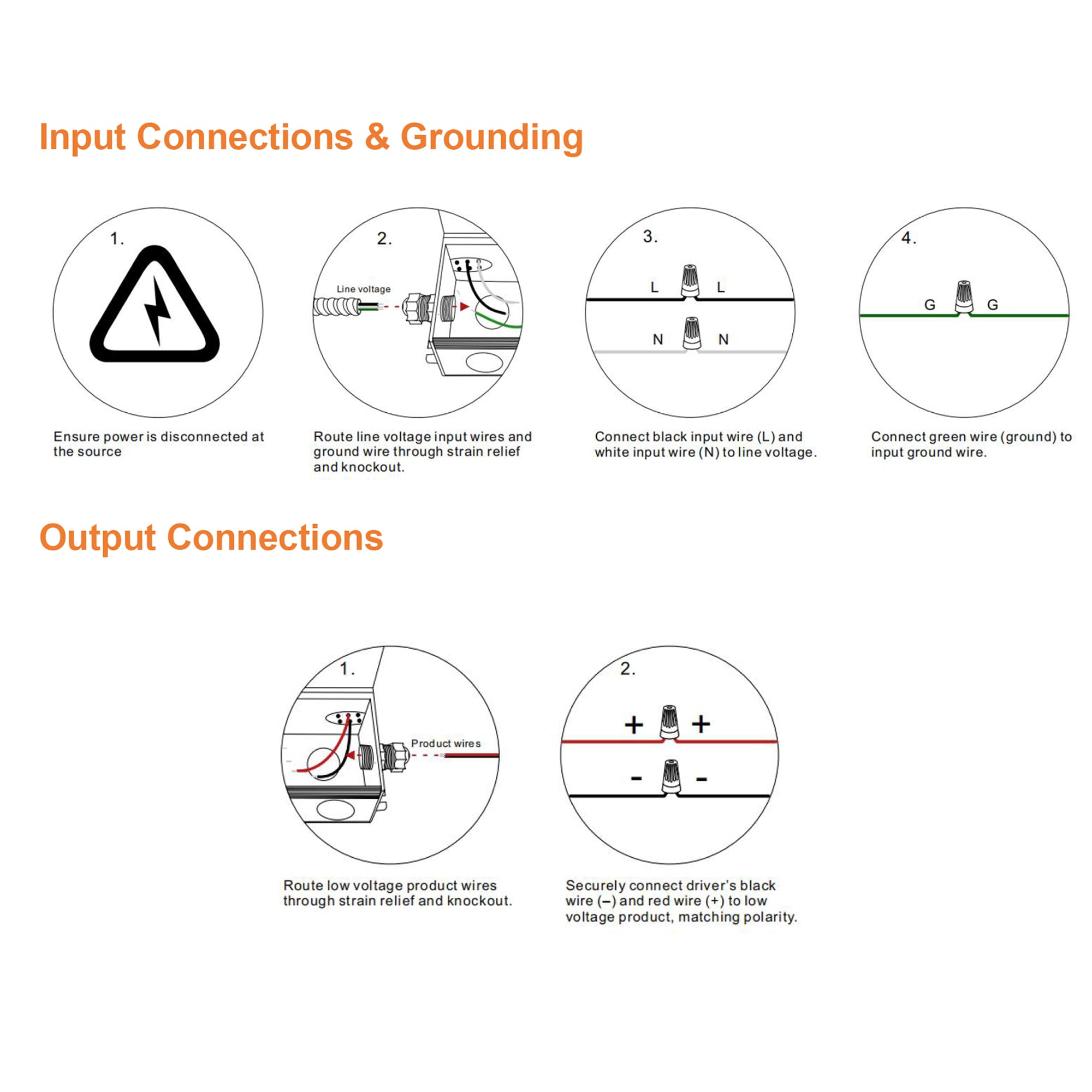

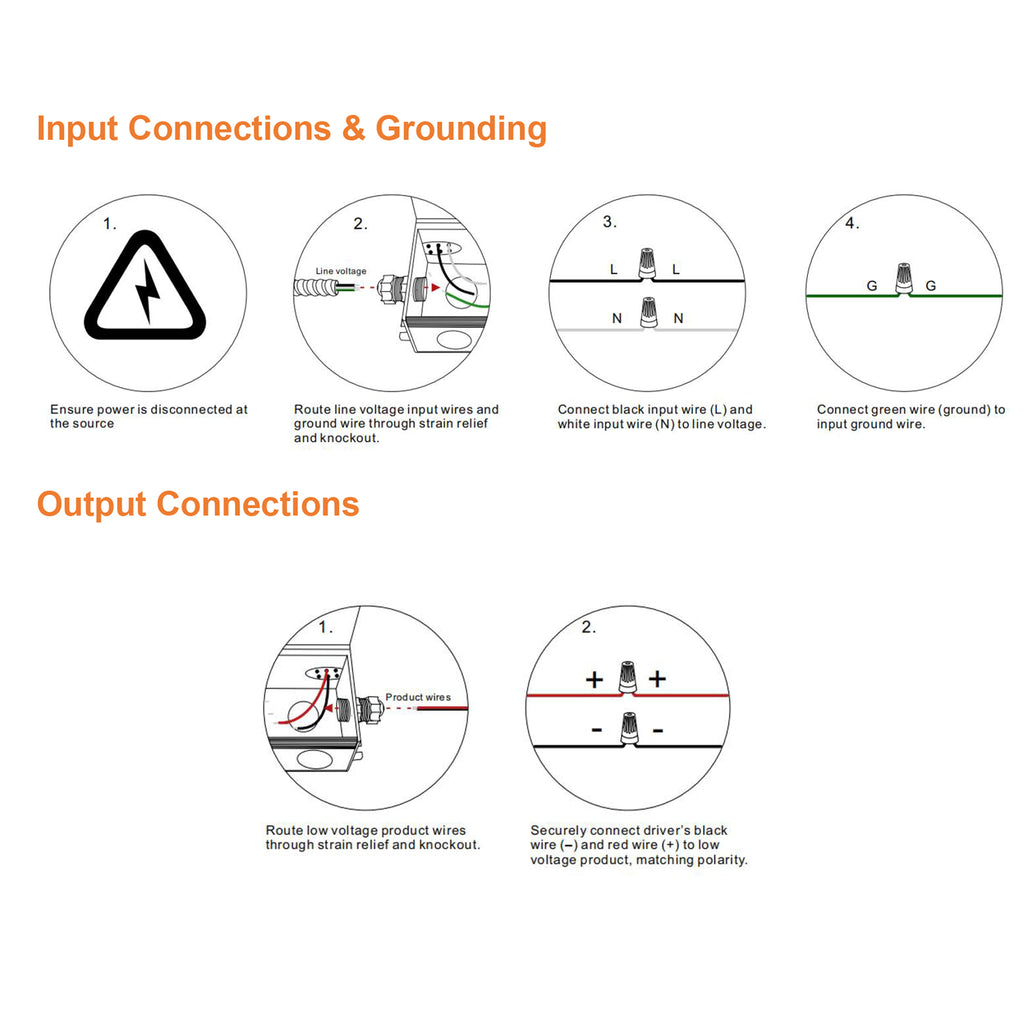

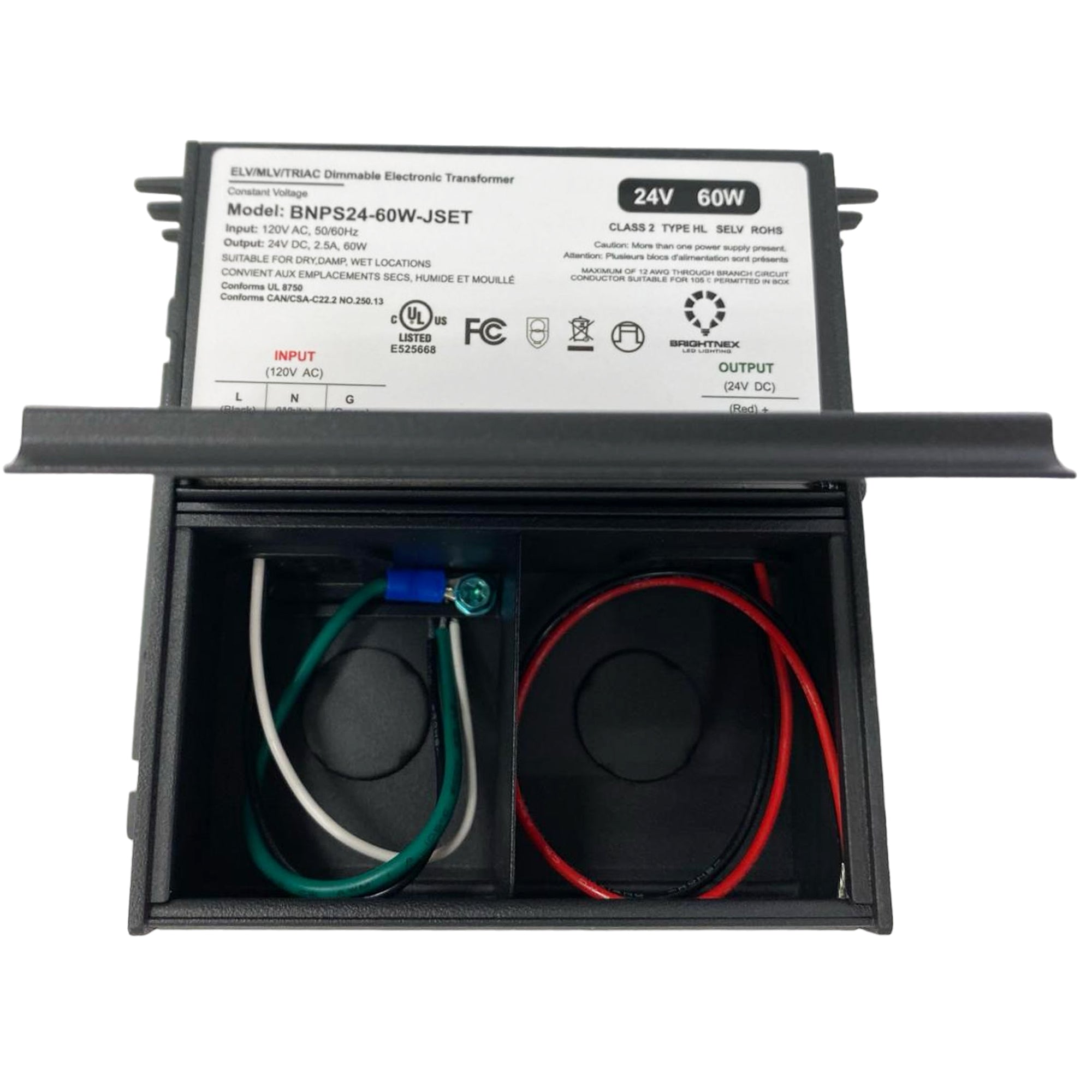

🔌 Wiring :

  • Input (120V AC):

    • Black – Line (18 AWG)

    • White – Neutral (18 AWG)

    • Green – Ground (18 AWG)

  • Output (24V DC):

    • Red – V+ (18 AWG)

    • Blue – V– (18 AWG)

⚡ Typical Applications:

  • 24V LED strip and tape lighting

  • Accent, signage, and cove lighting

  • Wet location lighting (outdoor eaves, patios)

  • Retail and commercial LED systems

  • Installations requiring Class 2 compliance

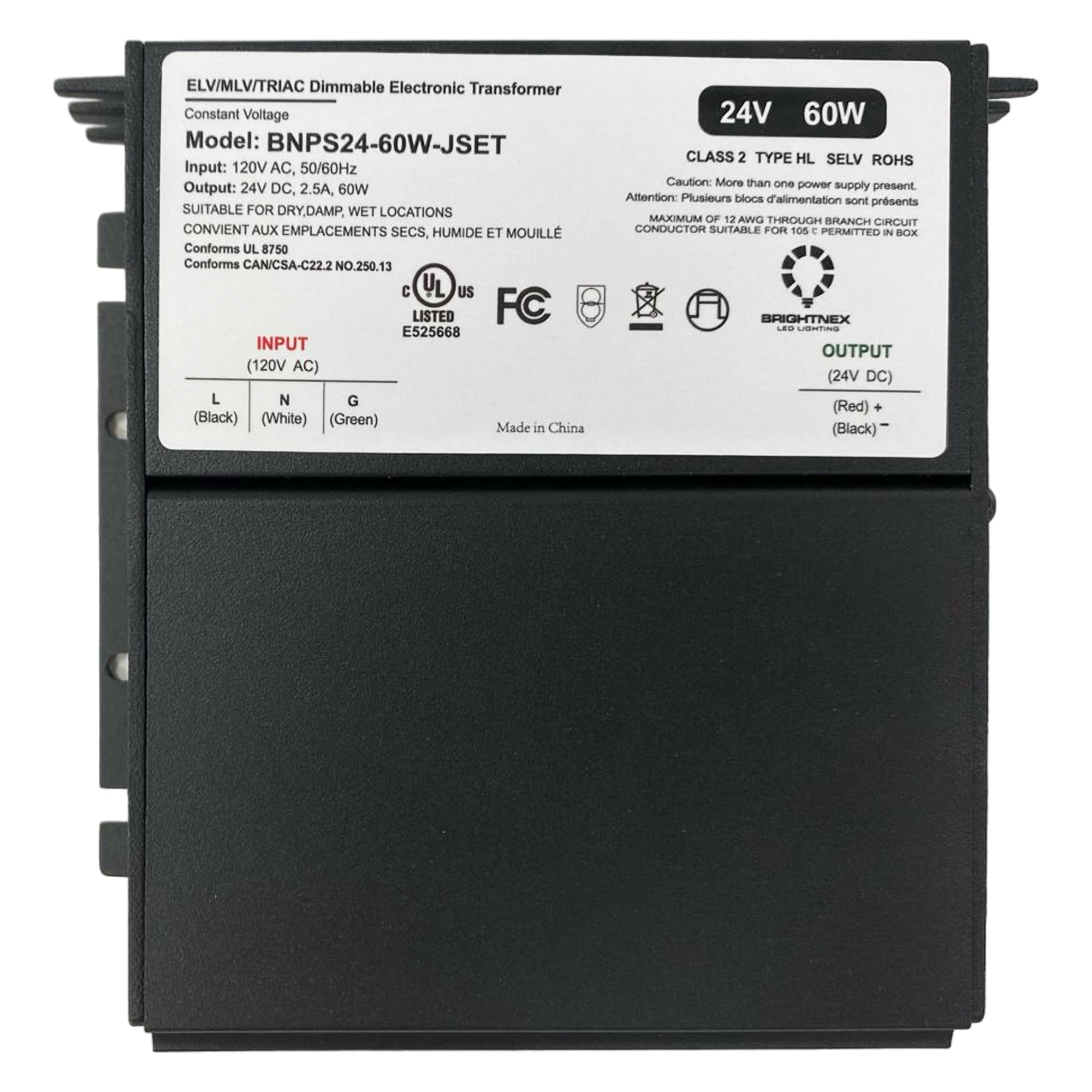

🔹 Model / Part:

BNPS24‑60W‑JSET
