Description

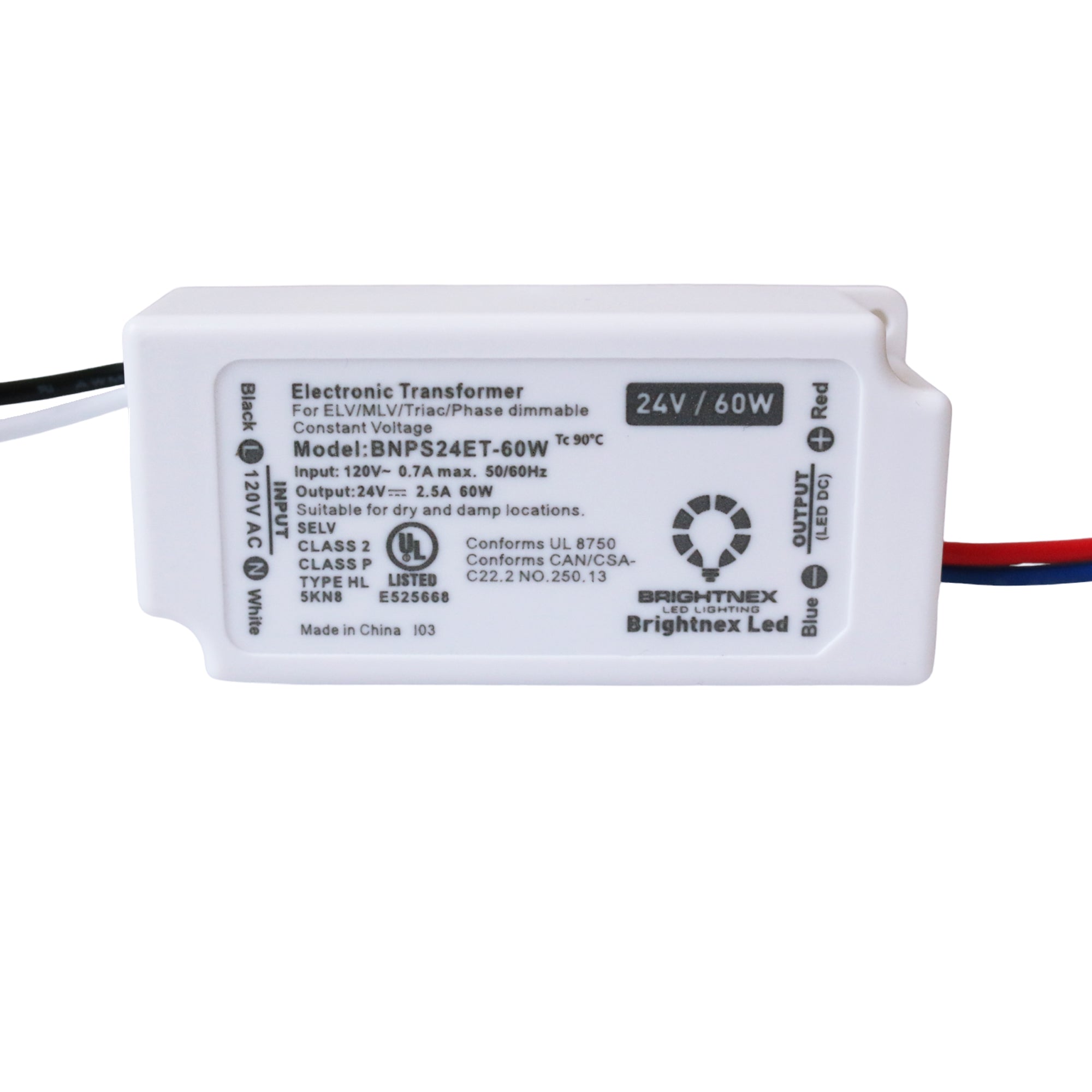

This 24V 60W constant voltage LED transformer, engineered for contractors and lighting professionals who require stable dimming and compact form factor. It supports 0–100% dimming with TRIAC, ELV, and MLV dimmers, offering seamless control in residential and commercial low-voltage lighting applications.
This transformer is Class 2 compliant, UL listed, and features short-circuit and overload auto-recovery protection. At just 3.31 inches long, it is well-suited for tight installations in dry and damp locations. Its high power factor and low THD ensure efficient performance in demanding environments.
🔧 Specifications:
-
Output Voltage: 24V DC
-
Output Power: 60W
-
Output Current: 2.5A
-
Input Voltage: 120V AC
- Dimming Range: 0% – 100%
-
Frequency: 50/60Hz
-
Efficiency: 88% typical
-
Power Factor: > 0.95
-
THD: < 20% @ full load
-
Load Range: Operates from 20%–100% load
-
Protections:
-
Short Circuit – auto-recovery
-
Overload – auto-recovery
-
-
Operating Temp: -40°C to +60°C
-
Humidity: 20–95% RH
-
Leakage Current: < 0.5mA @ 120V
-
Certifications: UL, FCC, ICES-005, Class P, Class 2, Type HL, RoHS, REACH, SELV, UL8750
-
Enclosure Rating: For Dry and Damp Locations
-
Dimensions: 84 × 40 × 25 mm (3.31" × 1.57" × 0.98")
-
Weight: 0.375 lbs

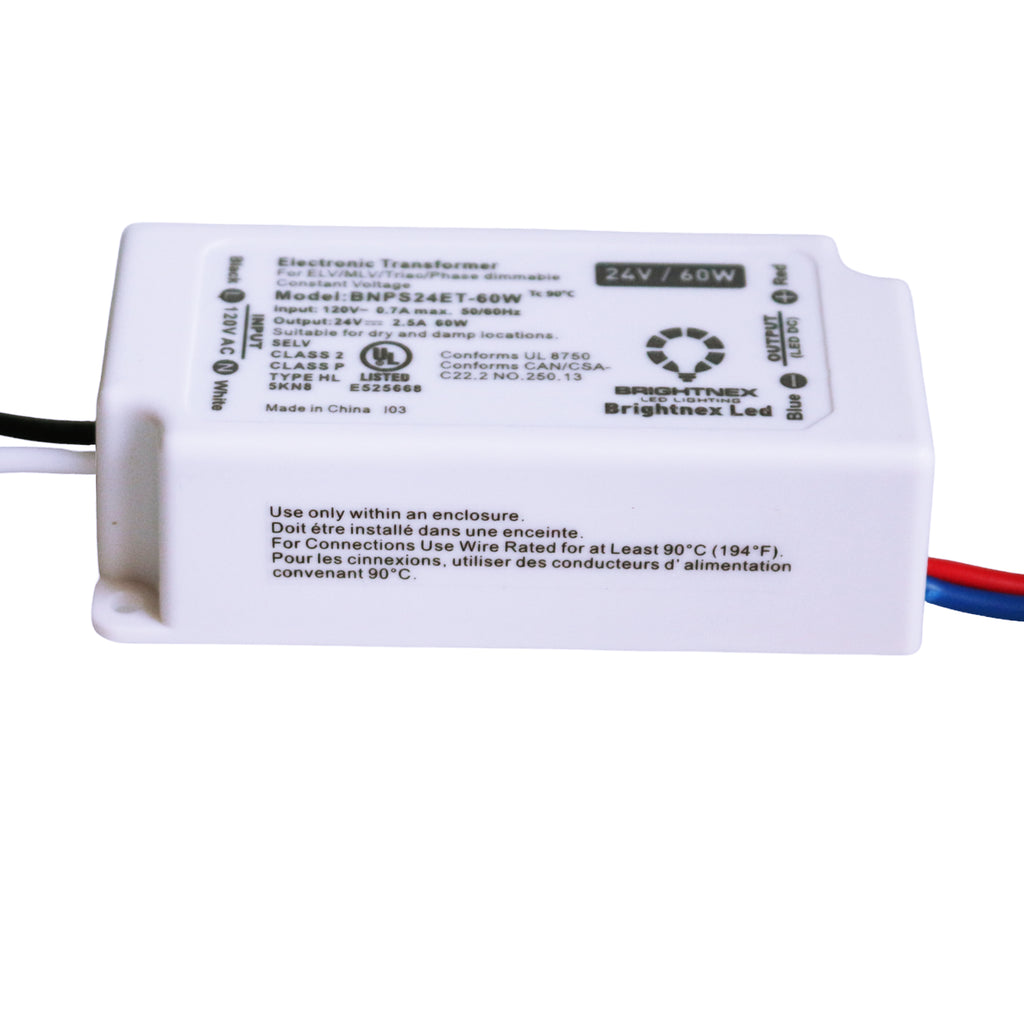

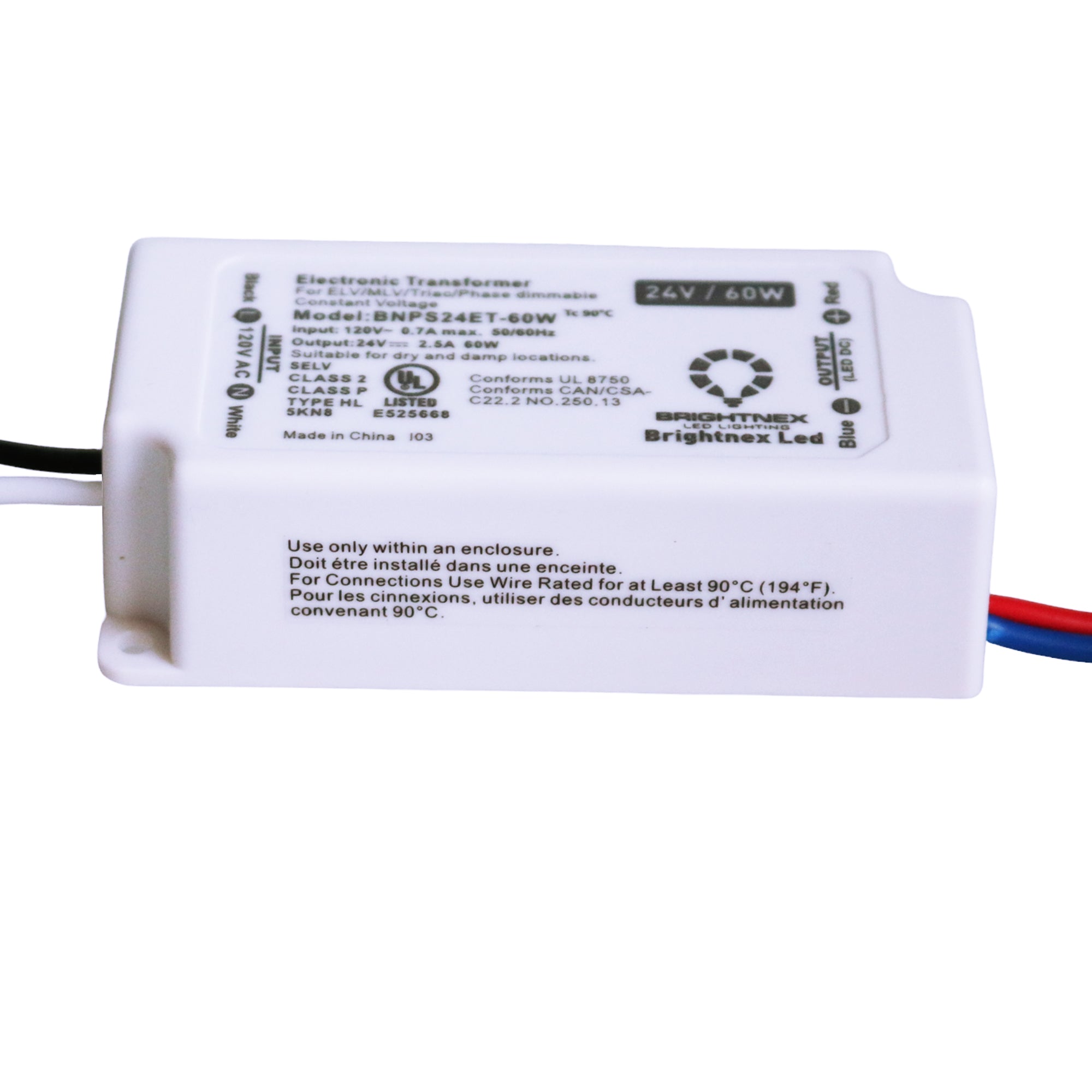

🔌 Wiring:
-
Input (120V AC):
-
Black – Live (18 AWG)
-
White – Neutral (18 AWG)
-
-
Output (24V DC):
-
Red – V+ (18 AWG)
-
Black – V– (18 AWG)
-

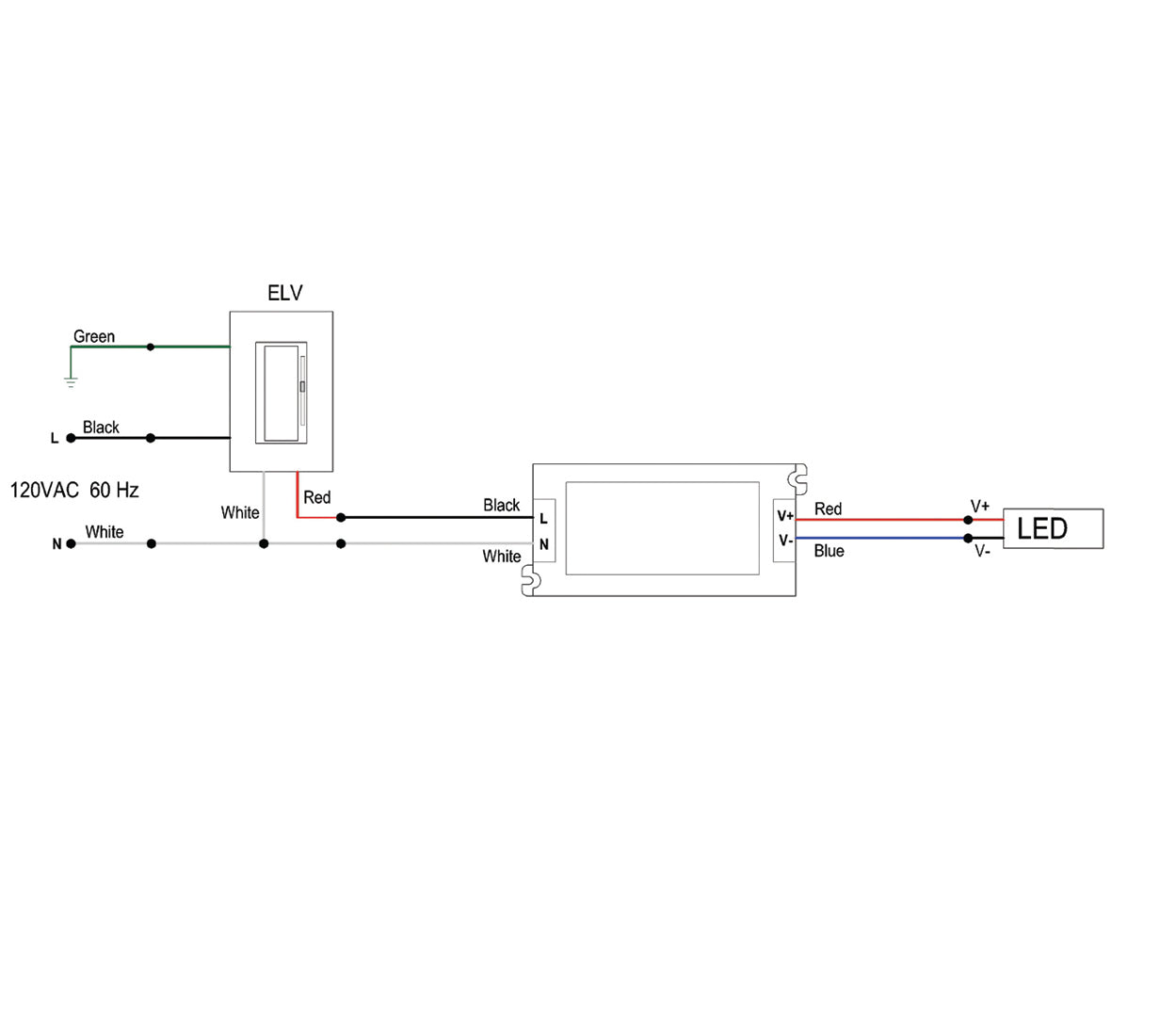

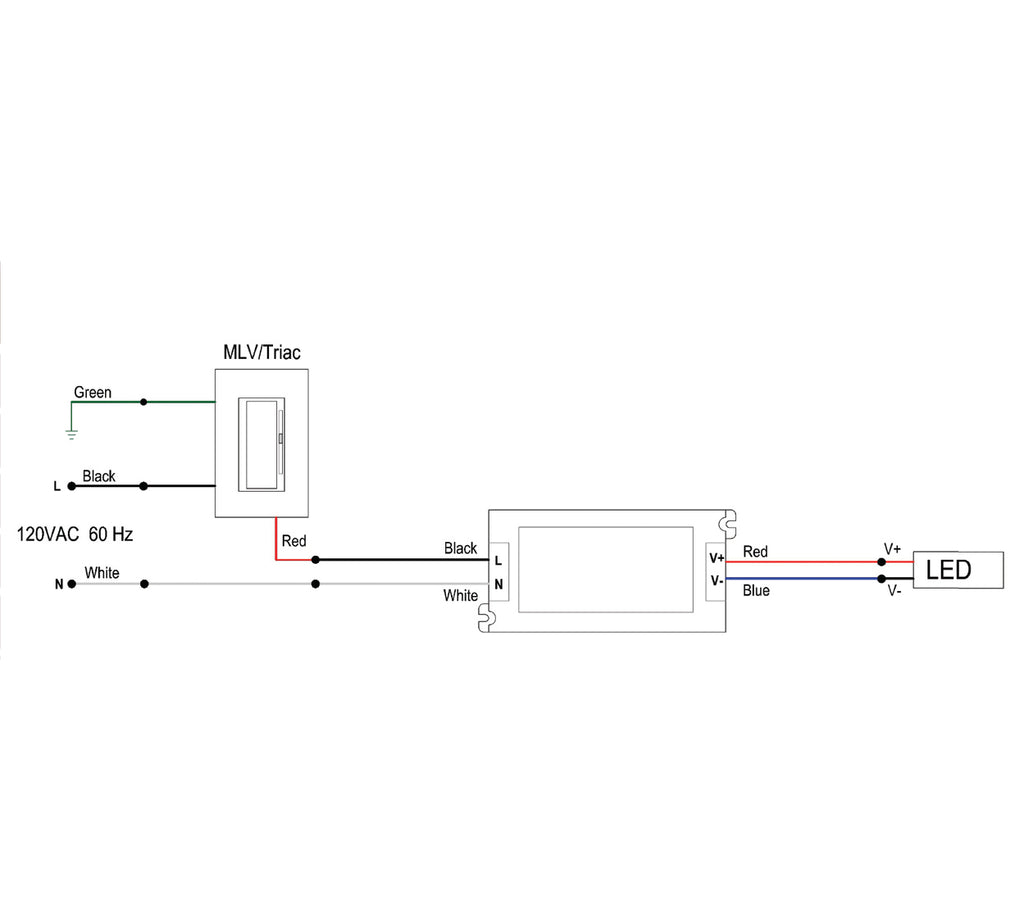

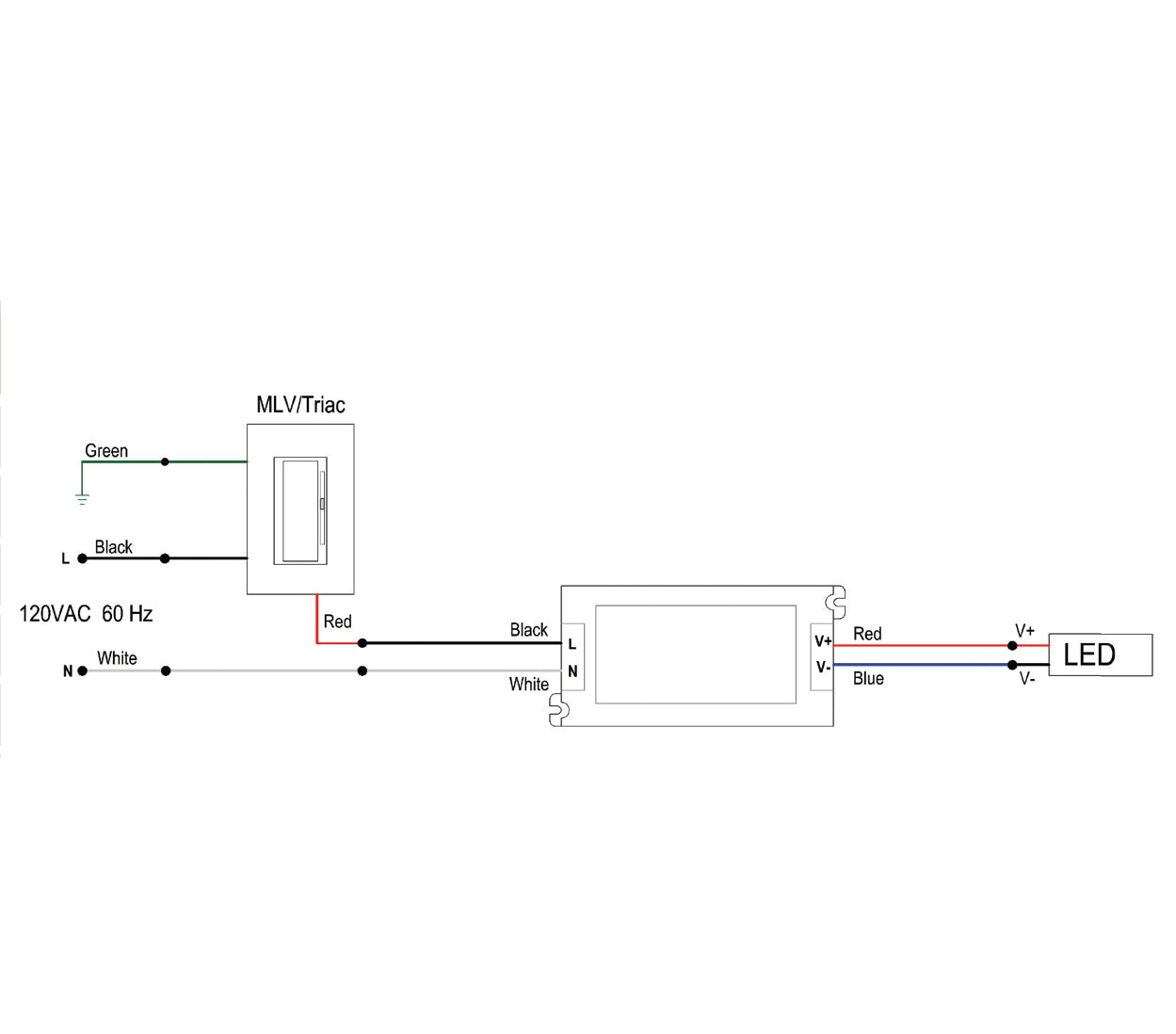

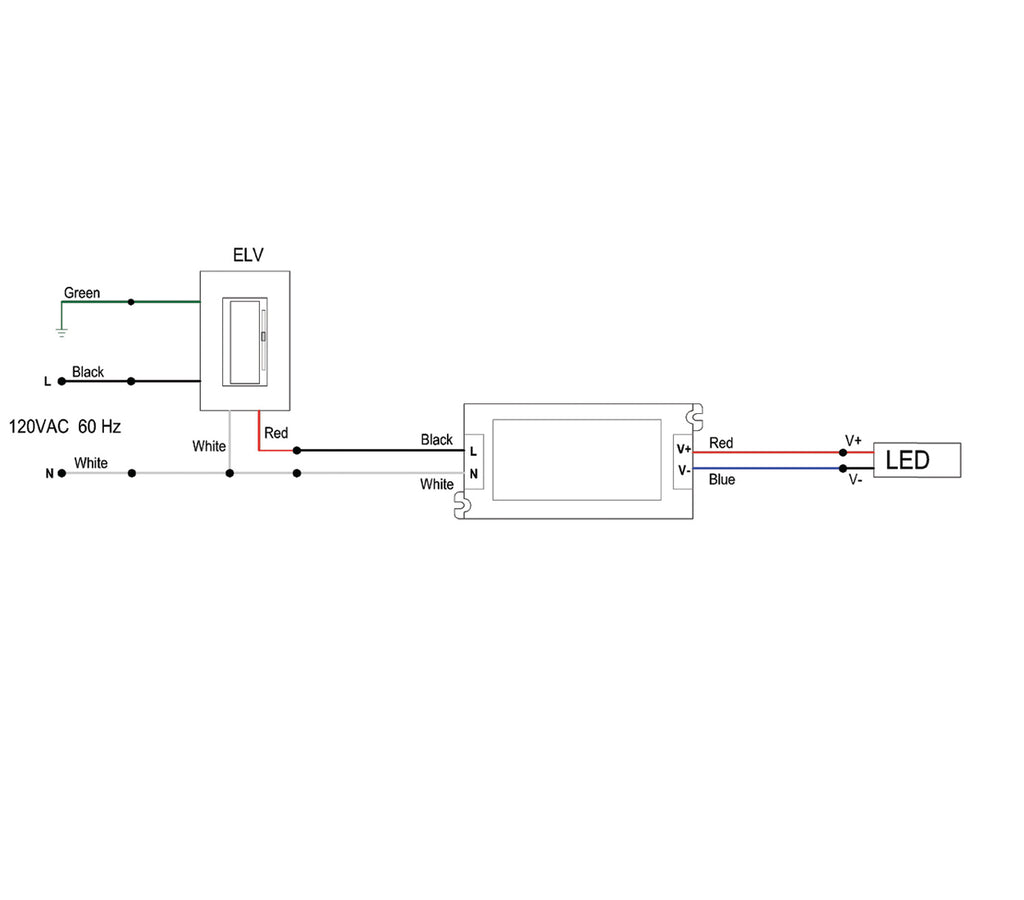

Refer to page 3 of the datasheet for ELV and TRIAC/MLV wiring diagrams.
⚡ Typical Applications:
-
24V LED strip and tape lighting
-
Cove, shelf, and display lighting
-
LED signage and architectural lighting
-
Tight-space installs and retrofit projects
-
UL Class 2 commercial or residential LED systems
Model / Part:
BNPS24‑60W‑SET
