24V 288W Dimmable LED Transformer | 3-Channel Output | TRIAC/ELV/MLV | UL Class 2 | Wet Location Rated

Are You a Retailer? Access Exclusive Wholesale Prices Today!

Description

This 24V 288W constant voltage LED transformer delivers reliable, flicker-free power to high-capacity LED installations via three 96W output channels (4A × 3). Fully compatible with TRIAC, ELV, and MLV dimmers, it supports smooth 0–100% dimming and is designed to perform across indoor, outdoor, and wet-location applications.

With Class 2 compliance, built-in active power factor correction (PFC), and short-circuit/overload protection, this transformer is an ideal solution for LED strip lighting, signage, and architectural lighting in professional builds.

🔧 Specifications:

  • Output Voltage: 24V DC

  • Output Power: 288W (3 × 96W channels)

  • Output Current: 4.0A × 3

  • Input Voltage: 120V AC

  • Frequency: 47–63Hz

  • Efficiency: 88% @ full load

  • Power Factor: 0.98 @ 120V

  • THD: < 20% @ 100% load

  • Voltage Tolerance: ±0.5V

  • Load Regulation: ±1%

  • Leakage Current: < 0.5mA @ 120V

  • Working Temp: -40°F to +140°F (-40°C to +60°C)

  • Humidity: 20–95% RH (non-condensing)

  • Storage Temp: -40°F to +194°F

  • Certifications: UL8750 (Class 2), FCC, RoHS, Type HL

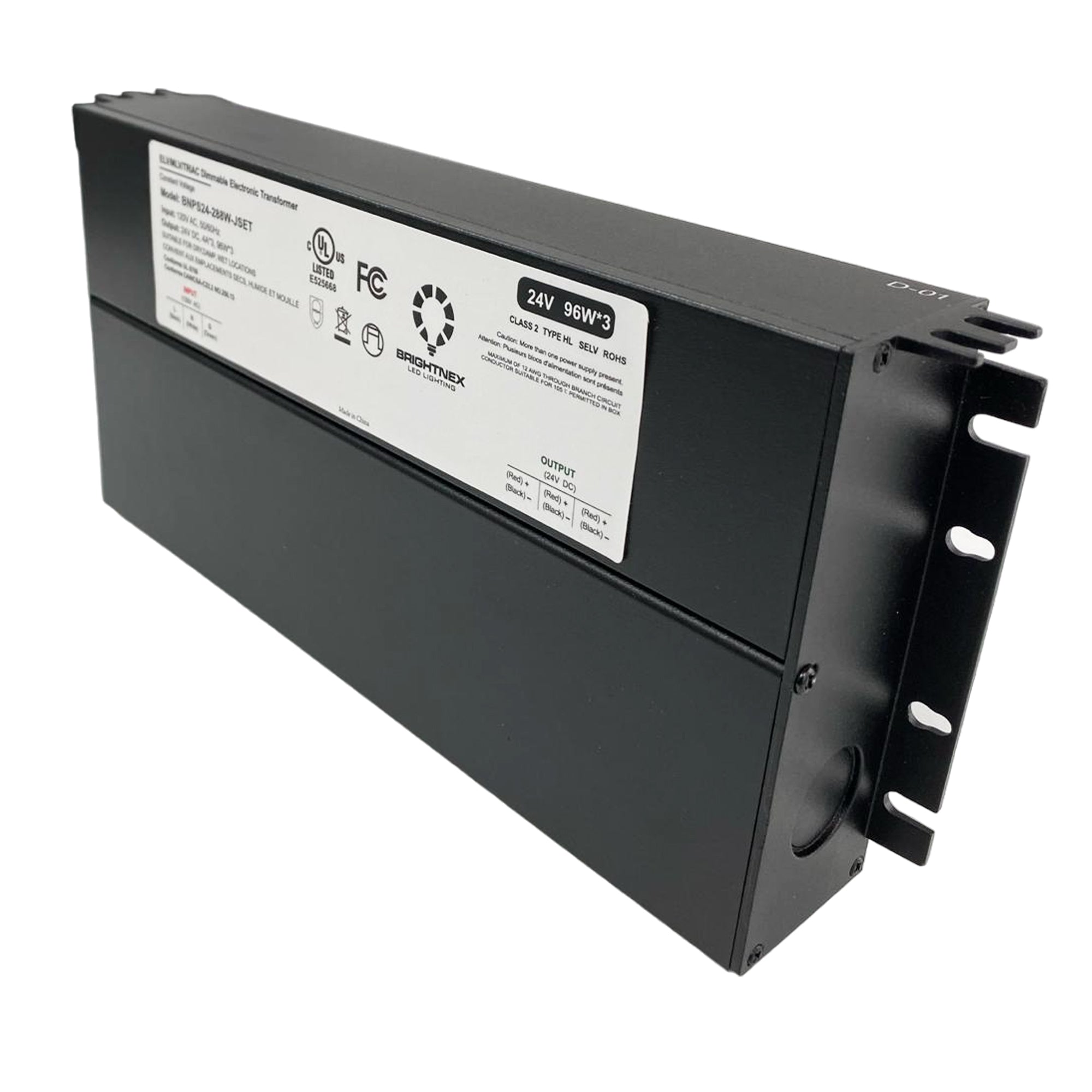

  • Enclosure Rating: Dry, Damp, and Wet Location (Not for Submersion)

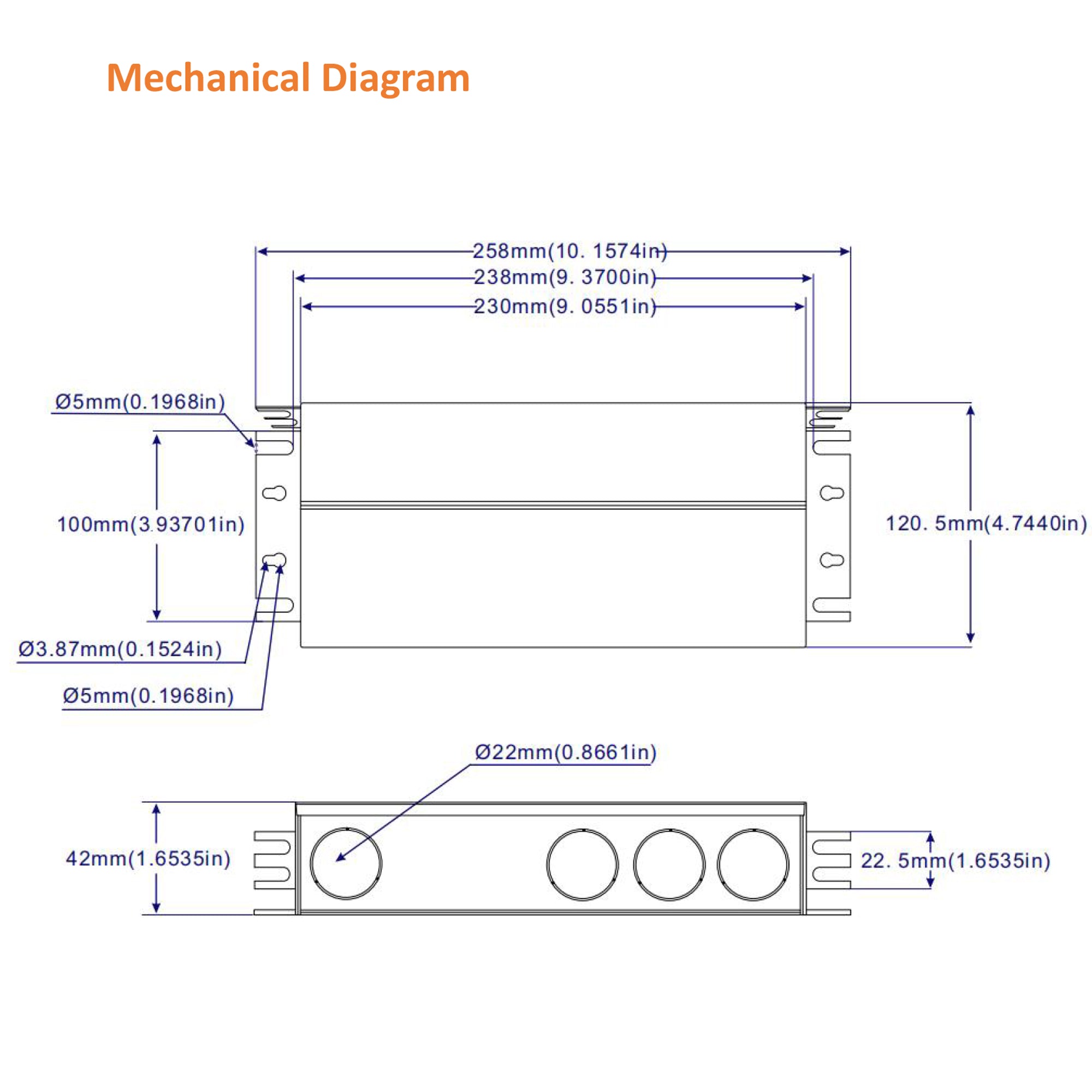

  • Dimensions: 10.15" × 4.74" × 1.65" (L × W × H)

  • Weight: 2.65 lbs (1.2 kg)

🎚️ Dimming Compatibility:

  • Dimming Range: 0–100%

  • Dimming Types Supported:

    • TRIAC (Leading Edge)

    • ELV (Trailing Edge)

    • MLV (Magnetic Low Voltage)

  • Tested With:

    • Lutron CL, Diva, Caseta

    • Leviton Decora, SureSlide

  • Minimum Load for Stable Dimming: 20%

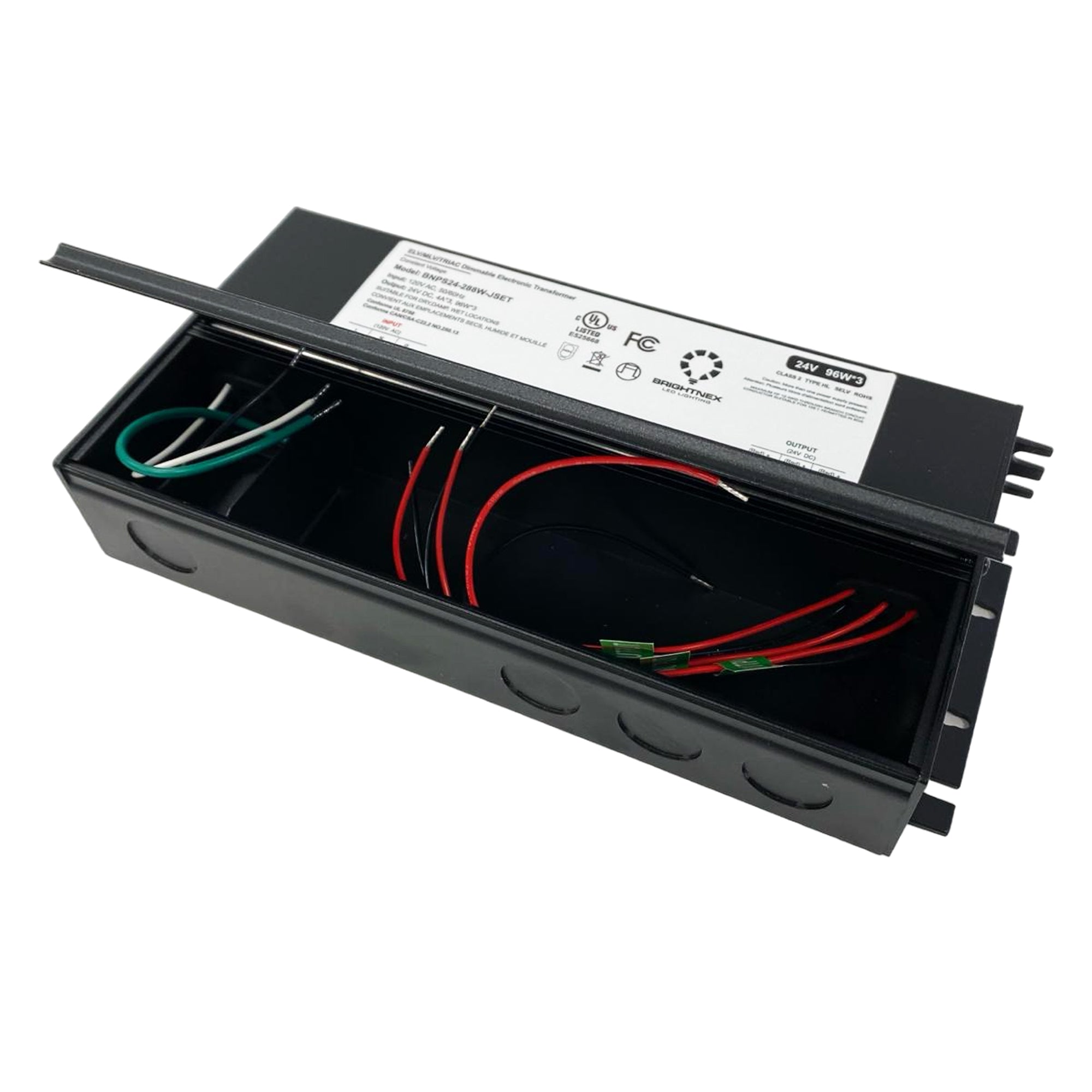

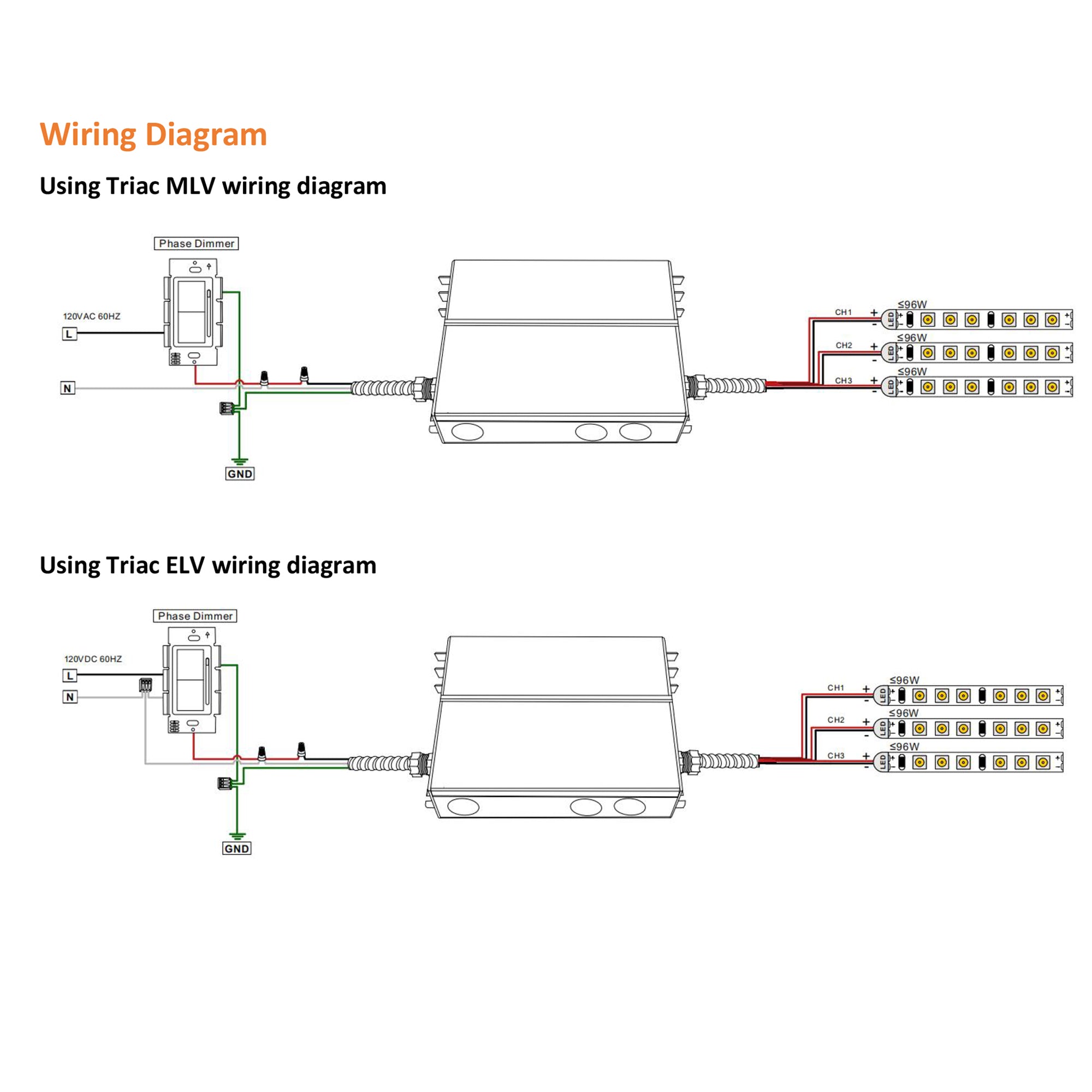

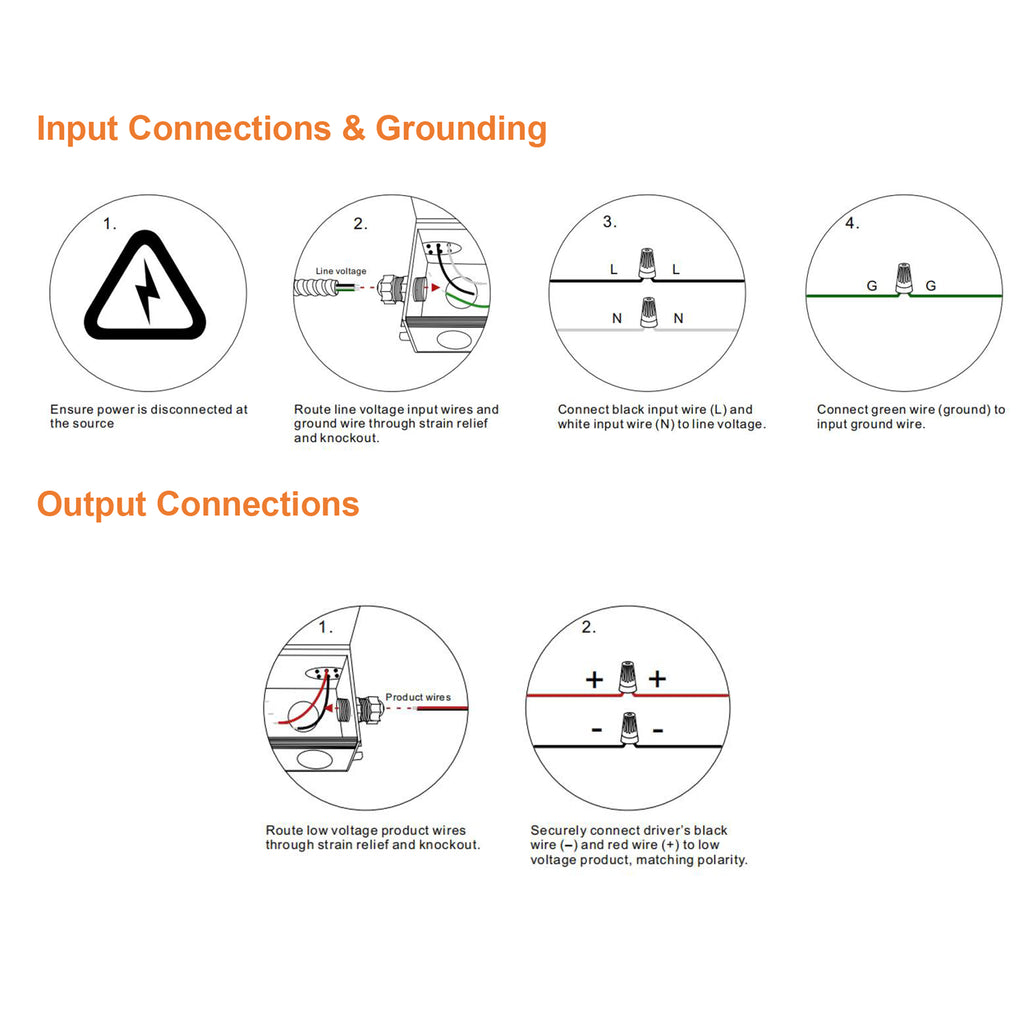

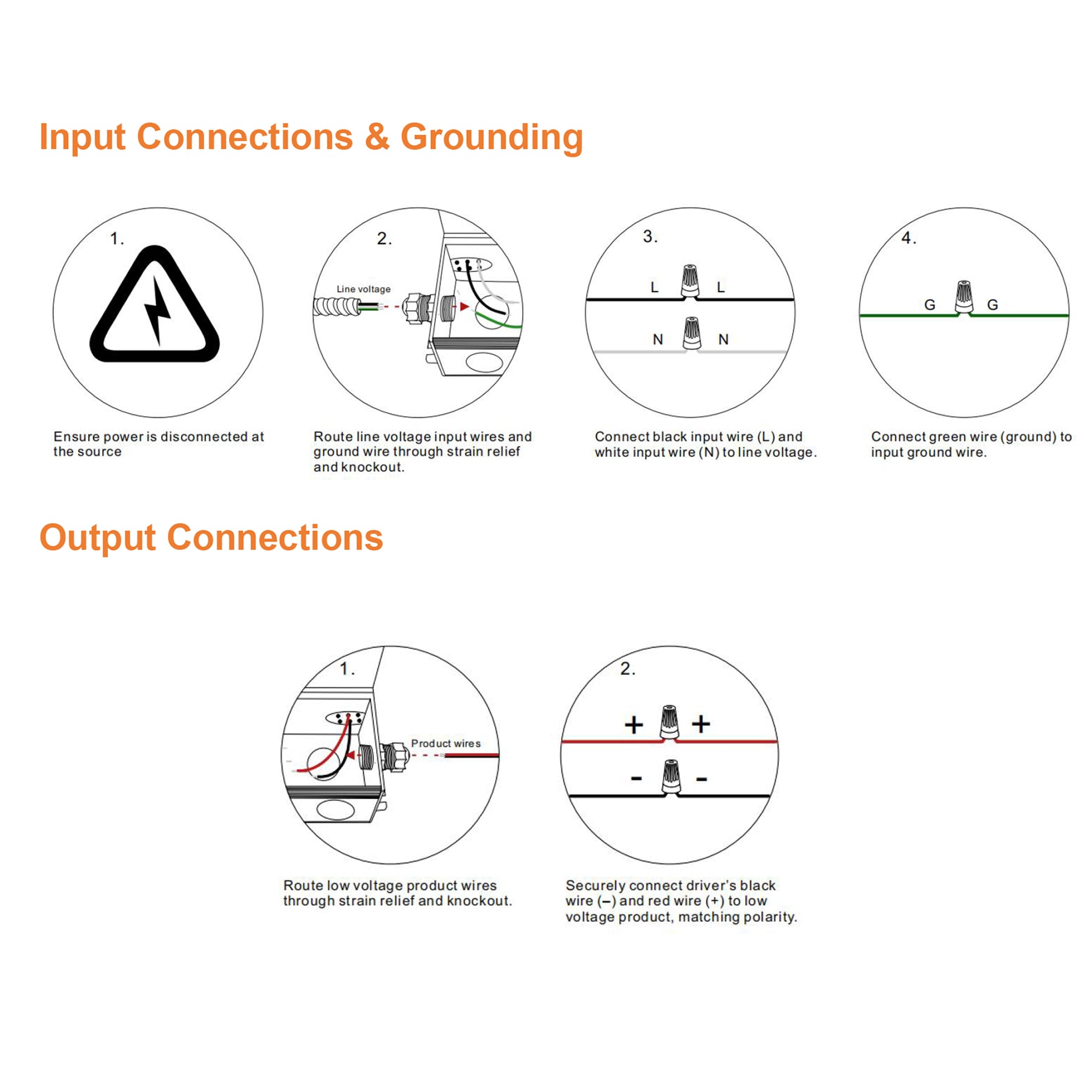

🔌 Wiring Details:

  • Input (120V AC):

    • Black – Line (18 AWG)

    • White – Neutral (18 AWG)

    • Green – Ground (18 AWG)

  • Output (24V DC – 3 Channels):

    • Red – V+ (18 AWG)

    • Blue – V– (18 AWG)

⚡ Typical Applications:

  • High-capacity 24V LED strip or tape lighting

  • Signage and architectural lighting

  • Commercial display and cove installations

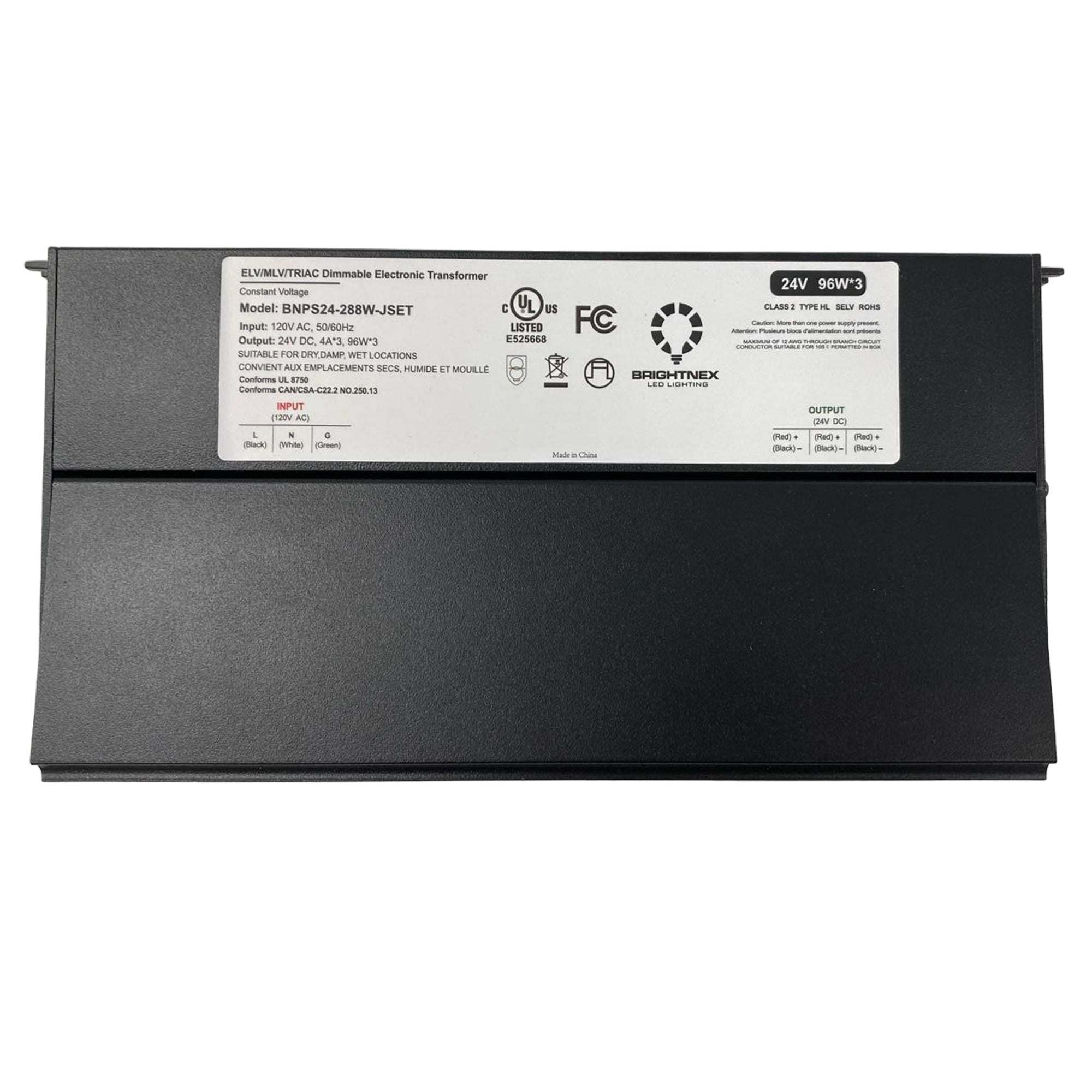

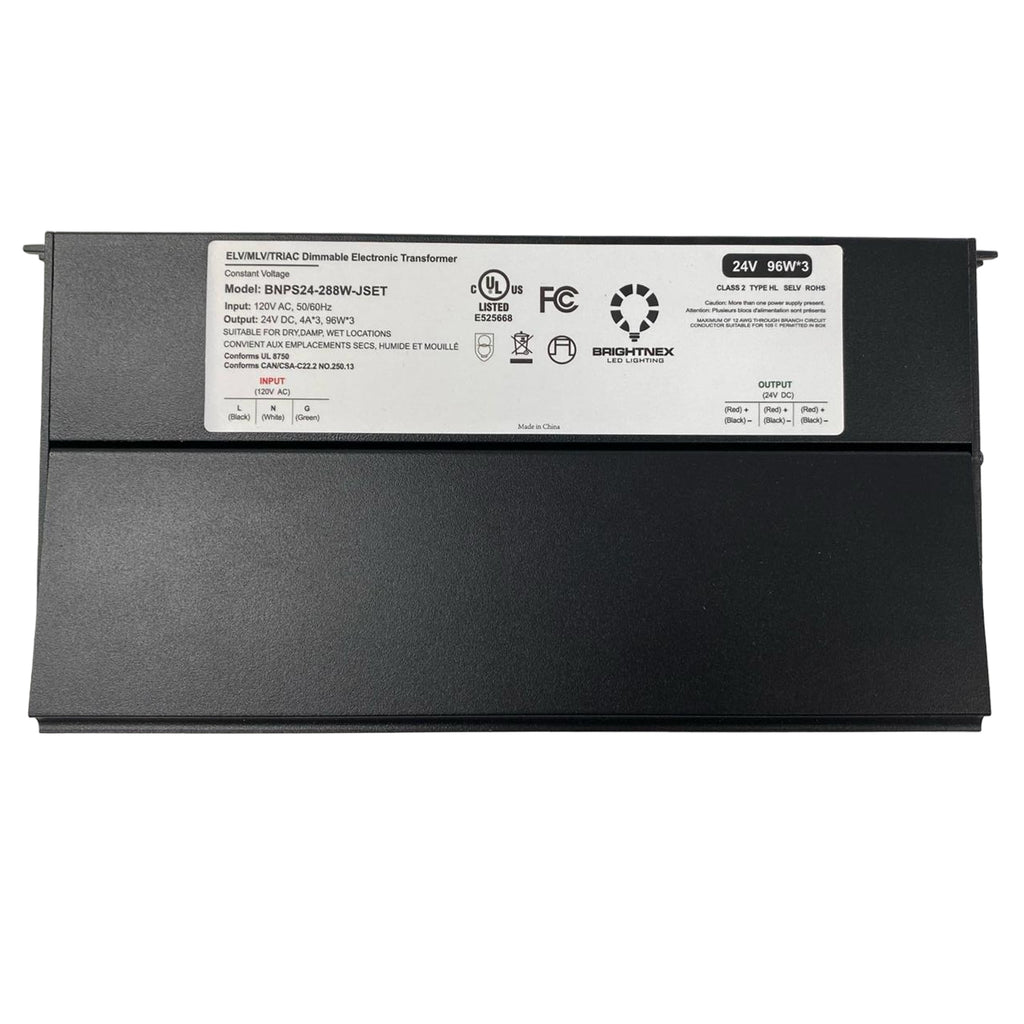

🔹 Model / Part:

BNPS24‑288W‑JSET
