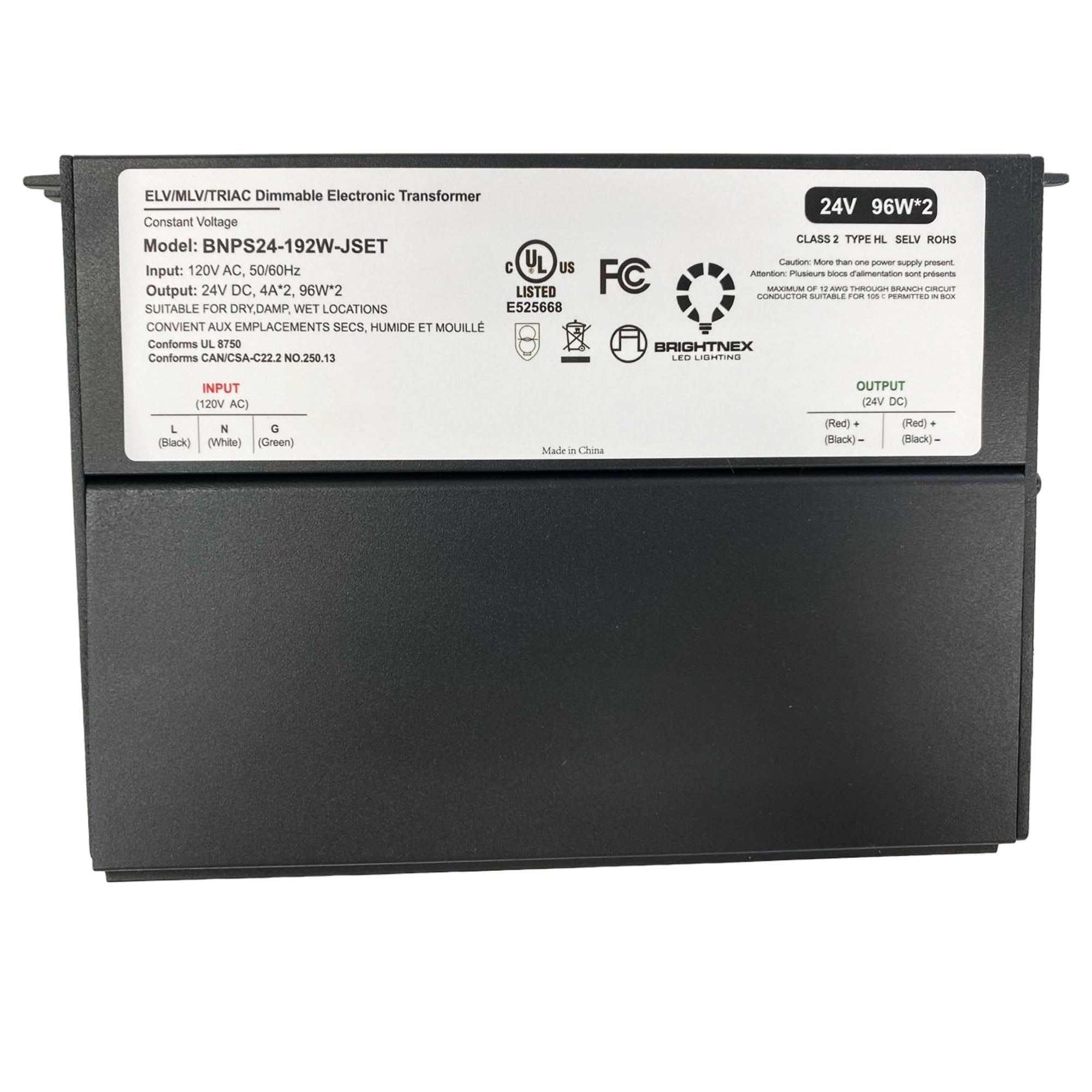

24V 192W Dimmable LED Transformer | Dual Output | TRIAC/ELV/MLV | UL Class 2 | Wet Location Rated

Are You a Retailer? Access Exclusive Wholesale Prices Today!

Description

This 24V 192W constant voltage LED transformer provides dual 96W output channels (4A × 2) and supports full-range 0–100% dimming using TRIAC, ELV, and MLV dimming protocols. Built with a durable aluminum housing, it's certified for wet, damp, and dry locations, making it suitable for a wide range of indoor and outdoor applications.

The transformer features short-circuit and overload protection, active power factor correction, and low THD to ensure clean, efficient operation. UL Class 2 compliant and compact in size, it supports 20–100% load range for smooth dimming and flexible system design.

🔧 Specifications:

  • Output Voltage: 24V DC

  • Output Power: 192W (96W × 2 channels)

  • Output Current: 4.0A × 2

  • Input Voltage: 120V AC

  • Frequency: 47–63Hz

  • Efficiency: 88% @ full load

  • Power Factor: 0.98 typical

  • THD: < 20% @ 100% load

  • Voltage Tolerance: ±0.5V

  • Load Regulation: ±1%

  • Leakage Current: < 0.5mA @ 120V

  • Working Temperature: -40°F to +140°F (-40°C to +60°C)

  • Humidity: 20–95% RH

  • Storage Temp: -40°F to +194°F

  • Certifications: UL8750, FCC, Class 2, Type HL, RoHS

  • Enclosure Rating: Damp, Dry Location, Wet (Not for Submersion)

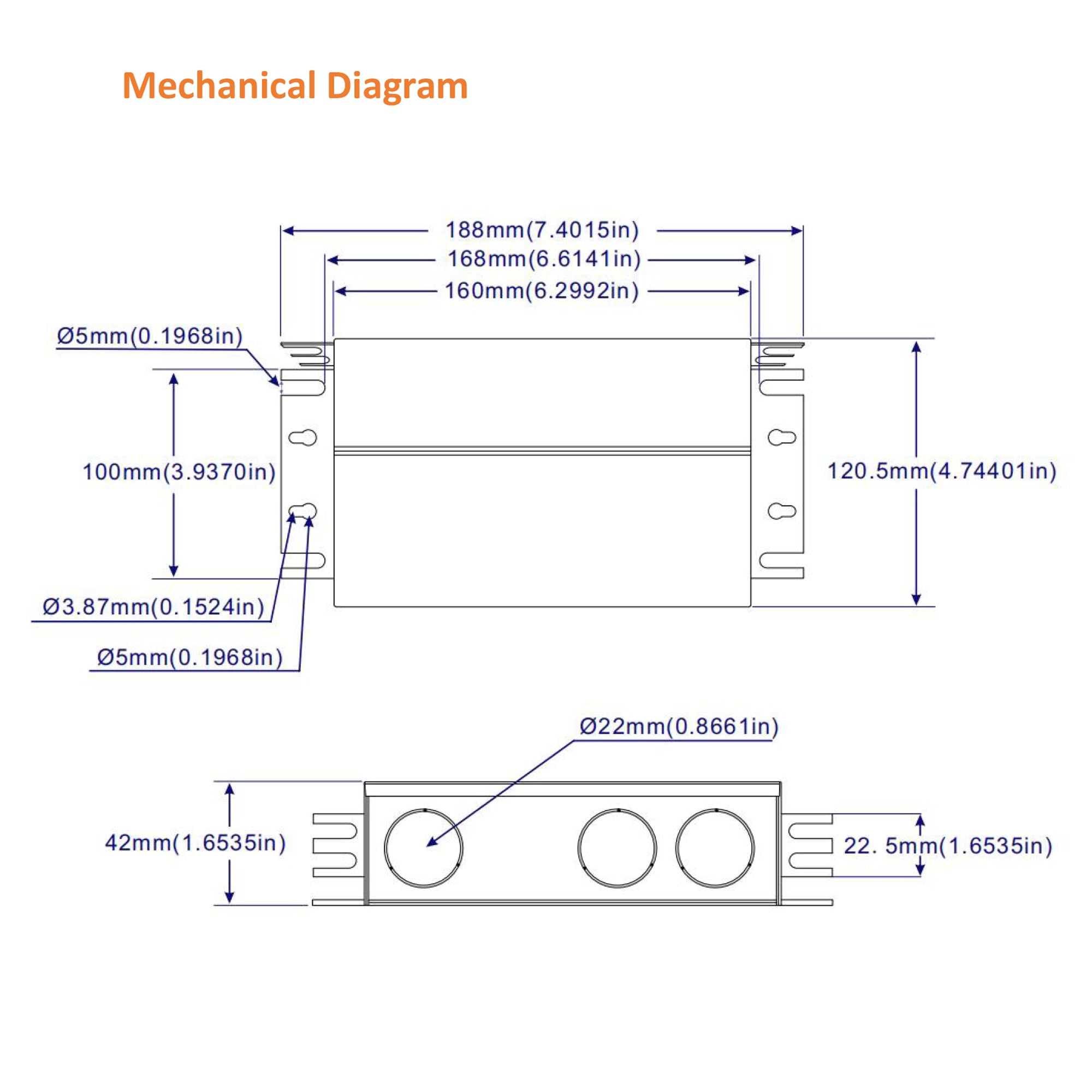

  • Dimensions: 7.40" × 4.74" × 1.65" (L × W × H)

  • Weight: 1.76 lbs (0.8 kg)

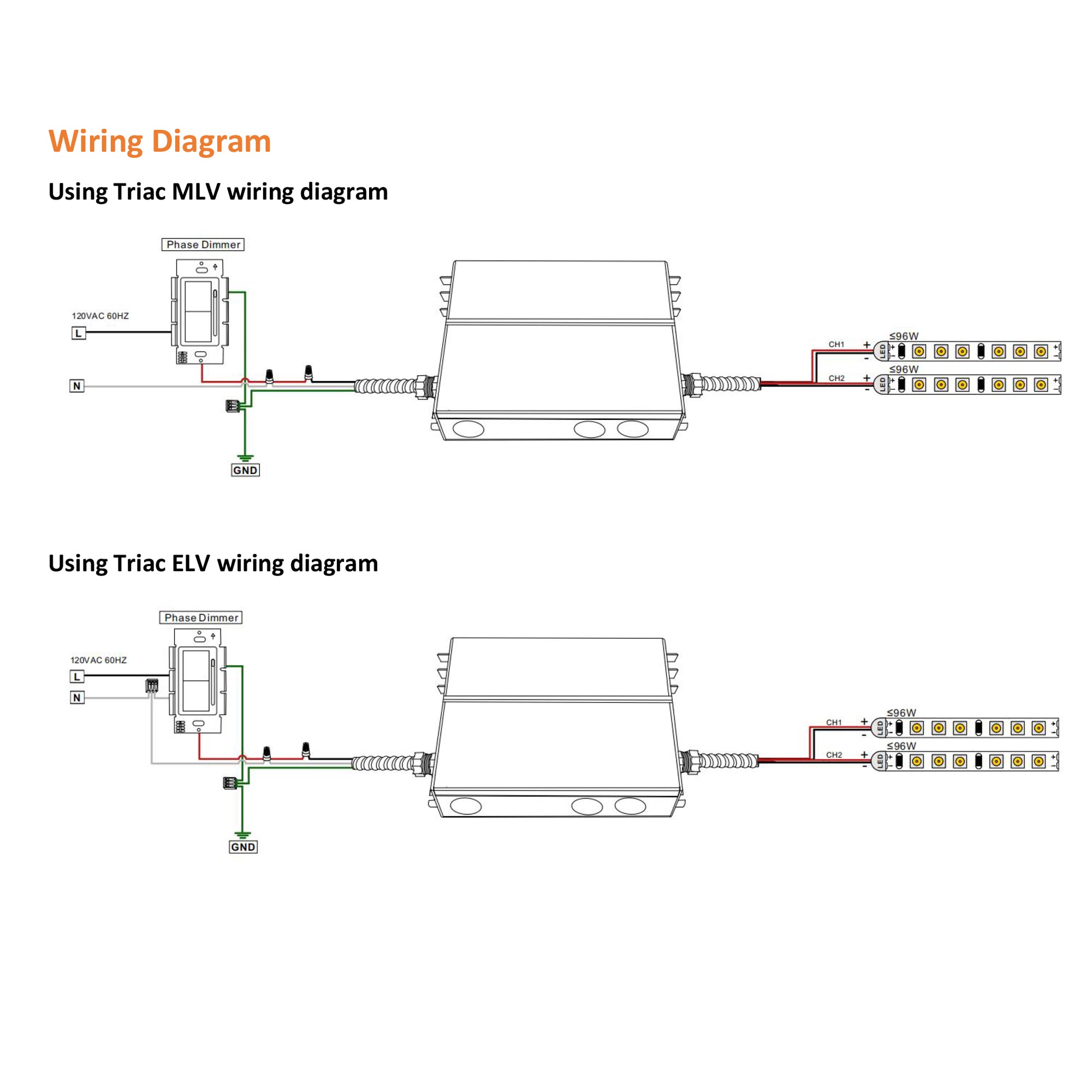

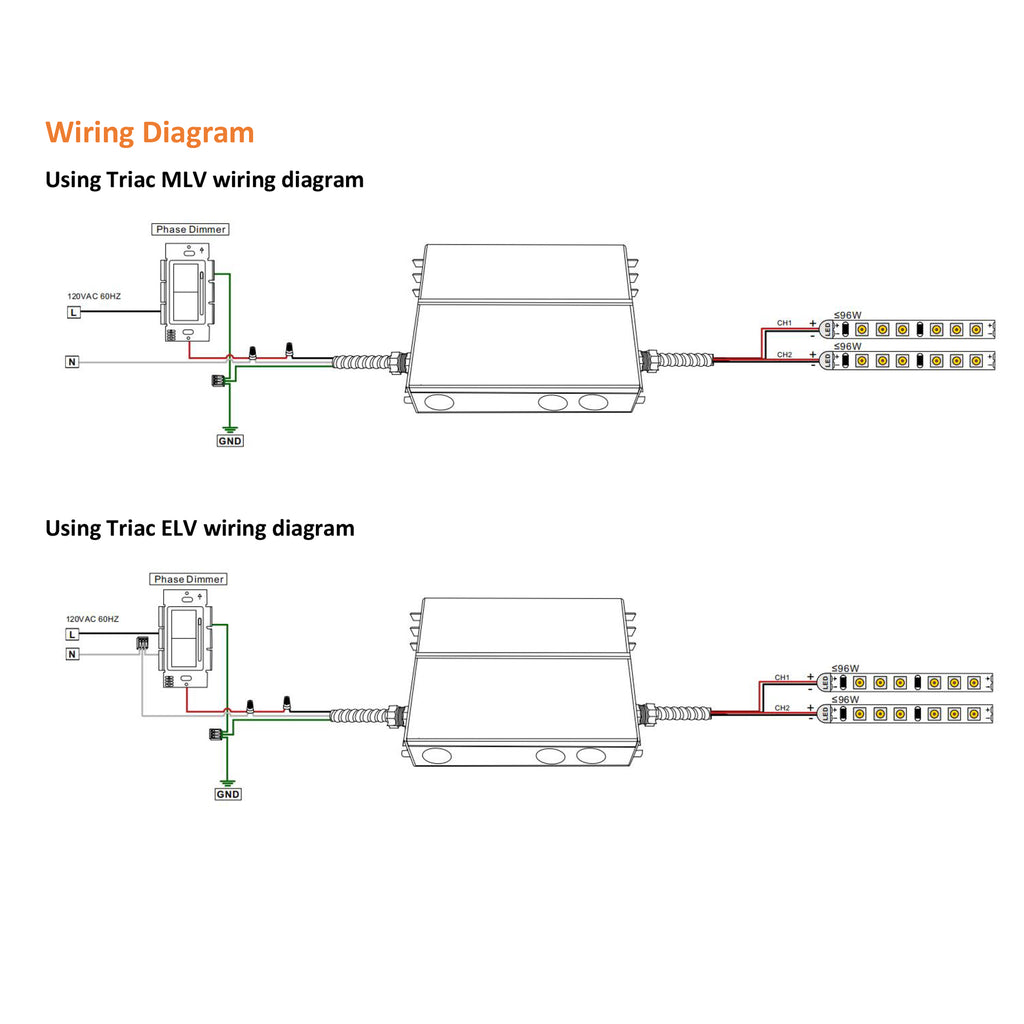

🎚️ Dimming Compatibility:

  • Dimming Range: 0–100%

  • Supported Dimming Types:

    • TRIAC (Leading Edge)

    • ELV (Trailing Edge)

    • MLV (Magnetic Low Voltage)

  • Tested With:

    • Lutron CL, Diva, Caseta

    • Leviton Decora, SureSlide

  • Stable Operation Range: 20–100%

  • Note: Not compatible with 0–10V dimming

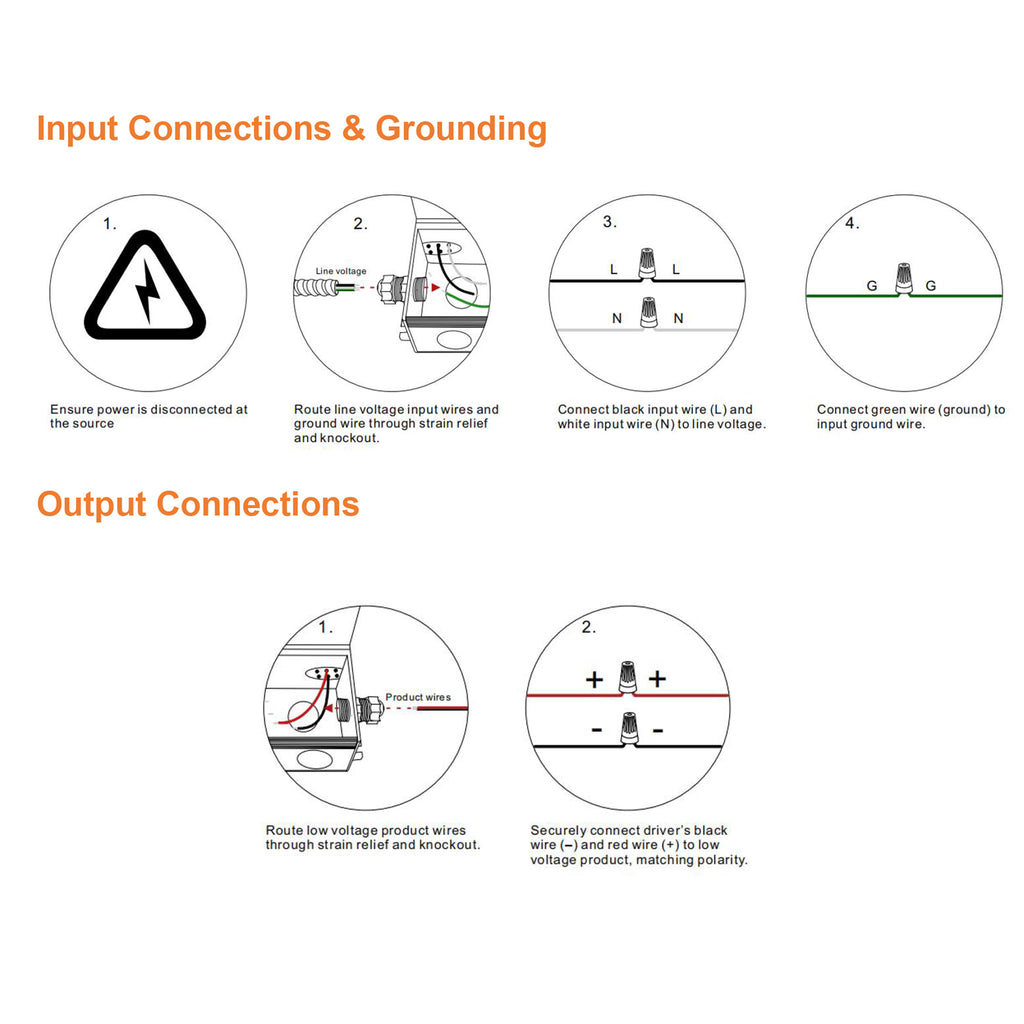

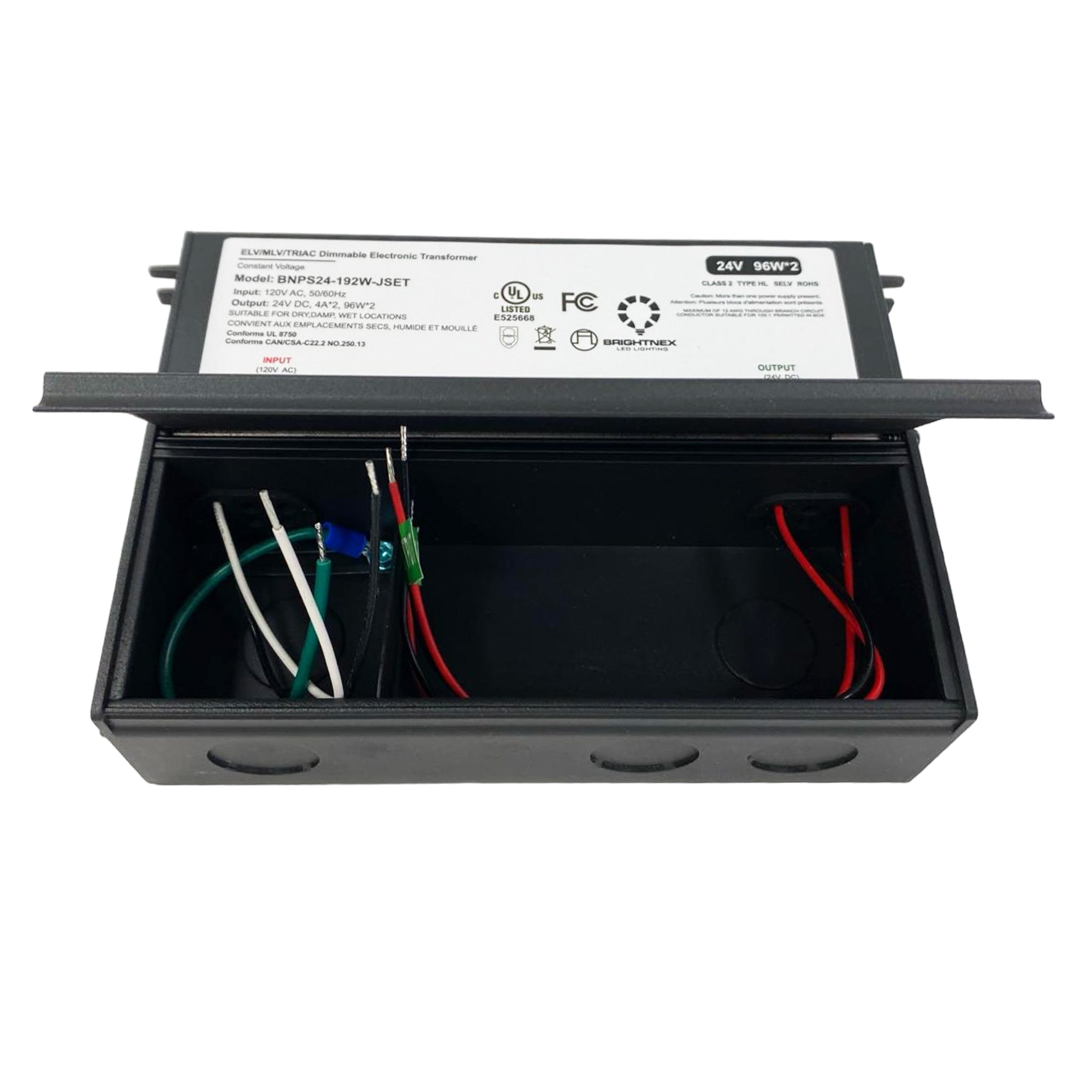

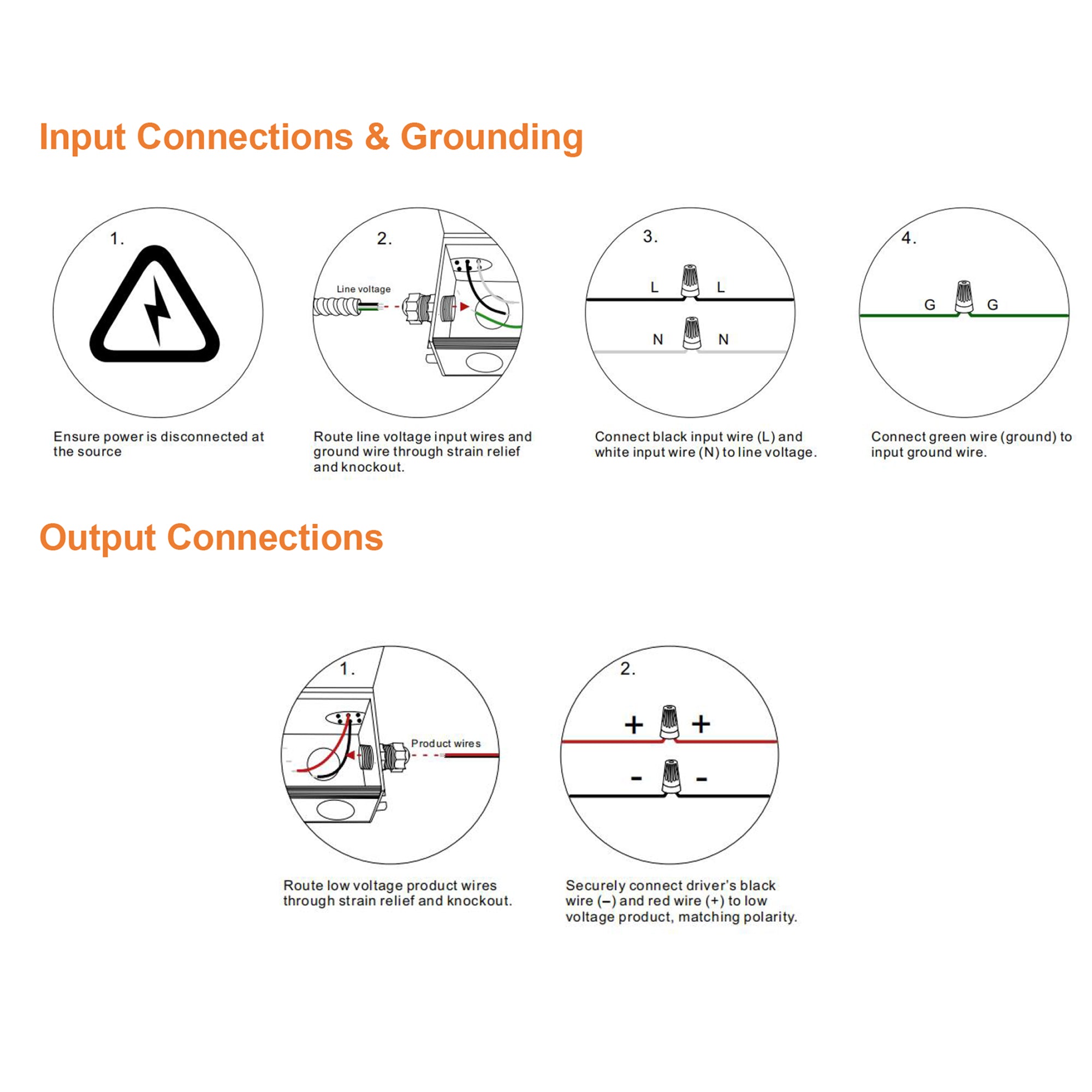

🔌 Wiring :

  • Input (120V AC):

    • Black – Line (18 AWG)

    • White – Neutral (18 AWG)

    • Green – Ground (18 AWG)

  • Output (24V DC):

    • Red – V+ (18 AWG)

    • Blue – V– (18 AWG)

⚡ Typical Applications:

  • Dual-channel 24V LED strip lighting

  • Outdoor LED lighting (patios, signage, eaves)

  • Retail and commercial display lighting

  • Cabinet and cove lighting systems

  • Class 2 UL-compliant low-voltage installs

🔹 Model / Part:

BNPS24‑192W‑JSET
