Description
This 24V 200W constant voltage dimmable LED transformer delivers efficient, high-performance power conversion with support for TRIAC, ELV, and MLV dimming systems. Ideal for LED lighting systems in indoor or outdoor environments, it offers smooth 0–100% dimming, high power factor, and short-circuit and overload protection with automatic recovery.

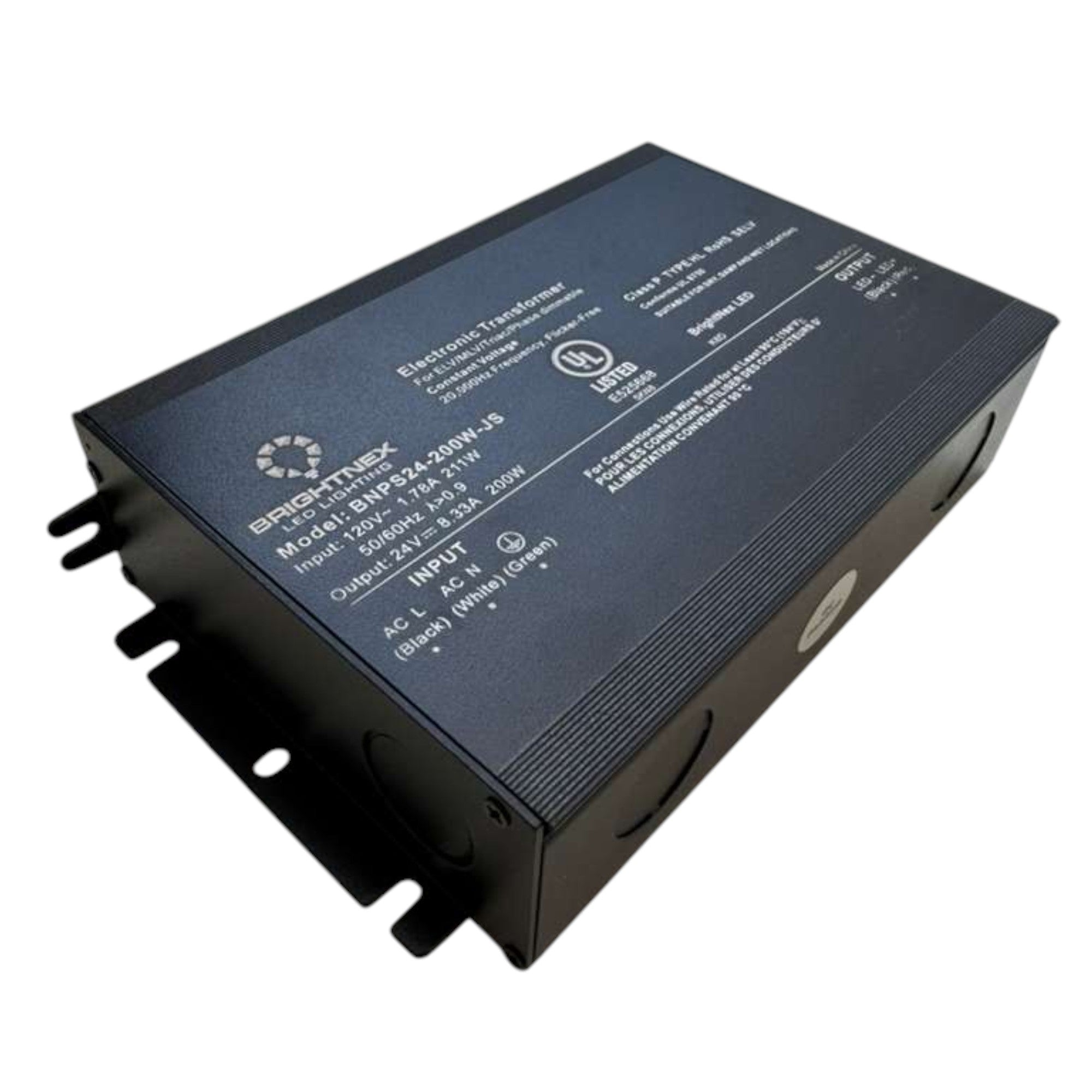

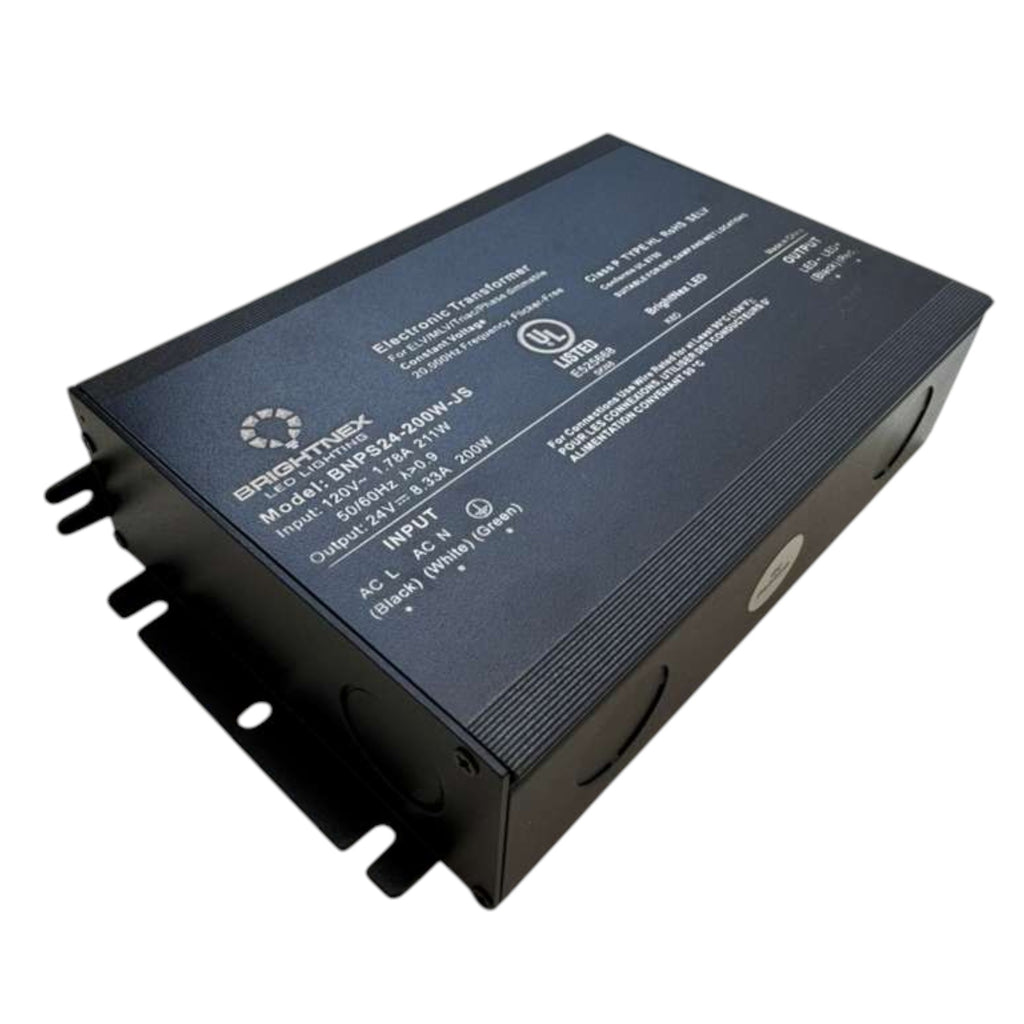

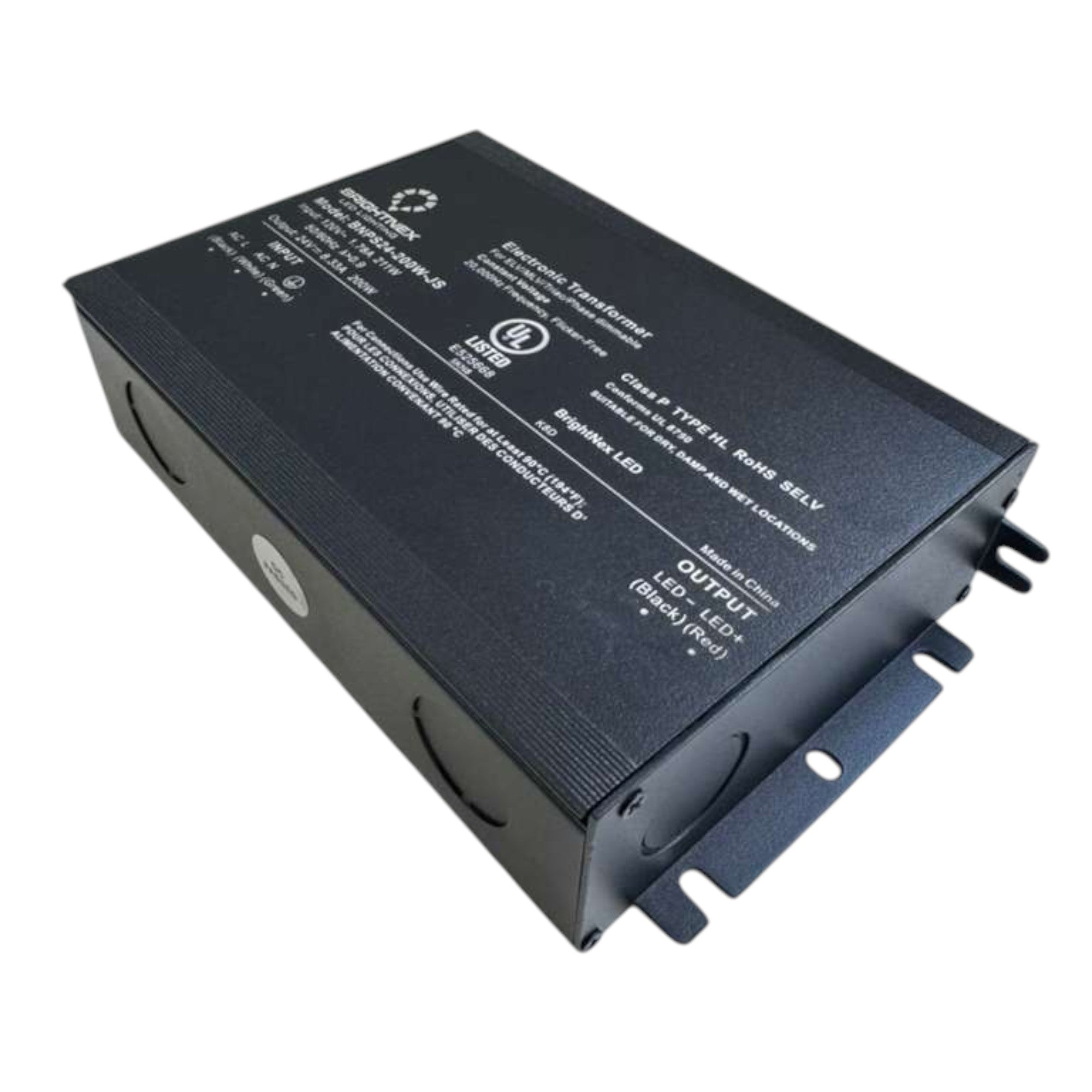

Designed with a sealed aluminum enclosure, it is rated for wet, damp, and dry locations, ensuring versatility across residential, commercial, and signage lighting applications. It operates flawlessly from 10% to 100% load and carries a UL Class 2 rating for streamlined code compliance.
🔧 Specifications:
-

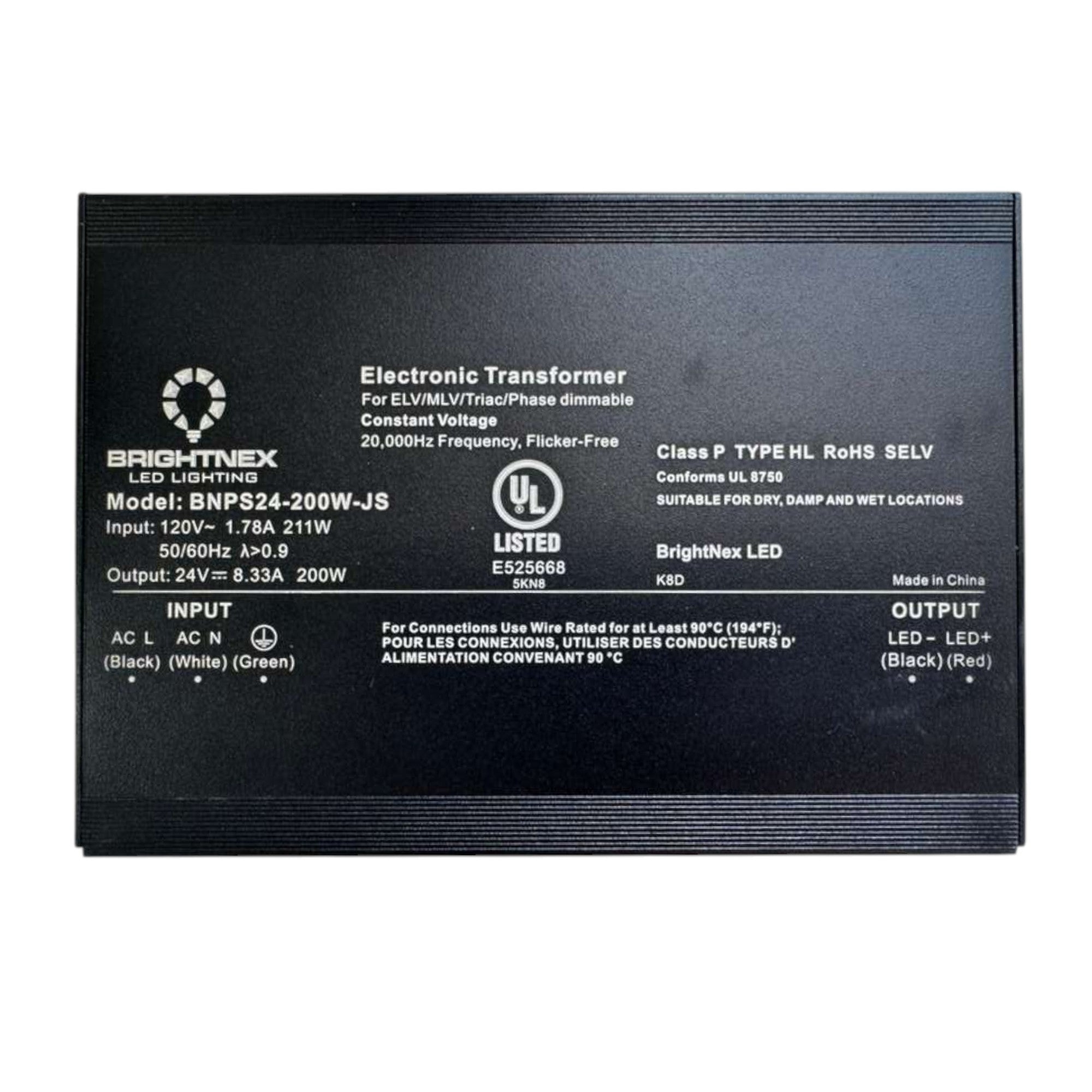

Output Voltage: 24V DC
-
Output Power: 200W
-
Output Current: 8.34A
-
Input Voltage: 120V AC
-
Frequency: 50/60Hz
-
Efficiency: 90% @ full load
-
Power Factor: >0.9
-
THD: < 20% @ 100% load
-
Voltage Tolerance: ±1.5V
-
Leakage Current: < 0.5mA @ 120V
-
Load Range: 10% – 100%
-
Protections:
-
Short Circuit – hiccup mode, auto-recovery
-
Overload – hiccup mode, auto-recovery
-
-
Operating Temp: -40°F to +140°F (-40°C to +60°C)
-
Storage Temp: -40°F to +194°F
-
Humidity: 20–95% RH (non-condensing)
-
Certifications: UL8750, FCC, ICES-005, Class P, Type HL, RoHS, REACH, SELV
-
Enclosure Rating: Damp, Dry Location, Wet (Not for Submersion)
-

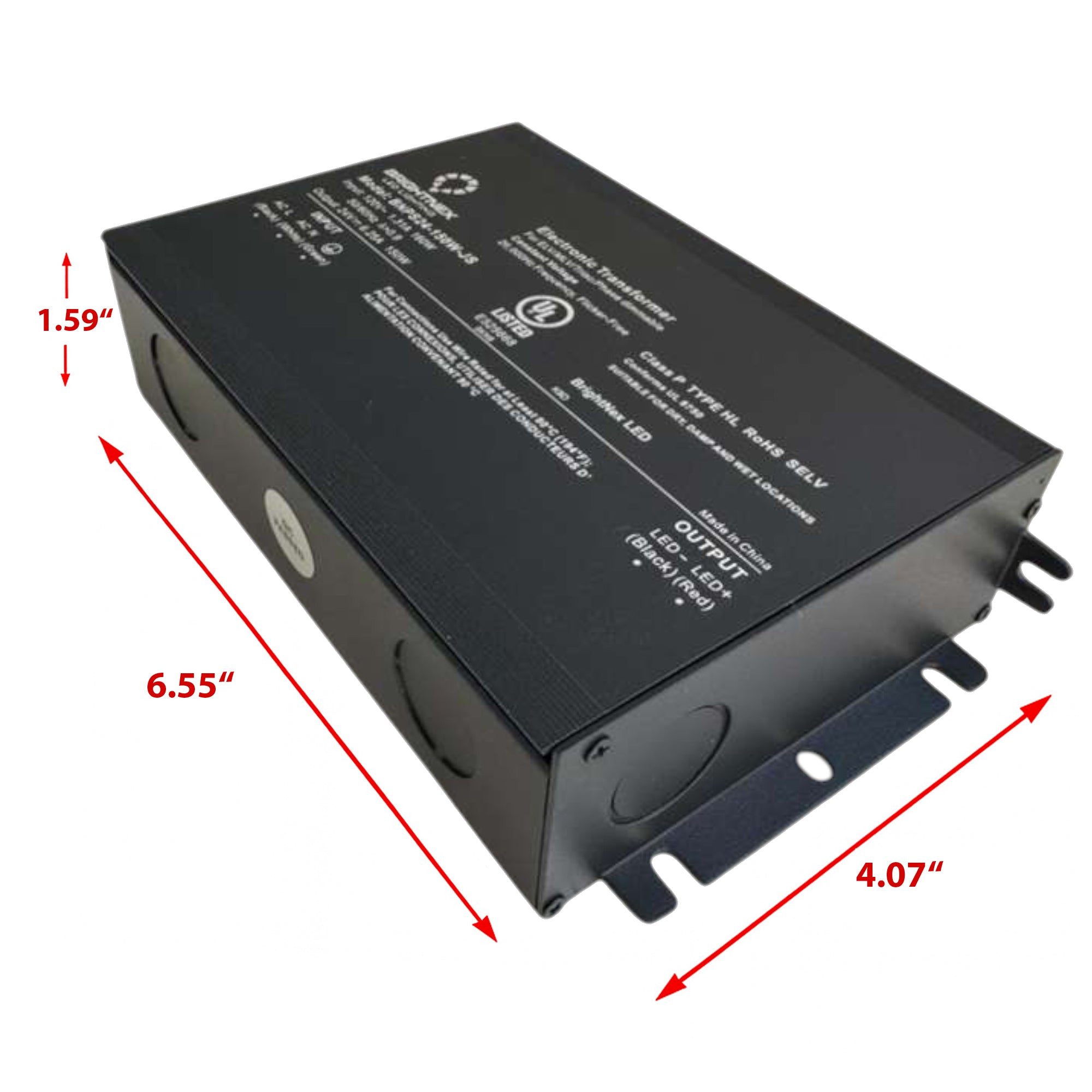

Dimensions: 6.55" × 4.07" × 1.59" (L × W × H)
-
Weight: 1.82 lbs (0.826 kg)
🎚️ Dimming Compatibility:
-
Dimming Range: 0–100%
-
Supported Dimming Types:
-
TRIAC (Leading Edge)
-
ELV (Trailing Edge)
-
MLV (Magnetic Low Voltage)
-
-
Tested Compatible With:
-
Lutron CL, Diva Series
-
Leviton Decora and SureSlide
-

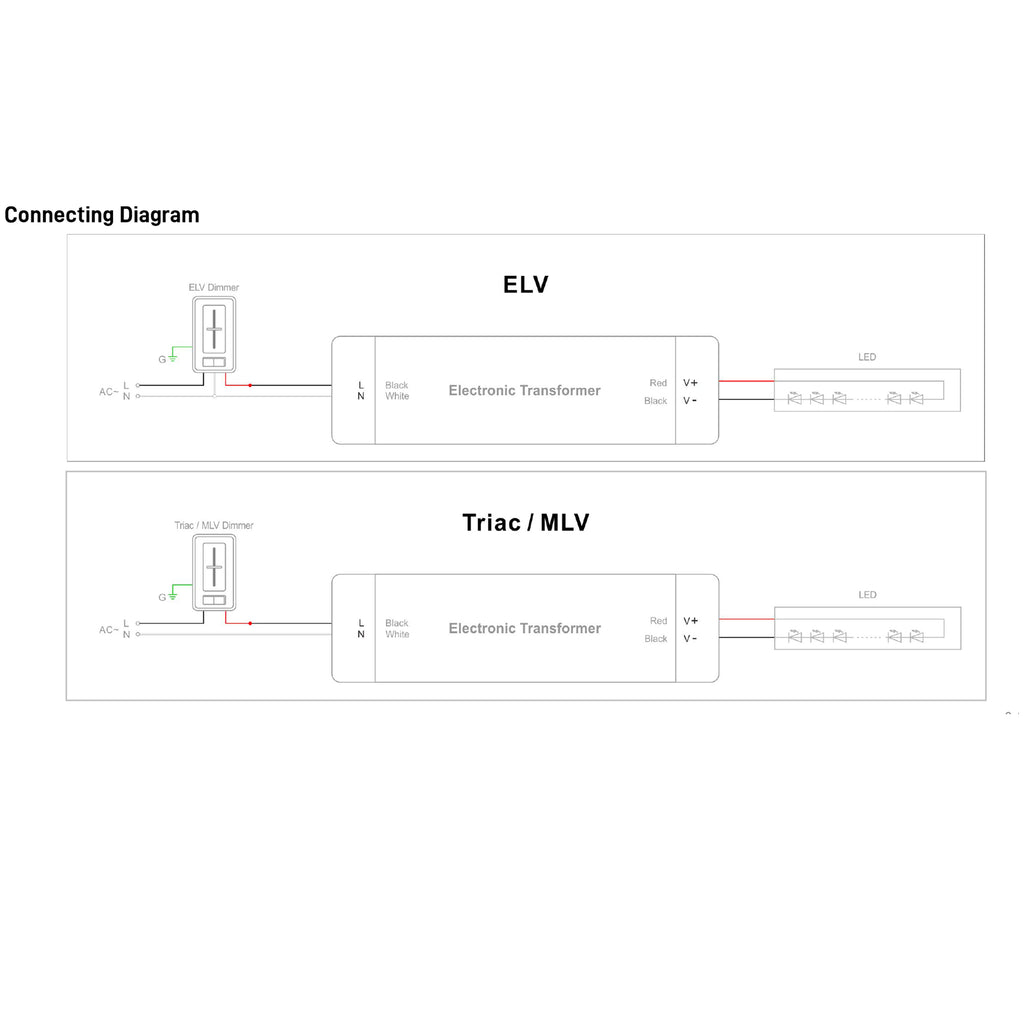

🔌 Wiring:
-
Input (AC 120V):
-
Black – Line (L)
-
White – Neutral (N)
-
Green – Ground (G)
-
-
Output (DC 24V):
-
Red – V+
-
Black – V–
-
⚡ Typical Applications:
-
24V LED strip, tape, or module lighting
-
Signage and architectural lighting
-
Residential and commercial dimmable installs
-
Class 2-compliant OEM LED assemblies
-
Part #: BNPS24-200W-JS
