Description
The 200W LED Driver delivers robust and reliable dimming performance for demanding lighting installations. Featuring compatibility with both TRIAC (ELV/MLV) and 0-10V dimmers, it provides flicker-free dimming from 0.1% to 100%, with a stable PWM output.
With built-in active PFC, a sealed junction box, and comprehensive protection circuits, this UL Listed driver is ideal for both indoor and outdoor commercial-grade LED setups. Suitable for use in dry, damp, and wet locations.
🔹 Key Features:
-
Output Power: 200W
-
Output Voltages:
-
12V DC @ 16.67A
-
24V DC @ 8.33A
-
-
Input Voltage: 110–277V AC, 50/60Hz
-
Efficiency (Typical):
-
12V: 86% @120V, 88% @277V
-
24V: 88% @120V, 90% @277V
-
-
Power Factor: > 0.9
-
THD: < 20% @ full load
-

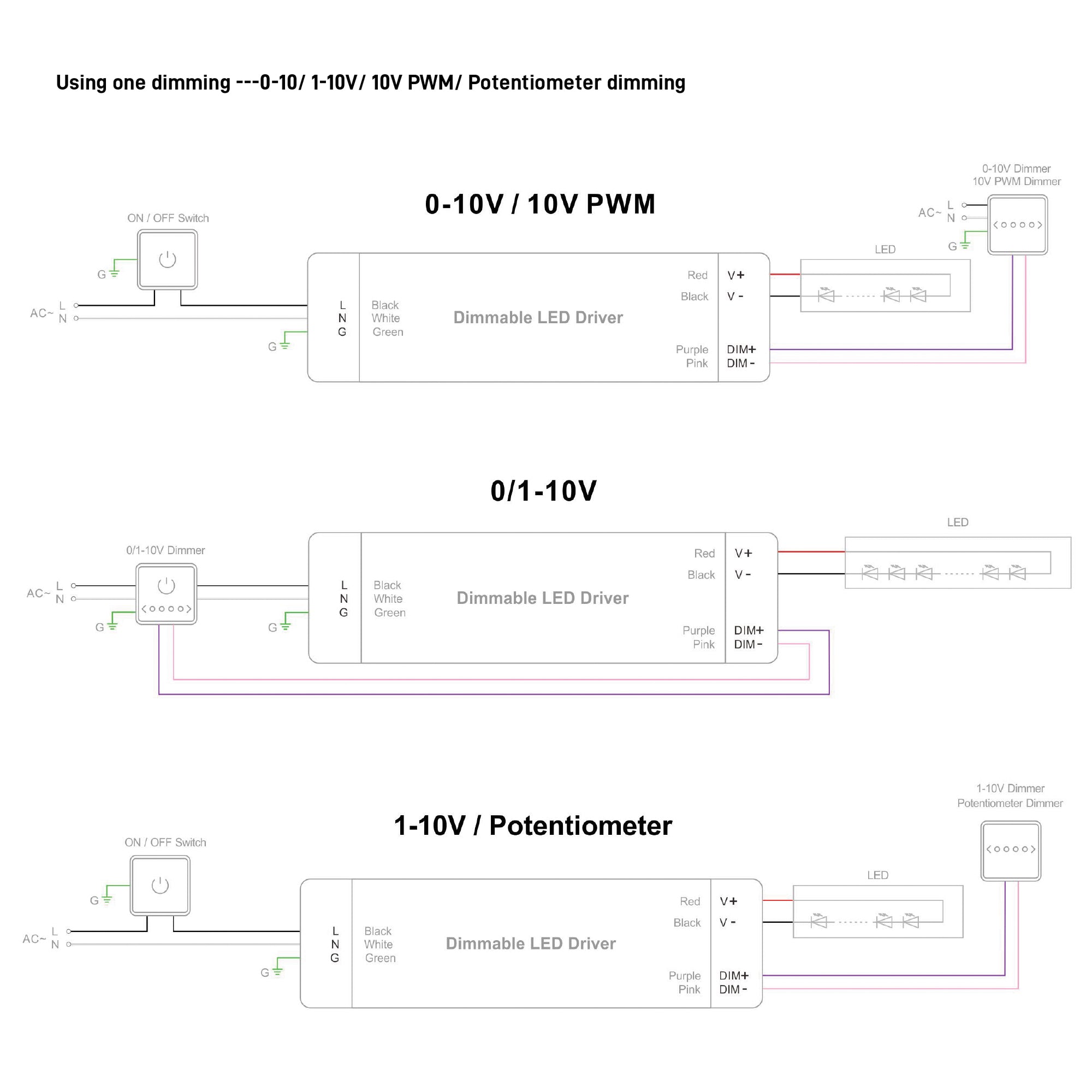

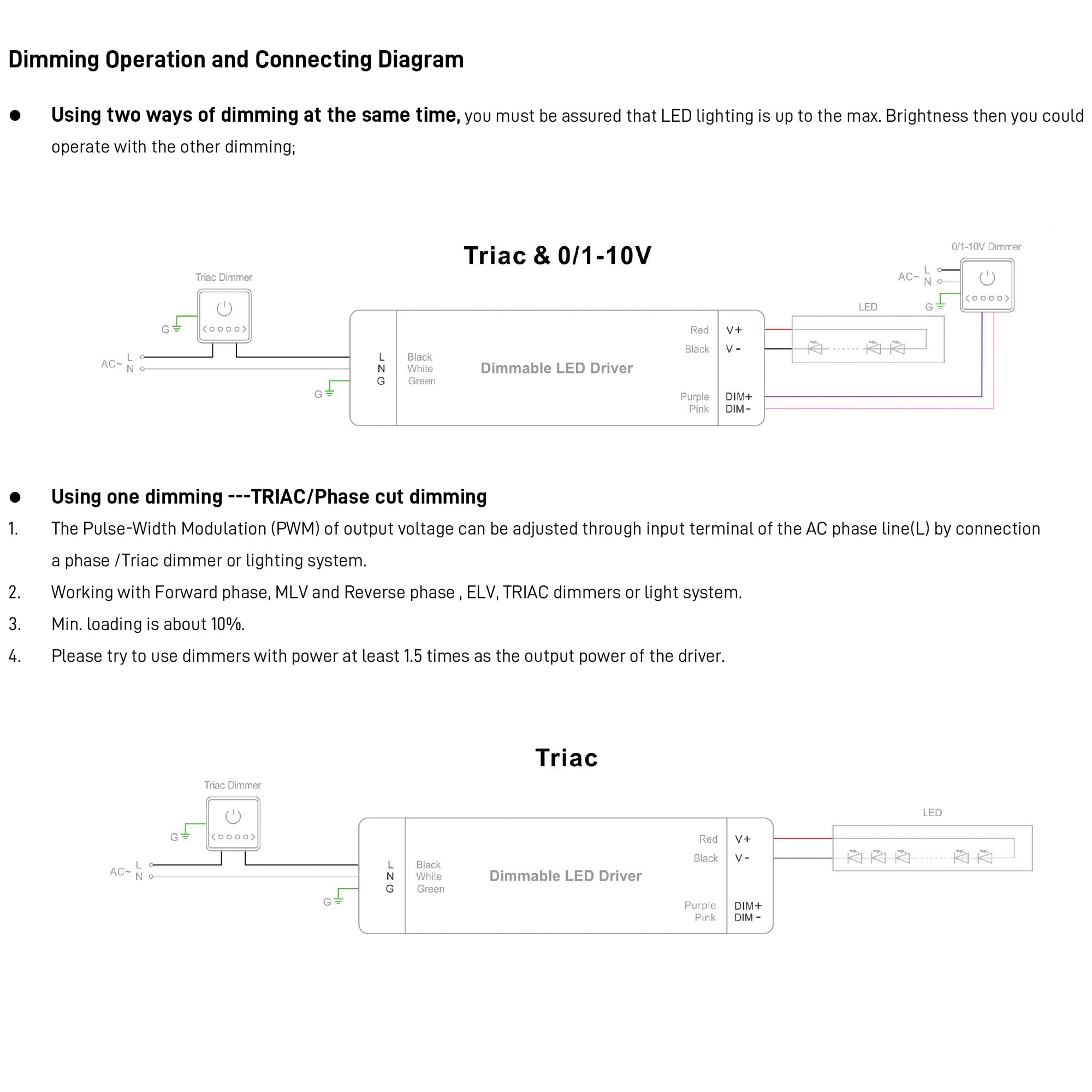

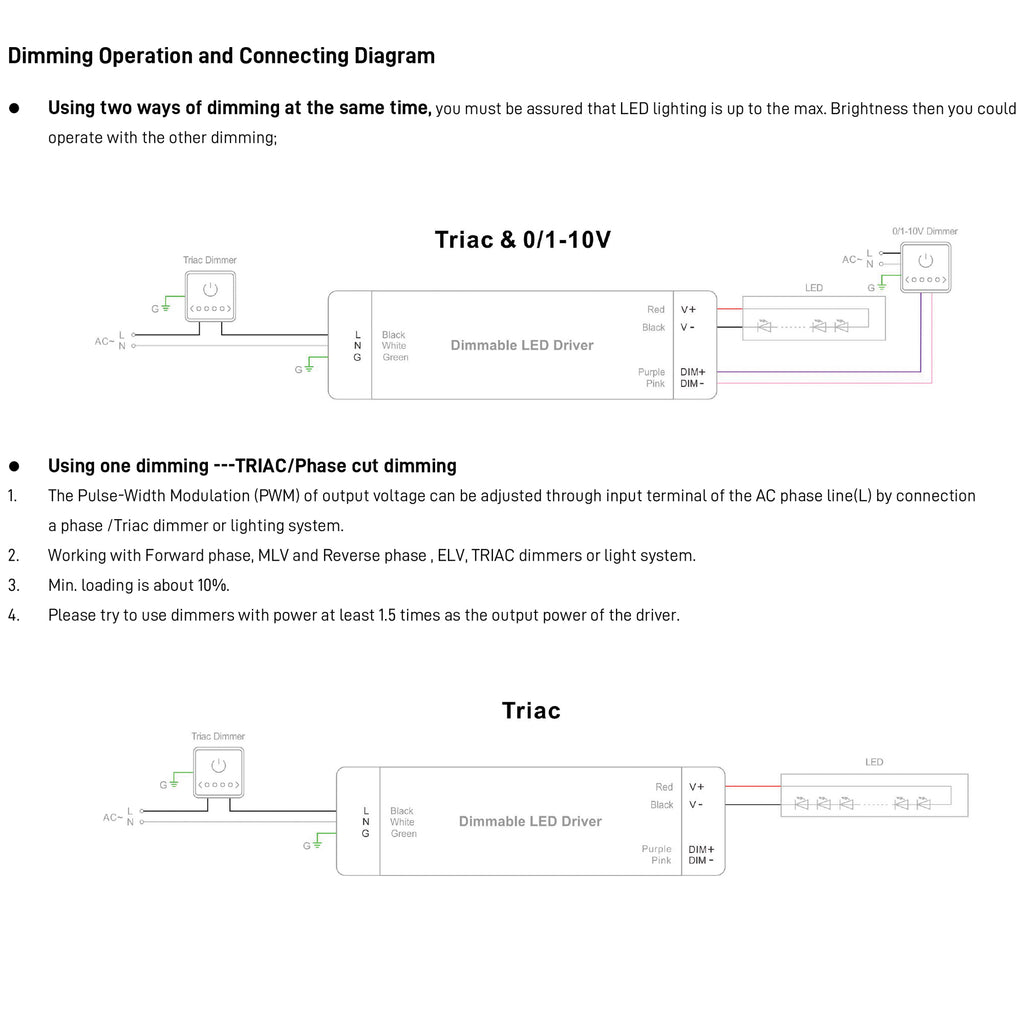

Dimming Options:
-
TRIAC / ELV / MLV (Forward & Reverse Phase)
-
0-10V / 1-10V / 10V PWM / Potentiometer
-
-
Dimming Range: 0.1–100%, flicker-free PWM output
-
Certifications: UL / cUL, FCC, SELV, RoHS, Type HL, UL8750
-
Protections:
-
Short Circuit
-
Overload (≥110%)
-
Thermal Shutdown @ 100 °C ±10 °C (auto-recovery)
-
-

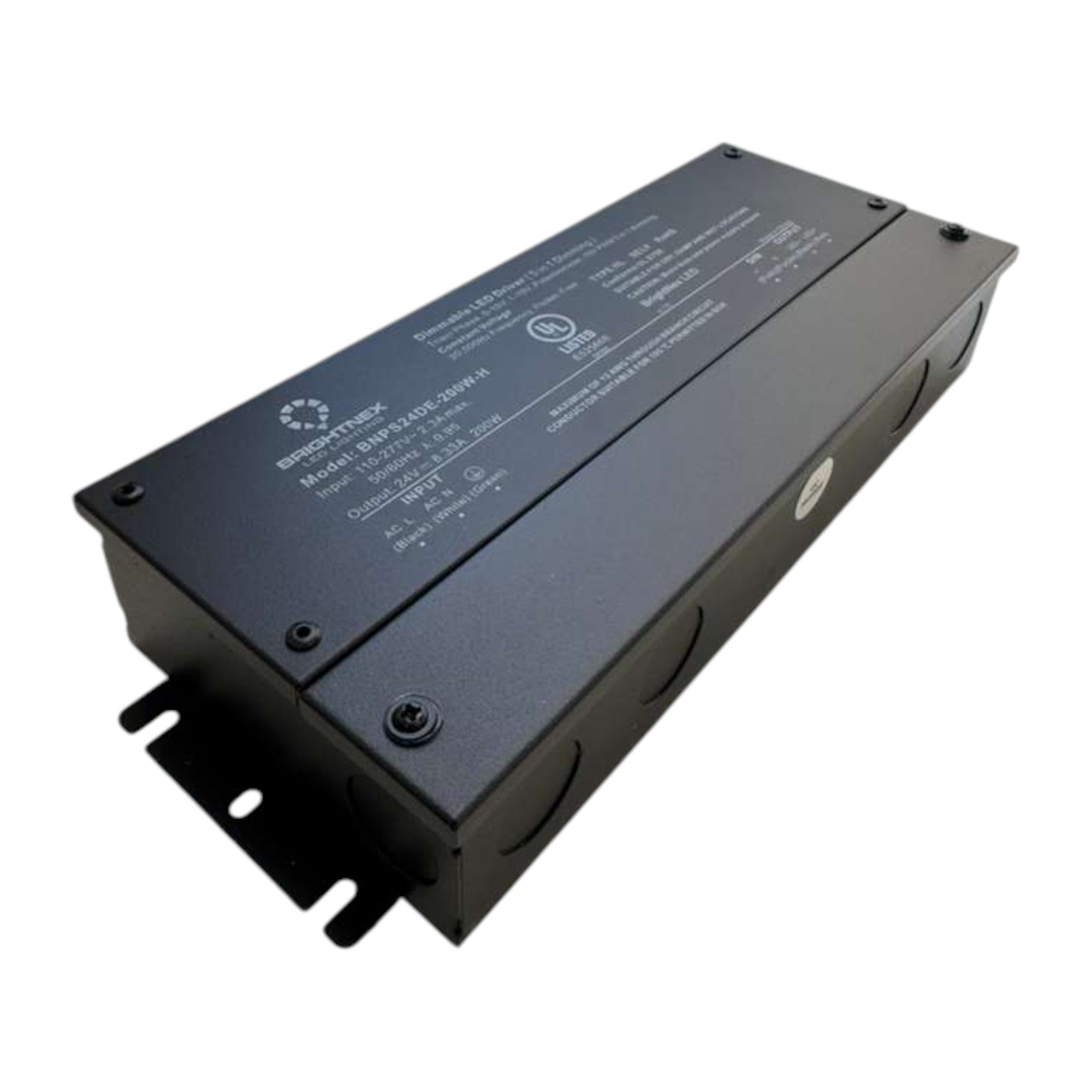

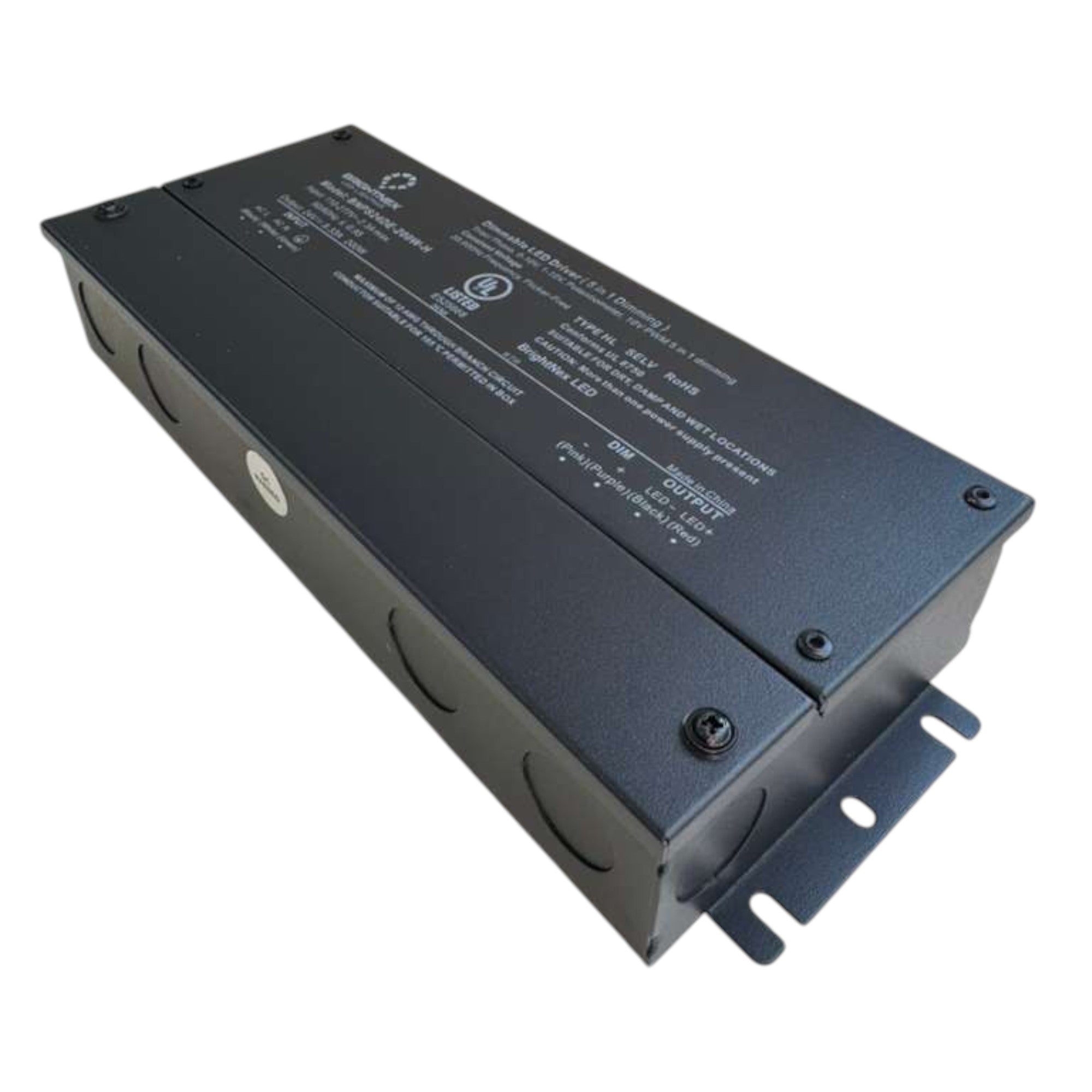

Junction Box: Integrated, for clean and secure installation
-
Environment: Rated for dry, damp, and wet locations (Not for Submersion)
-
Cooling: Natural convection
-

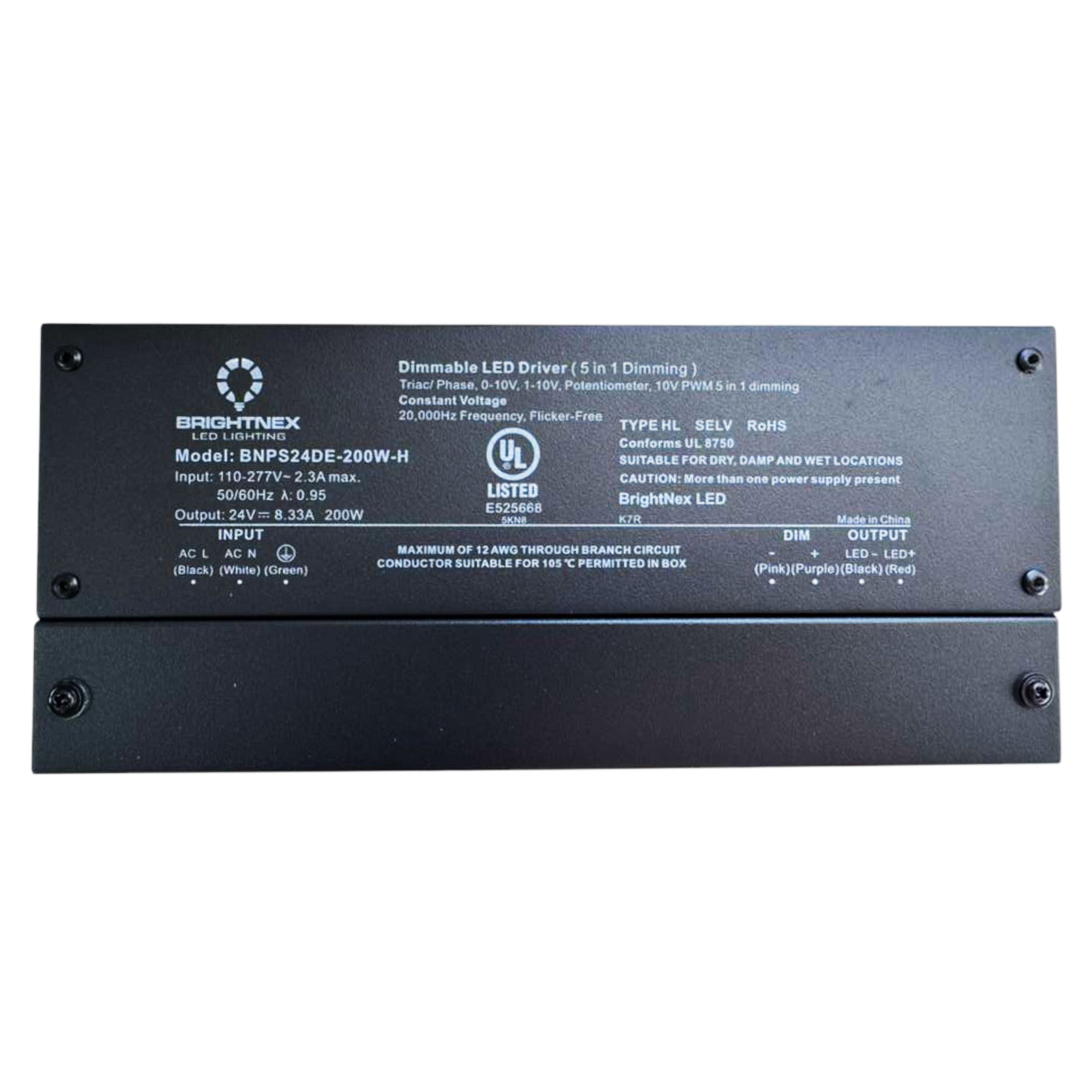

Part Number:
BNPS12DE-200W-H
BNPS24DE-200W-H
🔹 Mechanical & Wiring (Imperial Units):
-
Dimensions: 10.26" × 4.17" × 1.93"
-
Weight: 3.97 lb (1.8 kg)
-

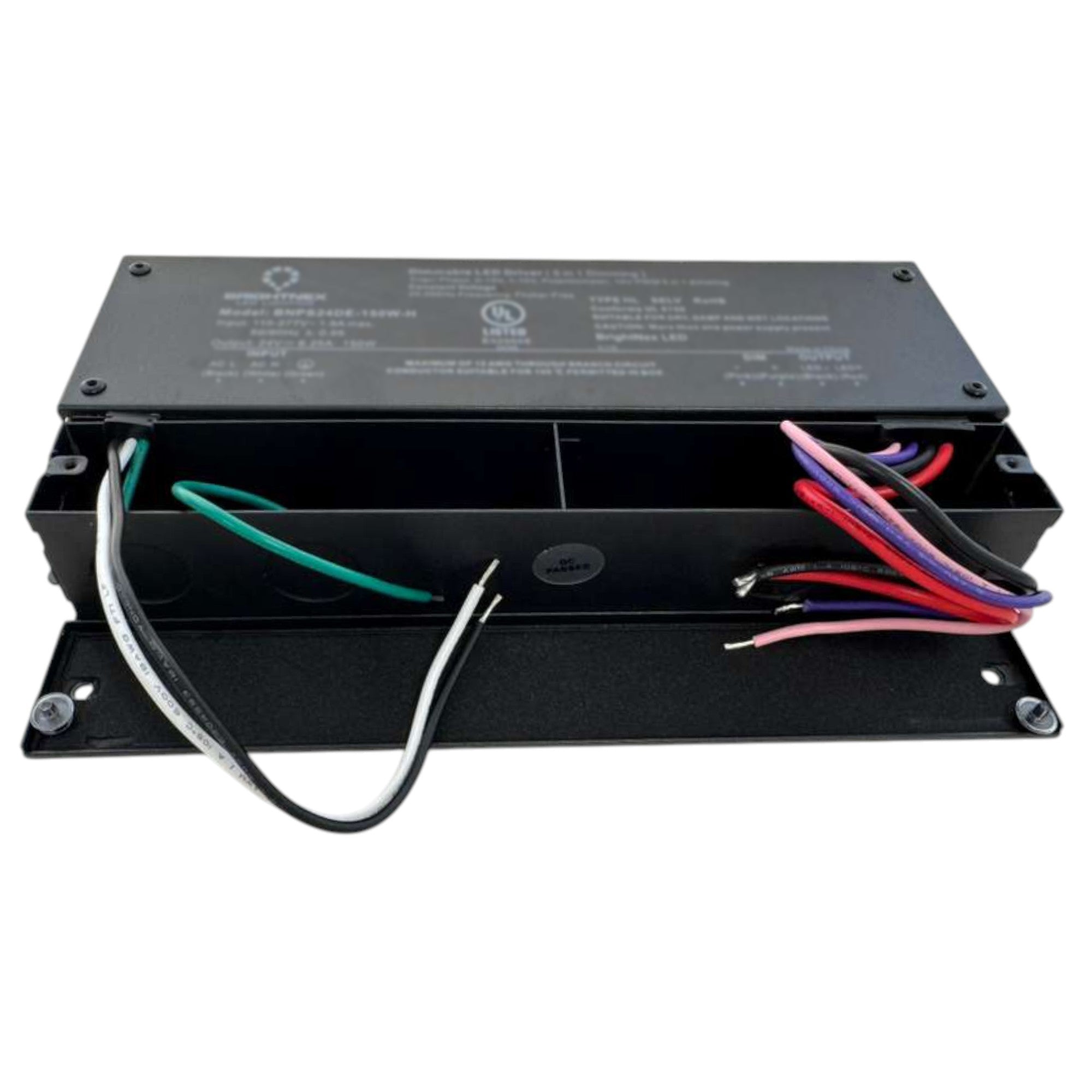

Wiring:
-
Input: Black (L), White (N), Green (GND) – 3×18 AWG
-
Output (12V): Red (V+), Black (V–) – 2×16 AWG (×2 pairs)
-
Output (24V/48V): Red (V+), Black (V–) – 2×16 AWG
-
Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG
-
