Description

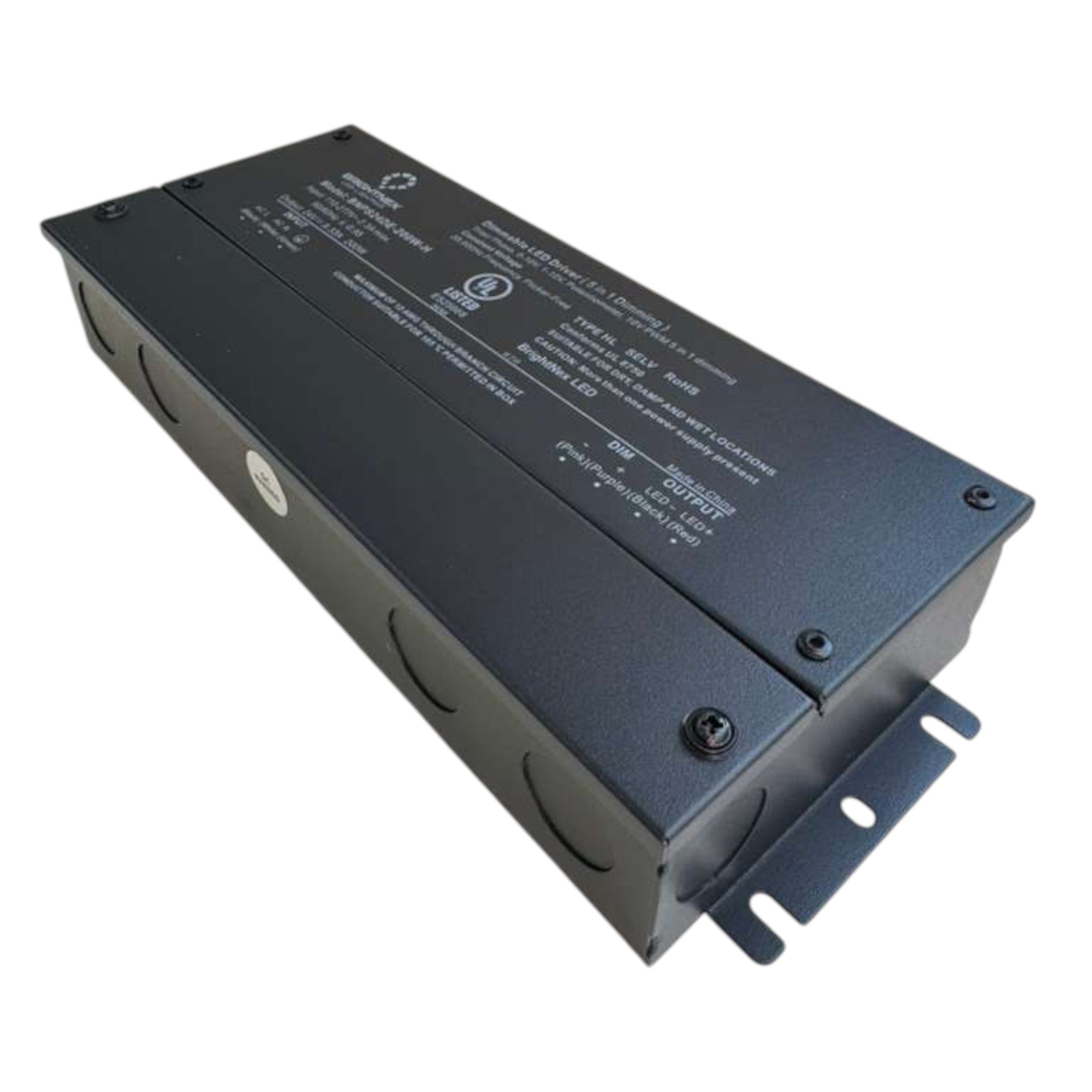

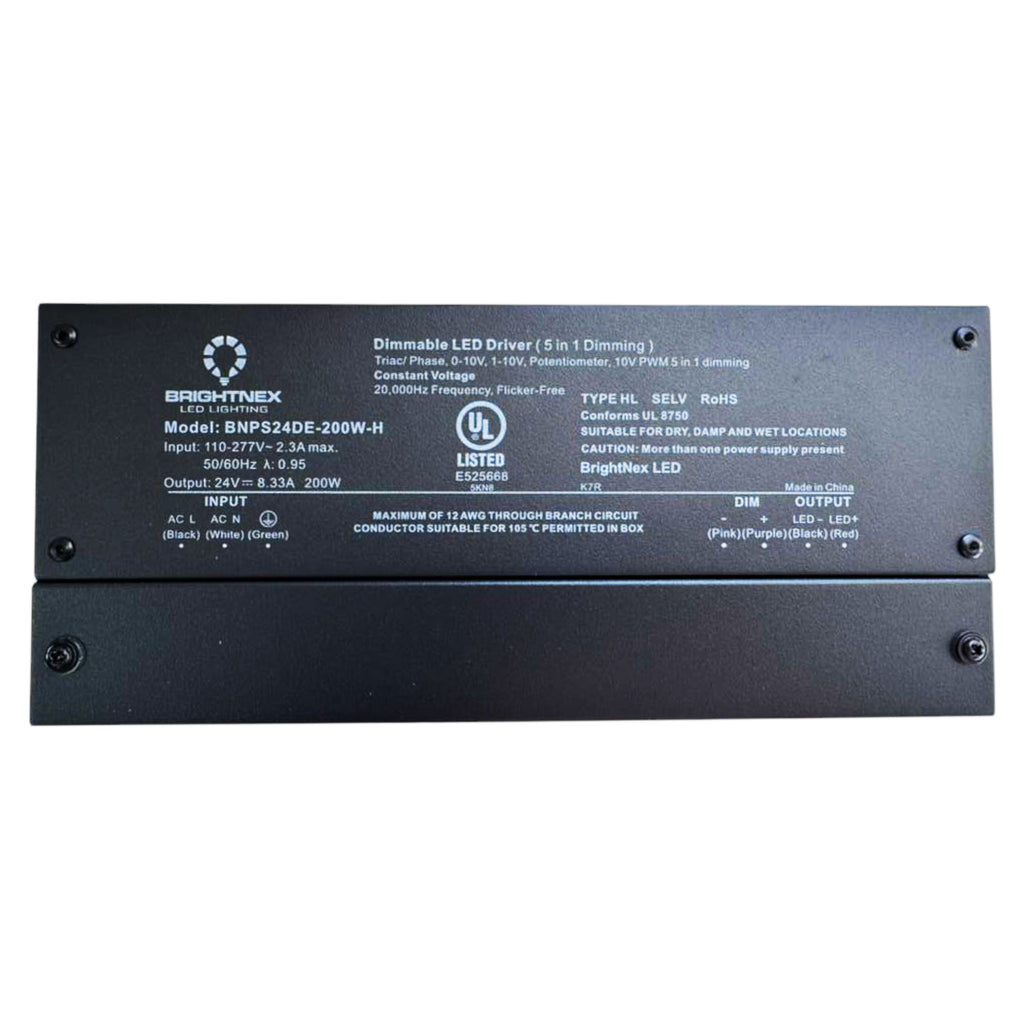

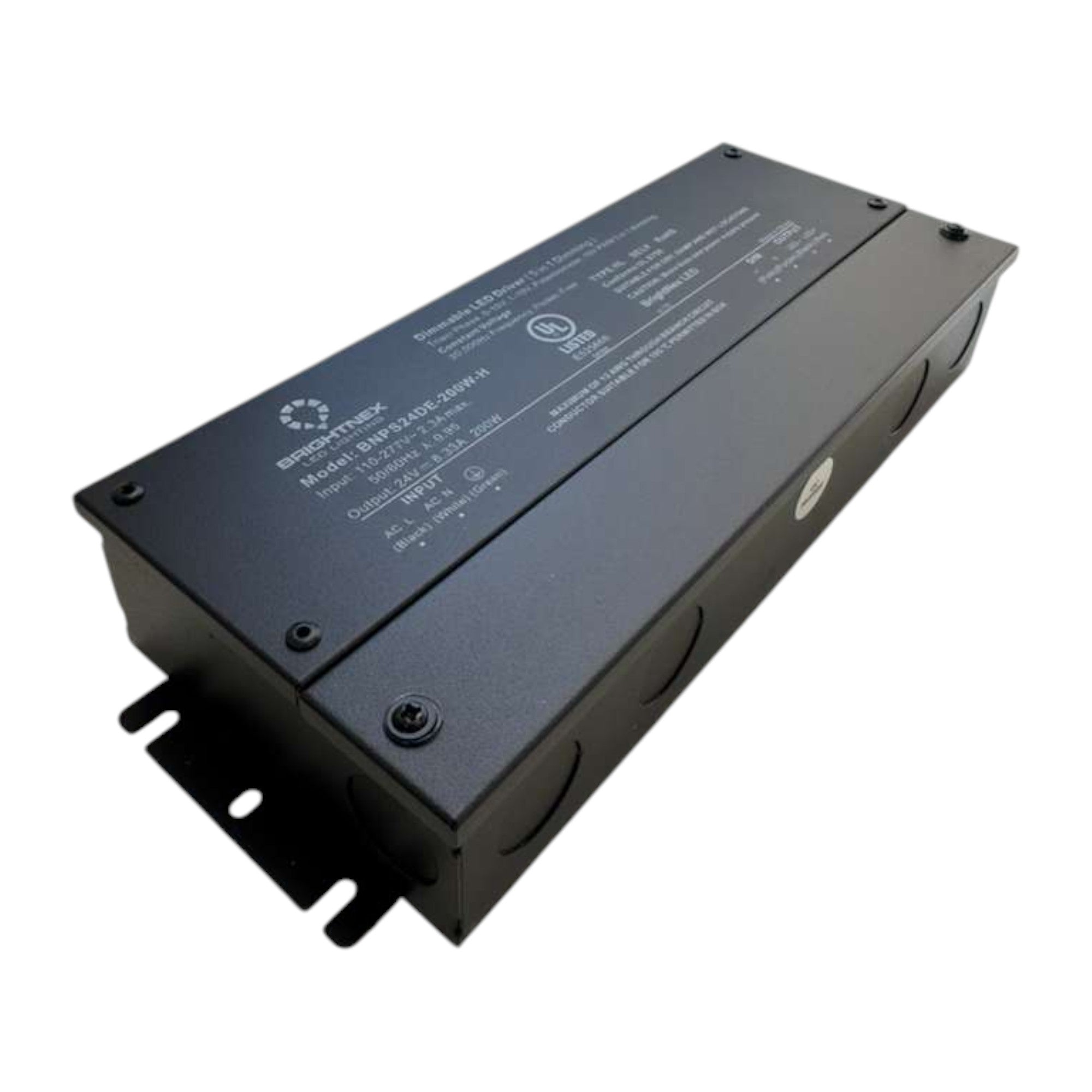

This 200W constant voltage LED driver offers advanced 5-in-1 dimming compatibility: 0-10V, TRIAC, ELV, MLV, PWM, and Potentiometer control. Designed for professional lighting installations, it delivers smooth 0.1–100% dimming with flicker-free performance and up to 90% efficiency. With integrated junction box and full protection against short circuit, overload, and over-temperature, this UL / cUL / FCC / TYPE HL / SELV / RoHS certified driver is ideal for LED strips, signage, and architectural lighting in dry, damp, or wet locations. (not for submersion).
Available in both 12V (16.67A) and 24V (8.33A) outputs.
Part #: BNPS24DE-200W-H-0-10
Part #: BNPS12DE-200W-H-0-10
Features
-

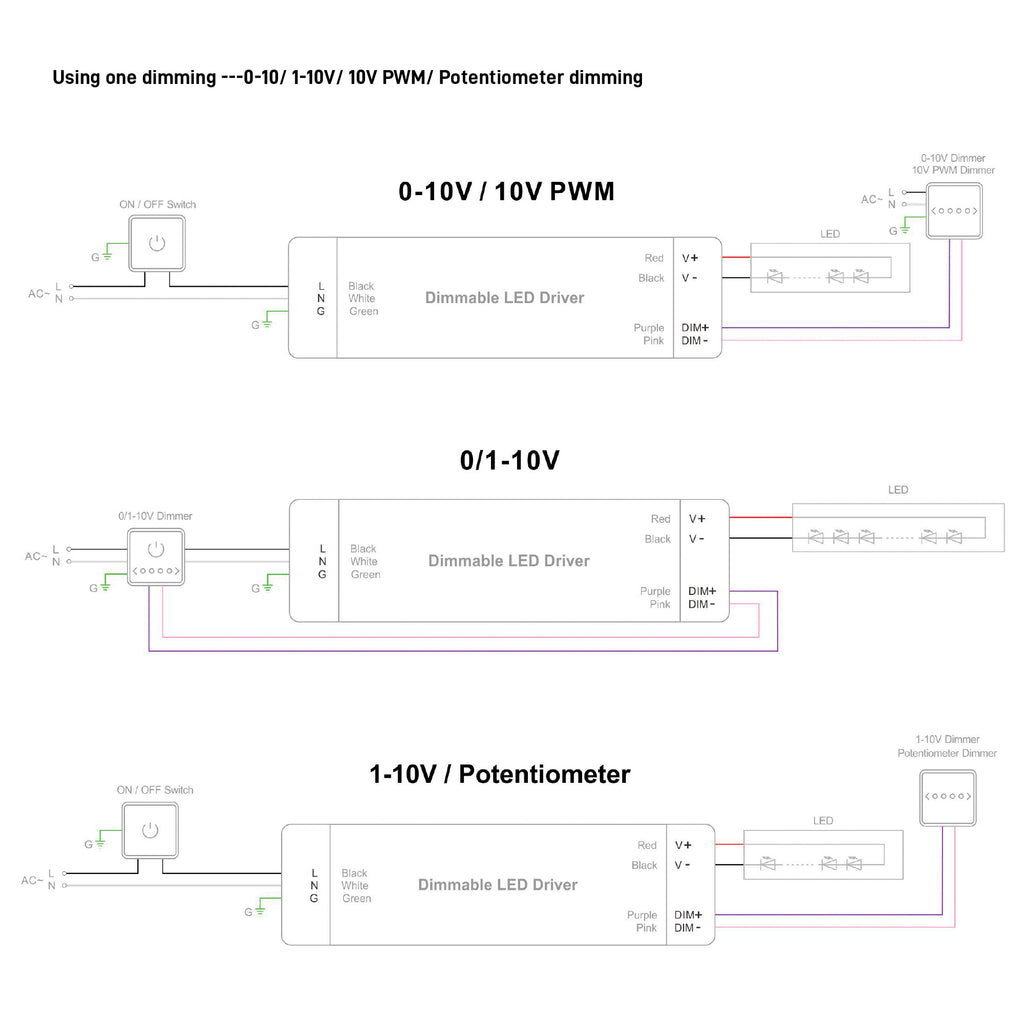

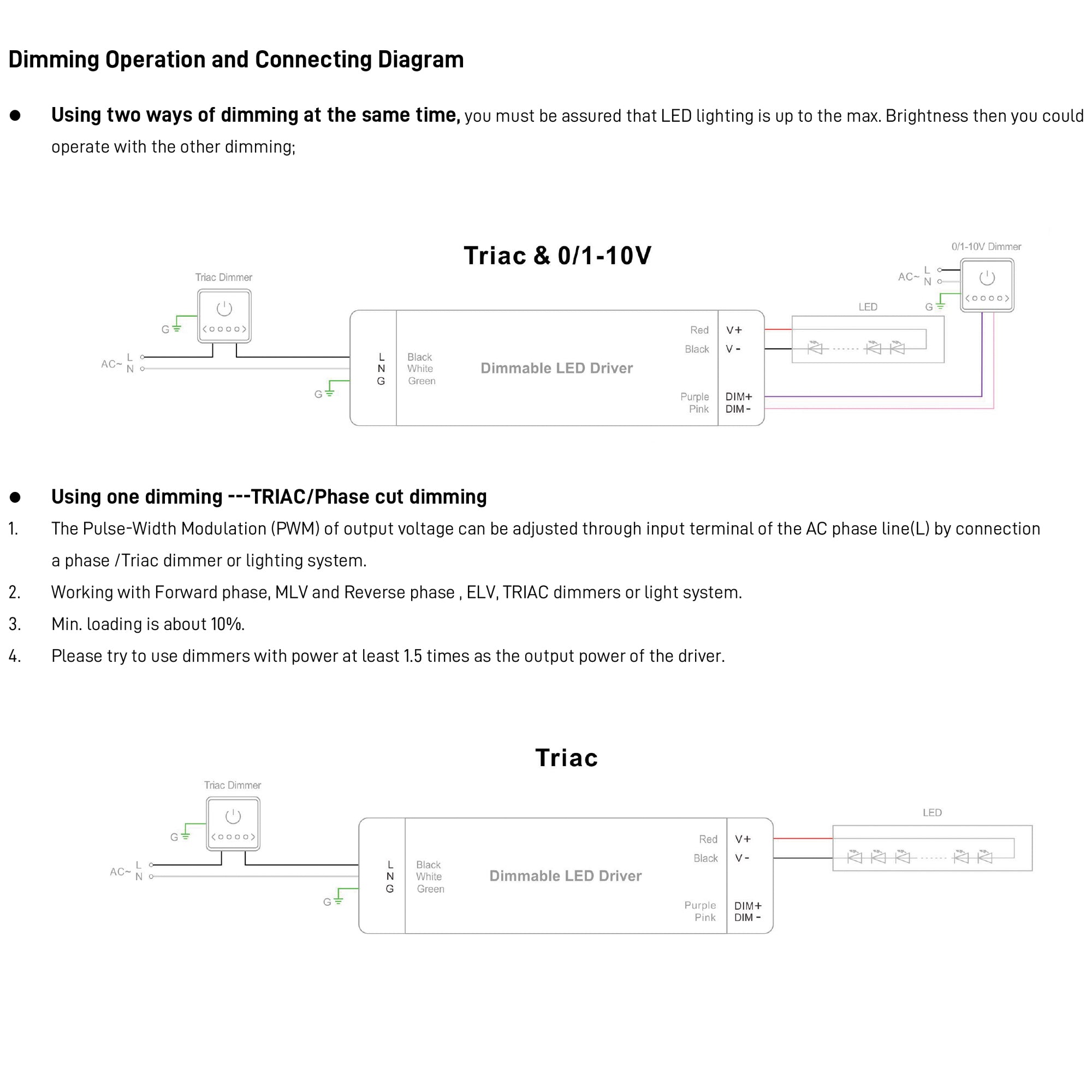

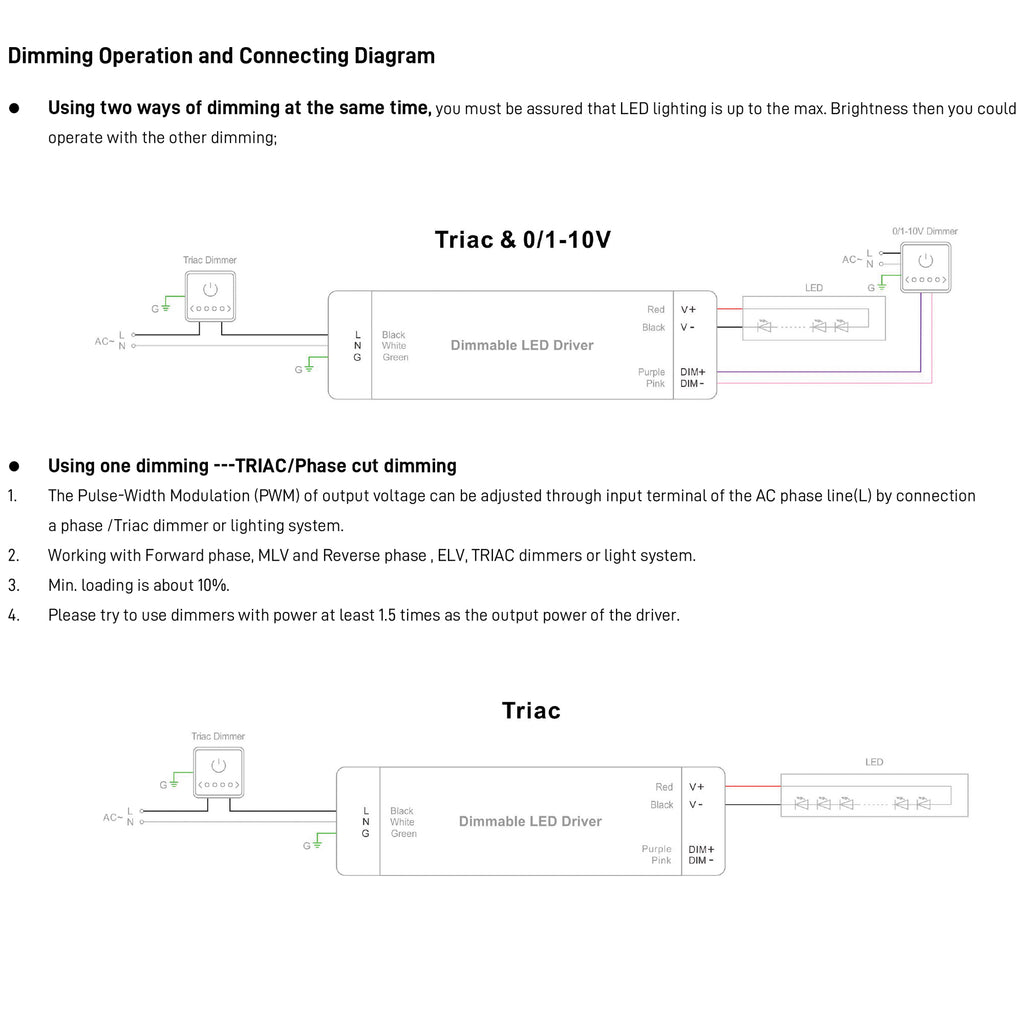

5-in-1 Dimming Compatibility: TRIAC, ELV, MLV, 0-10V, PWM, Potentiometer
-
Smooth Dimming Range: 0.1–100% flicker-free performance
-
Universal Input: 110–277VAC with built-in active PFC (up to 0.99 PF)
-
Constant Voltage Output: 12V (16.67A) or 24V (8.33A) – 200W
-
Full Circuit Protection: Overload, short circuit, and over-temperature
-
Certified & Durable: UL / cUL / FCC / TYPE HL / SELV / RoHS
-
Weather-Ready: Built-in junction box for dry, damp, and wet locations (not for submersion).
-
Efficient & Quiet: Up to 90% efficiency
-
Dimensions: 10.26" × 4.17" × 1.93" (L×W×H)
