160W 24V CCT Adjustable LED Driver with Built-In Dimming – UL Listed, Flicker-Free –


Description

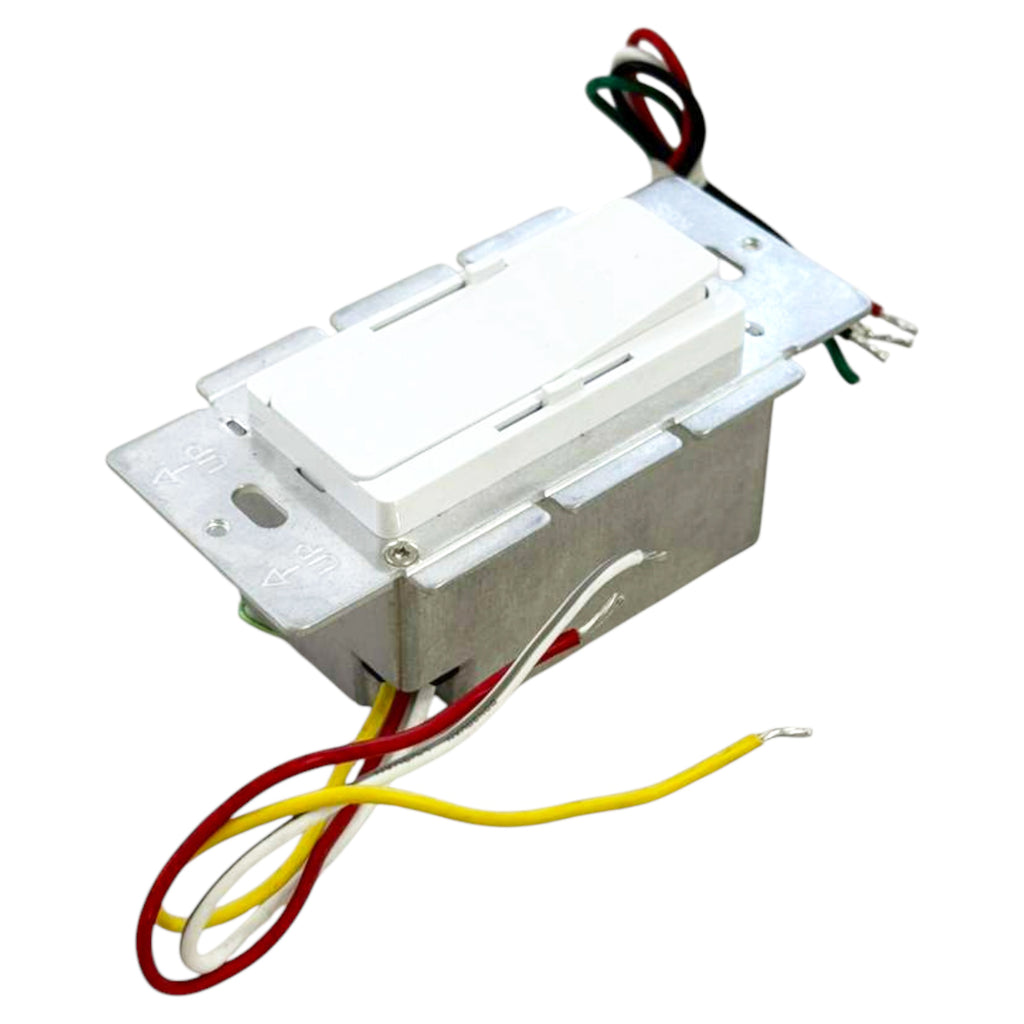

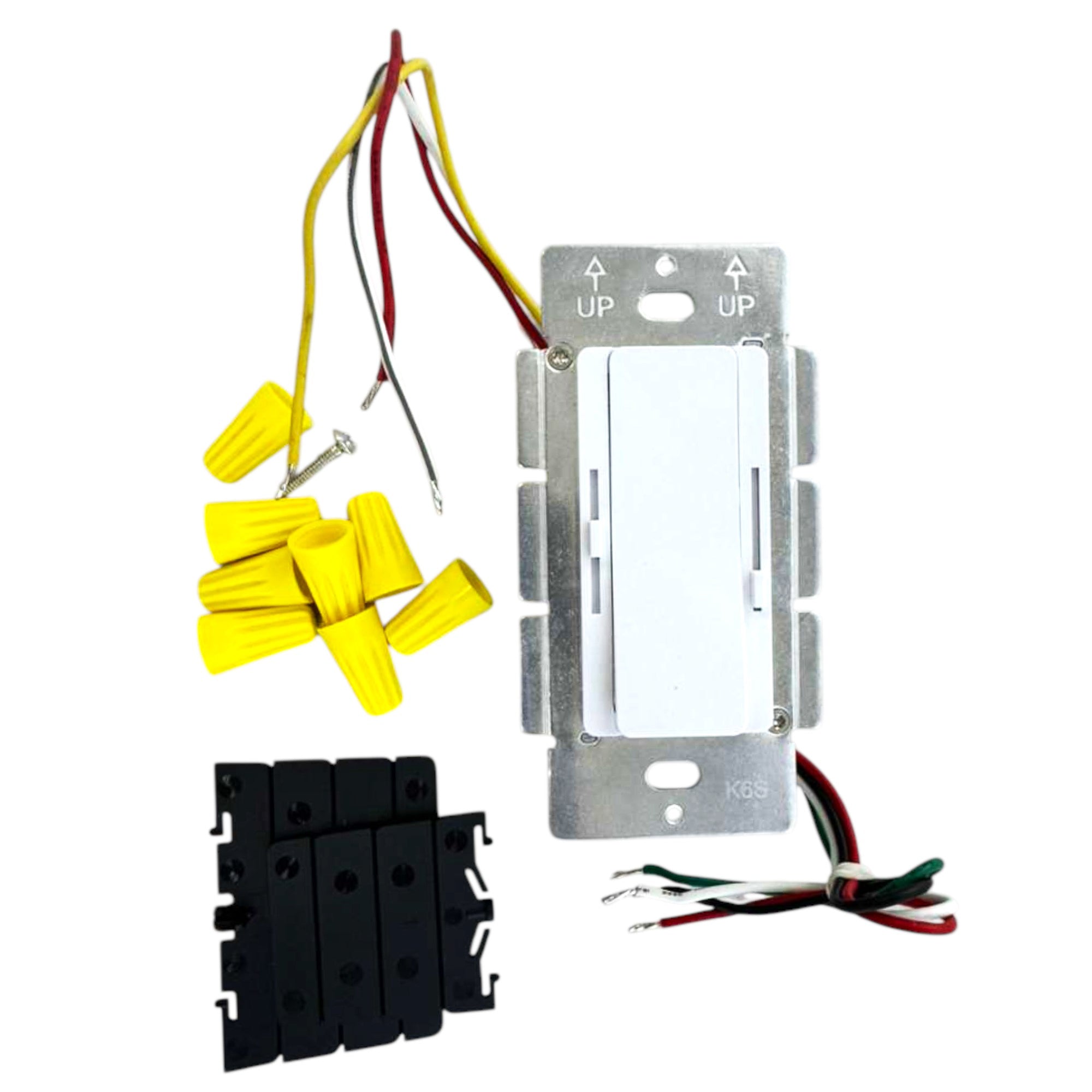

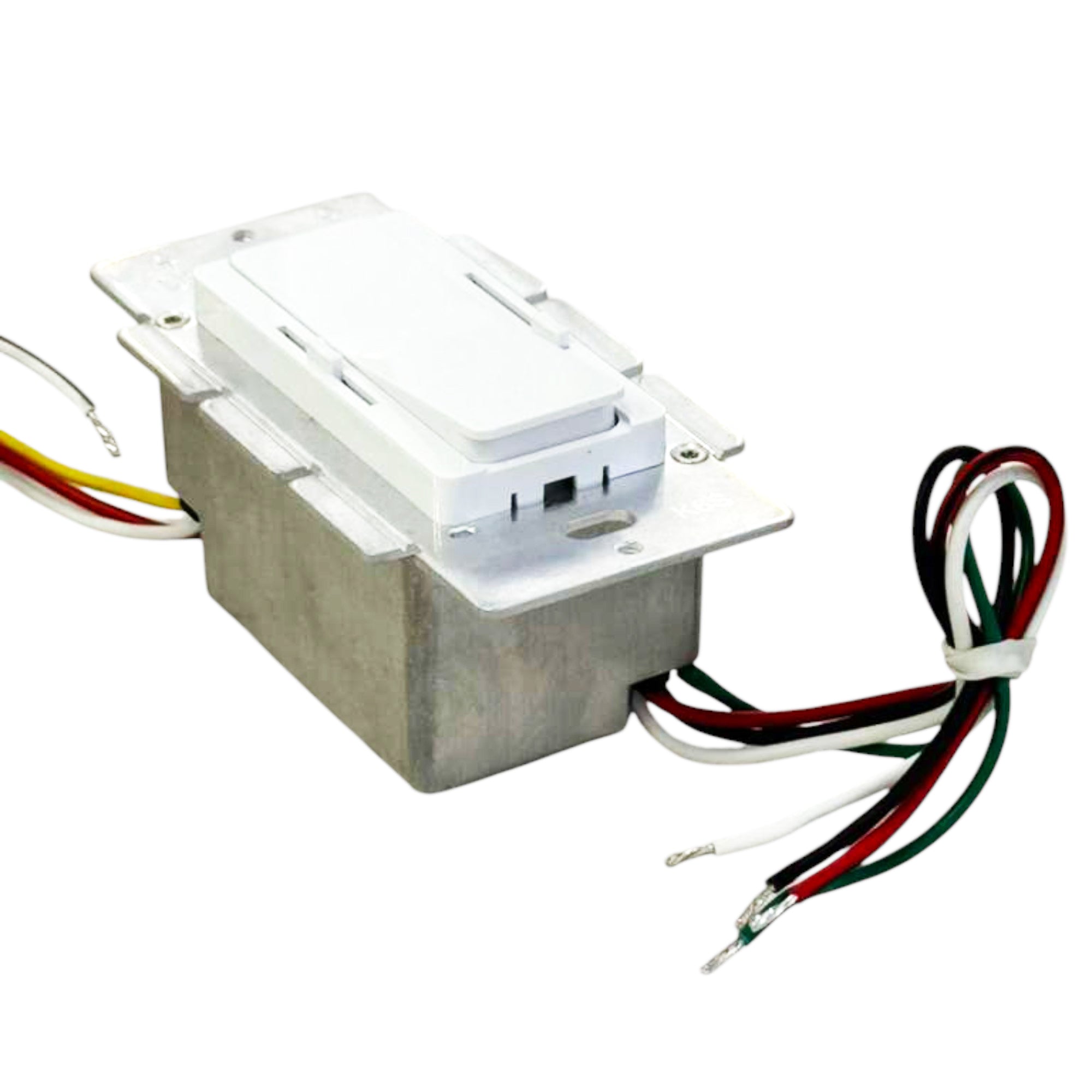

This 160W constant voltage LED driver integrates advanced dimming and CCT tuning in one compact unit, featuring a built-in dimmer switch and fine-tuning voltage knob. It offers ultra-smooth 0.3%–100% brightness control with flicker-free 16kHz PWM output and a gamma 2.2 dimming curve. With high power factor, thermal and overload protection, and safety certifications, it’s an ideal choice for CCT-adjustable LED strips used in architectural lighting, commercial buildings, and high-end residential setups.

Part #: BNPS24DE-160W-C

Feature

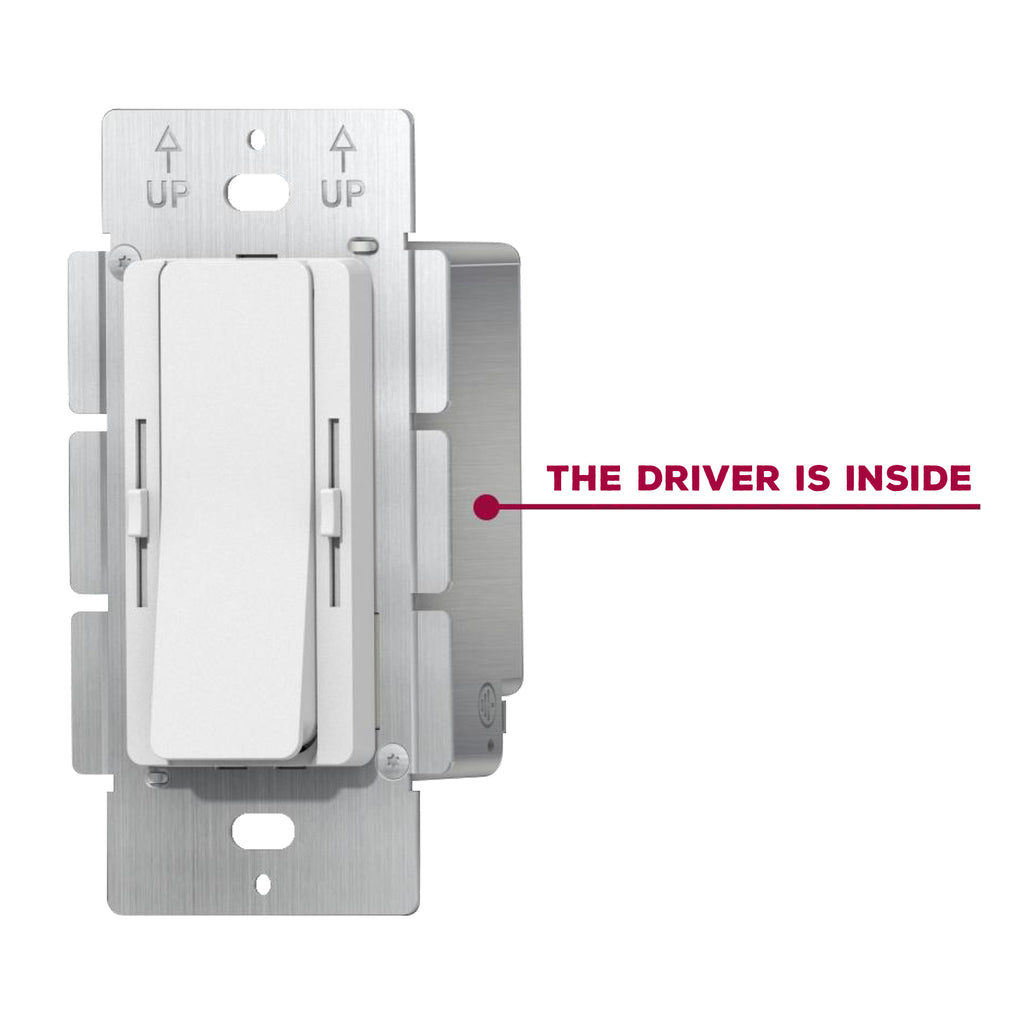

  • Driver + Dimmer 2-in-1: Integrated dimming and CCT tuning in one unit

  • CCT Adjustable: Onboard switch adjusts between warm and cool color tones

  • Ultra-Smooth Dimming: 0.3%–100% brightness range

  • PWM Output: 16kHz flicker-free with gamma 2.2 curve

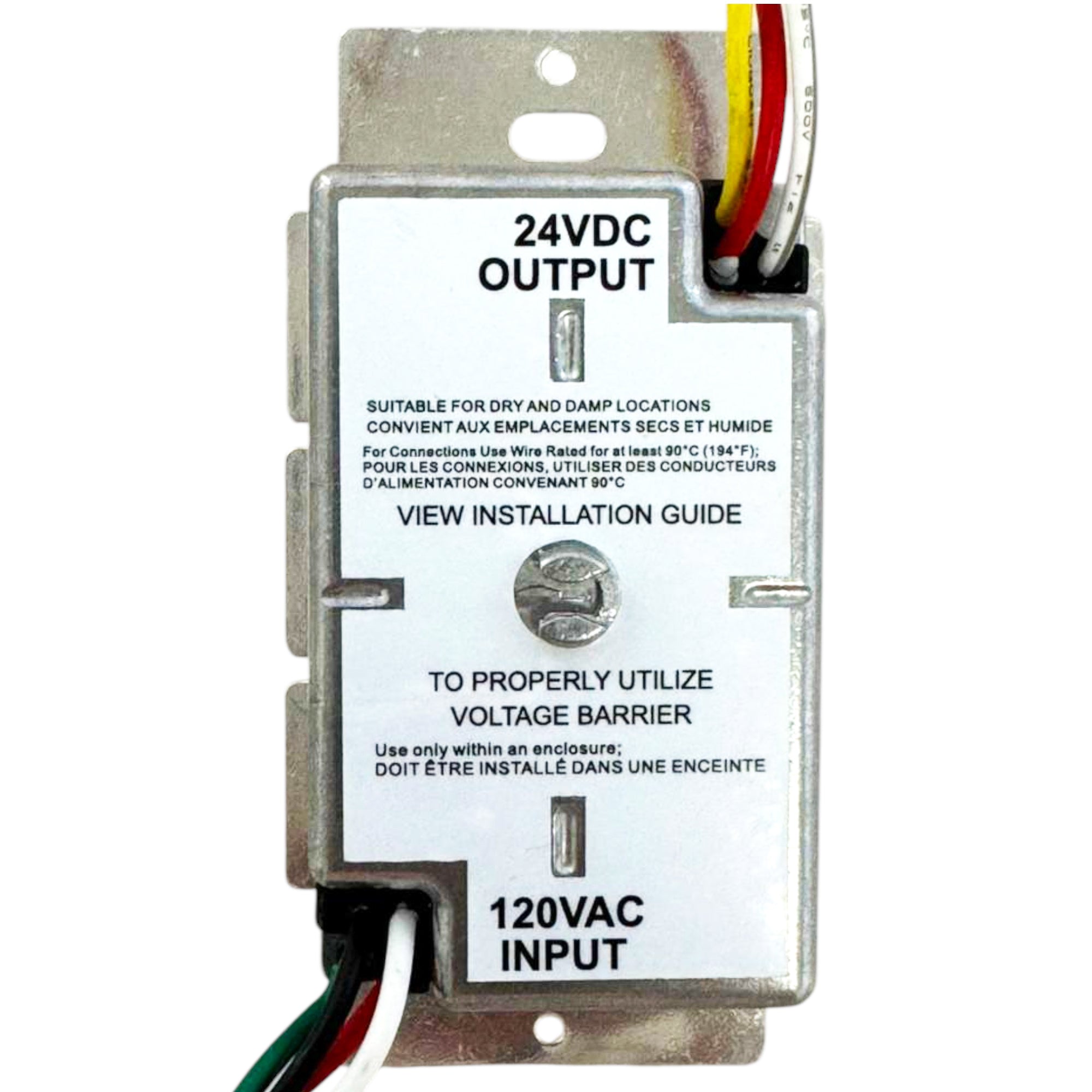

  • Output Specs: 24V adjustable to 26V (adjust by knob), 6.67A, 160W max

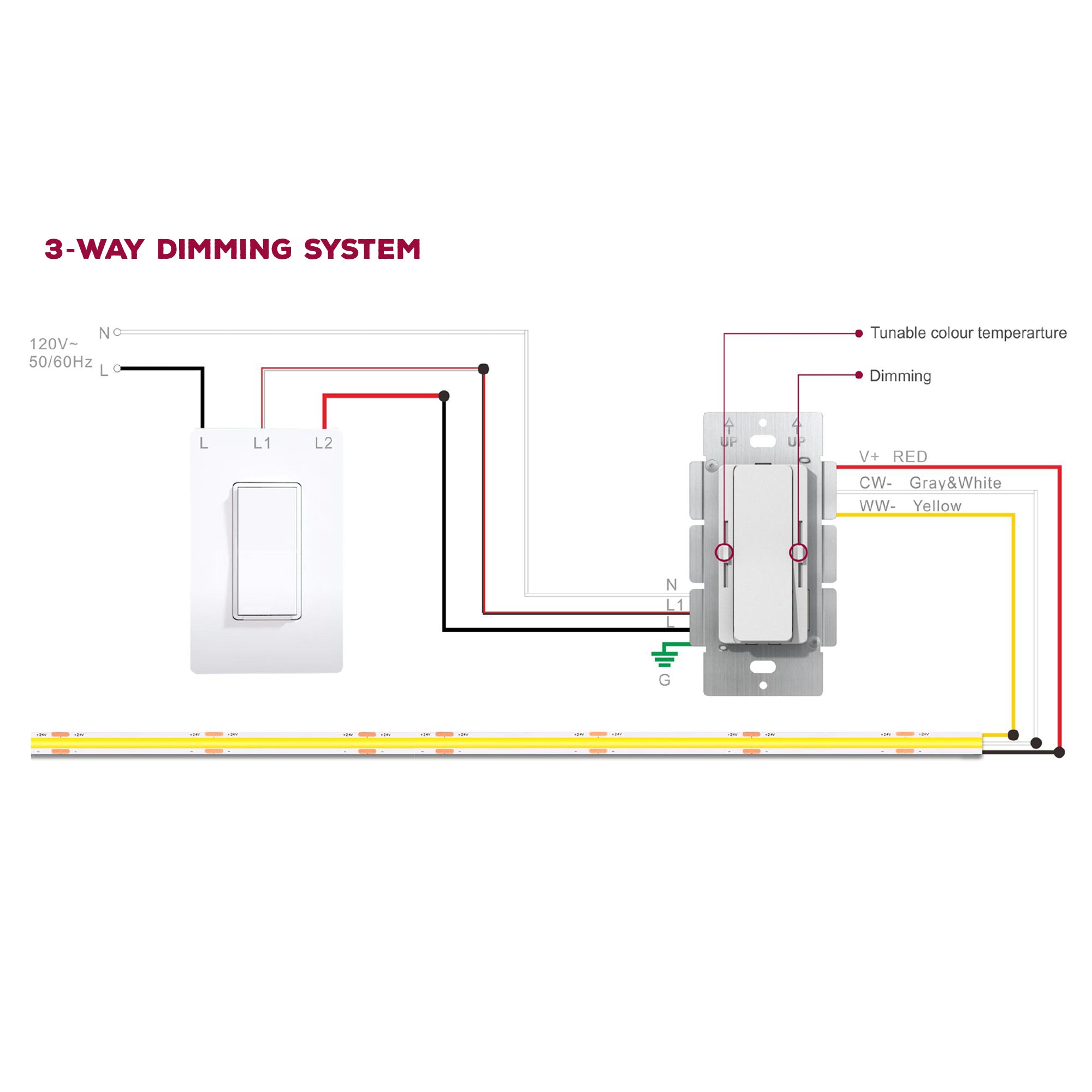

  • 3-Way Switch Compatibility
    Works with standard 3-way lighting setups — flexible control from multiple locations.

  • Universal Compatibility: No dimmer-driver conflicts

  • Certified for Safety: UL / cUL / FCC / Class P / SELV / RoHS / Reach

  • High Efficiency: Power Factor up to 0.99

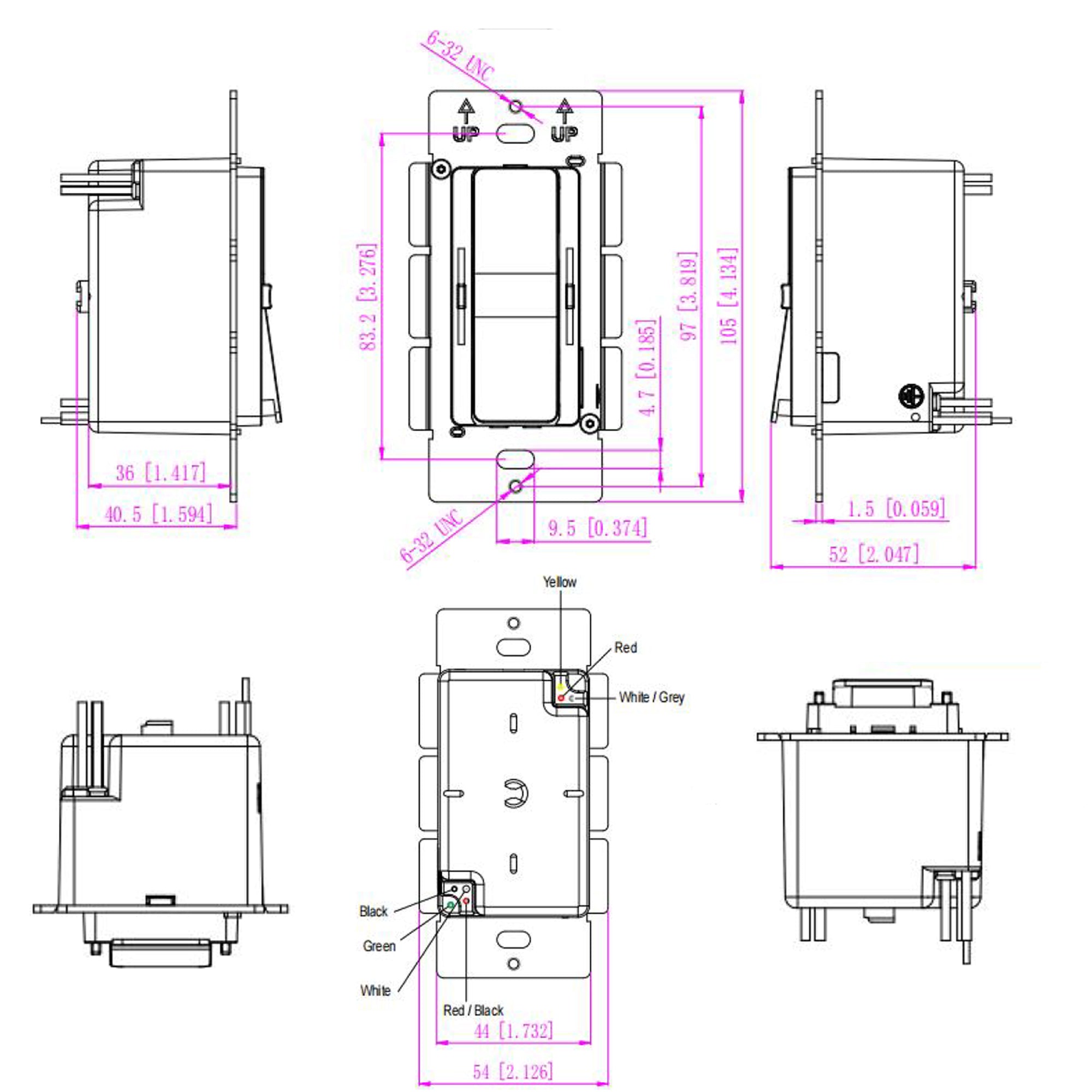

  • Compact Size: 4.13" × 2.13" × 2.00"

  • Application Ready: Ideal for LED strips in commercial buildings, architectural projects, and smart residential lighting
