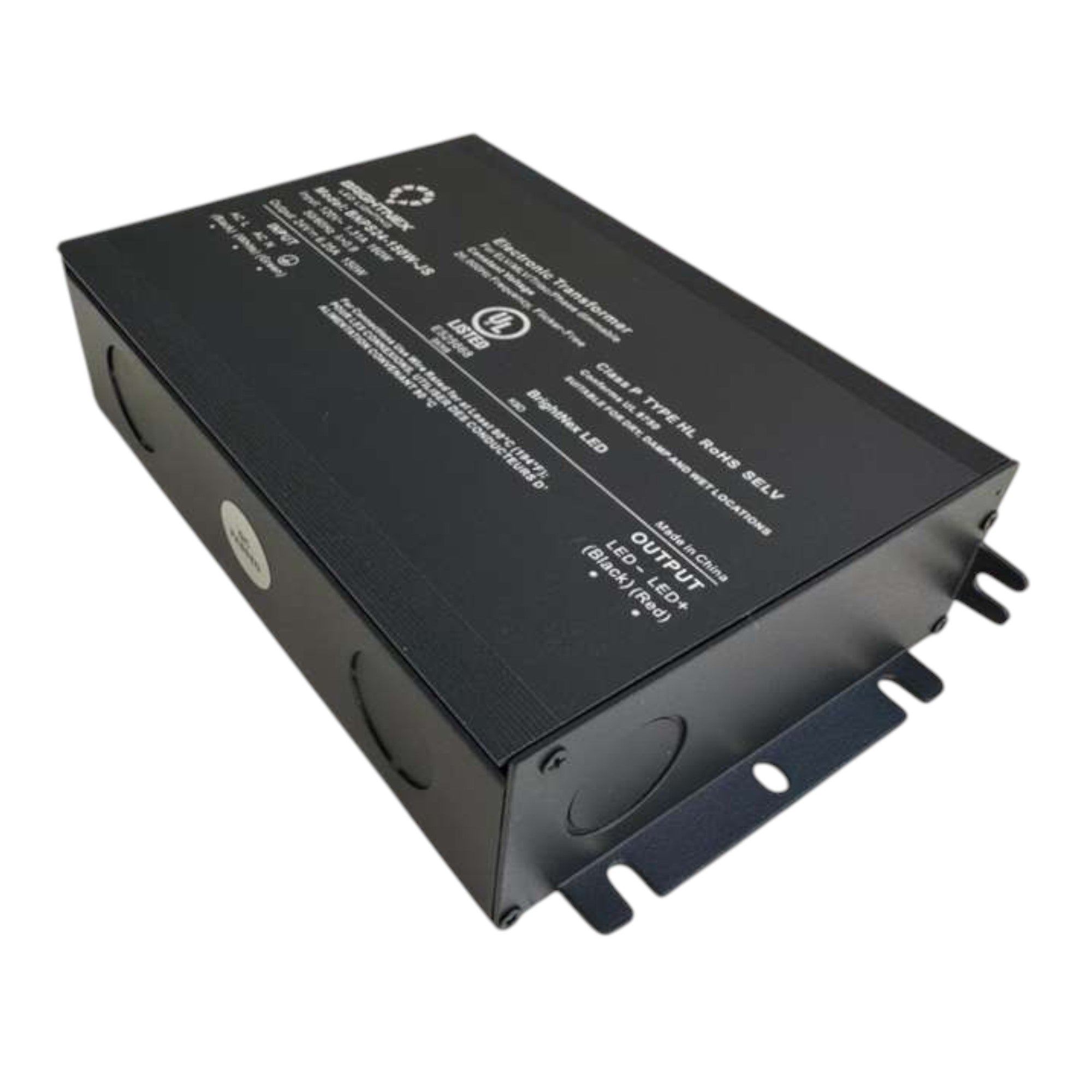

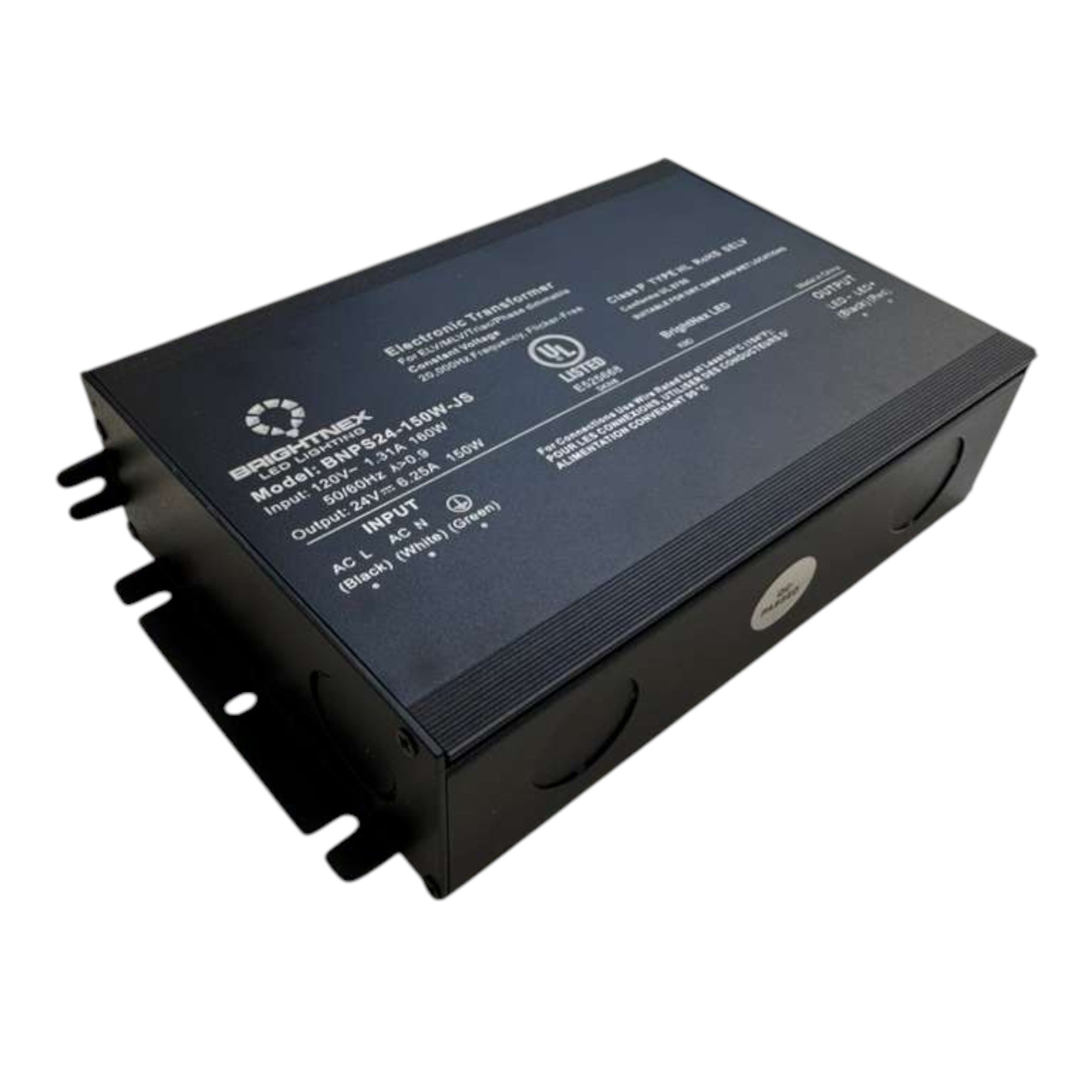

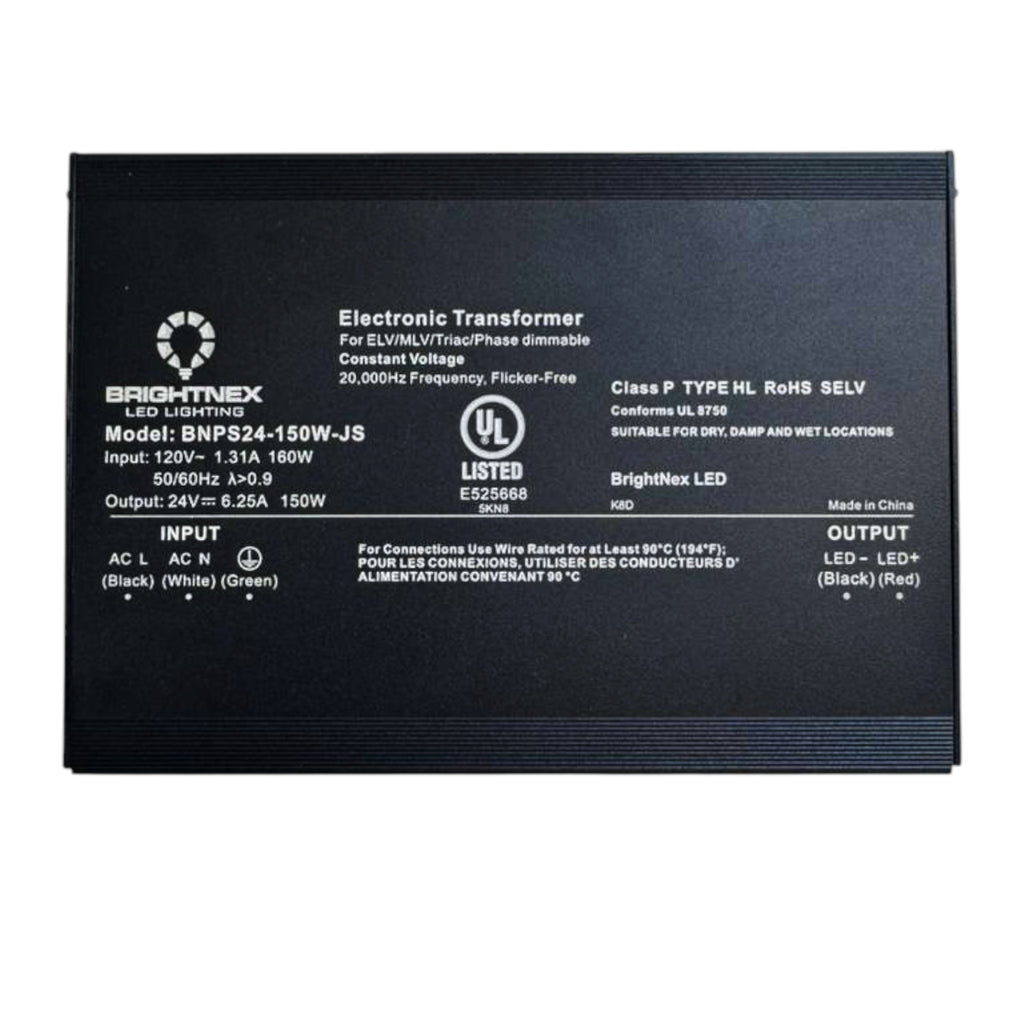

150W TRIAC / ELV / MLV Dimmable LED Transformer – 24V Constant Voltage – with Junction Box

This 150W constant voltage transformer provides 0–100% dimming with TRIAC, ELV, and MLV dimmer compatibility. Designed for both residential and commercial lighting projects, Operates flawlessly at 10%-100% load, and is safe for dry, damp, and wet locations (not for submersion). Featuring short circuit and overload protection, it is UL / FCC / ICES-005 / Class P / TYPE HL / SELV / ROHS / REACH certified for maximum reliability in LED strip and module applications.

Part #: BNPS24-150W-JS

Features

• Dimming Compatibility: TRIAC, ELV, MLV

• Dimming Range: 0–100% dimming

• Output: 24V DC, 8.34A, 200W output

• Input Voltage: 120VAC; Power Factor: 0.94

• Waterproof Rated: Safe for dry, damp, and wet locations (not for submersion).

• Efficiency: Up to 90%

• Certifications: UL / FCC / ICES-005 / Class P / TYPE HL / SELV / ROHS / REACH

• Ultra-Low Load: Operates reliably at 10–100% load

• Protection: Short-circuit and overload protection

• Built-In Junction Box: Streamlined wiring for easy installation, For dry, damp and wet locations (not for submersion).

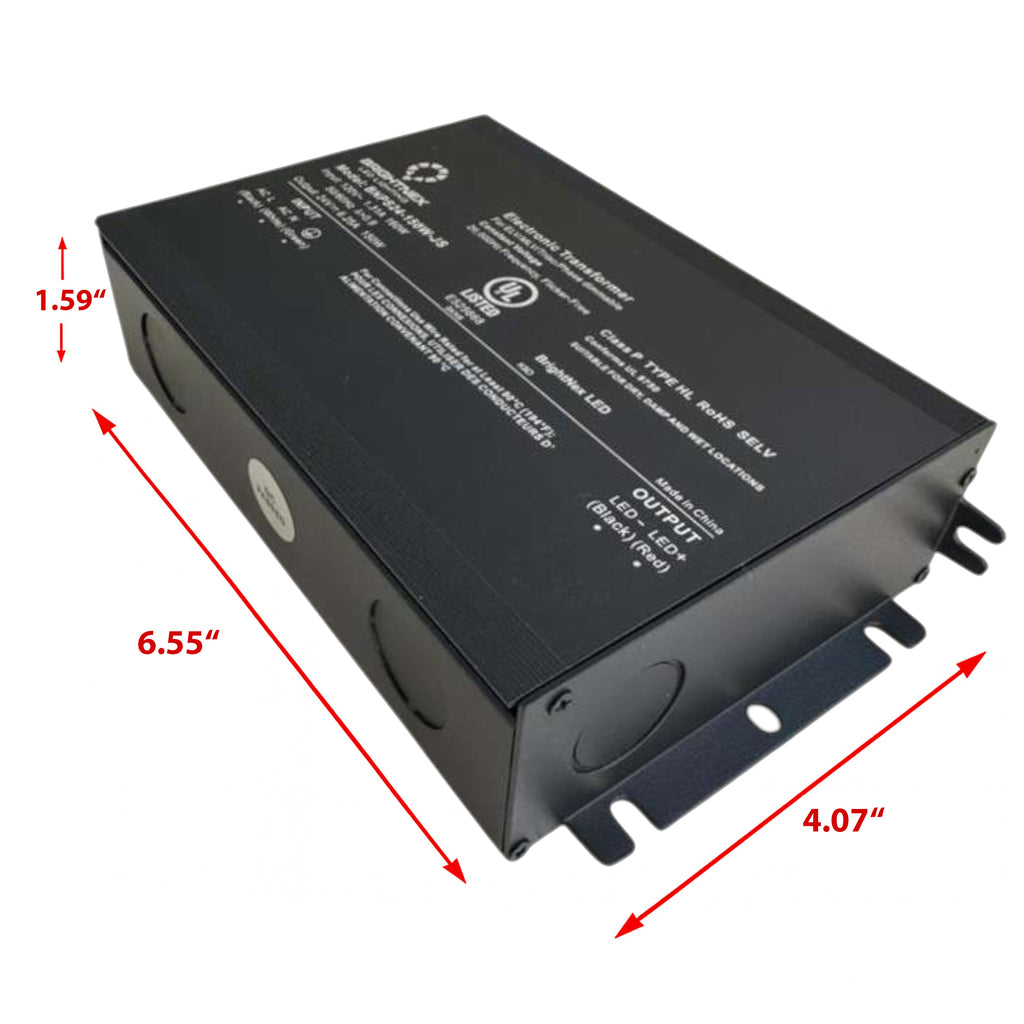

• Compact Size: 6.55" × 4.07" × 1.59" (L × W × H)
