Description
This 150W constant voltage LED driver supports smooth 0–100% dimming via TRIAC, ELV, and MLV wall dimmers, making it ideal for both residential and commercial lighting projects. With a high power factor (up to 0.99), active PFC design, and full circuit protection, it ensures safe and efficient performance. The driver operates reliably across a wide input voltage range (110–277VAC).
Available in both 12V (12.5A) and 24V (6.25A) outputs.
Features
-

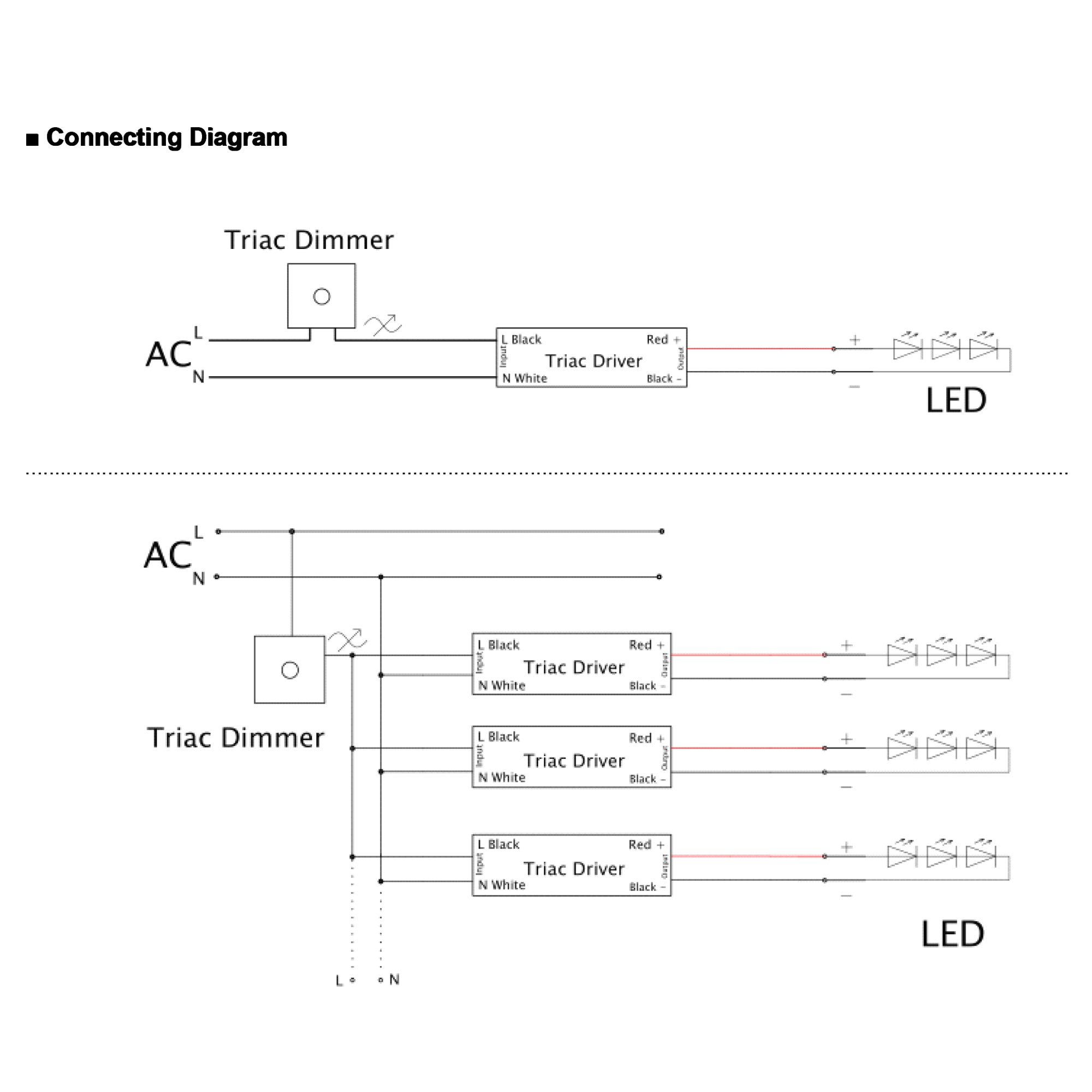

Dimming Compatibility: Works with TRIAC, ELV, and MLV wall dimmers (Phase-Cut)
-
Dimming Range: Smooth 0–100% brightness adjustment
-
Waterproof Rated: Full Iron protection housing, for dry, damp & wet locations (not for submersion).
-
Output Power: 150W max — 12V (12.5A) & 24V (6.25A) versions available
-
High Power Factor: Up to 0.99 with active PFC for efficient energy use
-
PWM Output: Flicker-free 20kHz dimming
-
Full Protection: Built-in short circuit, overload, and over-temperature safeguards
-
Certifications: UL / cUL / FCC / Class P / TYPE HL / SELV / RoHS / Reach
-

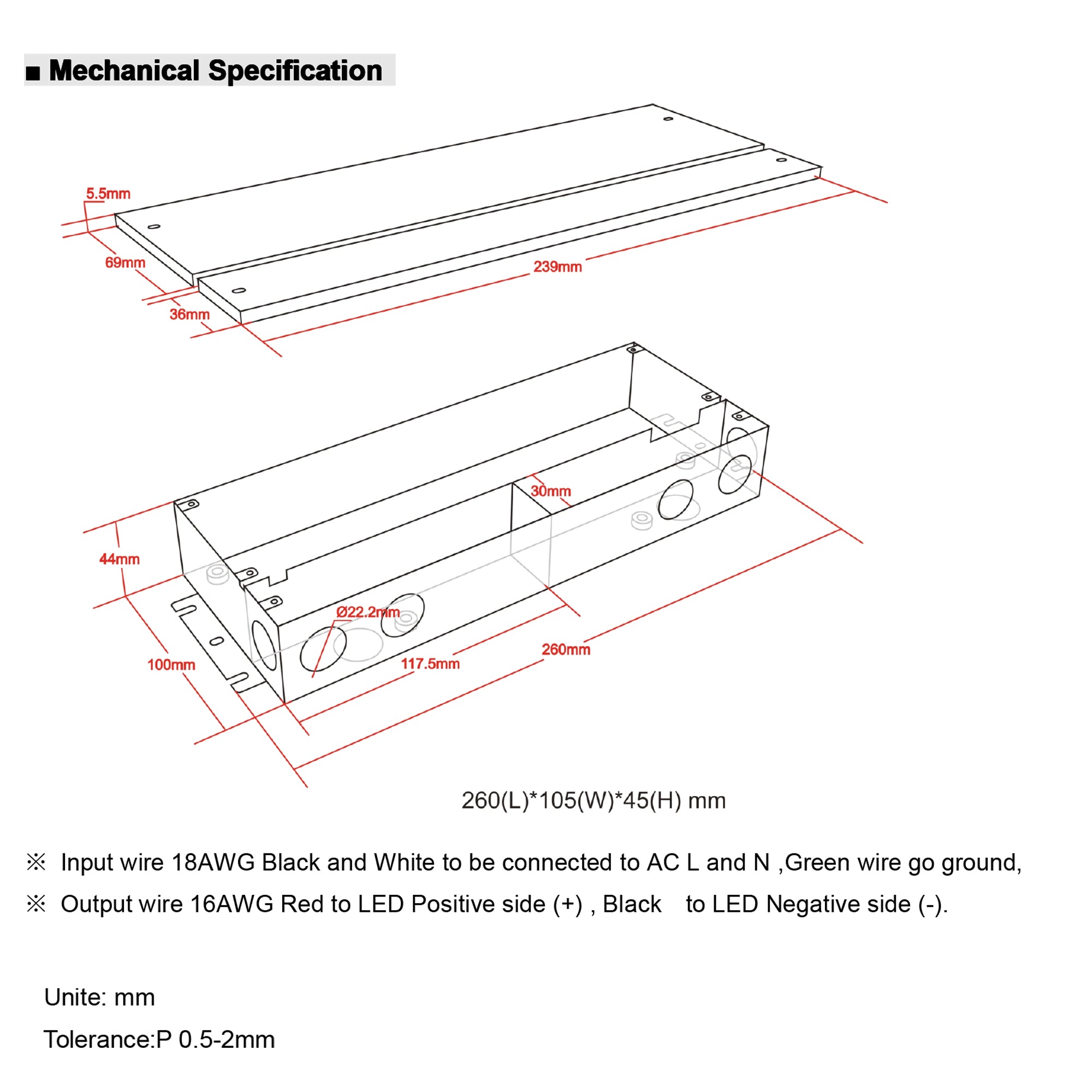

Compact Size: 10.26" × 4.17" × 1.93" (260.6 × 106 × 49 mm)
