Description

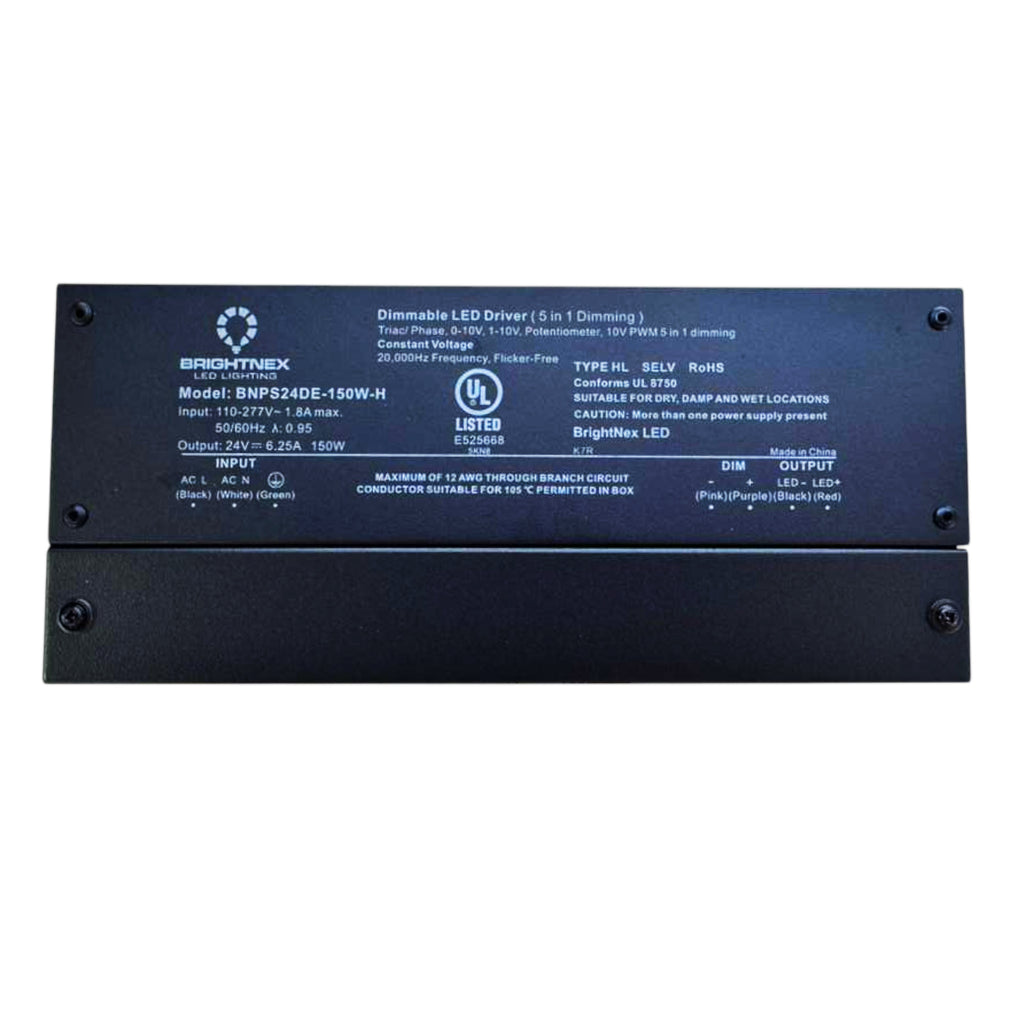

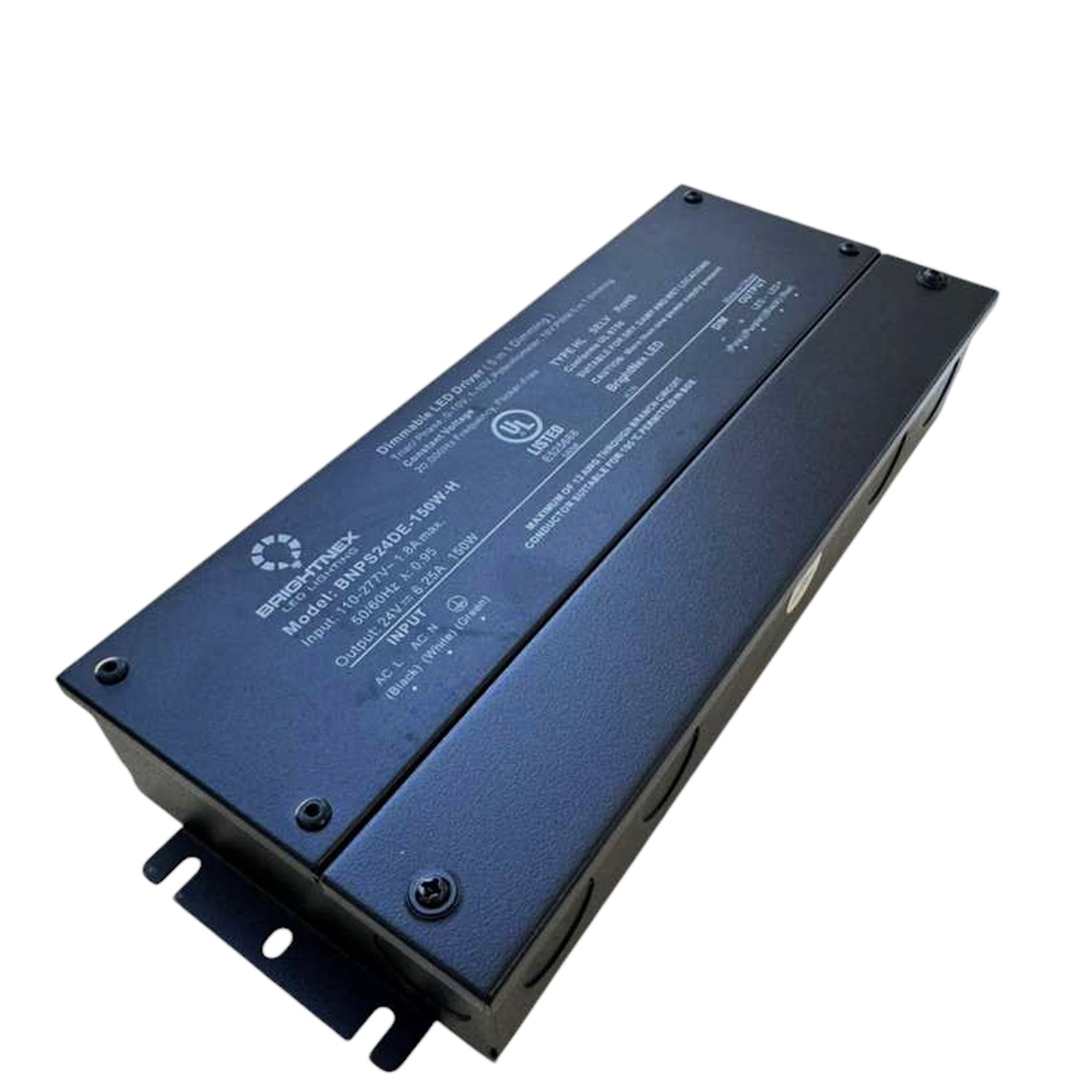

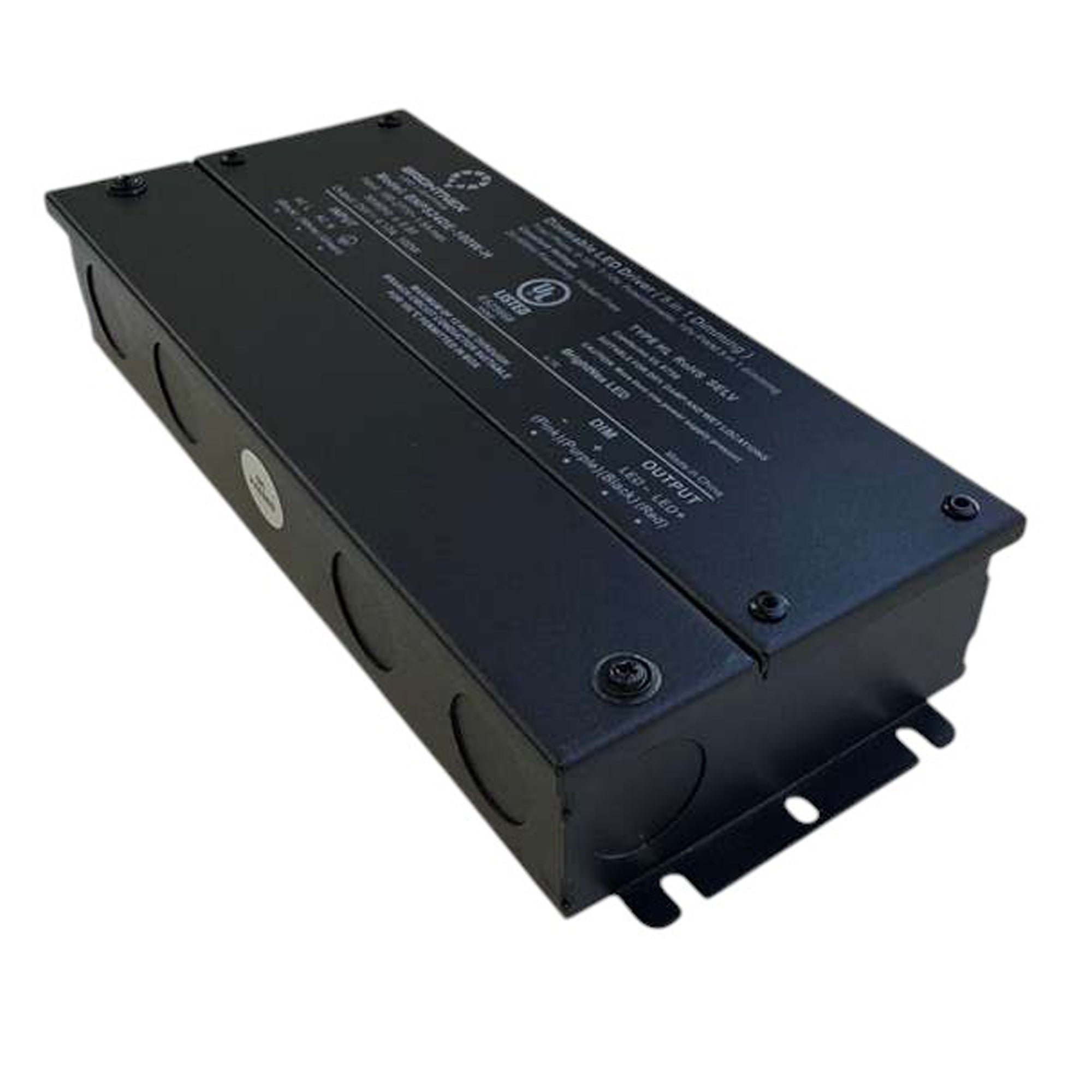

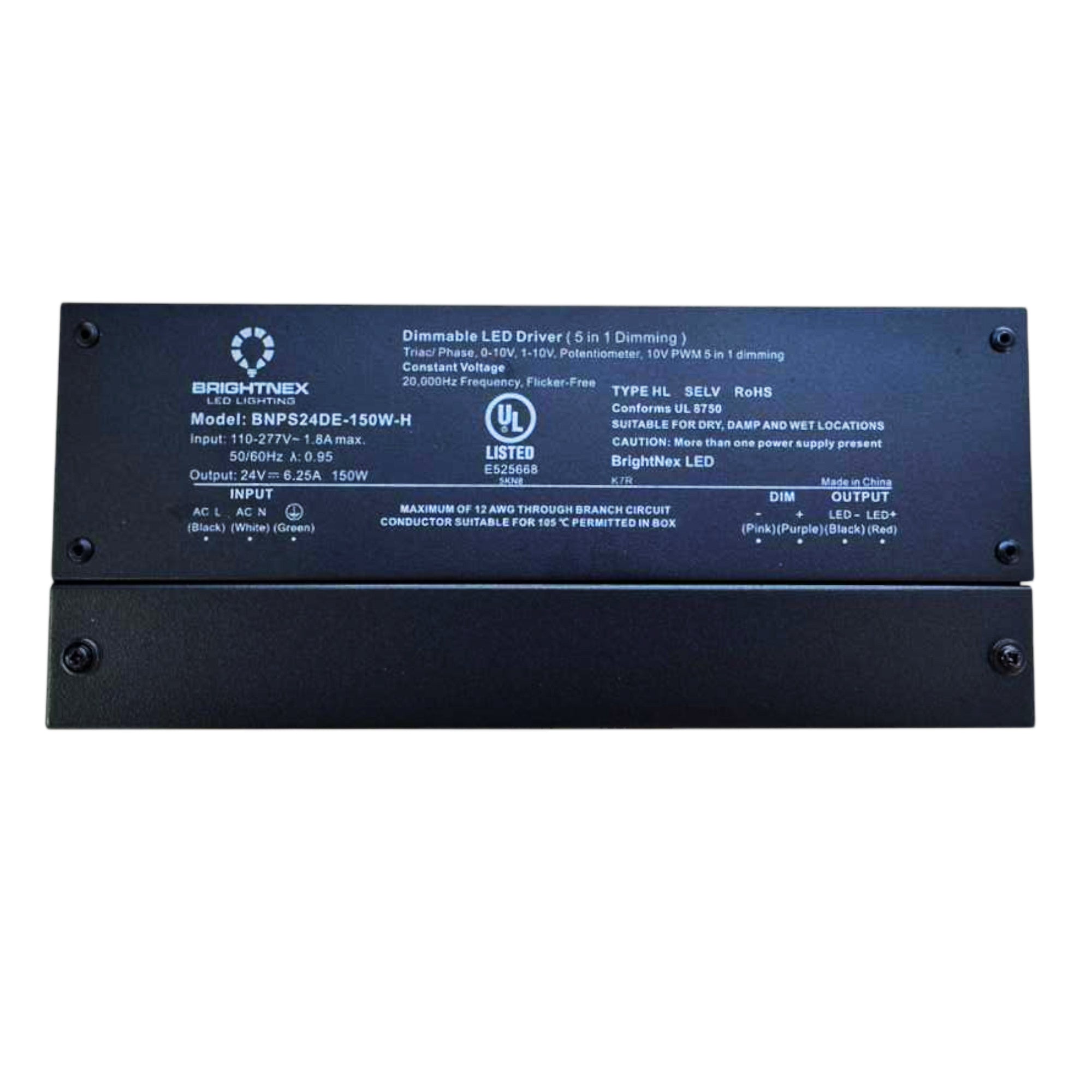

This 150W constant voltage LED driver offers complete 5-in-1 dimming compatibility with support for TRIAC, ELV, MLV, 0–10V, PWM, and potentiometer control. Designed for demanding commercial and residential applications, it features smooth 0.1–100% dimming, high efficiency up to 89%, and flicker-free 20kHz PWM output. With integrated junction box and full protection against short circuit, overload, and over-temperature, this UL, cUL, FCC, Type HL, SELV, RoHS certified driver is ideal for LED strips, signage, and architectural lighting in dry, damp, or wet locations(not for submersion).
Available in both 12V (12..5A) and 24V (6.25A) outputs.
Part #: BNPS24DE-150W-H-0-10
Part #: BNPS12DE-150W-H-0-10
Features
-
5-in-1 Dimming Compatibility: TRIAC, ELV, MLV, 0-10V, PWM, Potentiometer
-
Dimming Range: Smooth 0.1–100% brightness control
-
Input Range: 110–277VAC with built-in active power factor correction (PF up to 0.99)
-
Flicker-Free Performance: 20kHz PWM output maintains stable light quality
-
Constant Voltage Output: Available in 12V (12.5A) and 24V (6.25A) models
-
Built-In Junction Box: Streamlined wiring for easy installation, For dry, damp and wet locations (not for submersion).
-
Full Protection: Short circuit, overload, and over-temperature safeguards
-
Certified and Durable: UL, cUL, FCC, Type HL, SELV, RoHS
-
High Efficiency: Up to 89%, THD < 20%
-

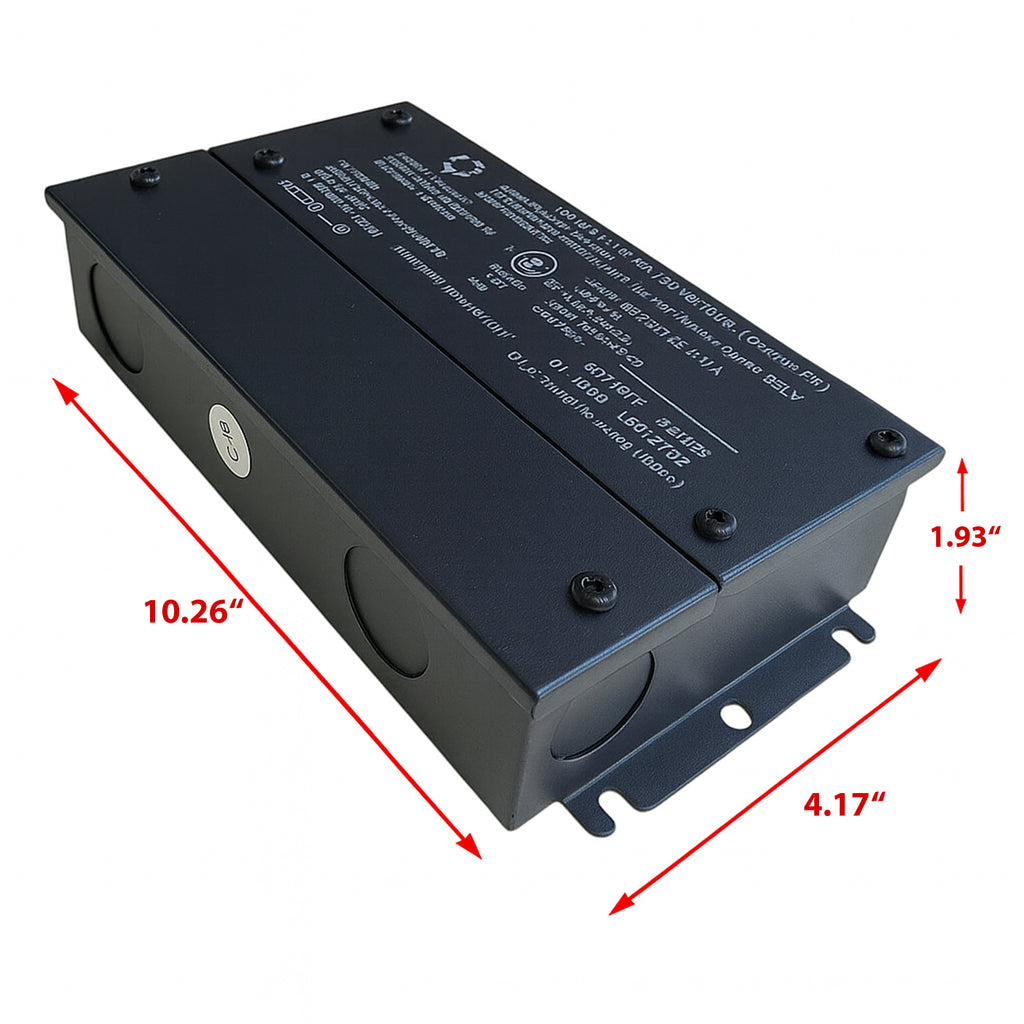

Size: 10.26" × 4.17" × 1.93" (260.6 × 106 × 49mm)
