The 12V COB LED Strip offers uniform illumination using advanced chip-on-board technology that eliminates visible LED dots. With 320 LEDs per meter, the strip produces a continuous lighting line ideal for modern architectural and decorative lighting installations.

Operating at 12V DC constant voltage, the strip consumes approximately 10W per meter while maintaining excellent brightness and efficiency.

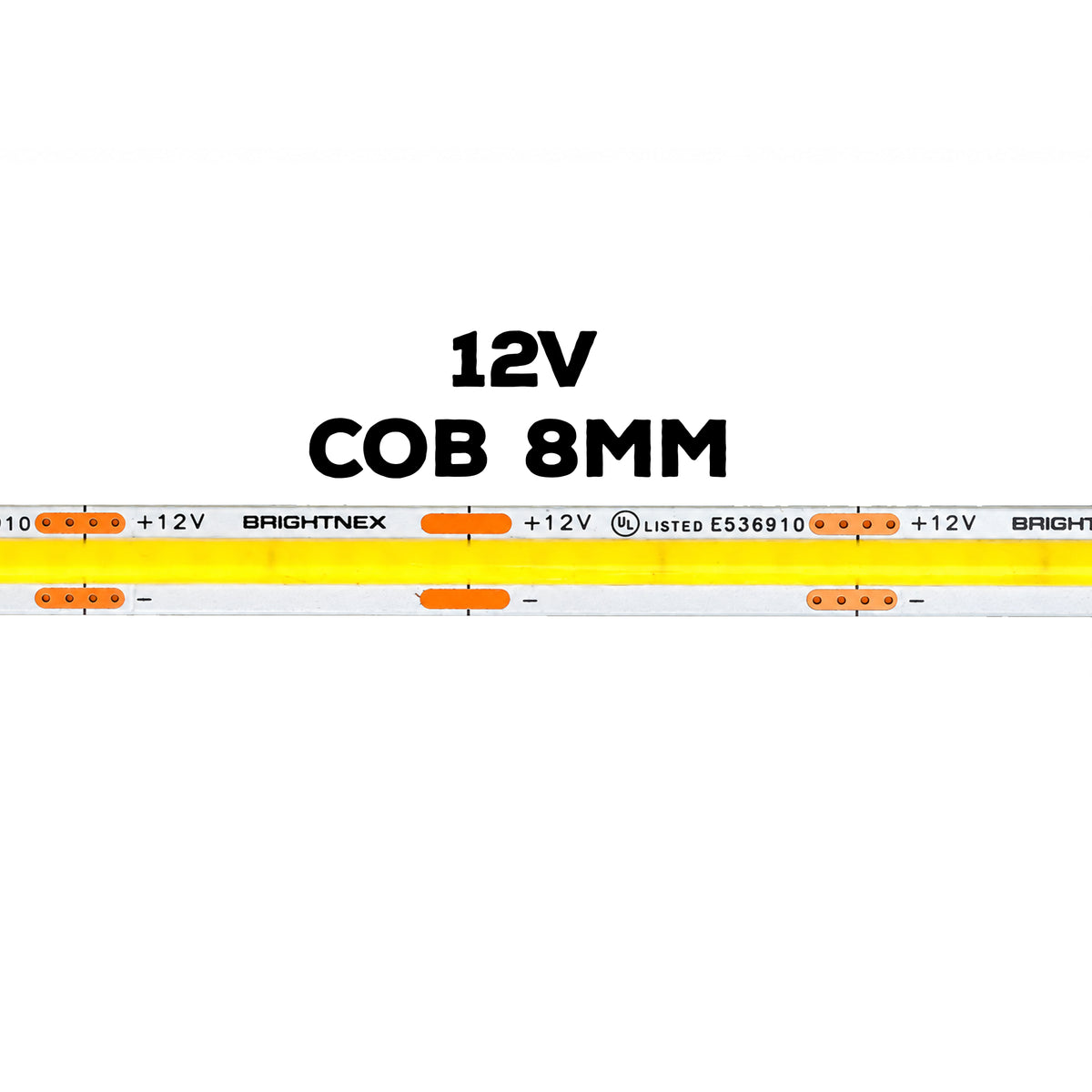

Its flexible 8mm PCB design allows easy installation in narrow channels, cabinets, signage, and other linear lighting applications. The strip can be cut every 25mm, making it highly adaptable for custom lighting layouts.

Multiple color temperature options are available to suit various lighting environments from warm residential lighting to cool commercial illumination.

---

✅ KEY FEATURES

• COB LED Technology for seamless light output

• 320 LEDs per meter high-density design

• Dot-free linear illumination

• 12V constant voltage system

• Flexible 8mm PCB strip

• Cuttable every 25mm for custom lengths

• Wide 180° beam angle

• Long lifespan over 25,000 hours

• High color consistency

• 3M adhesive backing for quick installation

• Available in multiple color temperatures

• Optional IP20 / IP65 / IP67 protection levels

---

✅ TECHNICAL SPECIFICATIONS

Electrical

• Input Voltage: 12V DC

• Power Consumption: 3.05W/ft

• Current: 0.25A/ft

• Beam Angle: 180°

LED Configuration

• LED Type: COB LED

• LED Density: ≈98 LEDs/ft (320 LEDs/m)

Physical

• PCB Width: 8mm

• Cutting Interval: 25mm

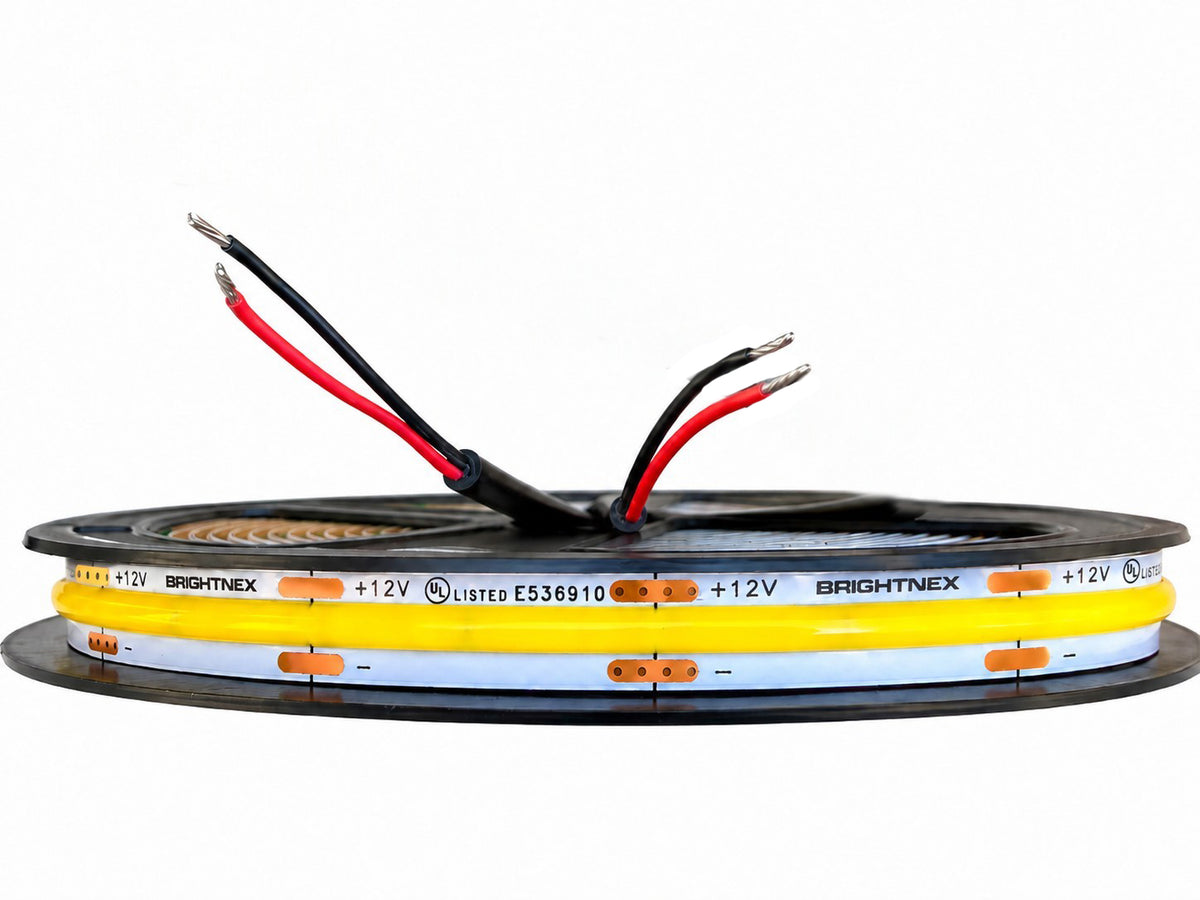

• Standard Roll Length: 16.4ft (5m)

---

✅ COLOR OPTIONS + BRIGHTNESS
