12V 60W Dimmable LED Transformer | TRIAC/ELV/MLV | UL Class 2 | Wet Location Rated

Are You a Retailer? Access Exclusive Wholesale Prices Today!

Description

This 12V 60W dimmable constant voltage LED transformer delivers smooth, full-range dimming performance using TRIAC, ELV, or MLV dimming methods. Designed for flexibility and reliability, it performs exceptionally across a wide load range from 20% to 100%, making it ideal for LED strip and tape lighting in residential, retail, or commercial environments.

Built with a durable aluminum housing and rated for dry, damp, and wet locations, this transformer is equipped with short-circuit and overload protection, active power factor correction, and a high power factor of 0.98. It’s compact, efficient, and UL Class 2 compliant for simplified inspection and safe installation.

🔧 Specifications:

  • Output Voltage: 12V DC

  • Output Power: 60W

  • Output Current: 5.0A

  • Input Voltage: 120V AC

  • Frequency: 47–63Hz

  • Efficiency: 87% @ 120V full load

  • Power Factor: 0.98 typical

  • Total Harmonic Distortion (THD): < 20% @ 100% load

  • Voltage Tolerance: ±0.5V

  • Load Regulation: ±1%

  • Leakage Current: < 0.5mA @ 120V

  • Load Range: Operates from 20% – 100%

  • Working Temp: -40°F to +140°F (-40°C to +60°C)

  • Certifications: UL Pending, FCC, Class 2, Type HL, RoHS

  • Enclosure Rating: Dry, Damp, and Wet Location Rated (Not for Submersion)

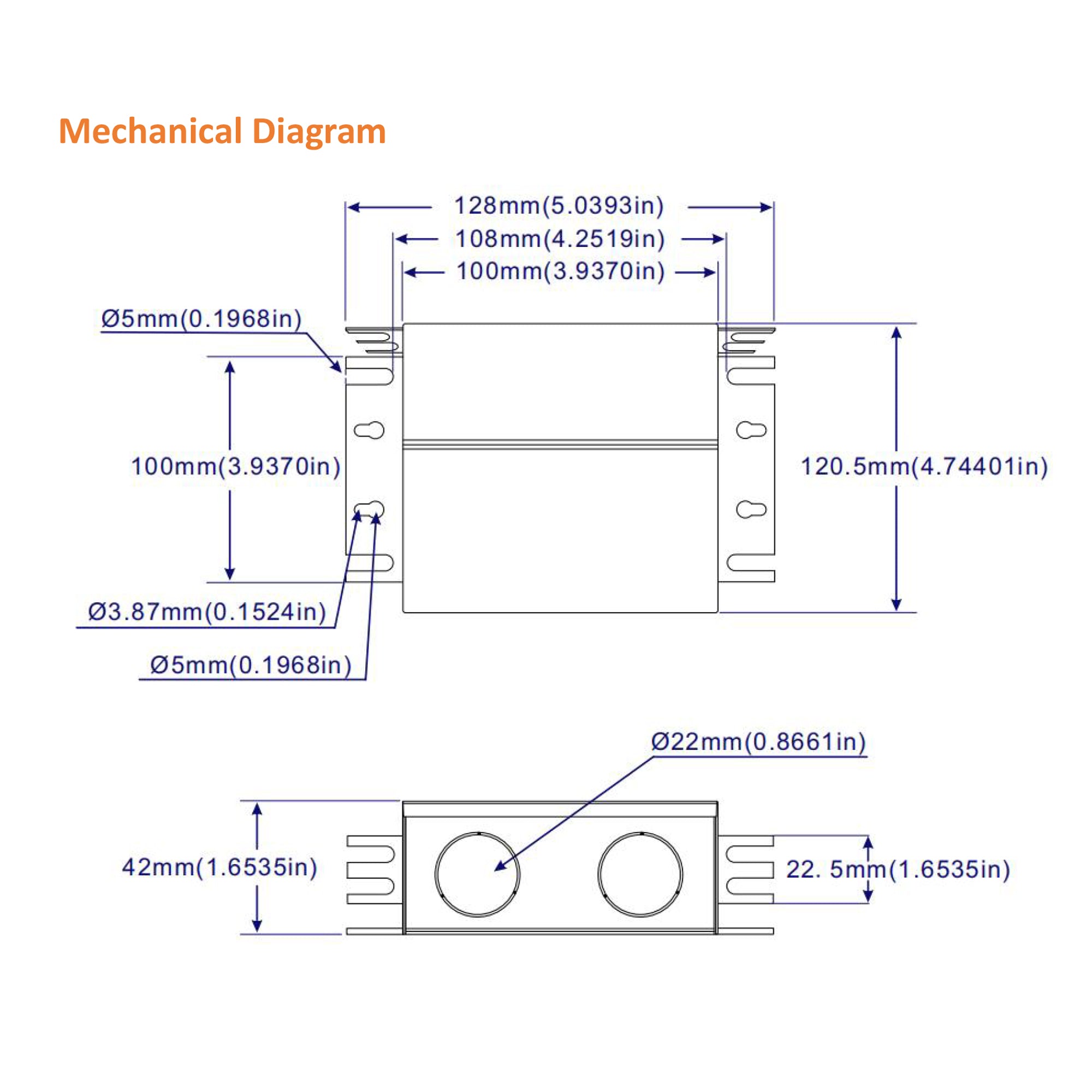

  • Dimensions: 5.03" × 4.74" × 1.65" (L × W × H)

  • Weight: 1.21 lbs (0.55 kg)

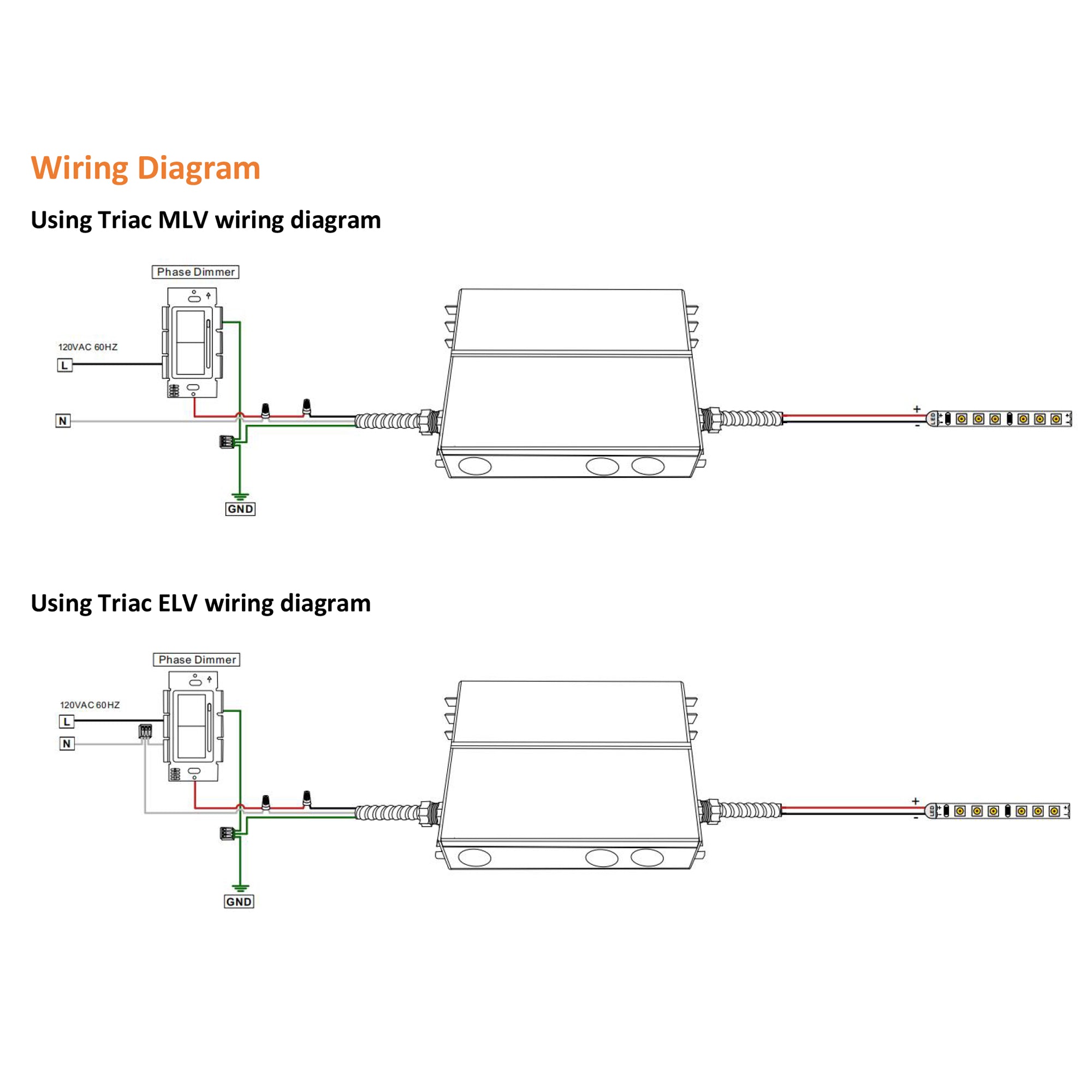

🎚️ Dimming Compatibility:

  • Dimming Range: 0–100%

  • Dimming Types Supported:

    • TRIAC (Leading Edge)

    • ELV (Trailing Edge)

    • MLV (Magnetic Low Voltage)

  • Minimum Load: 20% for stable dimming

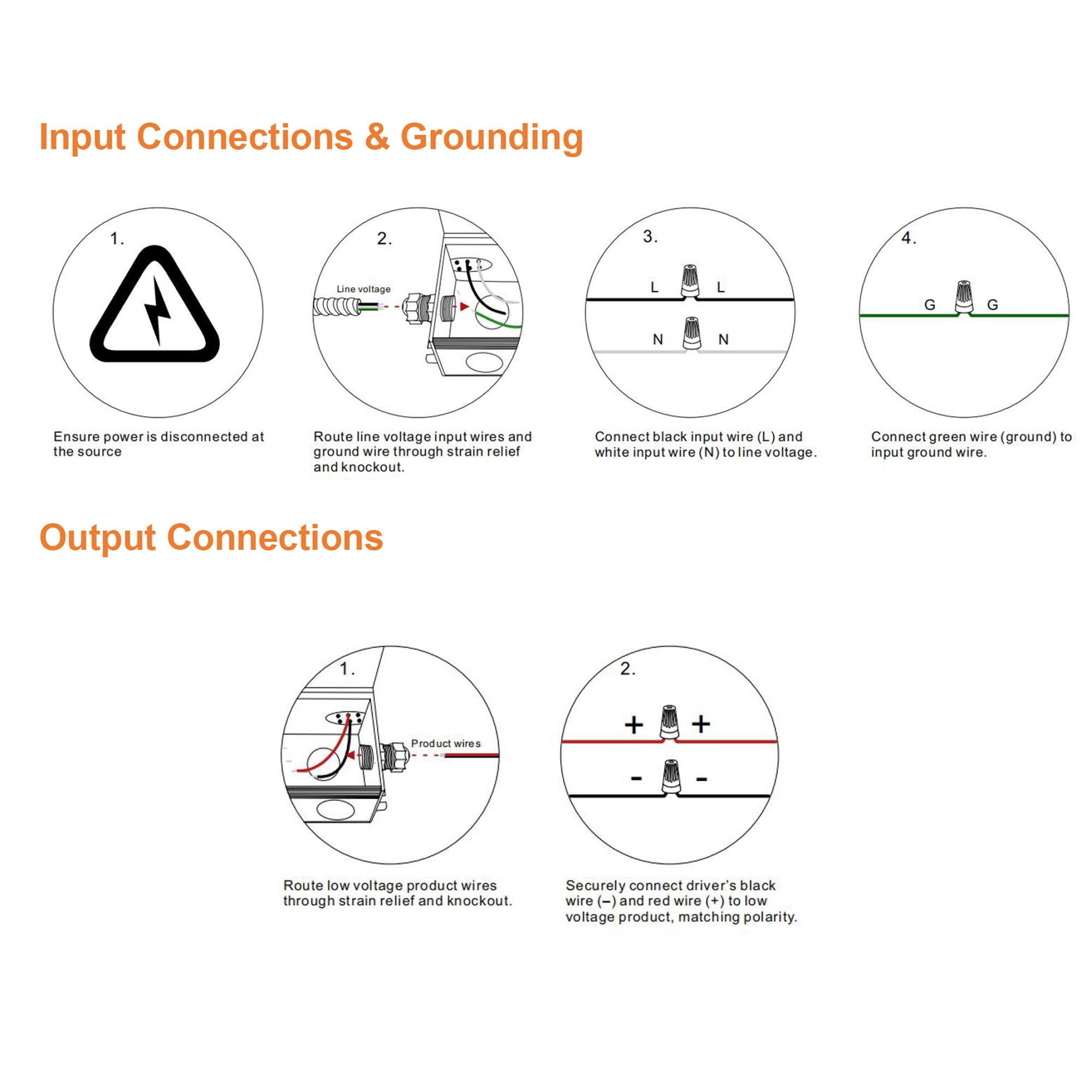

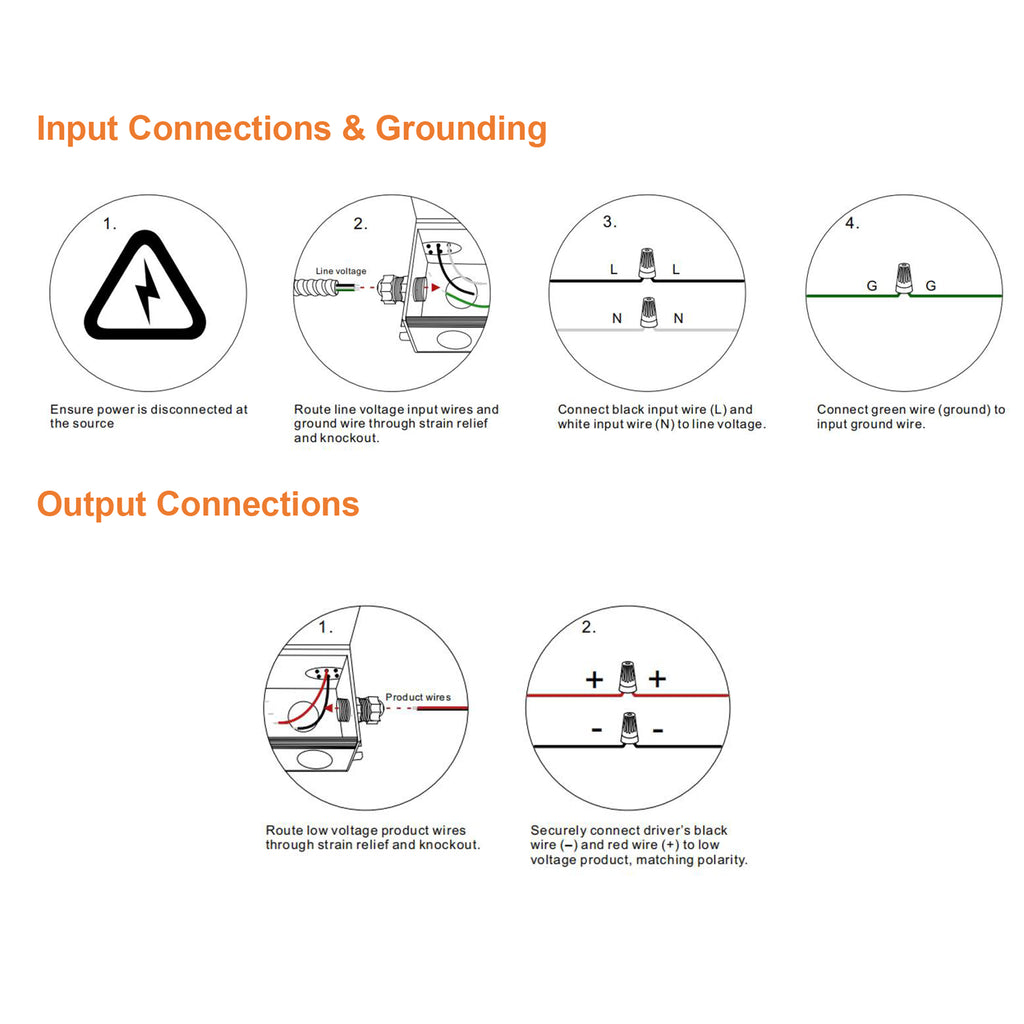

🔌 Wiring:

  • Input (AC 120V):

    • Black (Line) – 18 AWG

    • White (Neutral) – 18 AWG

    • Green (Ground) – 18 AWG

  • Output (DC 12V):

    • Red (V+) – 18 AWG

    • Blue (V–) – 18 AWG

⚡ Typical Applications:

  • LED strip lighting (12V)

  • Retail shelf and display lighting

  • Signage and architectural accents

  • Damp or wet location lighting installs

  • OEM LED products requiring compact drivers

🔹 Model / Part:

BNPS12‑60W‑JSET
