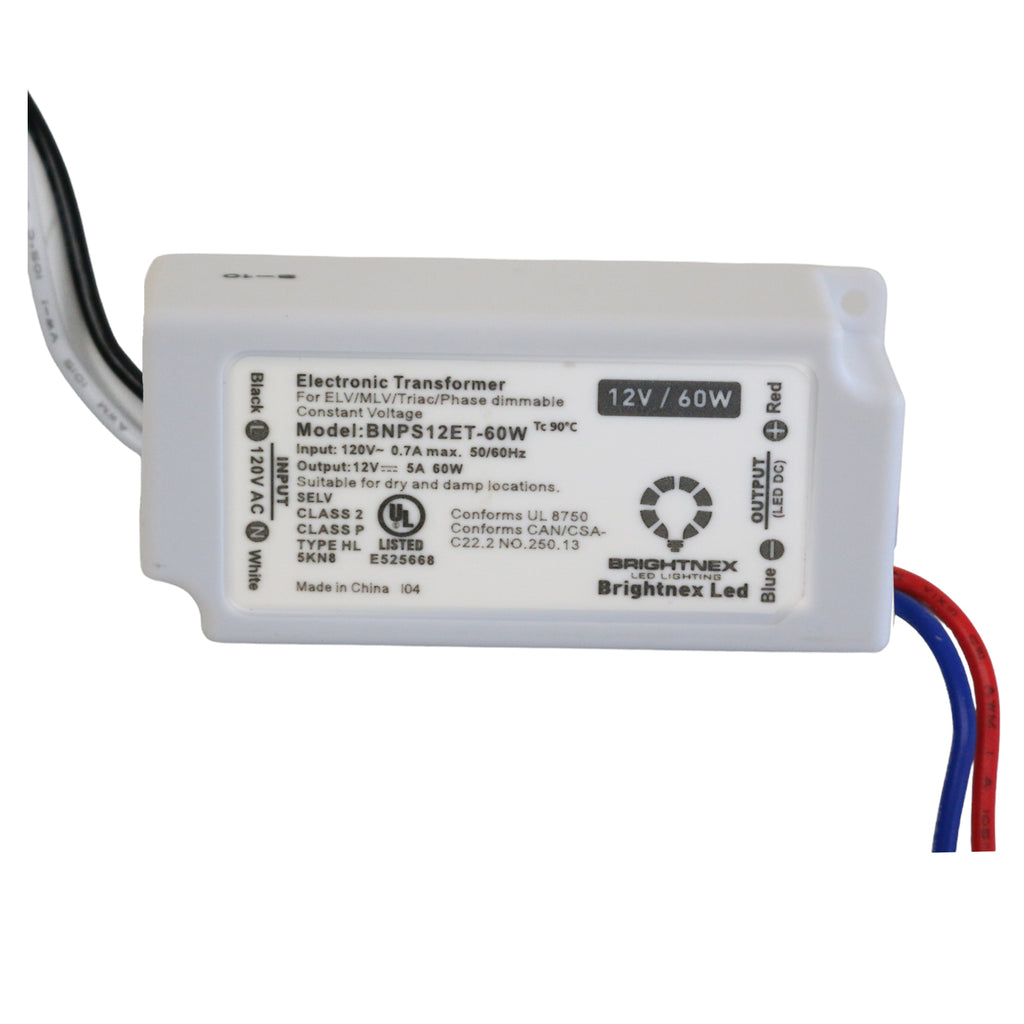

Description
This 12V 60W constant voltage LED transformer engineered for professional-grade installations requiring smooth and reliable dimming performance. Compatible with TRIAC, ELV, and MLV dimmers, it delivers 0–100% dimming and is ideal for LED strip and tape lighting applications.
Its compact enclosure (3.31" L × 1.57" W × 0.98" H) allows easy integration into tight spaces, while auto-recovery short-circuit and overload protection ensures safe operation. Designed for dry and damp locations, this transformer meets UL Class 2, FCC, RoHS, and Type HL compliance standards, making it suitable for both residential and commercial low-voltage lighting systems.
🔧 Specifications:
-
Output Voltage: 12V DC
-
Output Power: 60W
-
Output Current: 5.0A
-
Input Voltage: 120V AC
-
Frequency: 50/60Hz
-
Efficiency: 88% typical
- Dimming Range: 0% – 100%
-
Power Factor: > 0.95
-
THD: < 20% @ full load
-
Load Range: Operates from 20%–100% load
-
Protections:
-
Short Circuit – auto-recovery
-
Overload – auto-recovery
-
-
Working Temp: -40°C to +60°C
-
Humidity: 20–95% RH
-

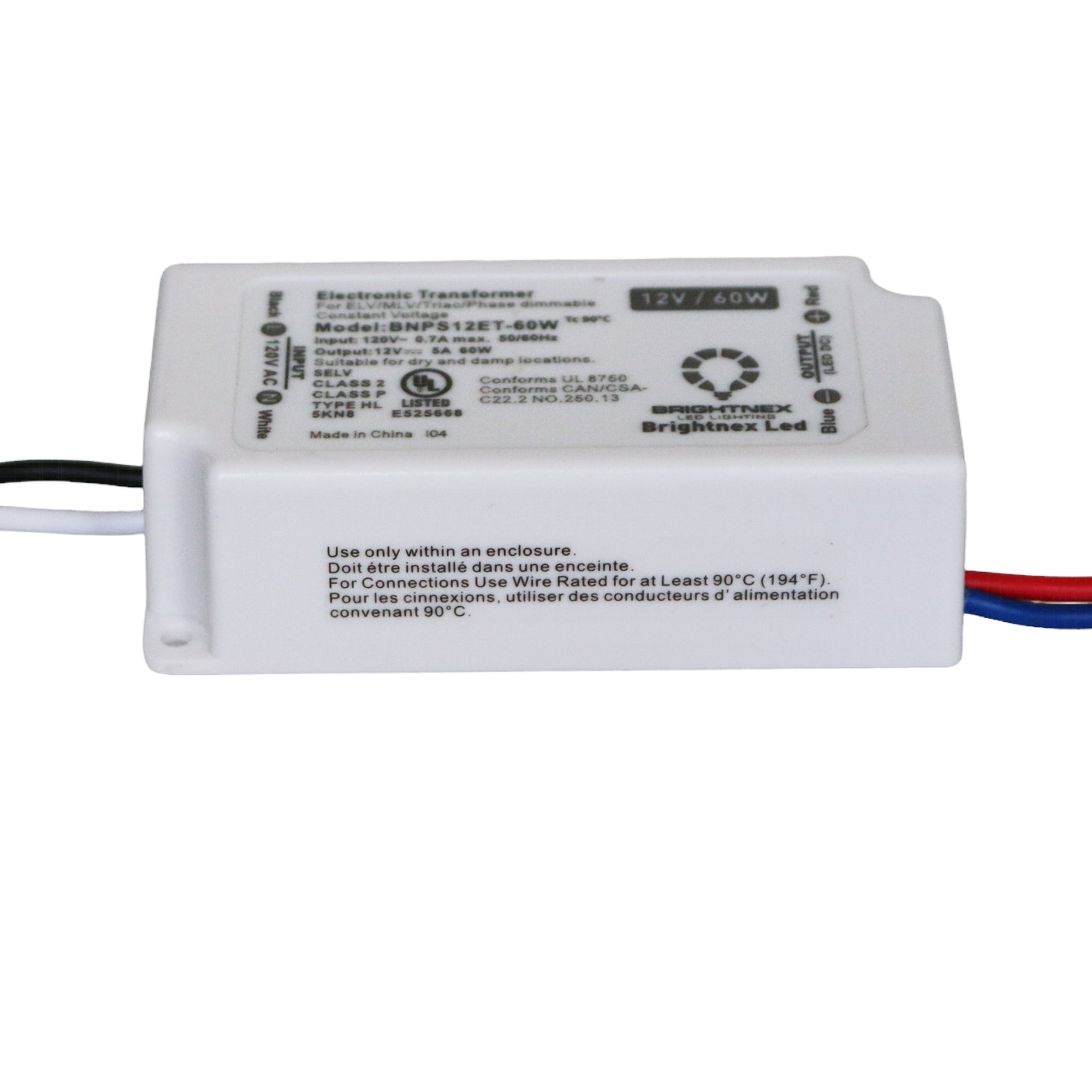

Certifications: UL, FCC, ICES-005, Class P, Class 2, Type HL, SELV, RoHS, REACH, UL8750
-
Enclosure Rating: Dry and Damp Locations
-
Dimensions: 84 × 40 × 25 mm (3.31" × 1.57" × 0.98")
-
Weight: 0.375 lbs

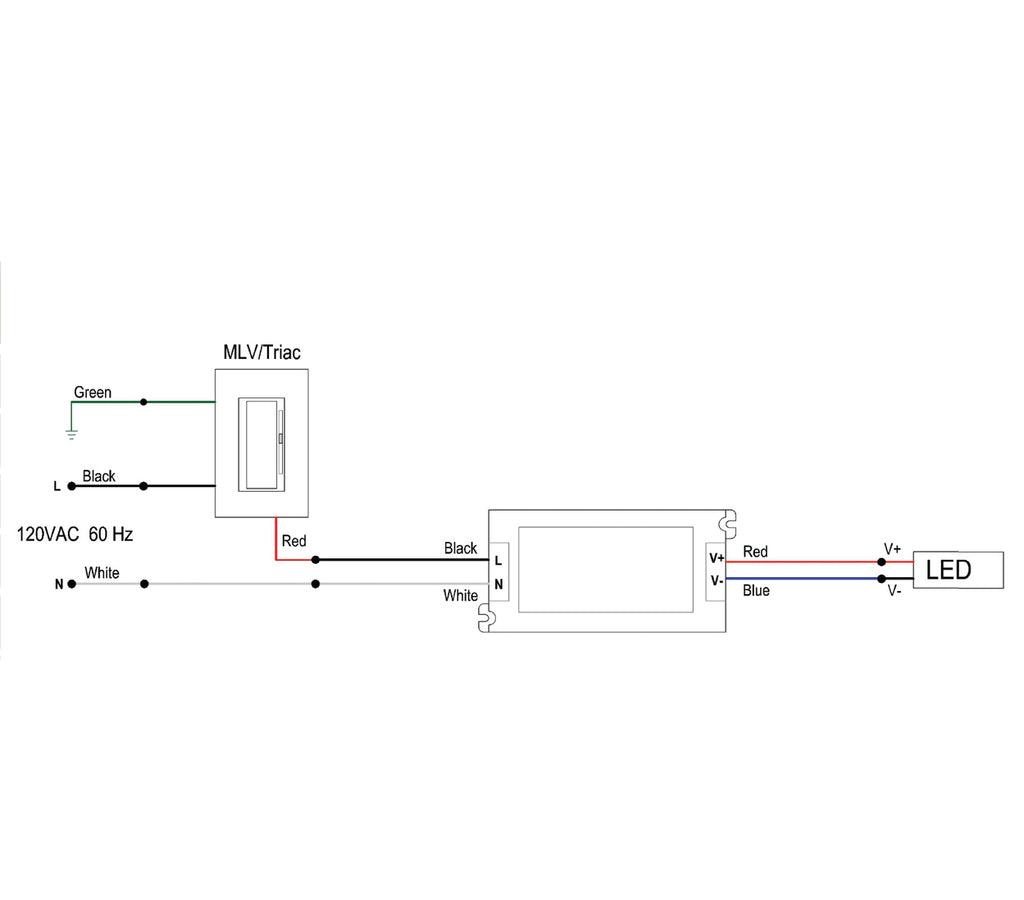

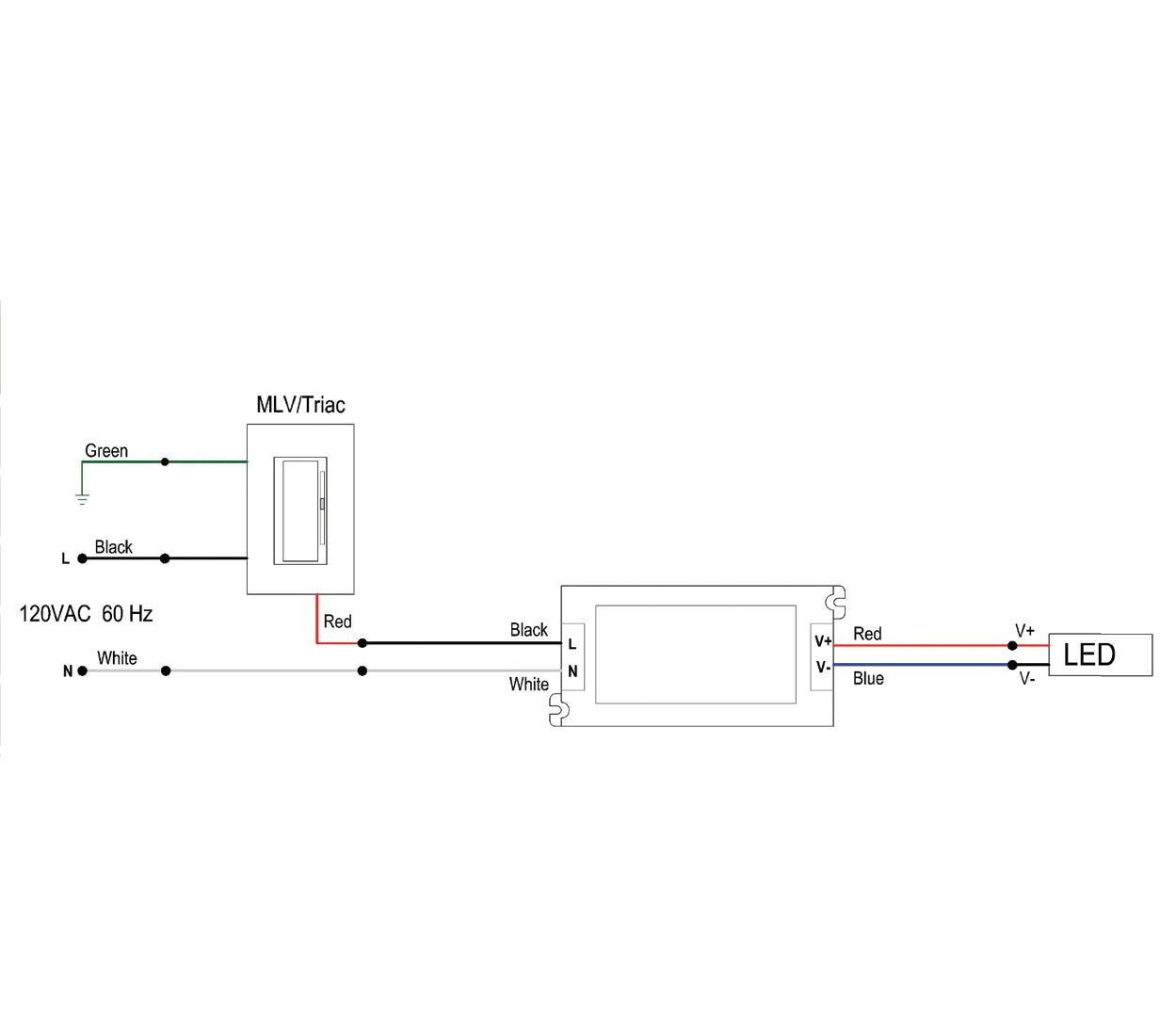

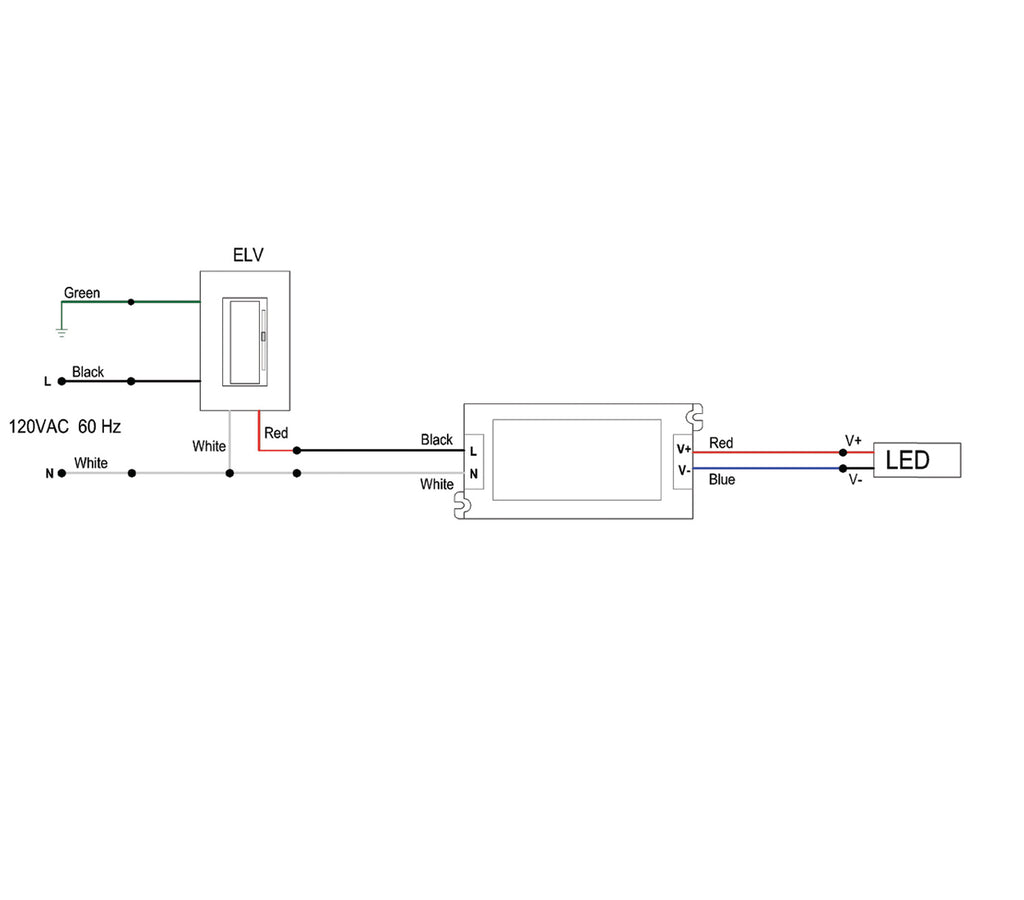

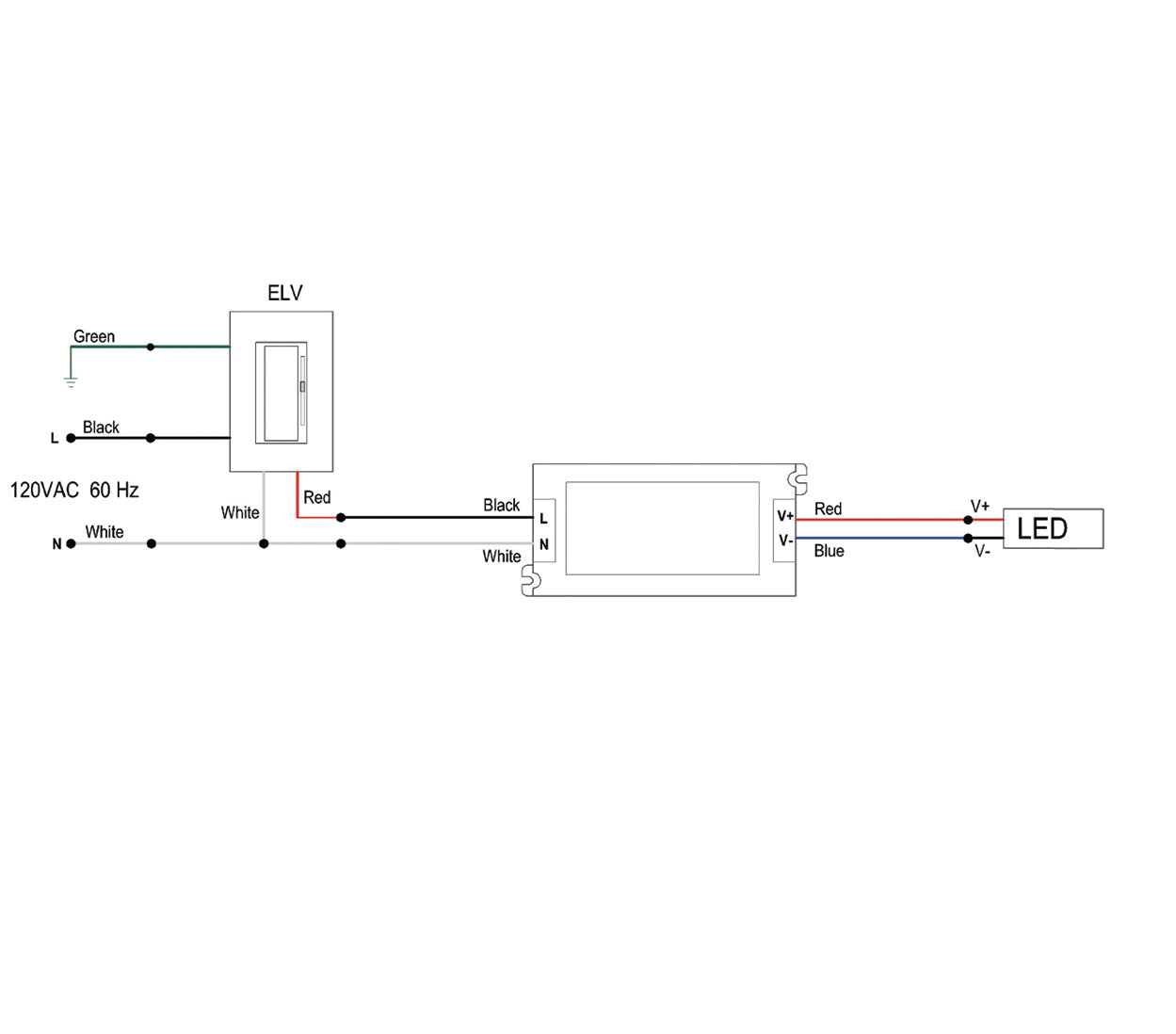

🔌 Wiring:
-
Input (AC 120V):
-
Black – Live (18 AWG)
-
White – Neutral (18 AWG)
-
-
Output (DC 12V):
-
Red – V+ (18 AWG)
-
Black – V– (18 AWG)
-
⚡ Typical Applications:
-
12V LED strip lighting (residential/commercial)
-
Under-cabinet and shelf lighting
-
Display and signage lighting
-
Tight space or retrofit installations
-
Projects requiring UL Class 2 compliance
Model / Part:
BNPS12‑60W‑SET
