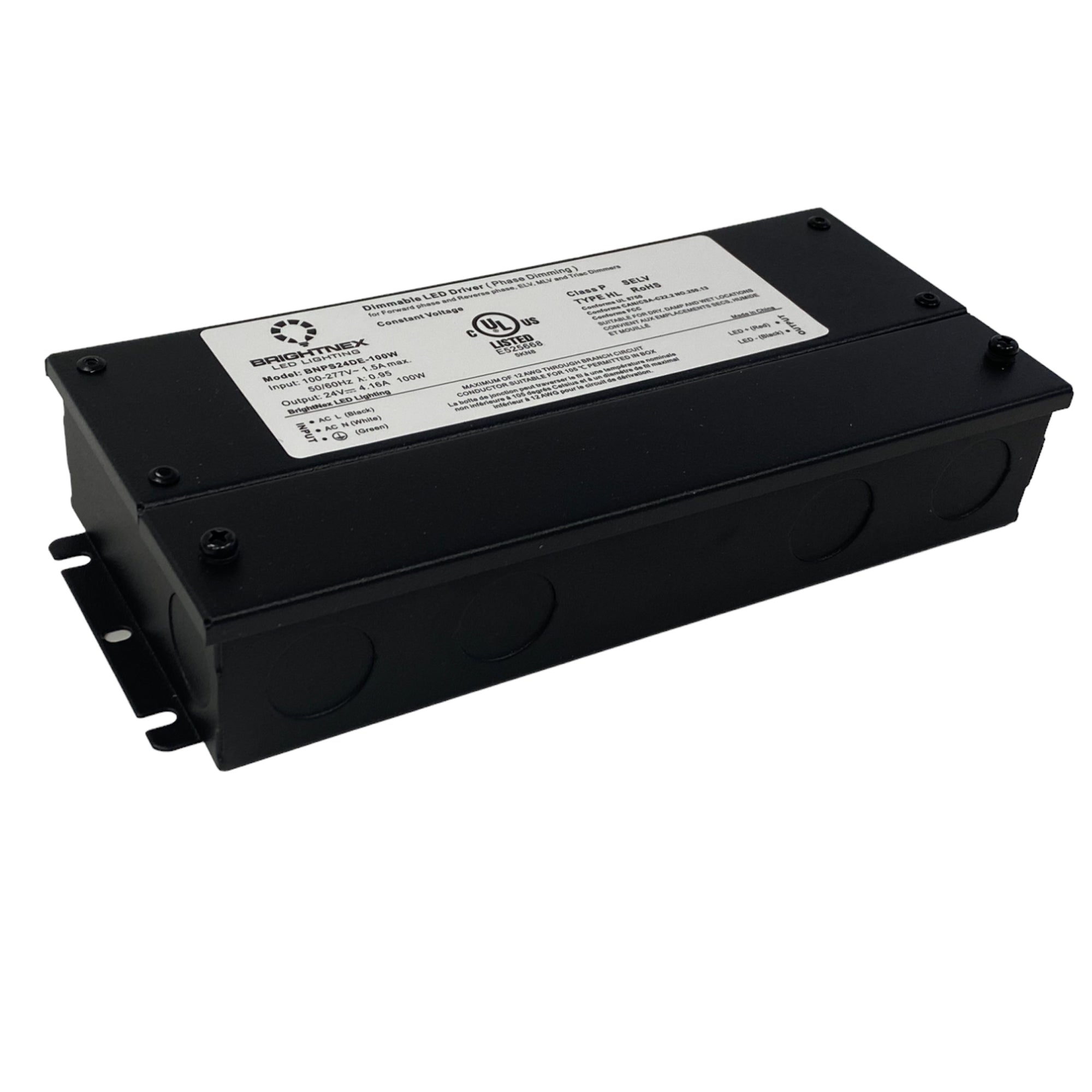

120W TRIAC / ELV / MLV Dimmable LED Driver – 12V / 24V Constant Voltage – High Efficiency – Phase-Cut Dimming

Are You a Retailer? Access Exclusive Wholesale Prices Today!

Description

Dimmable transformer (LED Driver) is UL-certified and compatible with Triac/ ELV/ MLV dimming. Suitable for dry and damp locations. AC input 100-277VAC and 83% efficiency with short circuit protection.

Available in both 12V (10A) and 24V (5A) outputs.

Features

  • Phase-Cut Dimming: Compatible with TRIAC, ELV, and MLV dimmers (forward and reverse phase)

  • Dimming Range: Smooth 0–100% brightness control

  • Waterproof Rated: Full Iron protection housing, for dry, damp & wet locations (not for submersion).

  • Voltage Options: Available in 12V (10A) and 24V (5A) configurations

  • Universal Input: Accepts 100–277VAC, 50/60Hz

  • High Efficiency: Up to 82% energy efficiency with active PFC (PF up to 0.99)

  • Flicker-Free PWM Output: Ensures stable and clean light output

  • Certified Safety: UL / cUL / FCC / CE / Class P / SELV / RoHS / Reach

  • Integrated Protections: Overload, short circuit, and over-temperature protection

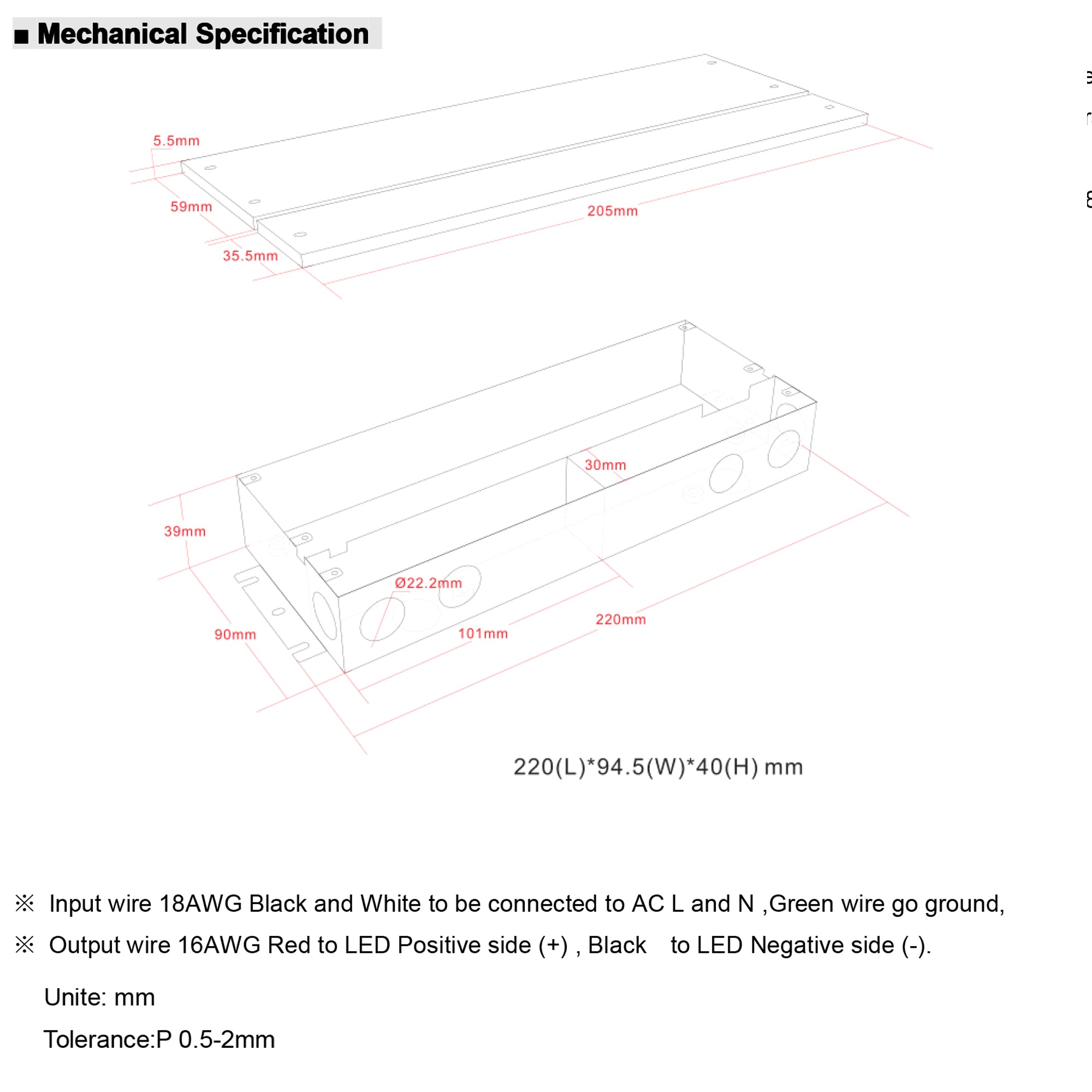

  • Compact Design: 8.66" × 3.75" × 1.72" for easy installation
