Brightnex LED Lighting

Compact DIMMABLE TRANSFORMER (LED Driver) 12V, 60W

Regular price
Regular price Sale price
Sale Sold out

Compact (3.31x1.57x0.98 inch (L*W*H)) UL-certified dimmable transformers (LED Driver) compatible with Triac/ ELV/ MLV dimming. Suitable for dry and damp locations and fits in a 4" Junction box. AC input 100-130Vac and 88% efficiency with short circuit protection.

Input: 100-130 V AC, 0.7A, 50/60Hz
Output: 12V DC, 2.5A, 60W, PF>0.9

Feature

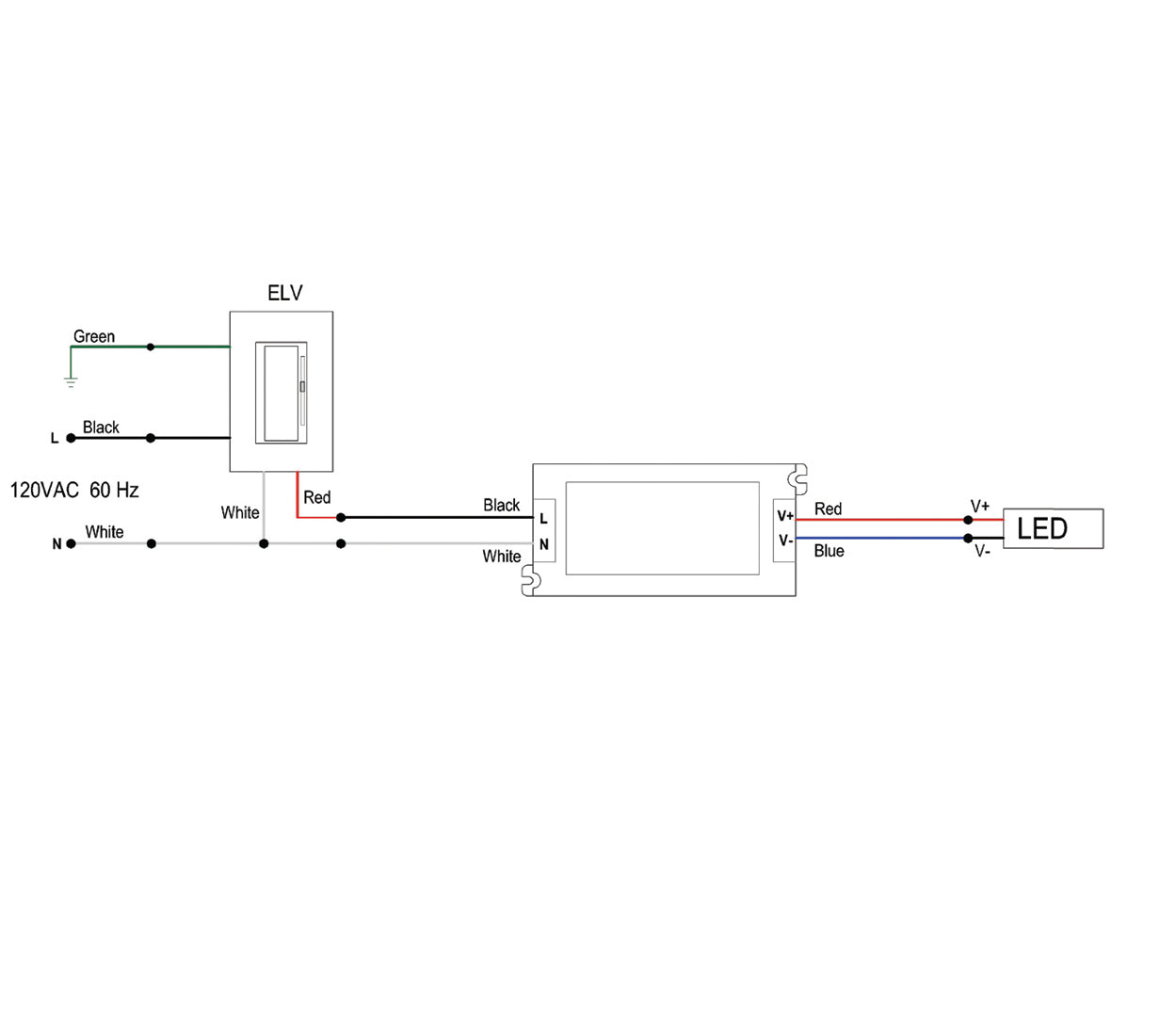

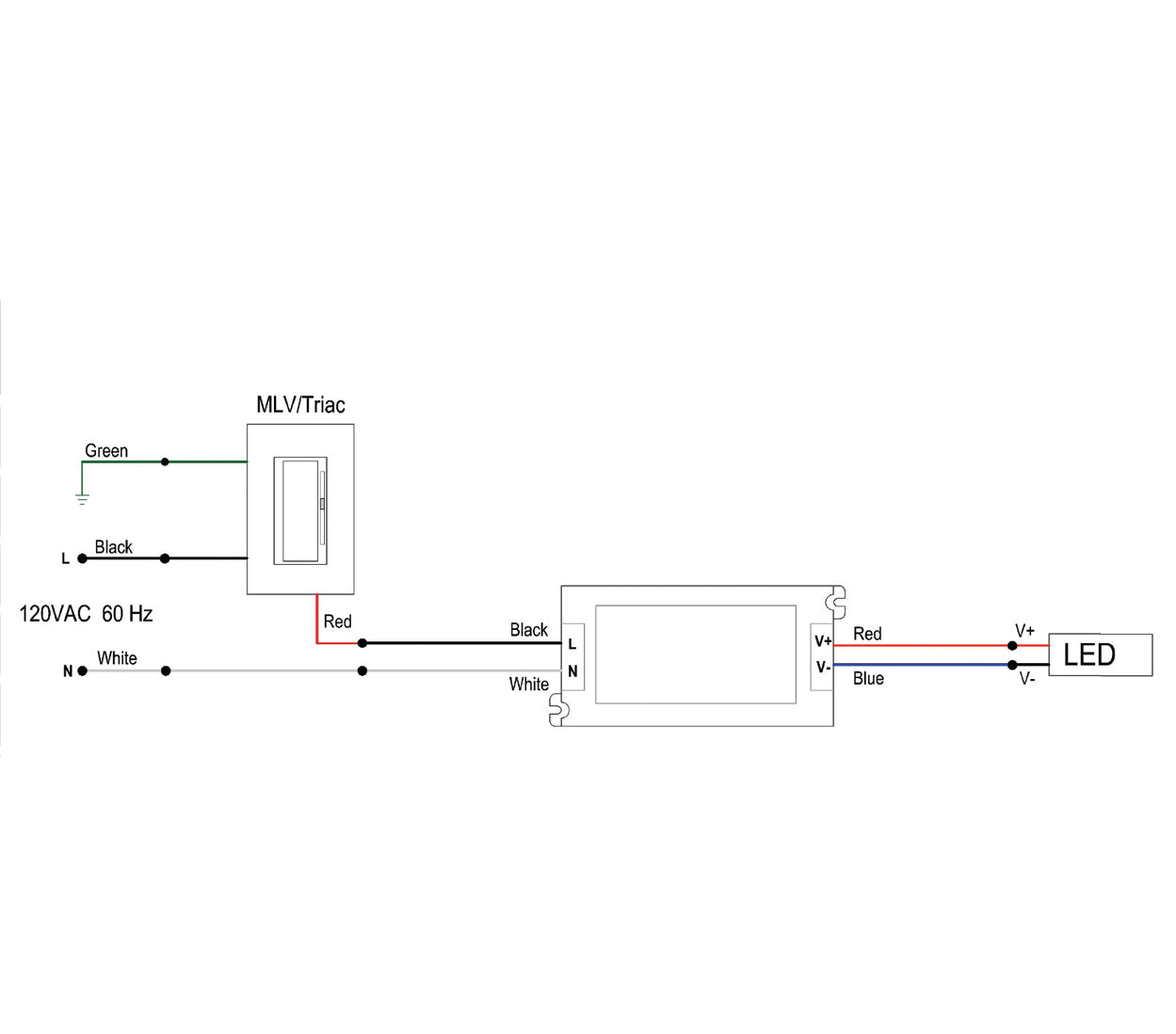

Dimming: Triac/ ELV/ MLV dimming

Dimming 0-100%

UL-RC,Class 2,Type HL

Damp and dry location

100-130Vac input

Build in active PFC, typical power factor=0.94

THD<20%@120V Max. load

Constant voltage type

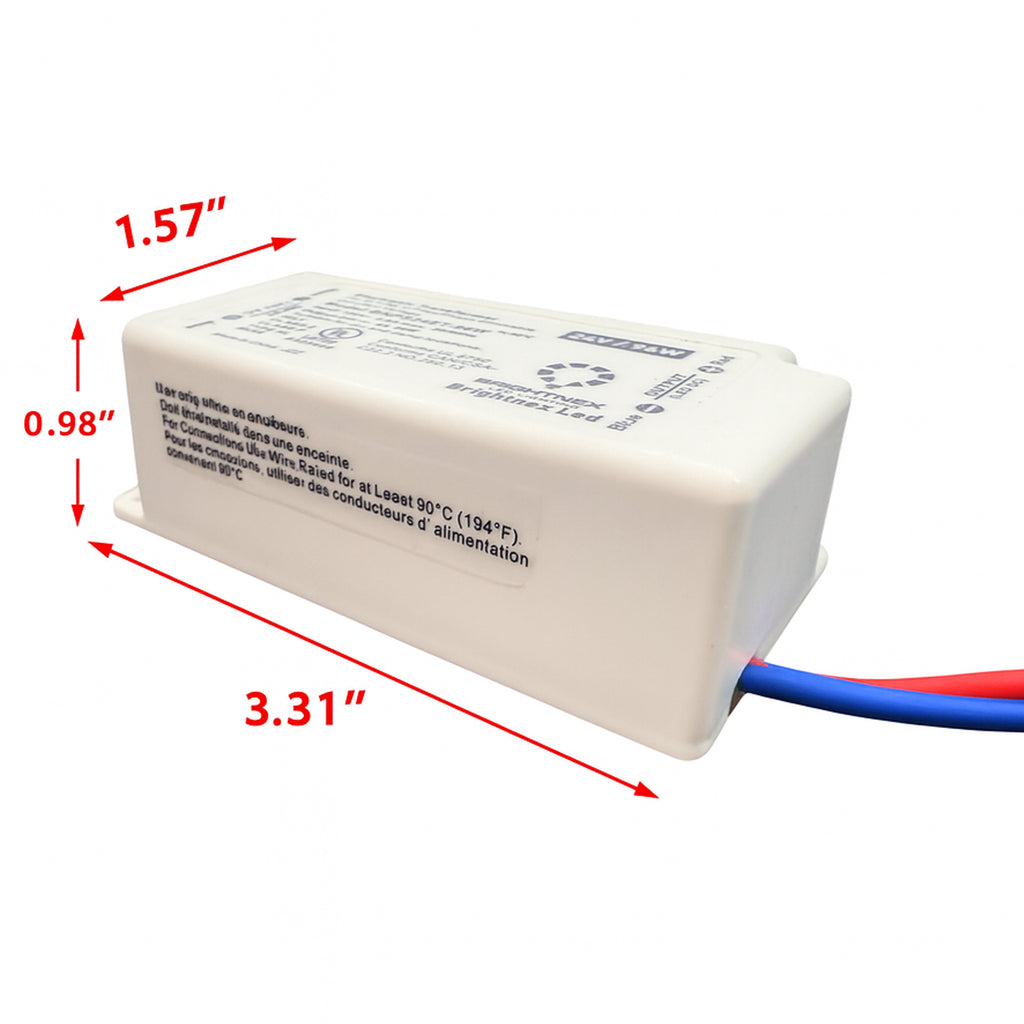

Small size: 3.31x1.57x0.98 inch (L*W*H)

Super low loading request works perfect at 20-100% load.

Short-circuit, over-load protection.

Compatible with popular dimmers in the market, Lutron-CL, Diva series
