100W TRIAC / ELV / MLV & 0-10V Dimmable LED Driver – 12V / 24V – Flicker-Free – Junction Box – UL Certified

The 100W LED Driver is a high-performance, constant voltage solution for advanced dimmable lighting systems. Compatible with both phase-cut dimmers (TRIAC, ELV, MLV) and 0-10V controls, it enables flicker-free PWM dimming from 0.1% to 100%. With built-in active PFC, superior thermal design, and full protection features, it’s ideal for demanding installations.

This driver is UL Listed, Type HL, and RoHS compliant, featuring a built-in junction box for easy, code-compliant mounting. Rated for dry, damp, and wet locations, it's suitable for both indoor and outdoor LED applications.

🔹 Key Features:

• Output Power: 100W

• Output Voltages:

  • 12V DC @ 8.33A

  • 24V DC @ 4.17A


• Input Voltage: 100–277V AC, 50/60Hz

• Efficiency (Typical):

  • 12V: Up to 84% @120V, 85% @277V

  • 24V: Up to 85% @120V, 86% @277V


• Power Factor: > 0.9

• THD: < 20% @ full load

• Dimming Types:

  • TRIAC / ELV / MLV (Forward & Reverse Phase)

  • 0-10V / 1-10V / Potentiometer / 10V PWM

• Dimming Range: 0.1–100%, flicker-free (PWM output)

• Certifications: UL / cUL, FCC, Type HL, RoHS, SELV, UL8750

• Protection:

  • Short circuit (auto-recovery)

  • Overload ≥110% (auto-recovery)

  • Thermal shutdown @ 100 °C ±10 °C

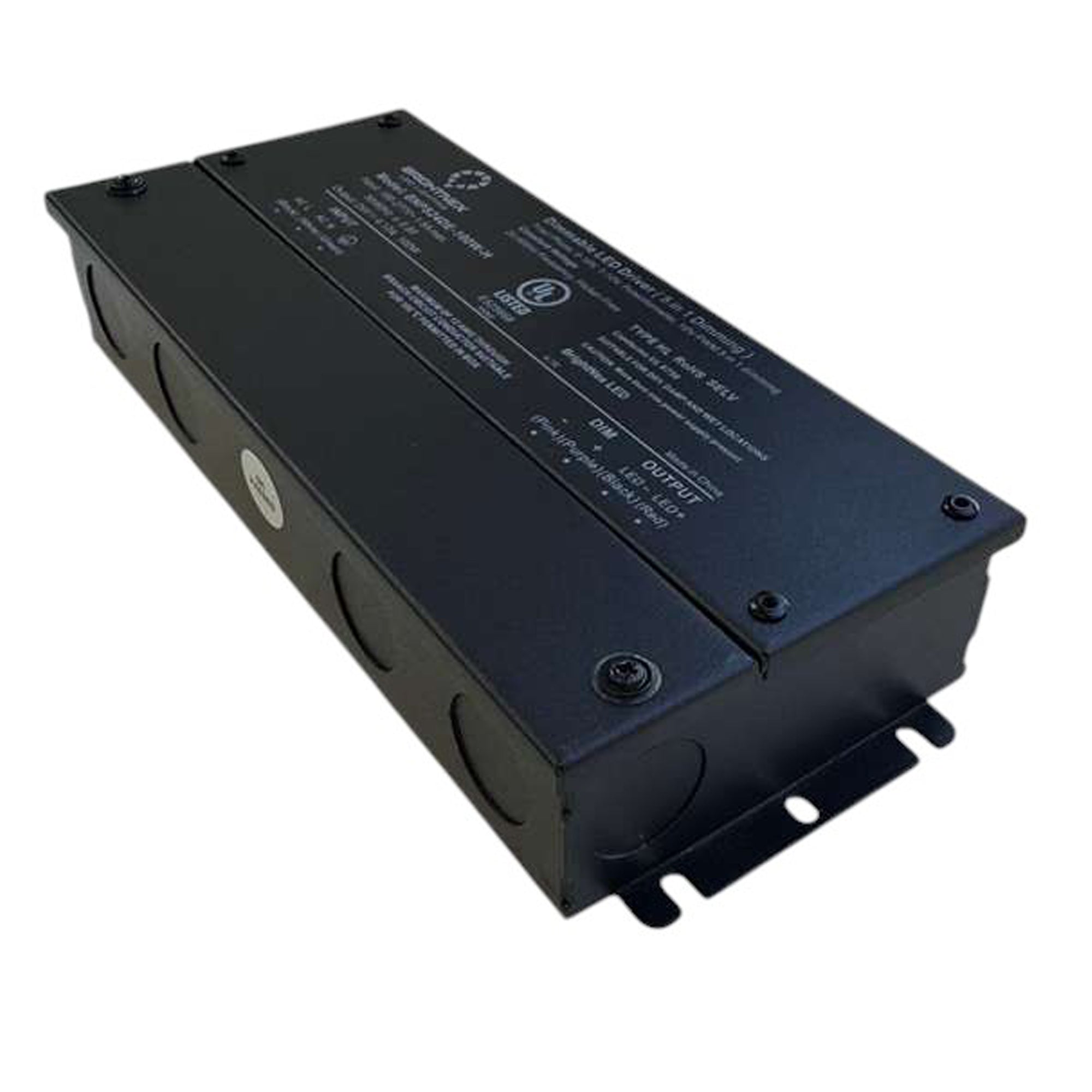

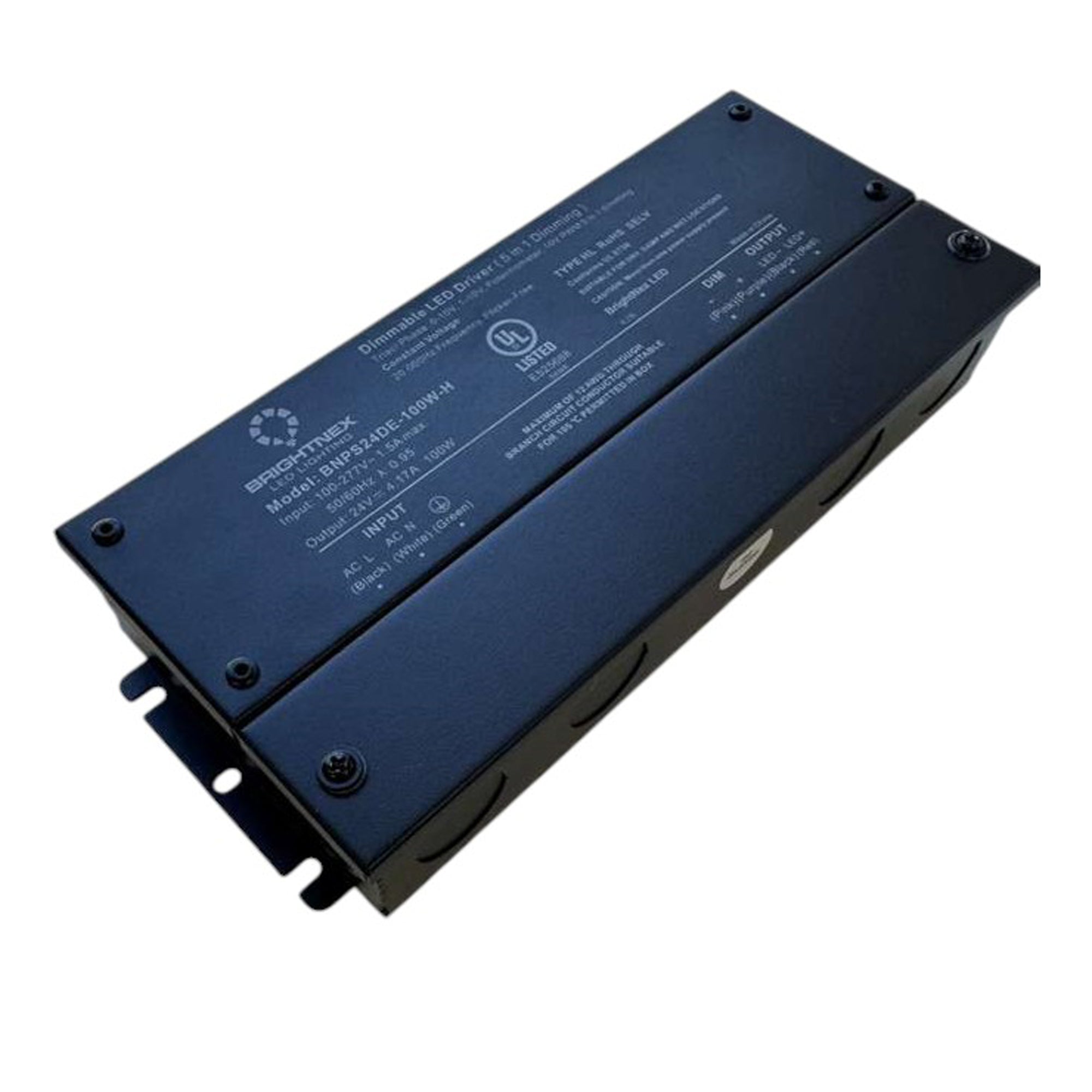

• Junction Box: Integrated, for streamlined installation

• Environment: Suitable for dry, damp, and wet locations (Not for Submersion)

• Cooling: Natural convection

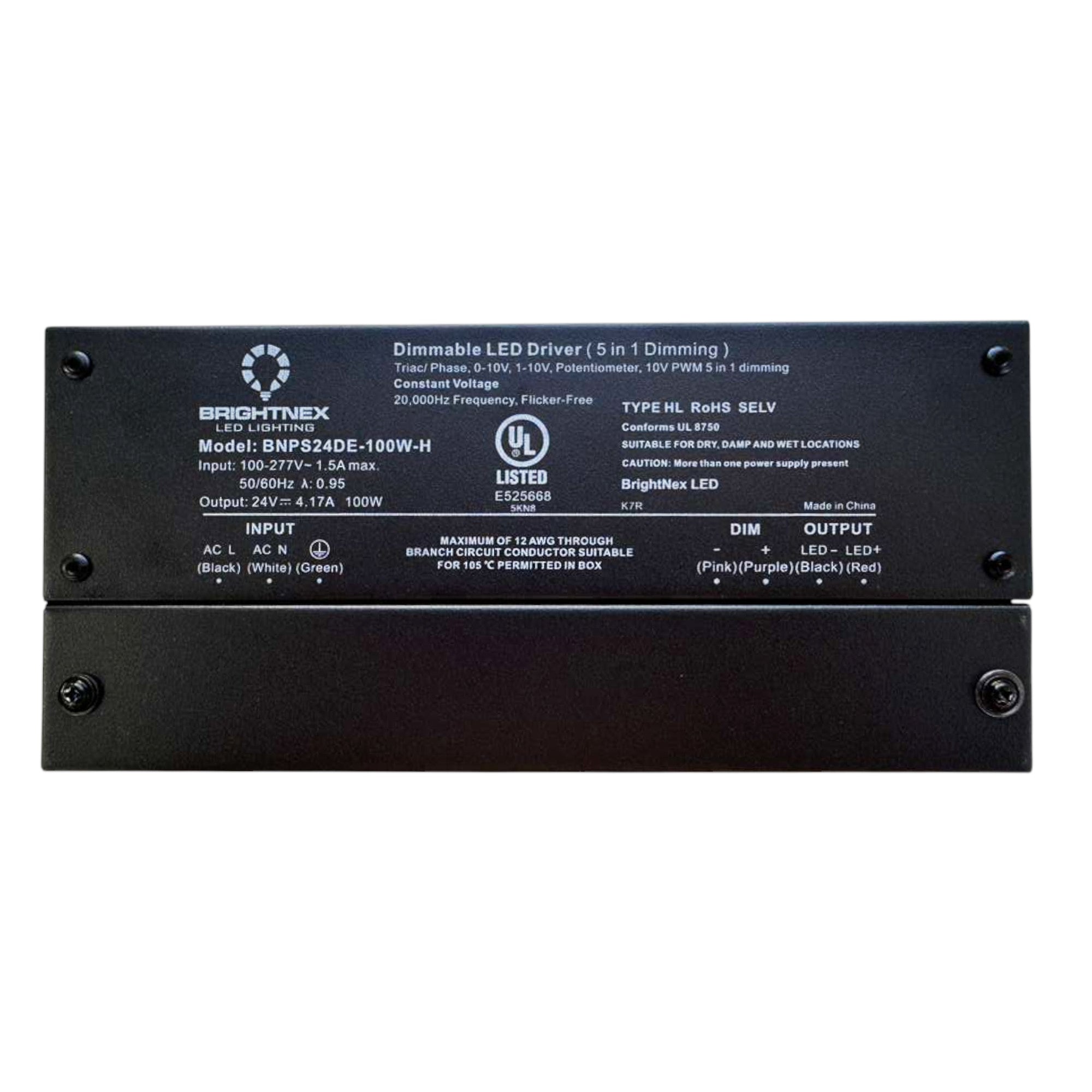

• Part Number:
  BNPS12DE-100W-H
  BNPS24DE-100W-H


🔹 Mechanical & Wiring (Imperial Units):

• Dimensions: 8.66" × 3.75" × 1.72"

• Weight: 3.03 lb (1.375 kg)

• Wiring:

  • Input: Black (L), White (N), Green (GND) – 3×18 AWG

  • Output: Red (V+), Black (V–) – 2×16 AWG

  • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG
