Description
This 100W constant voltage LED driver provides complete 5-in-1 dimming functionality, supporting TRIAC, ELV, MLV, 0–10V, PWM, and potentiometer controls. Built for reliable performance in commercial and residential settings, it delivers smooth 0.1–100% dimming, a flicker-free 20kHz PWM output, and built-in active power factor correction (up to 0.99). Fully certified for safety, it includes short circuit, overload, and over-temperature protection. Housed in a durable metal case with a built-in junction box, it’s rated for installation in dry, damp, or wet locations.(not for submersion).
Available in both 12V (8.33A) and 24V (4.17A) outputs.

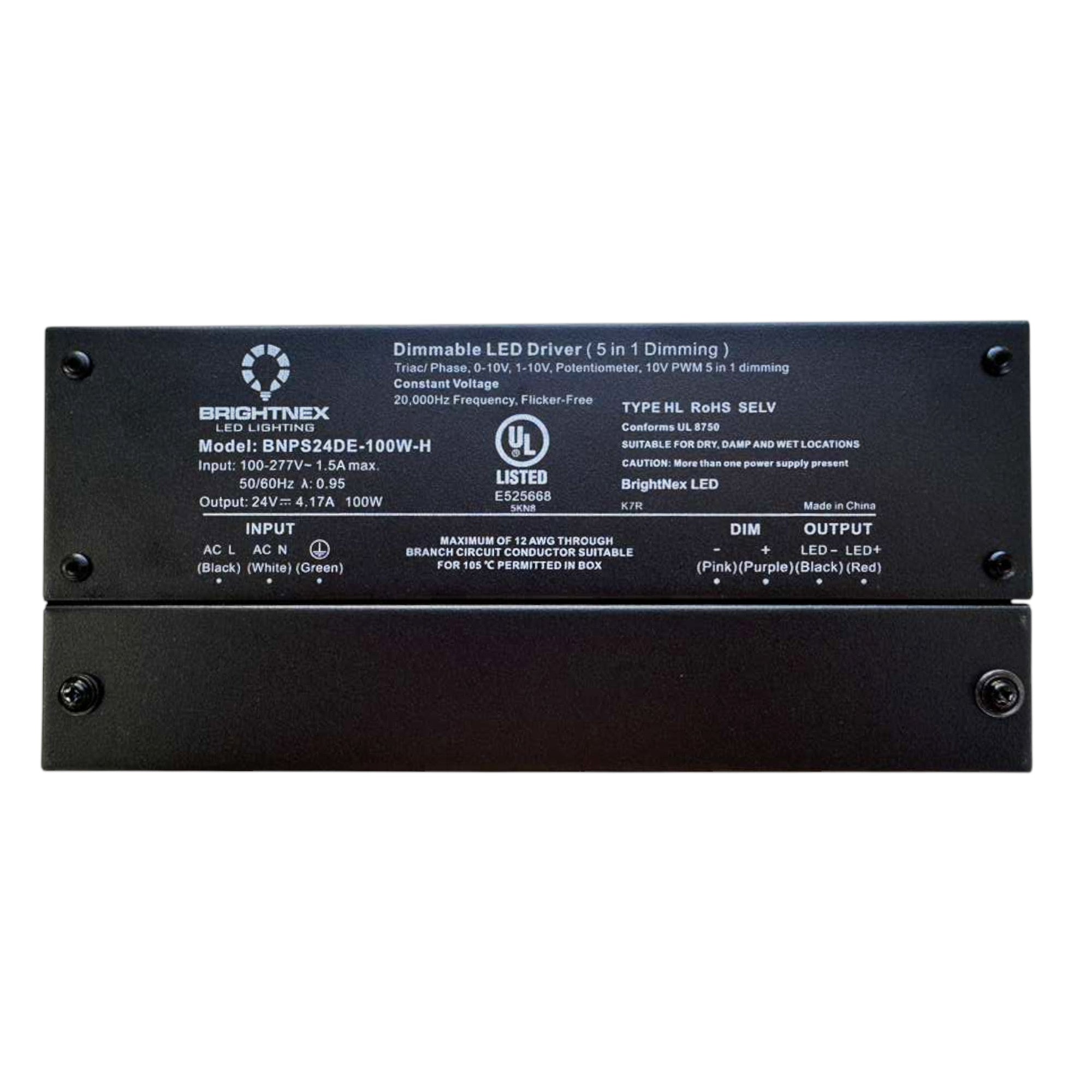

Part #: BNPS24DE-100W-H-0-10
Part #: BNPS12DE-100W-H-0-10
Features
-
5-in-1 Dimming Compatibility: Works with TRIAC, ELV, MLV, 0-10V, PWM, and Potentiometer dimmers
-
Smooth Dimming Range: 0.1–100% flicker-free control with 20kHz PWM
-
High Power Factor: Up to 0.98 @120VAC
-
Built-in Active PFC: Energy-efficient, stable performance
-
Constant Voltage Output: Available in 12V (8.33A) and 24V (4.17A) configurations
-
Full Protection: Safeguards against short circuit, overload, and overheating
-
Built-In Junction Box: Streamlined wiring for easy installation, For dry, damp and wet locations (not for submersion).
-
Certified Safe: UL, cUL, FCC, Type HL, SELV, RoHS
-
Built for All Conditions: Rated for dry, damp, and wet locations
-

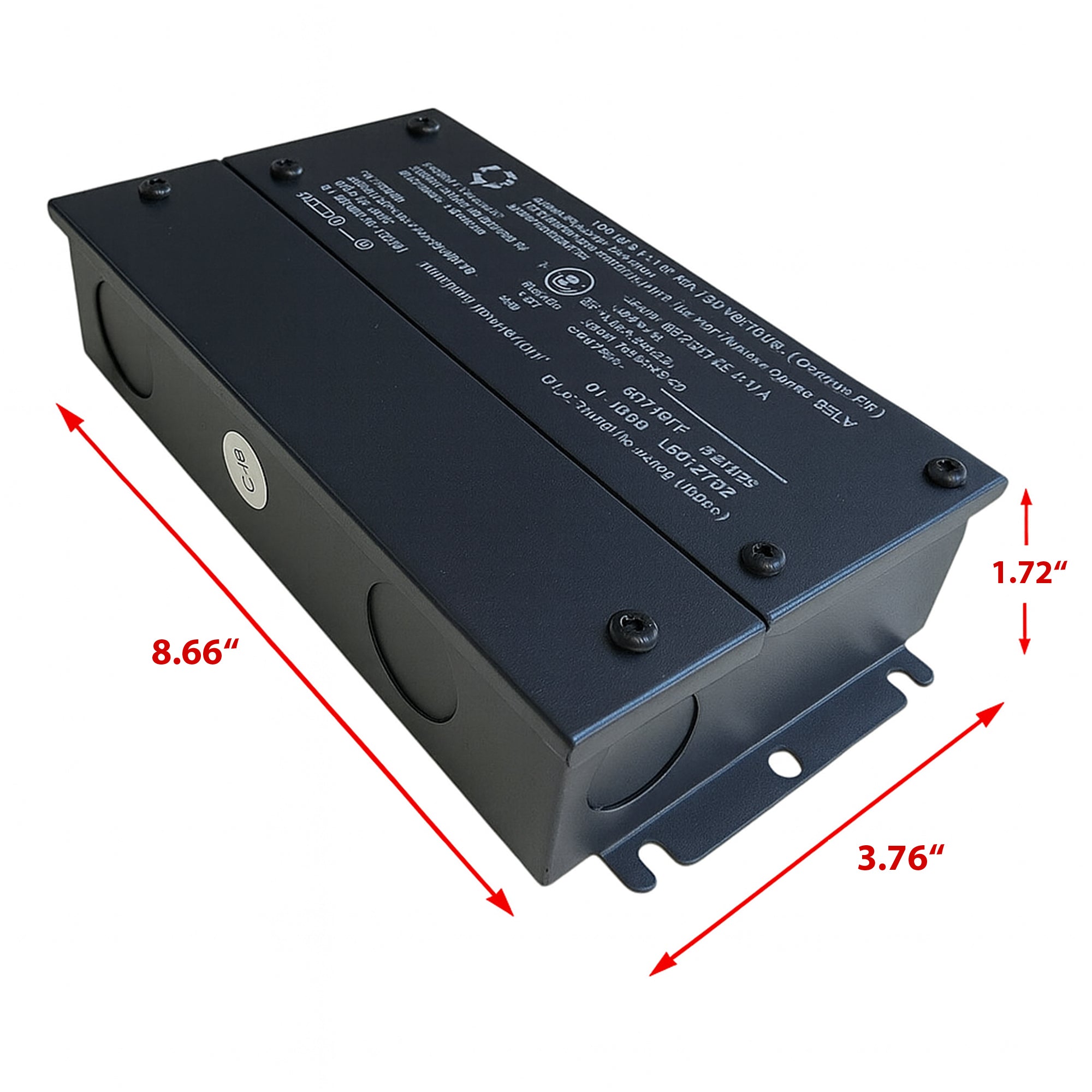

Compact Size: 8.66" × 3.76" × 1.72"
