Description
This 30W constant voltage LED driver is designed for seamless compatibility with TRIAC, ELV, and MLV wall dimmers. Ideal for residential and commercial lighting projects, it offers smooth 0–100% dimming, flicker-free PWM output, and a high power factor. Perfect for LED strips, signage, and architectural lighting.
Available in both 12V (2.5A) and 24V (1.25A) outputs.
Features
-

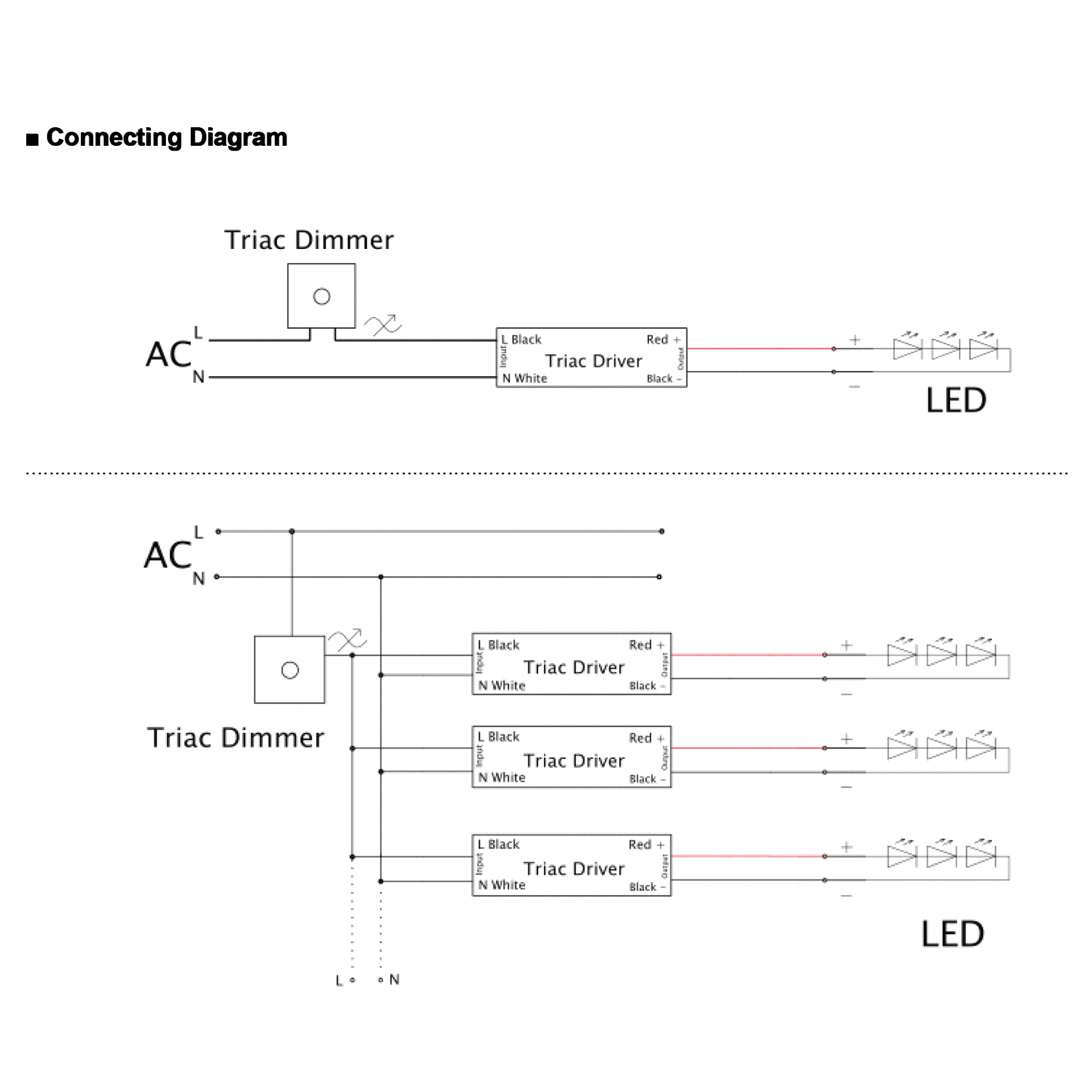

Phase-Cut Dimming: Compatible with TRIAC, ELV, and MLV dimmers
-
Smooth 0–100% Dimming: Flicker-free PWM output for stable lighting
-
Constant Voltage Output: Available in 12V (2.5A) and 24V (1.25A)
-
Universal Input Voltage: 100–277VAC, 47–63Hz
-
Waterproof Rated: Full Iron protection housing, for dry and damp locations.
-
High Power Factor: Up to 0.99 for energy efficiency
-
Built-In Protection: Short circuit, overload, and over-temperature
-
Certified Safe: UL / cUL / FCC / Class 2 / Class P / TYPE HL / SELV / RoHS
-

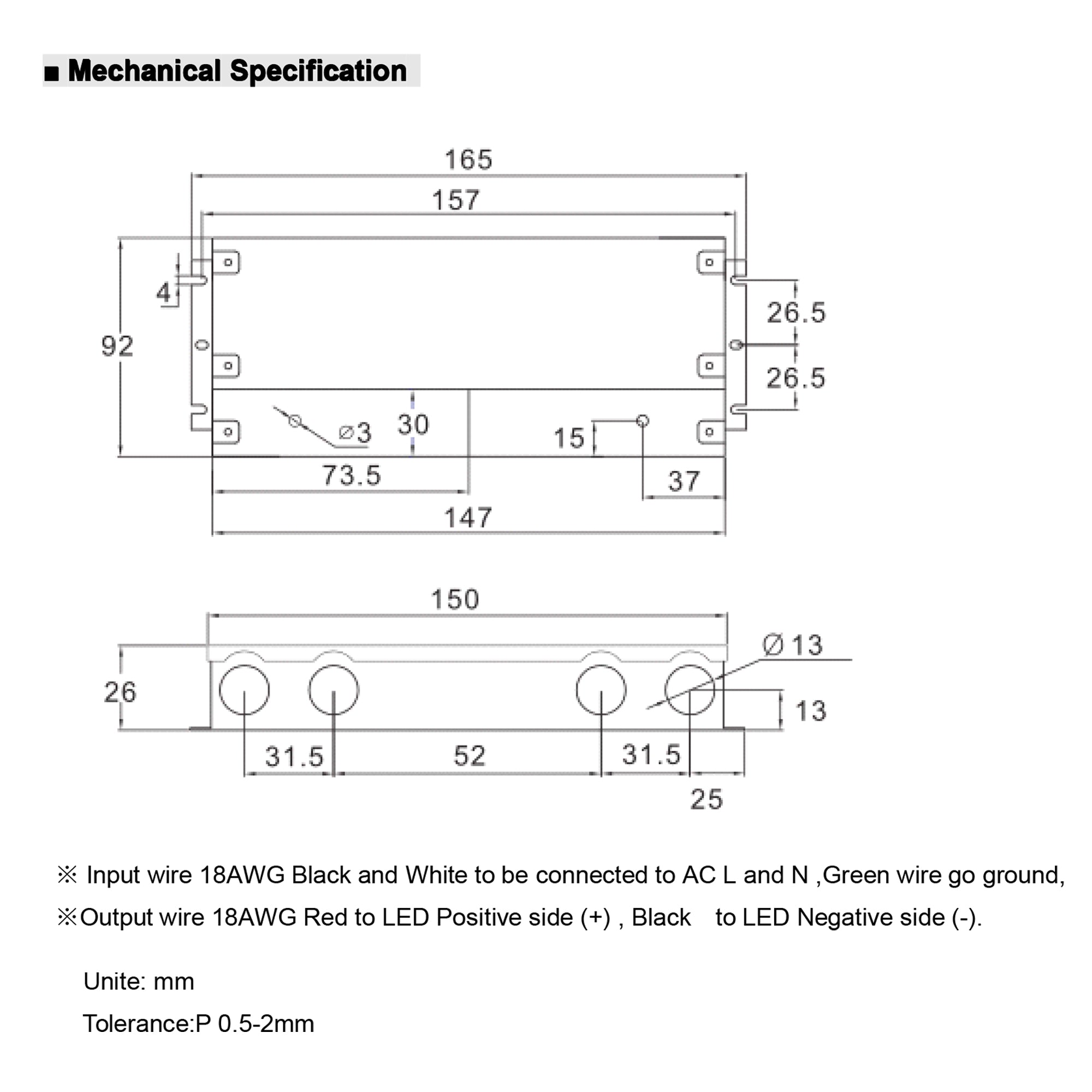

Compact Size: 6.50" × 3.75" × 1.72"
